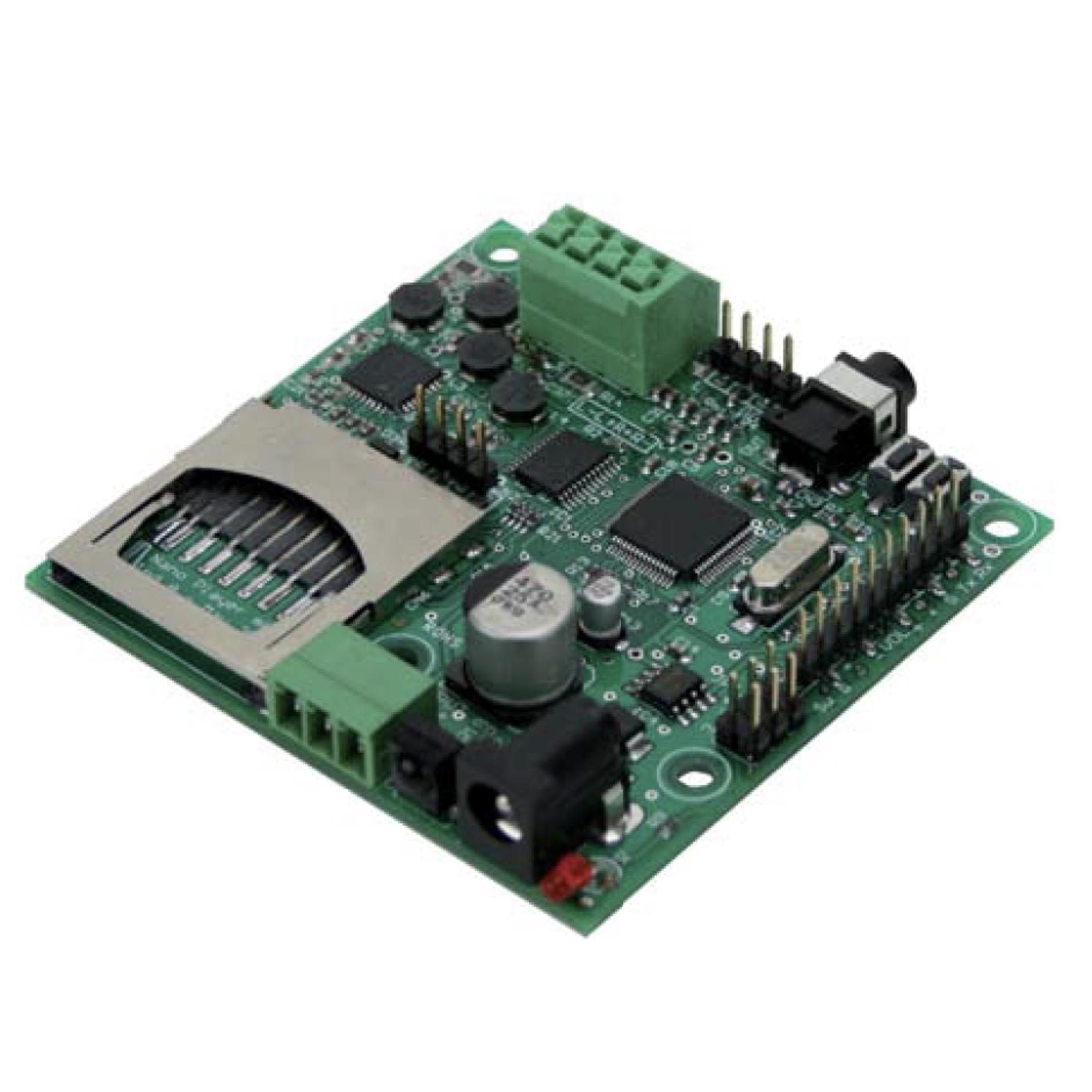

The NanoPlayer mkII OEM audio board is designed for integration into audio projects to add an interactive audio player to various devices, pieces of equipment, vehicles etc.

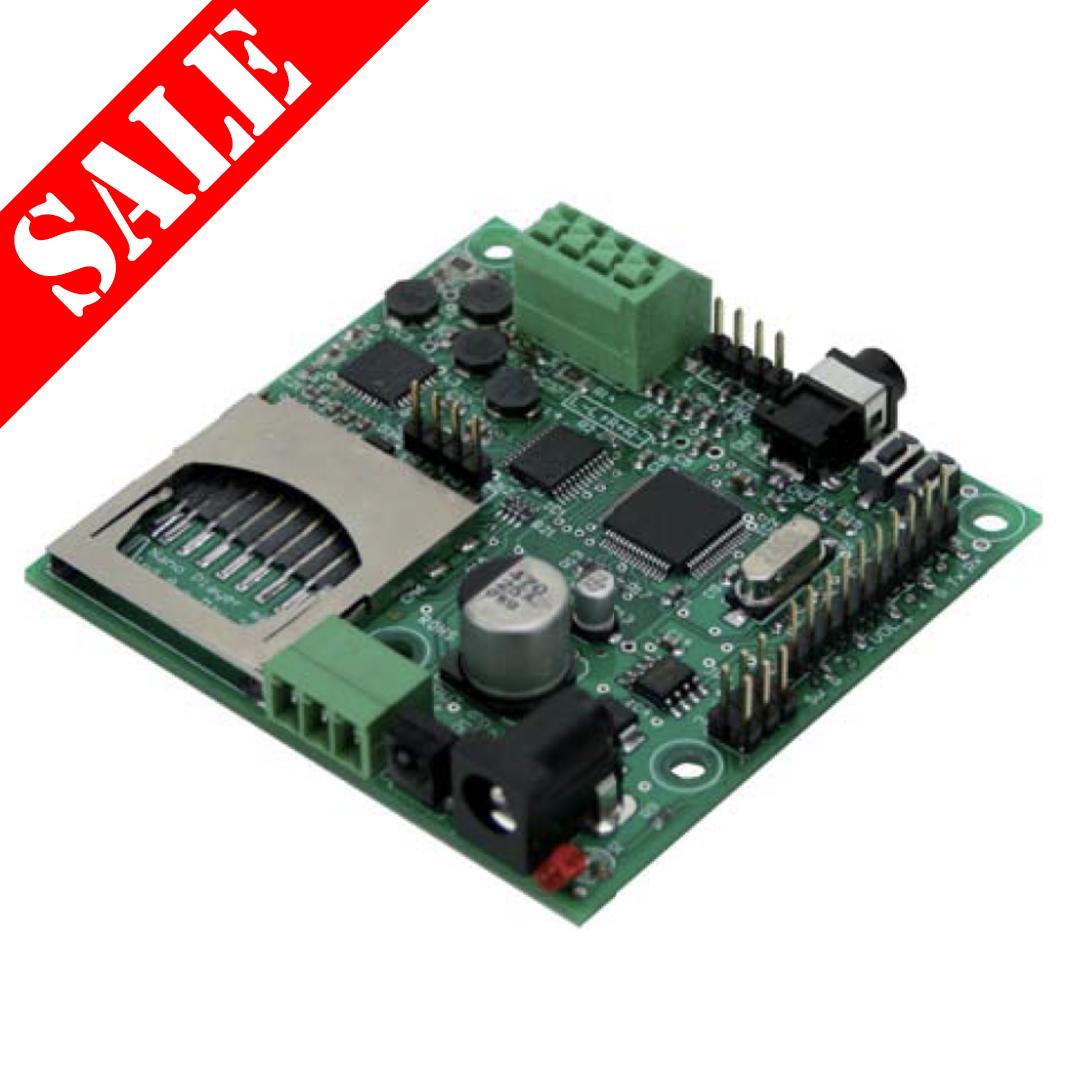

CLEARANCE PRICE - ONE ONLY

The NanoPlayer mkII reads audio files in WAV and MP3 formats, stored on SD/SDHC memory card to enable playback of messages, music or sound effects automatically upon powering on, by triggering the input contact or by optional infrared remote.

The organization of files on the card is simple and requires only a file manager. The first folder is read when power is switched on. A second folder is read when the input contact is triggered or the optional infrared control is used.

The filenames and folders names define the mode of playing : random or sequential playback, partial or continuous playback, interruptible or uninterruptible, loop or once only.

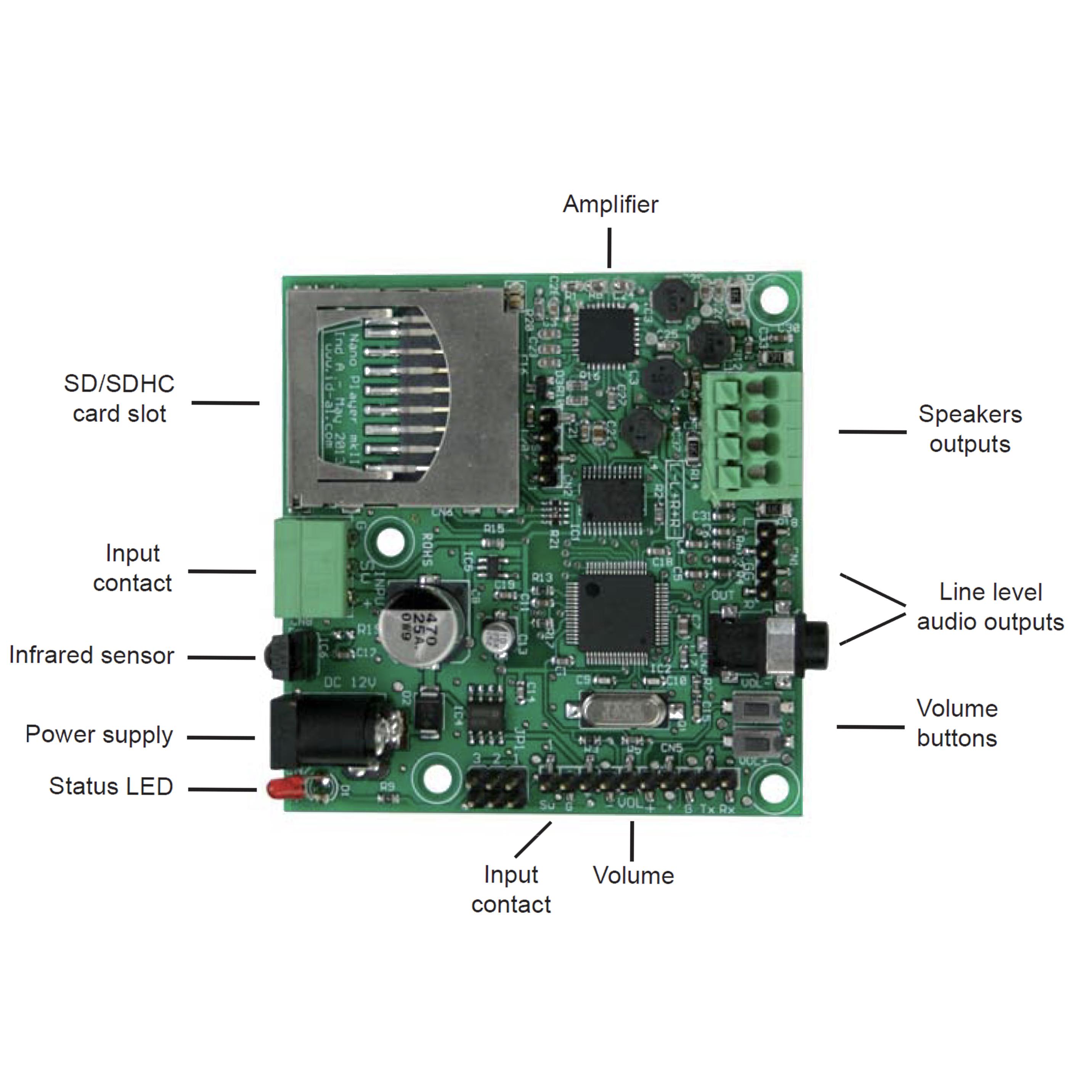

• Autoplay: playback automatically starts on powering on (configurable).
• Interactivity: one input on dry contact is available to trigger playback when activated, either on detection or on selection.
• Low power consumption: the player’s consumption is very low thus offering long autonomy when powered on battery. The Nanoplayer mkII is therefore suitable for outdoor applications using solar power supply.
• Integrated amplifier: connect directly onto speakers or stereo line output.
• Play WAV and MP3 fi le on SD/SDHC card.
• Stereo line output - Mini-jack 3.5.
• Amplified stereo output (from 13W to 16W in 4 Ohms and from 8W to 10W in 8 Ohms).
• Volume setting.
• Autoplay : playback automatically starts on powering on.
• Dry contact input - Phoenix 3.81mm plug-in connector.
• Infrared sensor.
• Triggered playback by dry contact input and infrared remote control.
• Nominal voltage: 12V DC (Power supply range: 10V to 15V DC).
• Consumption on 12V : from 110mA to 2A according to different modes of use.
• Dimensions: 70 x 67 x 15mm
• Weight: 40g
