Crown  DCi4/600
Click to expand

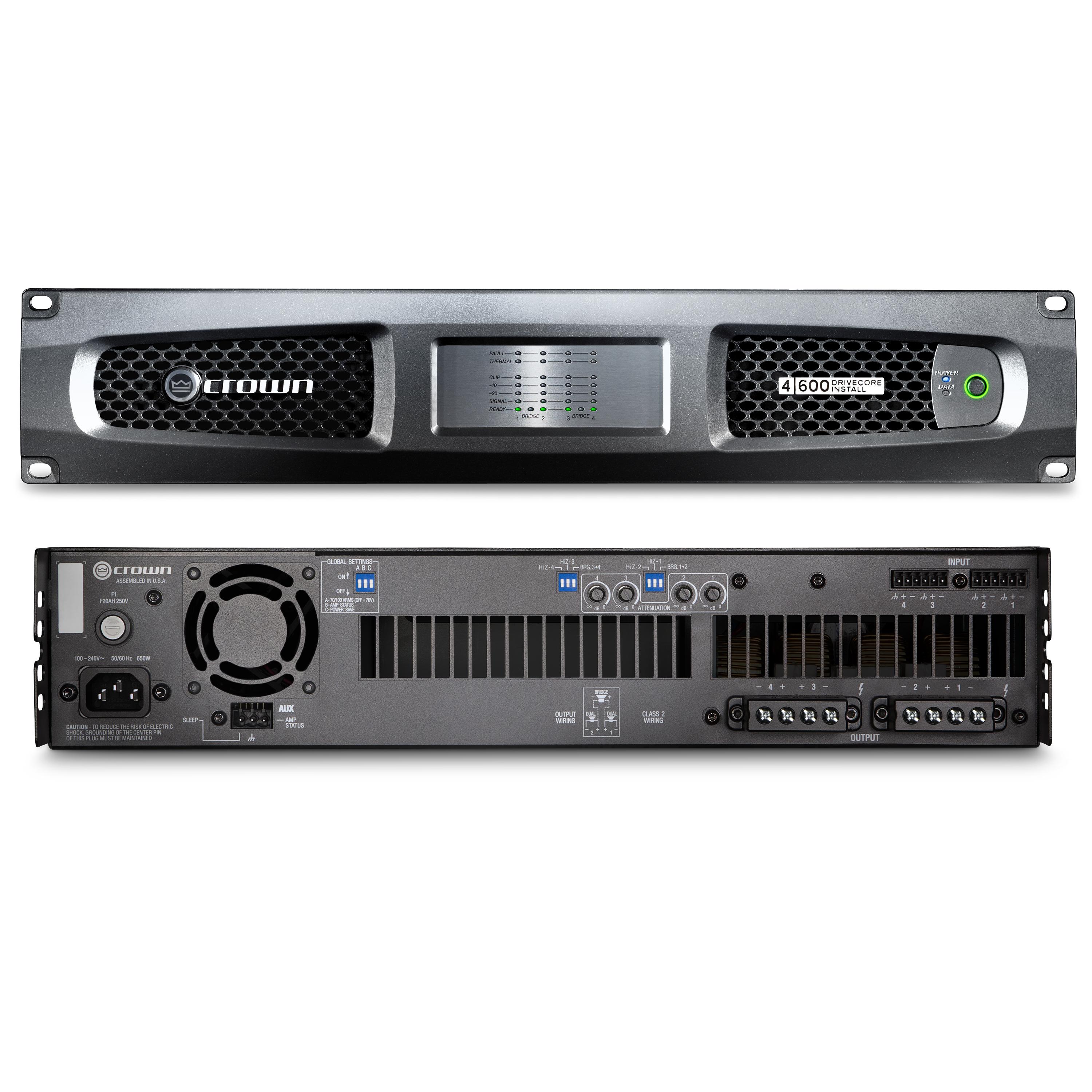

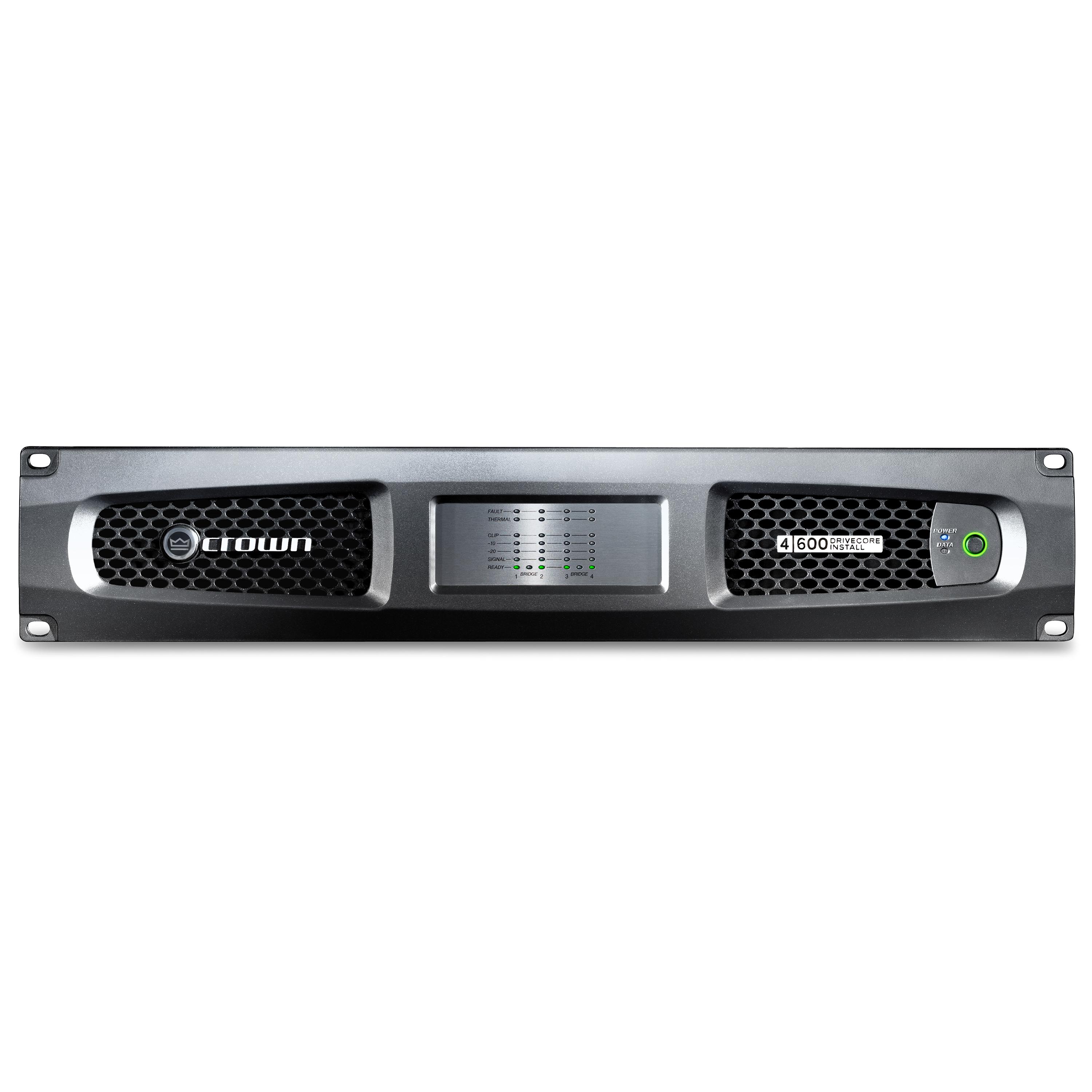

Crown DCi4/600

The Crown DCi4/600 DriveCore four channel installation amplifier is based on Harman DriveCore technology using the latest ultra-efficient Class D amplifiers.

These 4 channel  amps can be used on 2Ω, 4Ω or 8Ω low impedance music systems as well as 70v / 100 volt distributed sound systems. This model offers an output of up to 600 watts per channel.

The DCi4/600 amp is are extremely compact, in a 2U high rack mount housing. A powersave mode ensures that the amp is powered down after 30 minutes of no audio input and power consumption in standby is less that 1 watt.

Bridgeable output channel pairs, even in 100 volt line mode.

• 2,4 and 8 channel models available (see related items)
• All models only 2u in height
• Transformerless output stage
• Sleep mode to save power
• Selectable low and high impedance output per channel
• Amplifier status output
• 240vAC operation only
• Network/DSP version available, please contact us for details
100V multi-ch 2U 16ohms 4ohms 8ohms
List Ex VAT: £4,315.00
Log in for Trade Prices


Output Power
Dual (all channels driven)

2ohm: 300W
4ohm: 600W
8ohm: 600W
16ohm: 300W
70Vrms / 100Vrms: 600W

Output Power
Bridge Mono Mode (all channels driven)

4ohm: 600W
8ohm / 16ohm: 1200W
140Vrms / 200Vrms: 1200W

Frequency Response
(8 Ohms, 20 Hz - 20kHz)

±0.25 dB

Input Impedance (nominal balanced, unbalanced)

10 kOhms, 5 kOhms

Maximum Input Level before Compression


Maximum Input Level Before Clipping


Load Impedance Stereo/Dual Mode

2 - 16 Ohms; 70Vrms and 100Vrms

Load Impedance Bridge Mono

4 - 16 Ohms; 140Vrms and 200Vrms


Continuously variable speed forced air, front to back airflow

Maximum Fan Noise (re dBA SPL @ 1M)


Required AC Mains (±10%)

100V - 240V ~50/60Hz

IEC Power Connector


Width x Height x Depth

19 in. (48.3cm) x 3.5 in. (8.75cm) x 14.25 in (


20.1 lbs (9.12kg)

Related Products


Impedance meter - accurately measures speaker line impedances in public address and background music systems.

see more
List Ex VAT: £295.00

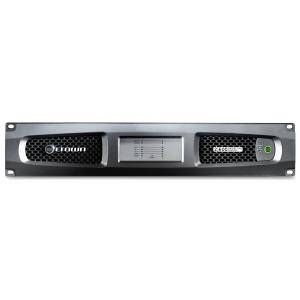

Crown DCi2/600
