Crown DCi2/300
Click to expand

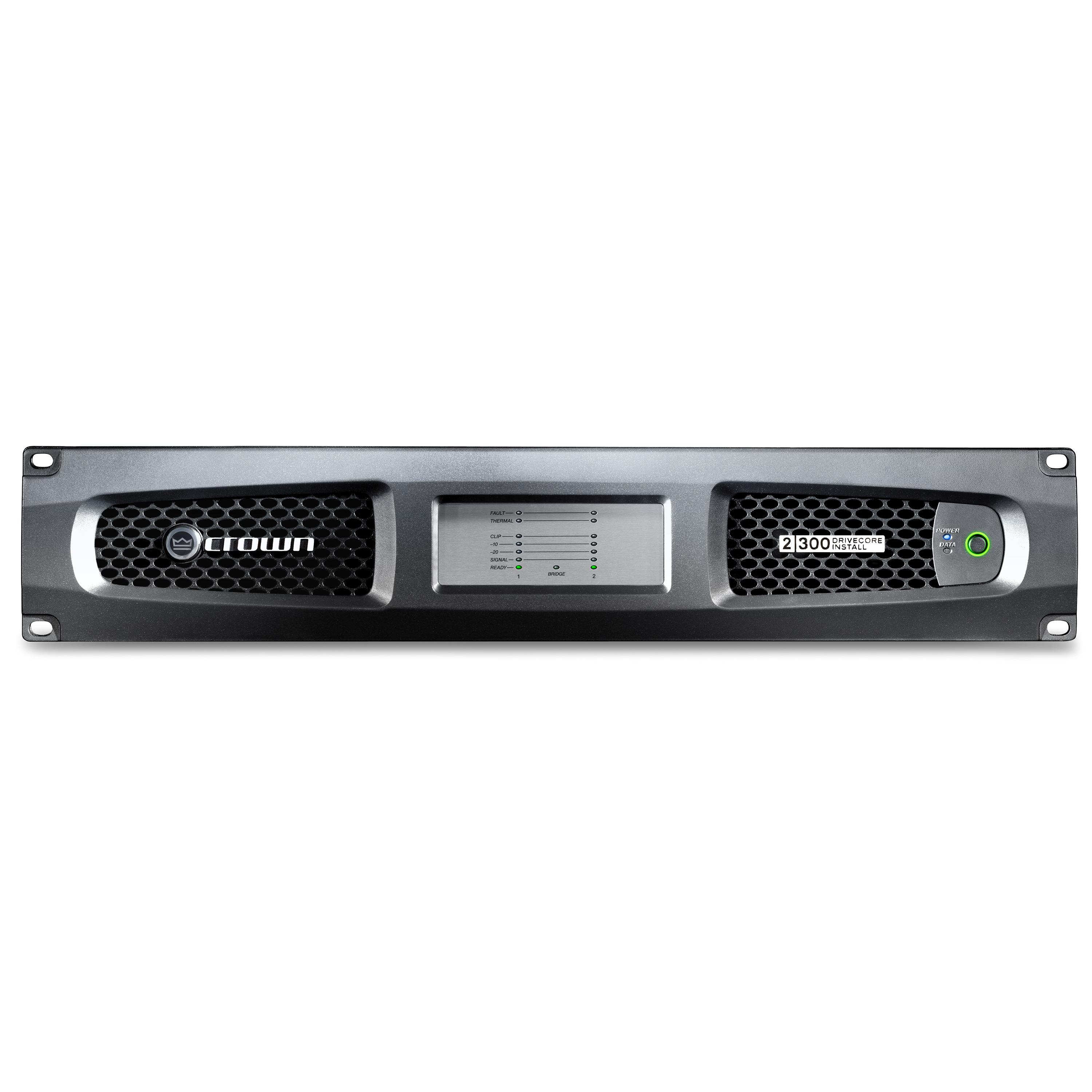

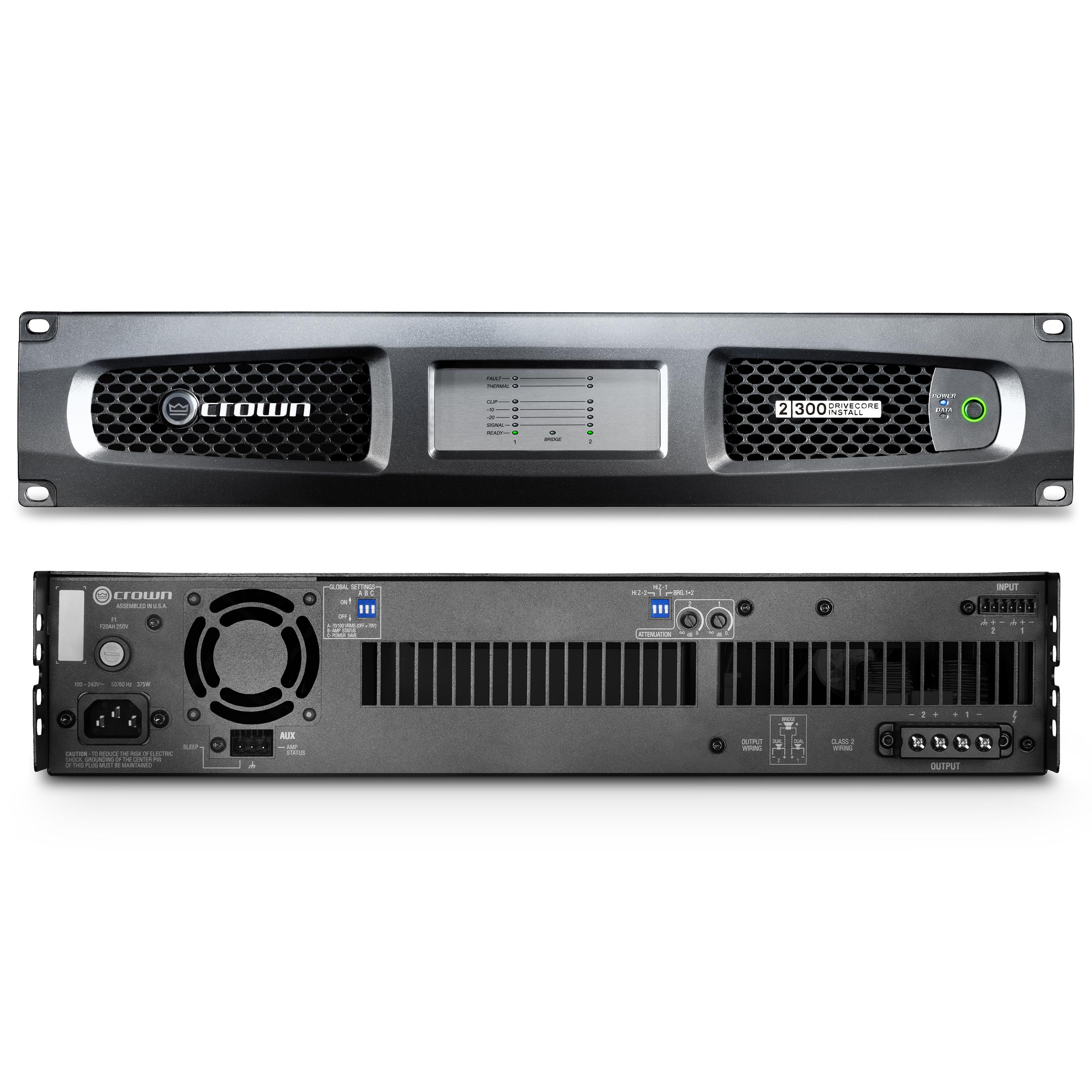

Crown DCi2/300

The Crown DCi2/300 DriveCore two channel installation amplifier is based on Harman DriveCore technology using the latest ultra-efficient Class D amplifiers.

These 2 channel amps can be used on 2Ω, 4Ω or 8Ω low impedance music systems as well as 70v / 100 volt distributed sound systems. This model offers an output of up to 300 watts per channel.

The DCi2/300 amp is extremely compact, in a 2U high rack mount housing. A powersave mode ensures that the amp is powered down after 30 minutes of no audio input and power consumption in standby is less that 1 watt.

Bridgeable output channel pairs, even in 100 volt line mode.

• 2,4 and 8 channel models available (see related items)

• All models only 2u in height

• Transformerless output stage

• Sleep mode to save power

• Selectable low and high impedance output per channel

• Amplifier status output

• 240vAC operation only

• Network/DSP version available, please contact us for details

100V multi-ch 2U 16ohms 4ohms 8ohms
List Ex VAT: £1,770.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Output Power
Dual (all channels driven)

2ohm: 150W
4ohm: 300W
8ohm: 300W
16ohm: 150W
70Vrms / 100Vrms: 300W

Output Power
Bridge Mono Mode (all channels driven)

4ohm: 300W
8ohm / 16ohm: 600W
140Vrms / 200Vrms: 600W

Frequency Response
(8 Ohms, 20 Hz - 20kHz)

±0.25 dB

Input Impedance (nominal balanced, unbalanced)

10 kOhms, 5 kOhms

Maximum Input Level before Compression

+20dBu

Maximum Input Level Before Clipping

+26dBu

Load Impedance Stereo/Dual Mode

2 - 16 Ohms; 70Vrms and 100Vrms

Load Impedance Bridge Mono

4 - 16 Ohms; 140Vrms and 200Vrms

Cooling

Continuously variable speed forced air, front to back airflow

Maximum Fan Noise (re dBA SPL @ 1M)

45

Required AC Mains (±10%)

100V - 240V ~50/60Hz

IEC Power Connector

15A IEC

Width x Height x Depth

19 in. (48.3cm) x 3.5 in. (8.75cm) x 14.25 in (36.cm)

Weight

18.8 lbs (8.53kg)
