TOA SC-610M

TOA SC-610M

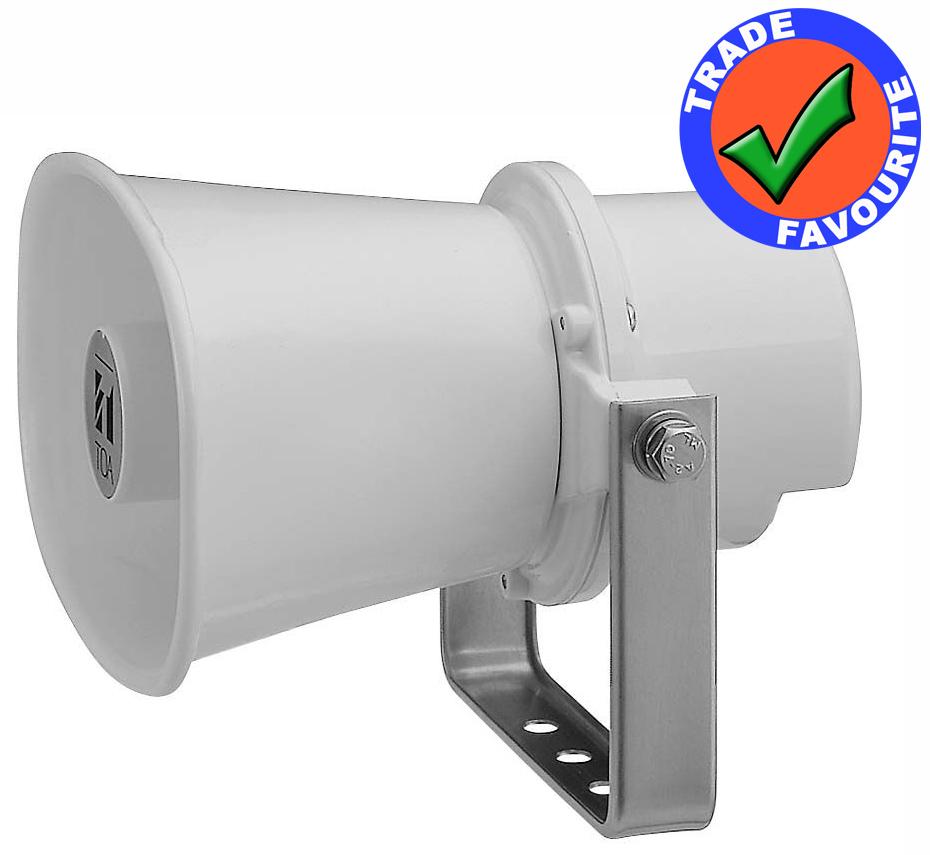

The TOA SC-610M high impedance horn loudspeaker is amongst our favourite products. It's rated at 10 Watts RMS and is suitable for 70V / 100V line distributed sound systems only.

Water resistant, rated IP65.

See related products for the other versions available: SC-615M - 15 watts or SC-630M - 30 watts.

The oval flare produces enhanced speech clarity and is constructed from aluminium, finished with off-white powder coating. Supplied with stainless steel mounting bracket and hardware.

The diaphragm is of a new design employing special heat-resistant fibres impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape.

  • 10W
  • 70V / 100V line.
  • Stainless steel brackets and hardware.
  • Shock resistant aluminium oval horn.
  • Unobtrusive off-white colour.
  • Water resistant, rated IP65.
100V IPxx
List Ex VAT: £60.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 10 W
Line Voltage

100 V line or 70 V line
Impedance

100 V line: 1 k Ω (10 W), 2 k Ω (5 W),3.3 k Ω (3 W), 10 k Ω (1 W),
70 V line: 500 / (10 W), 1 k Ω (5 W),2 k Ω (2.5 W), 3.3 k Ω(1.5 W),10 k Ω (0.5 W)
SPL (1W/1m) 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
Frequency Range (-10dB) 315HZ - 12500HZ
IP rating IP65
Material / finish

Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Colour Off-White
Dimensions mm 172 (W) x 161 (H) x 188 (D) mm
Weight (kg) 1.2 kg
