LD Systems STINGER 12 G3
Click to expand

LD Systems STINGER 12 G3

The LD Systems STINGER 12 G3 highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems.

The STINGER® 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs.

The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

The STINGER 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust 15mm birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating and steel grille. Mounting and handling is facilitated by the Dual-Tilt stand attachment, flight points and ergonomic handles.

The STINGER 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

  • 2-way passive 12” bass reflex PA speaker
  • 400 watts RMS power handling
  • 125 dB maximum SPL

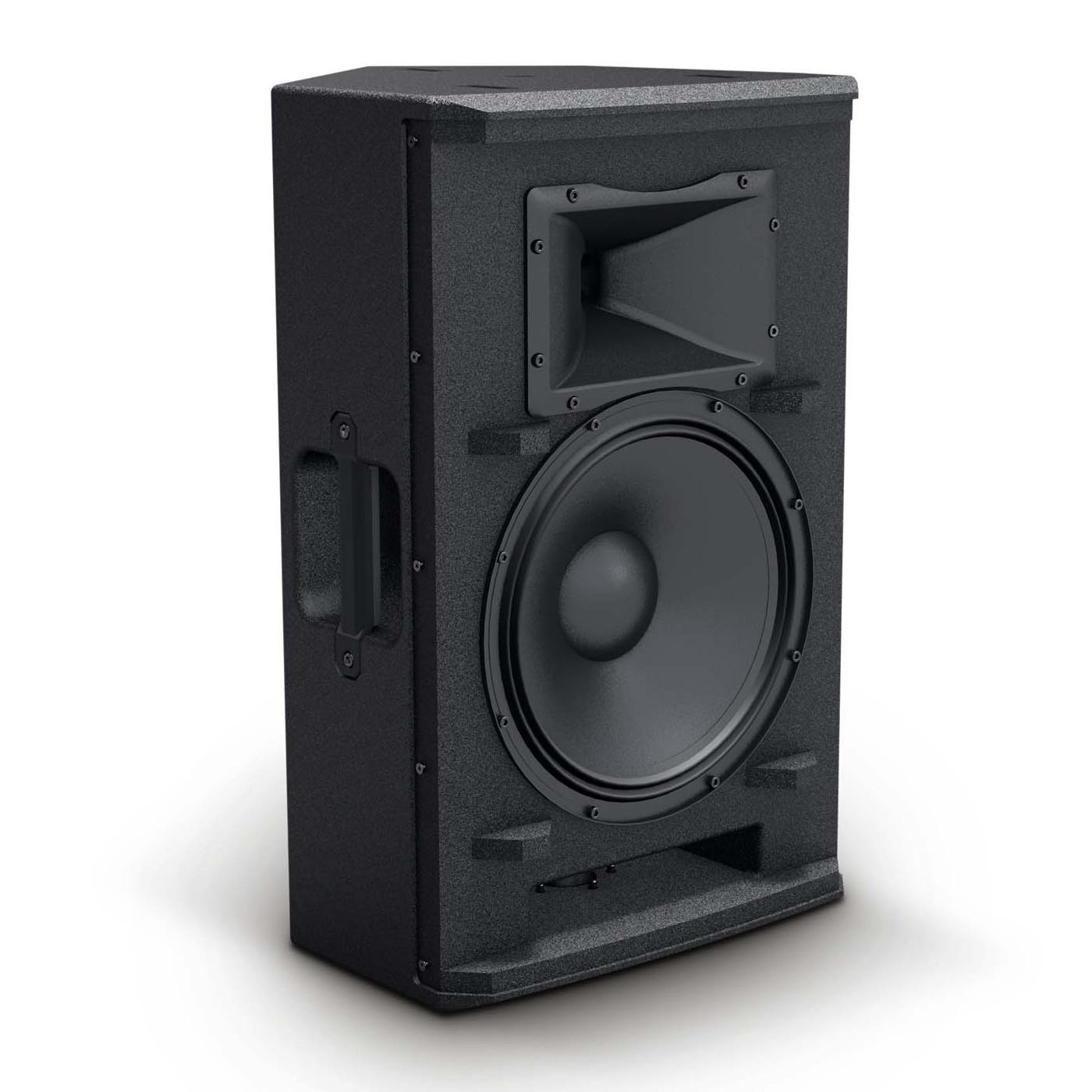

  • 12“ custom woofer and BMS compression driver
  • BEM optimized HF waveguide for uniform coverage
  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

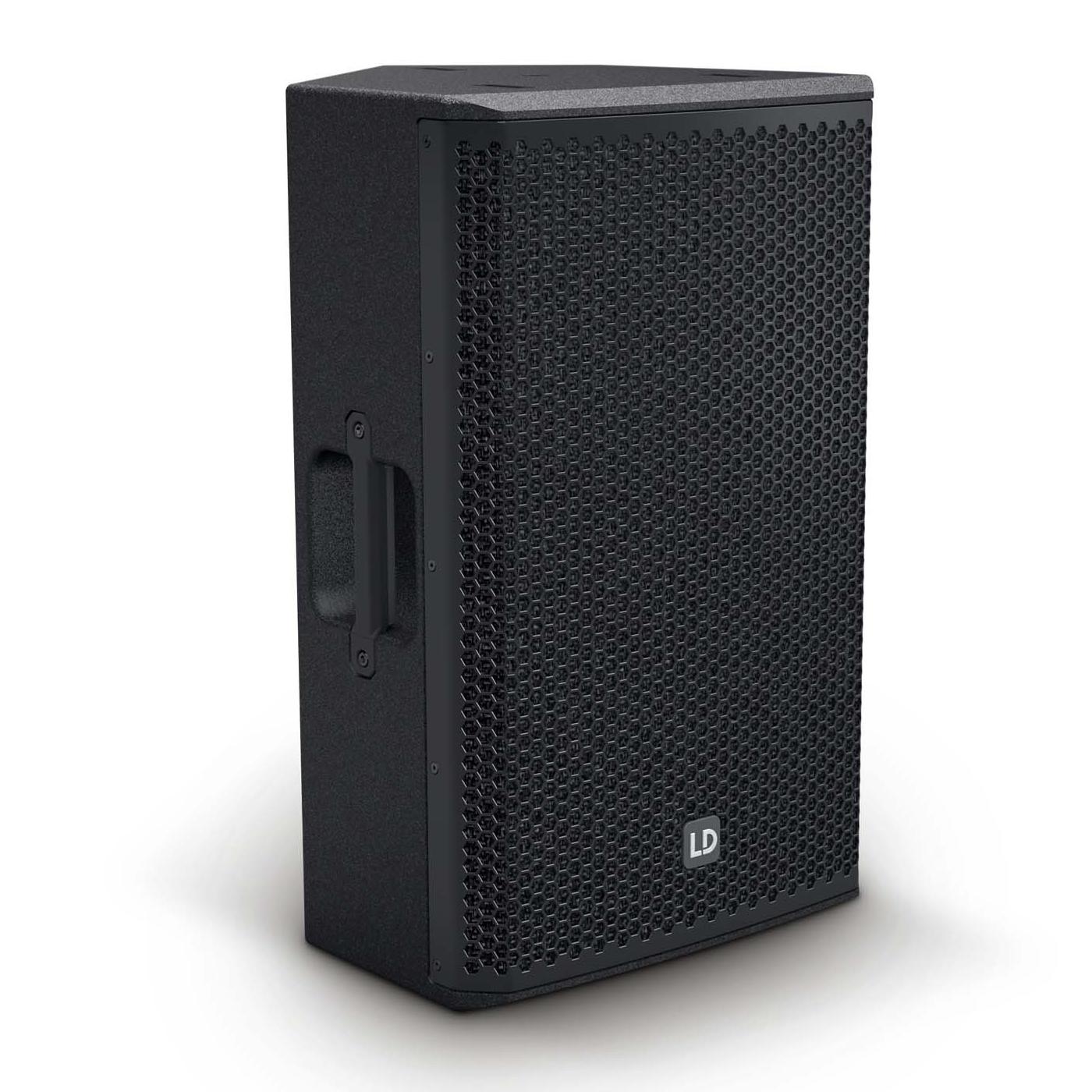

  • Shock-resistant front grill provides maximum speaker protection

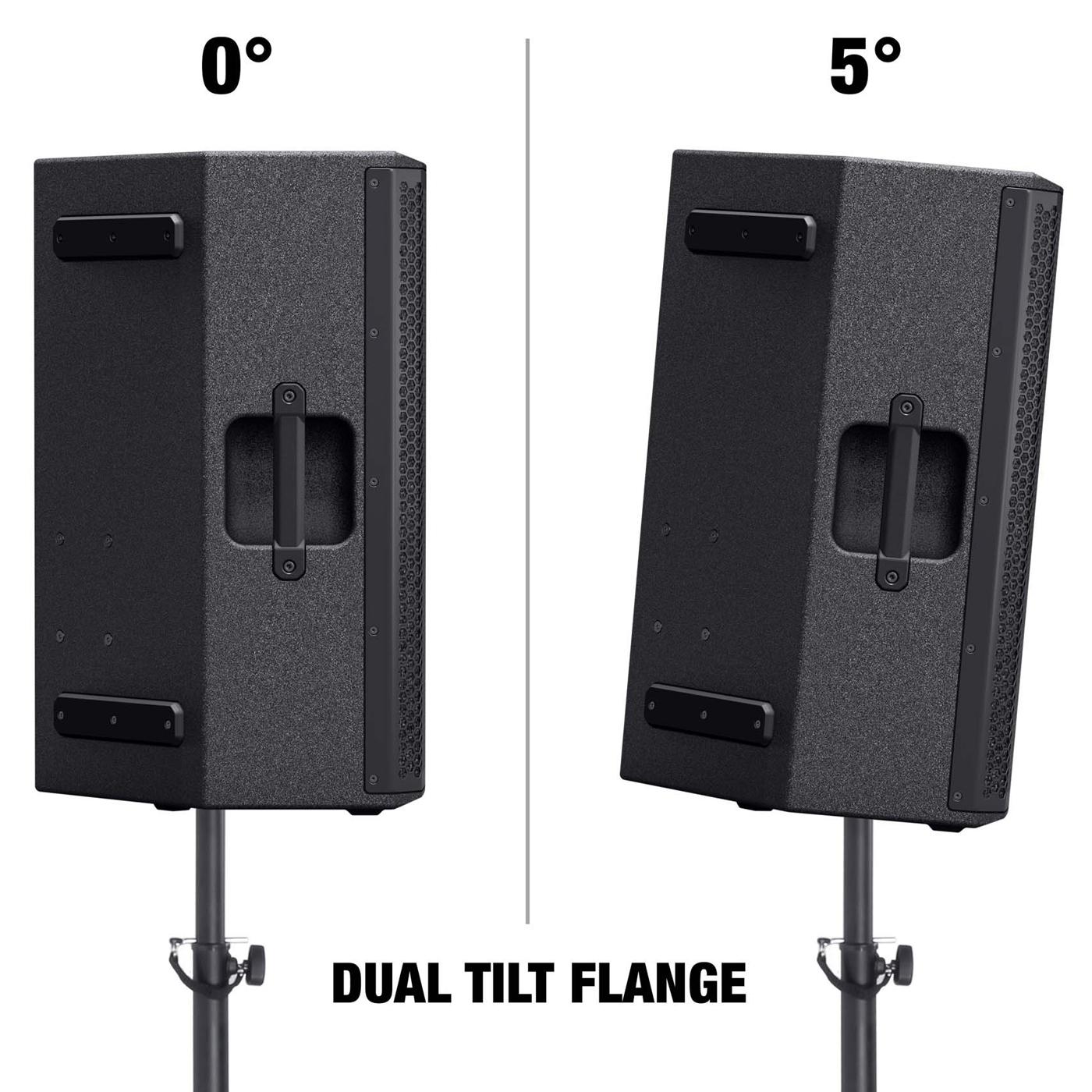

  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
  • Large selection of smart installation and transport accessories
8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

12 " (304.8 mm) + 2.5” (63.5mm) Voice Coil

Horn

BEM optimized CD Horn

HF driver dimensions

1 " (25.4mm) + 1 " (25.4mm) Voice Coil

Dispersion (H x V)

90° x 50°

Load rating (RMS)

400 W

Peak power

800 W

Frequency response (Hz)

58 - 20000

SPL (1W/1m)

99 dB

Max. SPL

125 dB

Impedance

8 Ohm(s)

Protection circuits

HF Driver

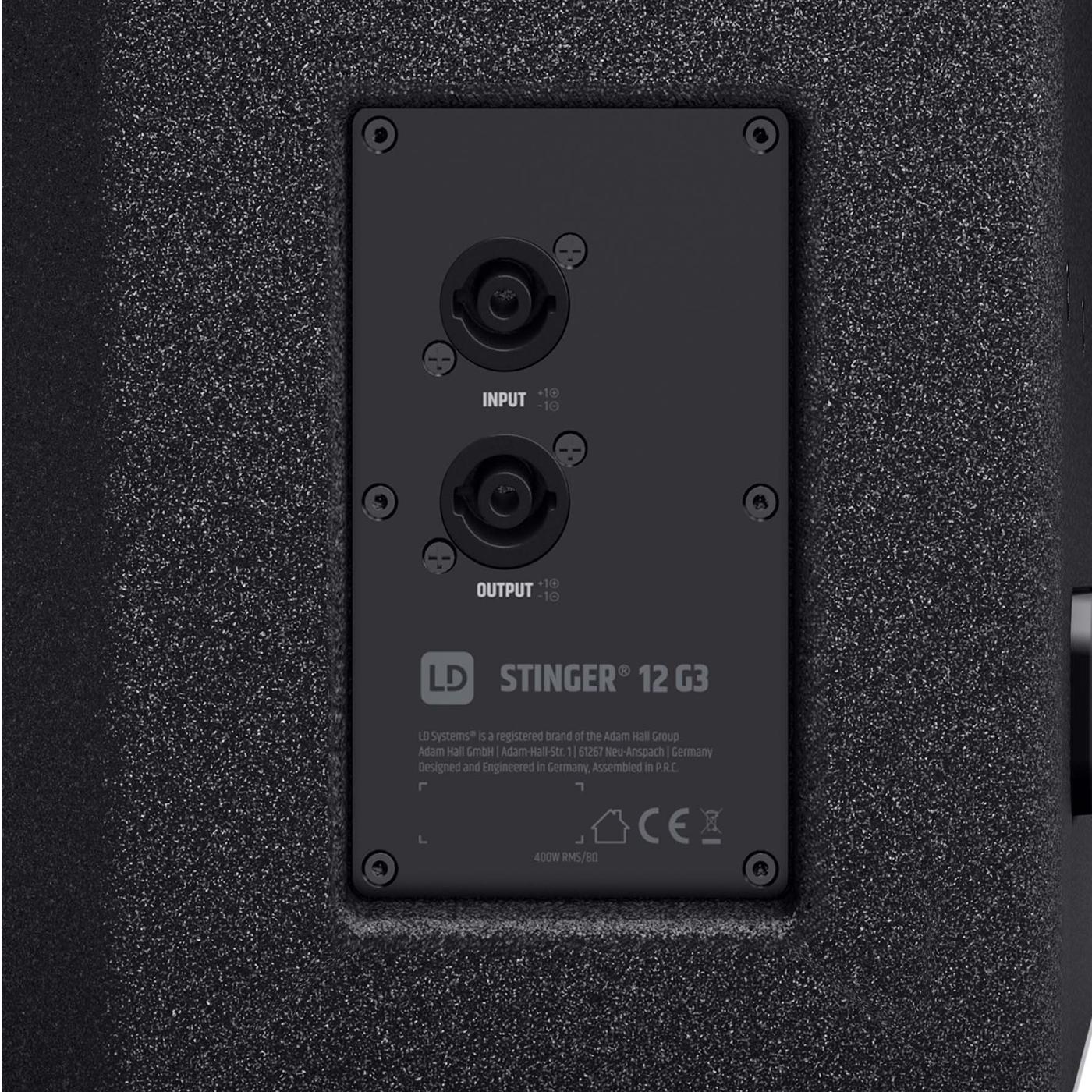

Speaker input connections

1 x Speakon compatible

Speaker output connections

1 x Speakon compatible

Speakers per amplifier channel (DSP44/45K)

3

Cabinet material

15 mm Plywood

Cabinet surface

Polyurea

Cabinet construction

Bass Reflex

Height x Width x Depth

627 mm x 390 mm x 377 mm

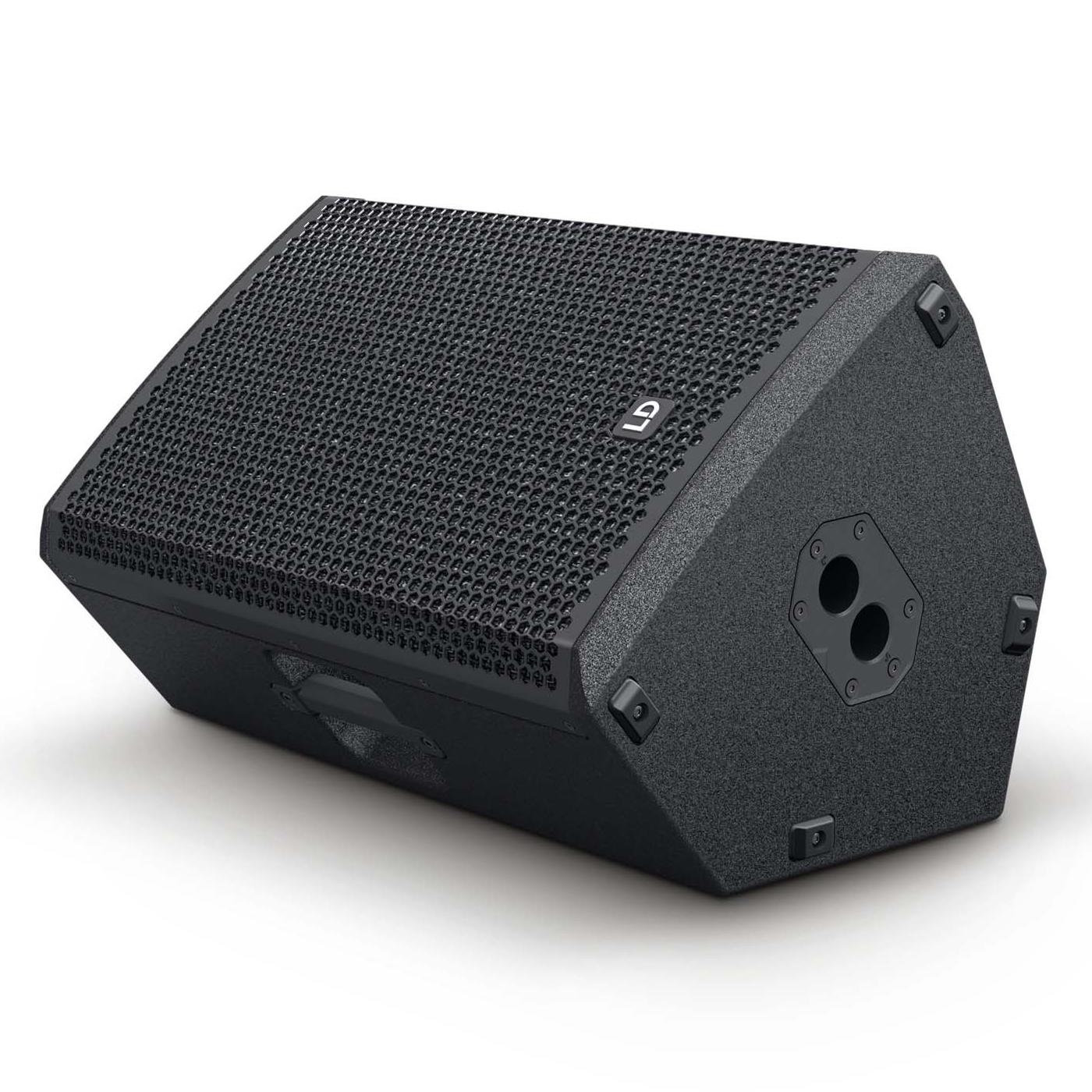

Monitor Angle

54°

Weight

19.4 kg
