LD Systems STINGER 15 G3
Click to expand

LD Systems STINGER 15 G3

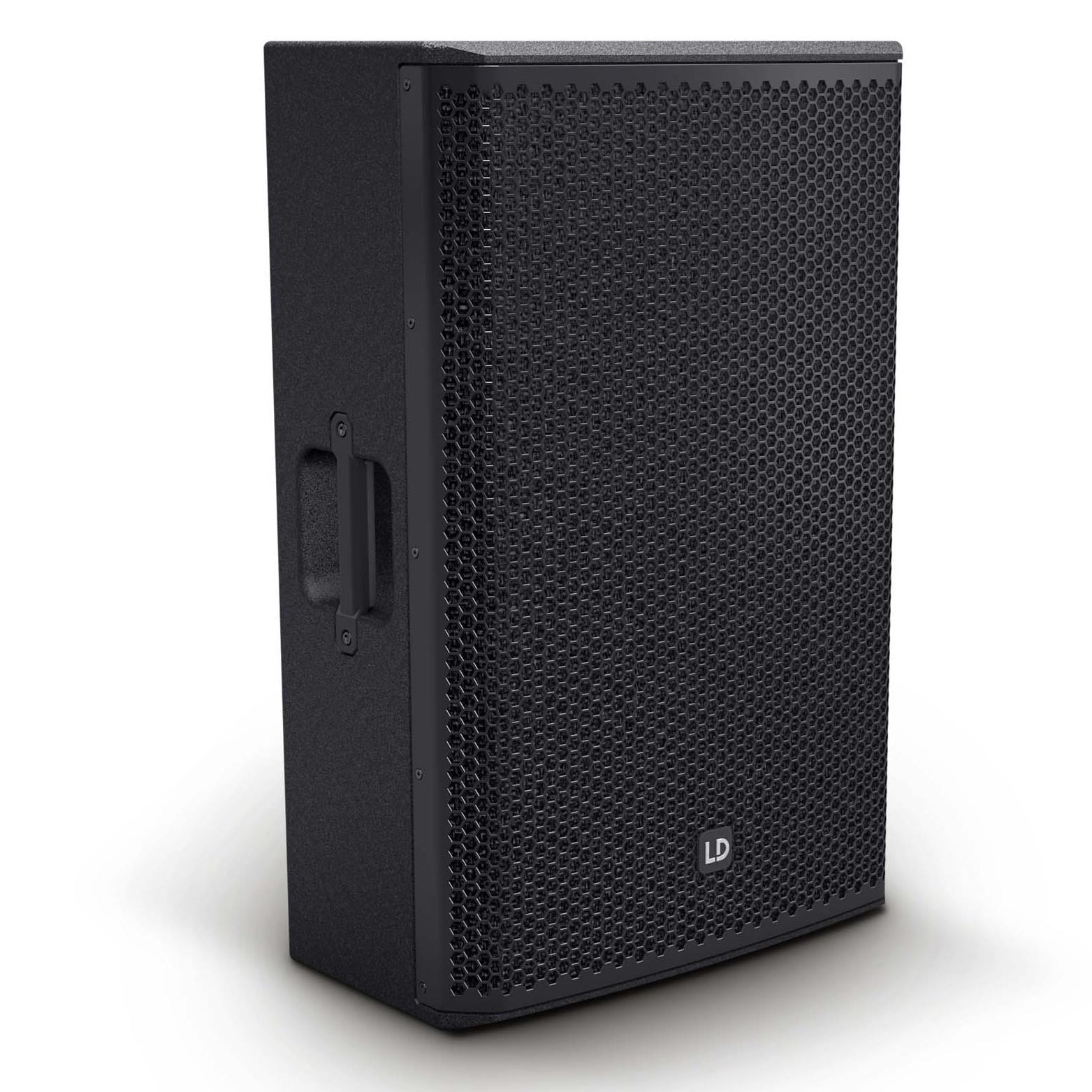

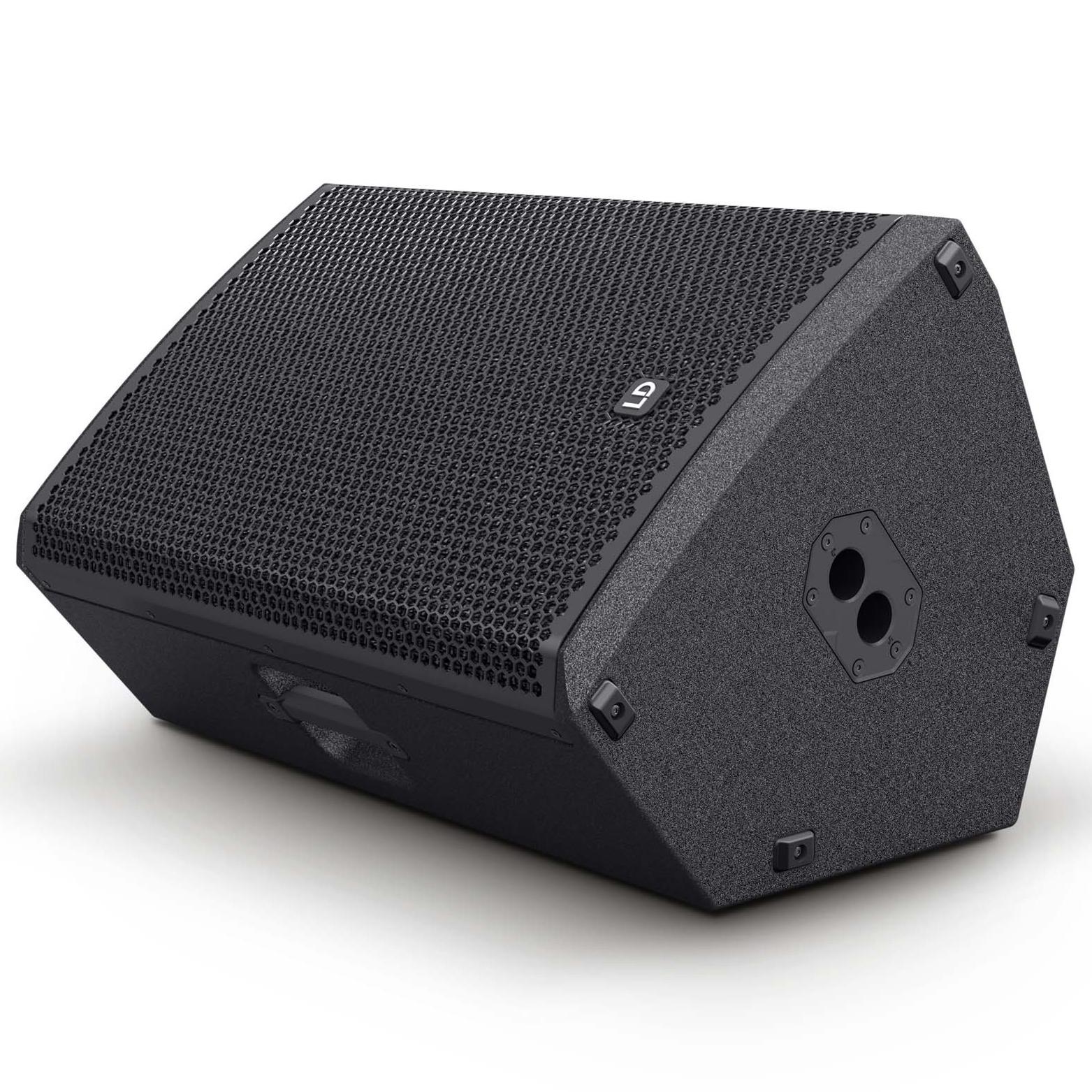

The LD Systems STINGER 15 G3 highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems.

The STINGER® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs.

The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

The STINGER 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust 15mm birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating and steel grille. Mounting and handling is facilitated by the Dual-Tilt stand attachment, flight points and ergonomic handles.

The STINGER 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

  • Passive 2-way bass-reflex PA speaker
  • 500 watts RMS
  • 127 dB maximum sound pressure level

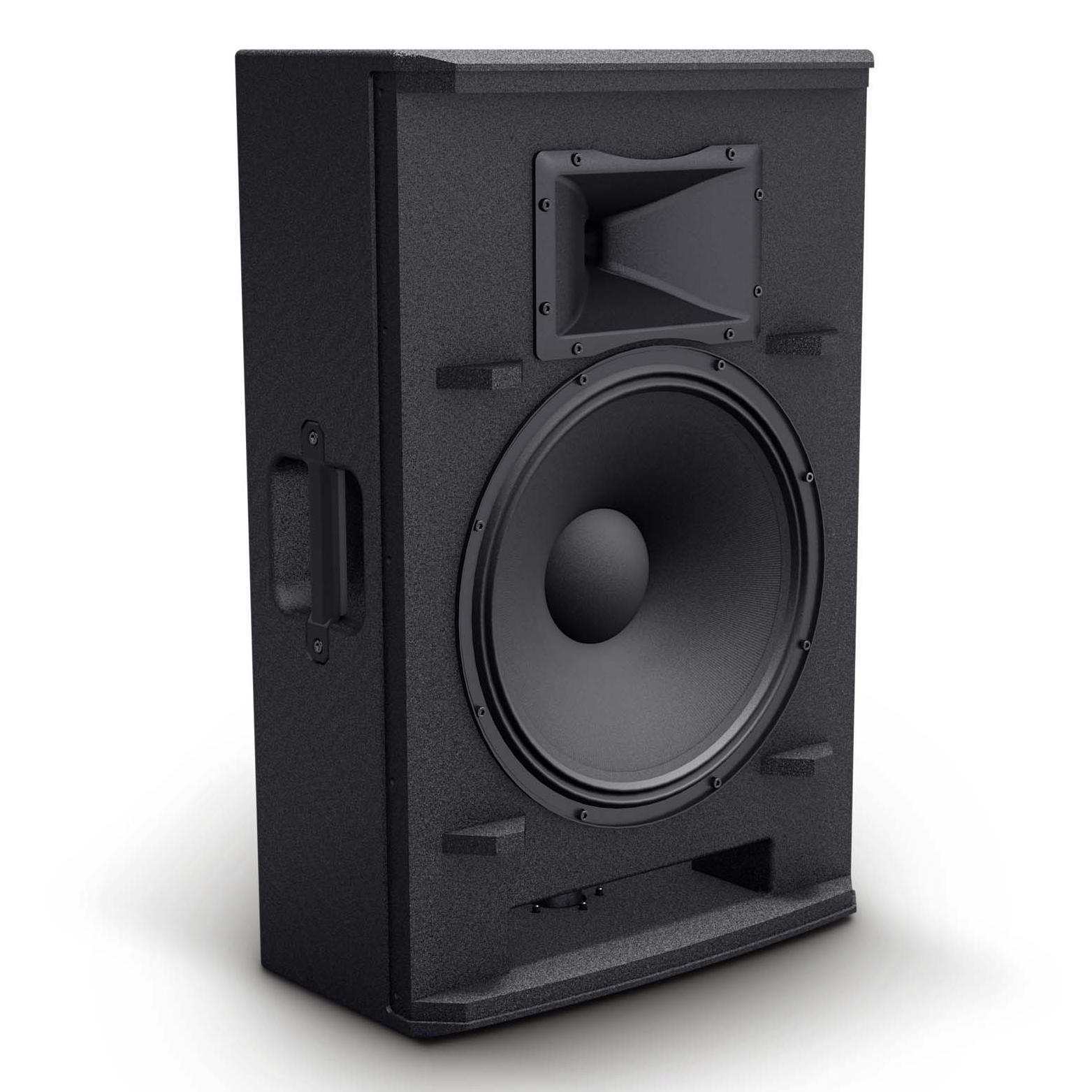

  • 15" Custom Woofer and BMS driver
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Birch plywood cabinet with extremely durable polyurea coating
  • Shock-resistant front grille to protect the loudspeaker

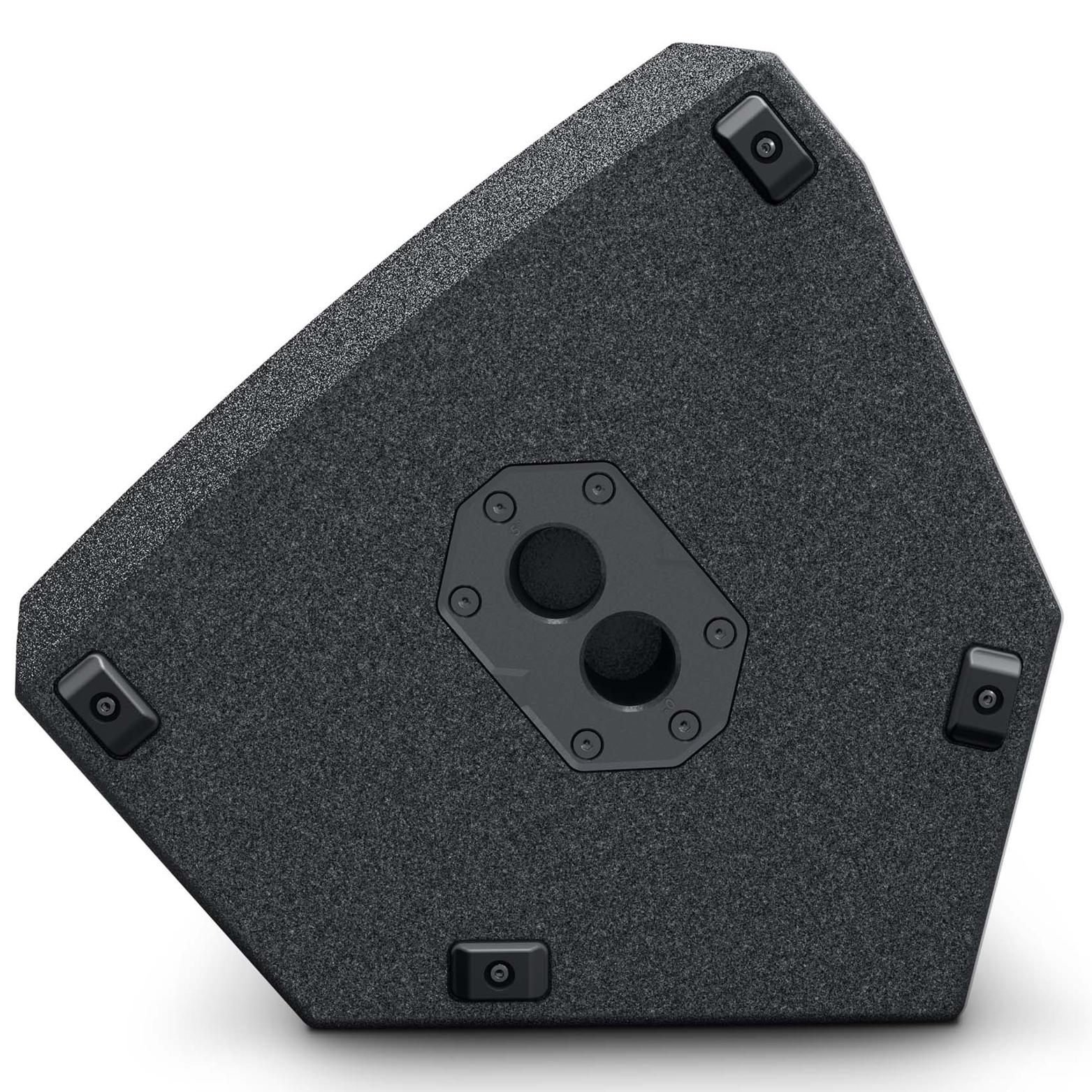

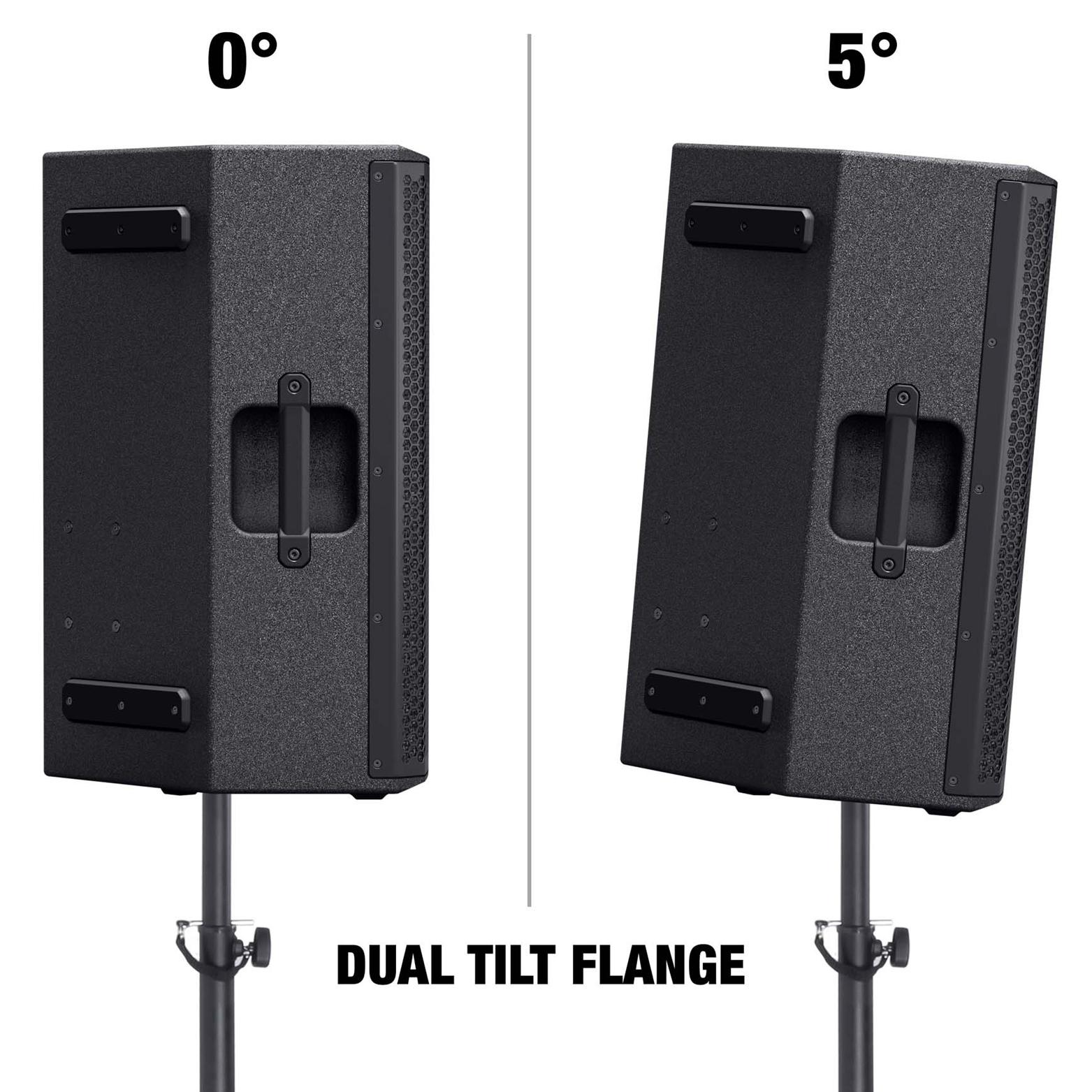

  • 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport
8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

15 " (381 mm) + 3” (76.2mm) Voice Coil

Horn

BEM optimized CD Horn

HF driver dimensions

1 " (25.4mm) + 1 " (25.4mm) Voice Coil

Dispersion (H x V)

90° x 50°

Load rating (RMS)

500 W

Peak power

1000 W

Frequency response (Hz)

50 - 20000

SPL (1W/1m)

100 dB

Max. SPL

127 dB

Impedance

8 Ohm(s)

Protection circuits

HF Driver

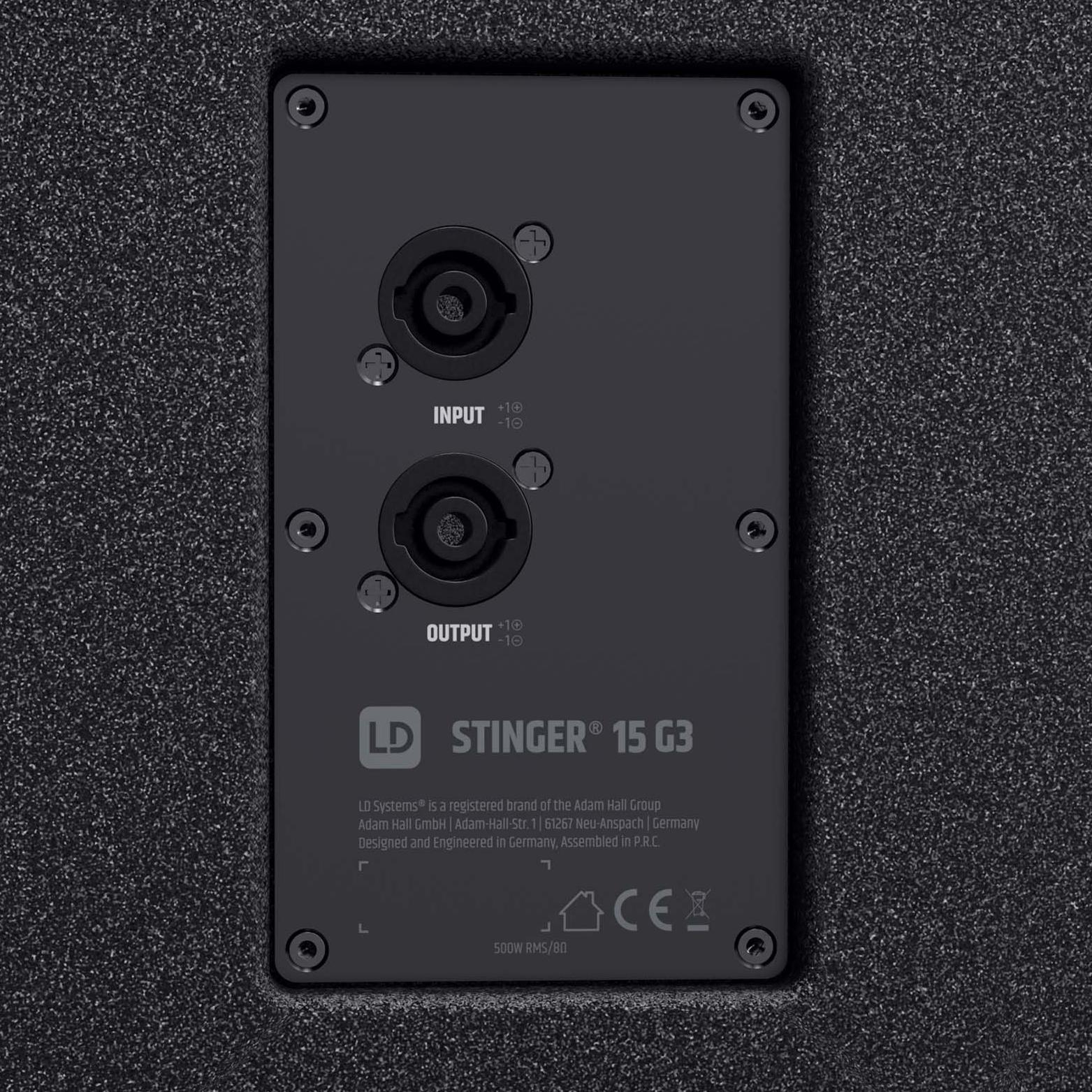

Speaker input connections

1 x Speakon compatible

Speaker output connections

1 x Speakon compatible

Speakers per amplifier channel (DSP44/45K)

3

Cabinet material

15 mm Plywood

Cabinet surface

Polyurea

Cabinet construction

Bass Reflex

Height x Width x Depth

737 mm x 480 mm x 455 mm

Monitor Angle

54°

Weight

25.7 kg
