LD Systems ICOA 15
Click to expand

LD Systems ICOA 15

The LD Systems ICOA 15 is a passive 15" full-range loudspeaker which stands out with impressive sound even at low frequencies. The versatile coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible. Finished in black. Also available in white - see related products.

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 15 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer.

It’s also ideal for fixed installations. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 125 dB peak and has 1000 Watt peak performance.

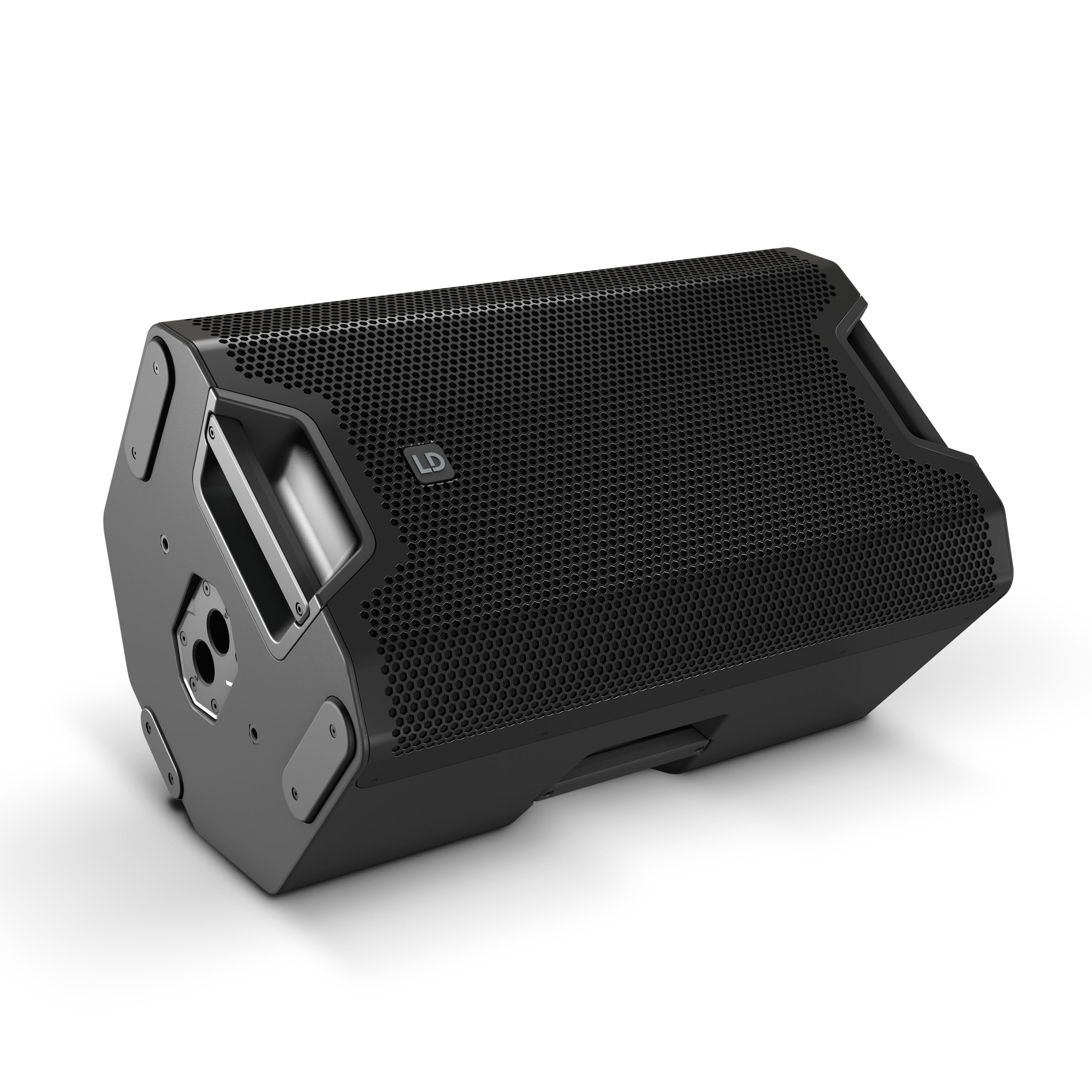

The shock-resistant front grille and 55° tilt angle make the ICOA15 the perfect choice as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

For mobile use, four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker and an extensive selection of smart accessories for installation and transport are available separately.

  • A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
  • Passive loudspeaker with 125 dB max. SPL and 1000 W peak power

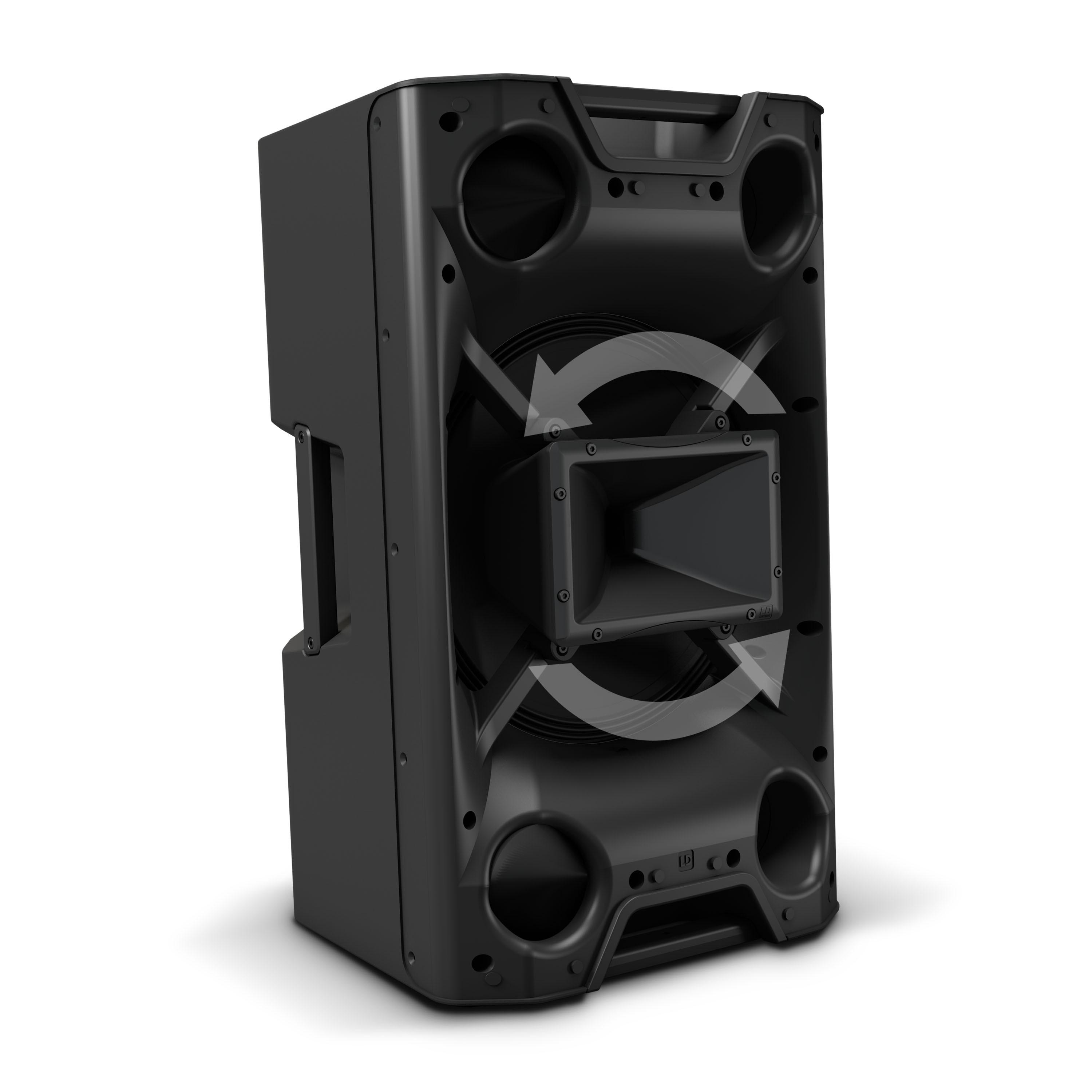

  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer

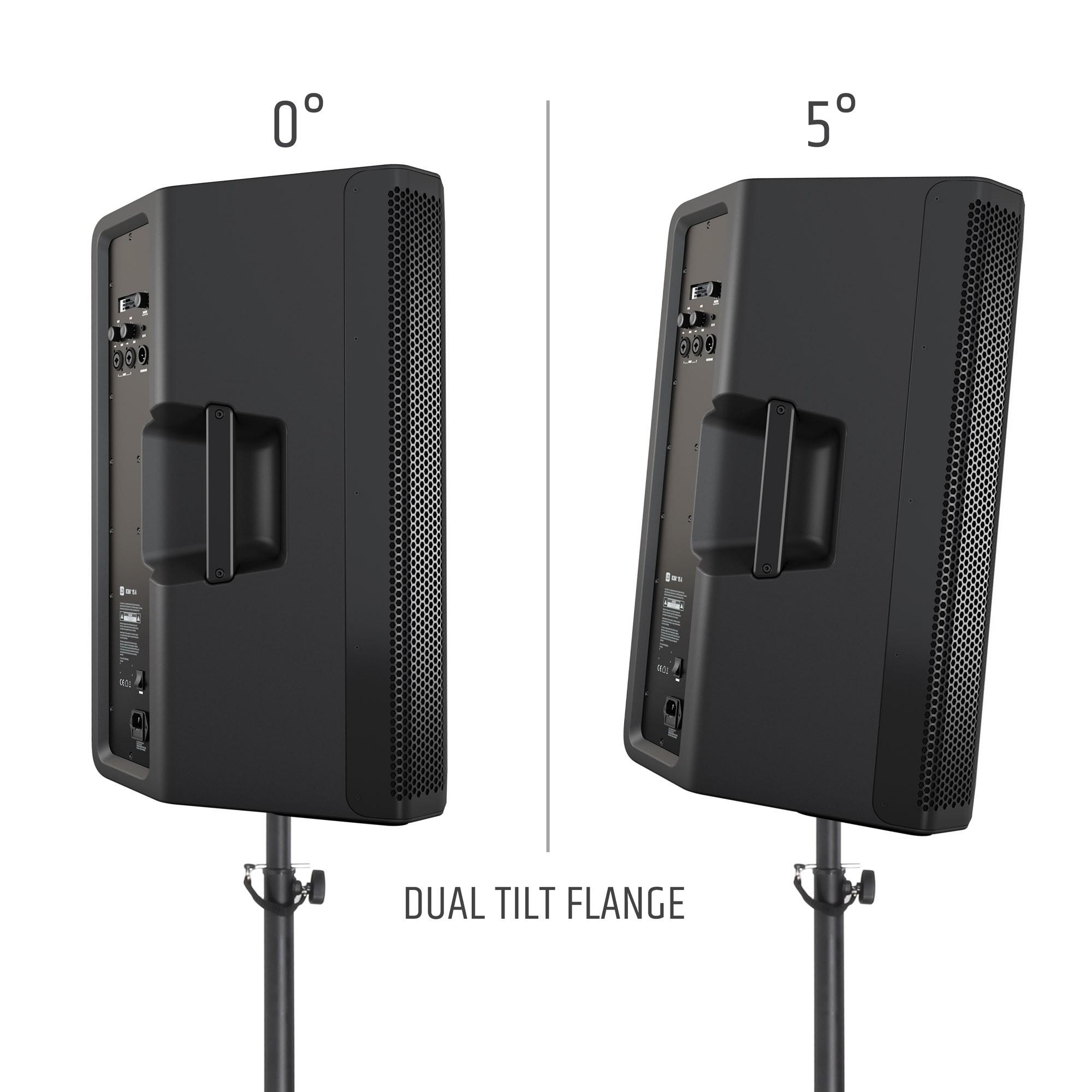

  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal speaker protection
  • Four aluminium grips with ergonomic, rubber surface
  • Extensive range of optionally available accessories for installation and transport
8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

15 " (381 mm)

Horn

BEM optimized CD Horn

HF driver dimensions

1 " (25.4mm) + 1.4 " (35mm) Voice Coil

Dispersion (H x V)

90° x 50°

Load rating (RMS)

250 W

Peak power

1000 W

Frequency response (Hz)

48 - 20000

SPL (1W/1m)

95 dB

Max. SPL

125 dB

Impedance

8 Ohm(s)

Speaker input connections

1 x Speakon compatible

Speaker output connections

1 x Speakon compatible

Cabinet material

Polypropylene

Cabinet construction

Bass Reflex

Mounting

36mm flange (0°, 5°), 6 x M10 flying points

Height x Width x Depth

695 mm x 416 mm x 415 mm

Monitor Angle

55°

Weight

24.7 kg
