LD Systems MAUI 44 G2

The LD Systems MAUI 44 G2 is the flagship of the MAUI series column PAs and offers an enormous 1,500 watts of total output (RMS) with a frequency response of 37 Hz to 20 kHz and SPL of 132 dB (peak).

With its outstanding sound properties and wide-ranging functions, this compact column PA is perfect for audio rental companies, musicians, small clubs, street festivals as well as permanent installations.

Set up is simple - the column elements and sub simply slot together via special multi-pin connections; no cables required.

Professional users will appreciate the cardioid properties of the column elements and the option to create a cardioid bass with an additional subwoofer.

The column achieves a rear attenuation of 18 dB, the subwoofer 15 dB.

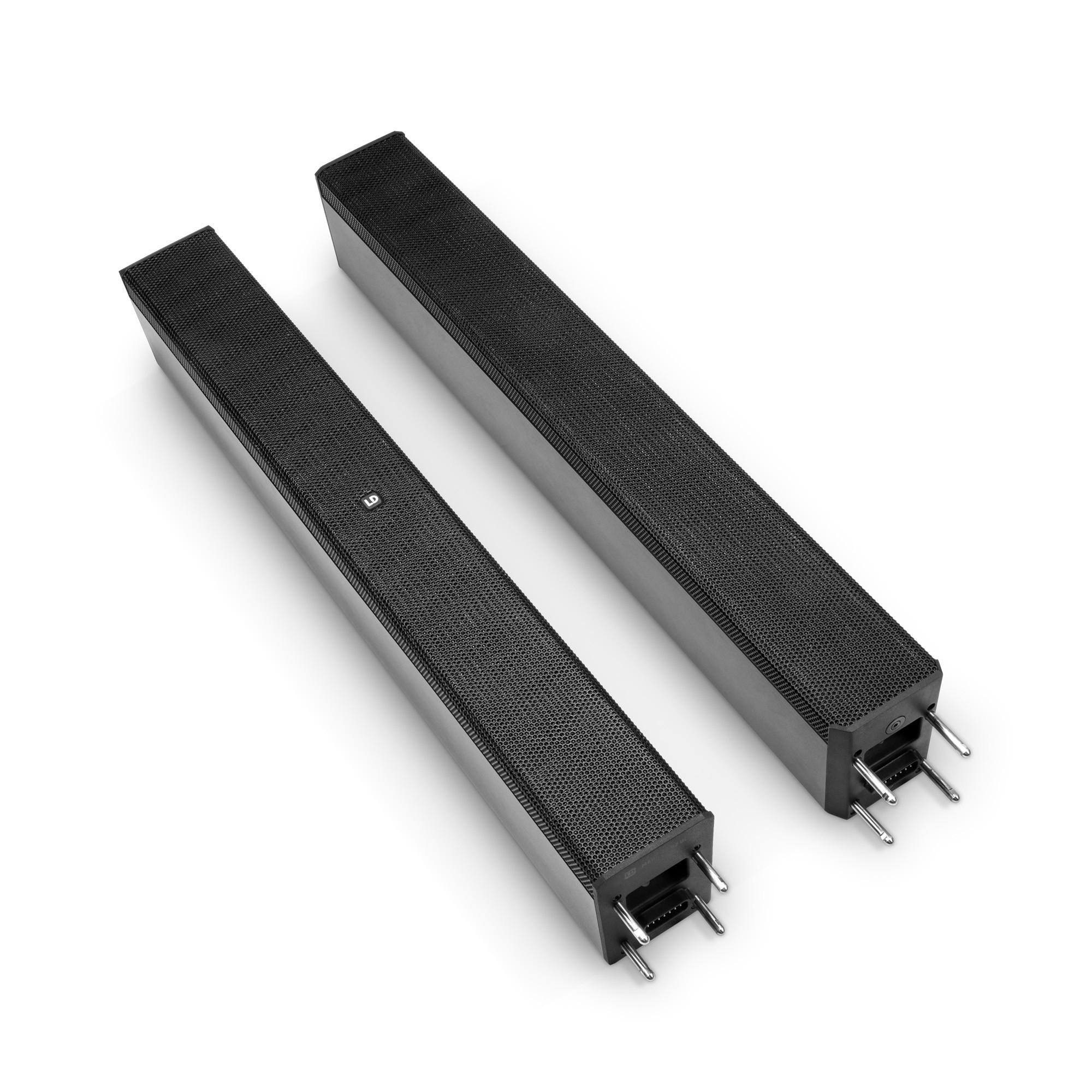

The two-part column of the MAUI 44 G2 is equipped with twelve 3.5" neodymium full-range speakers and four 1" HF drivers with waveguide. The phase plugs on the six upper drivers improve horizontal directivity, reduce distortion and optimise the sensitivity below the crossover frequency for the tweeters. The four tweeters also feature specially designed and optimised compression drivers coupled to a constant directivity waveguide to provide 120° of coverage across the width and 25° of focused vertical directivity. The curved design of the waveguide transports more energy in the high frequencies to listeners standing further away.

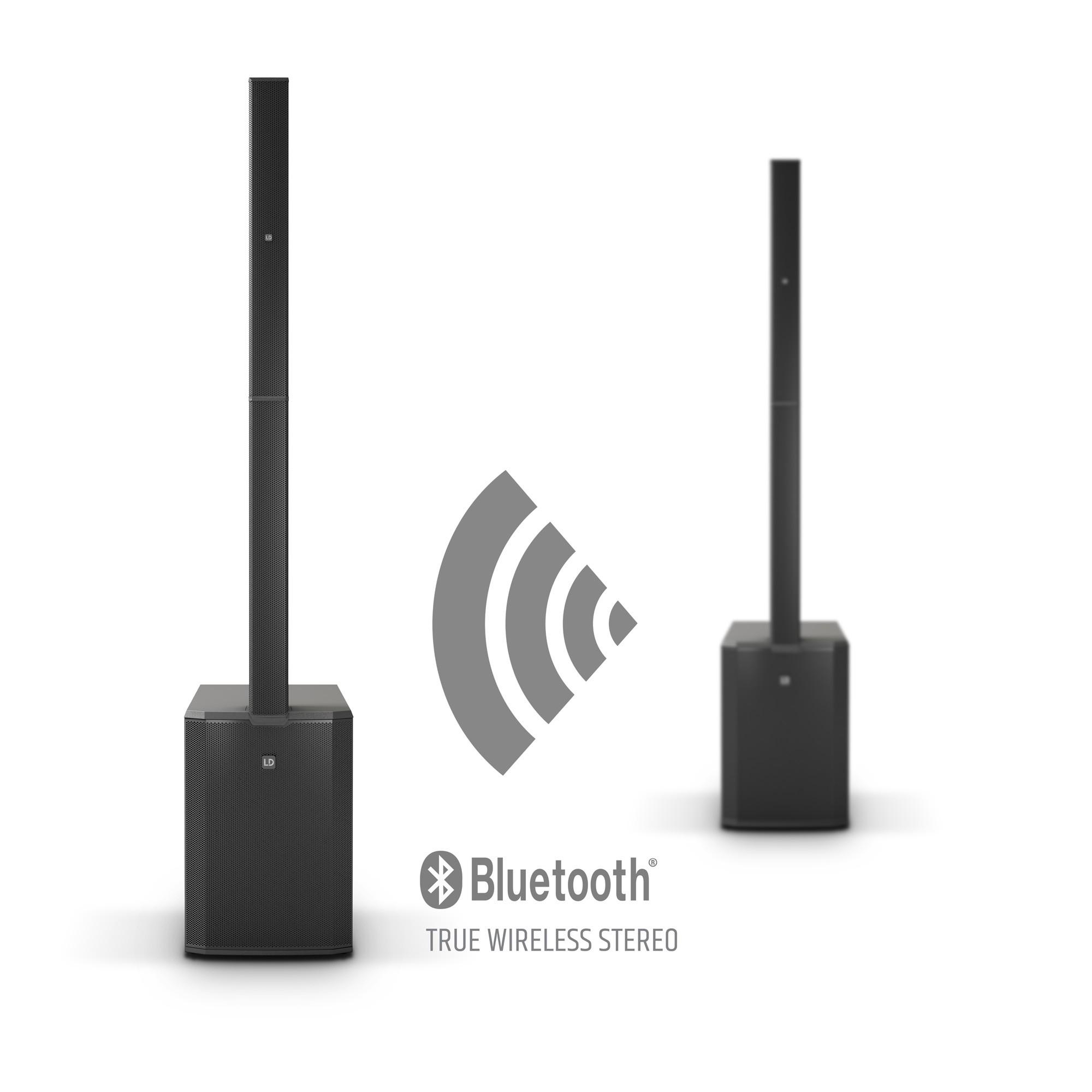

For conference sound or other permanent installations, the TrueWireless™ stereo function enables two systems to be wirelessly connected for stereo reproduction.

Bluetooth® streaming in HD quality is no problem at all thanks to aptX™ and AAC Codec, while DynX® DSP technology ensures distortion-free sound reproduction even at the very highest volumes. Total and subwoofer levels can be individually adjusted for perfectly balanced sound with a crystal-clear treble, a crisp mid-range and - thanks to the flow-optimised bass-reflex channels - a powerful bass.

Another particularly user-friendly feature of the MAUI® 44 G2 is automatic set-up recognition: if the column is removed to use the subwoofer as a follower, for example, the display automatically jumps to FOLLOWER and functions such as Bluetooth and the volume controls for MAIN and SUB no longer appear.

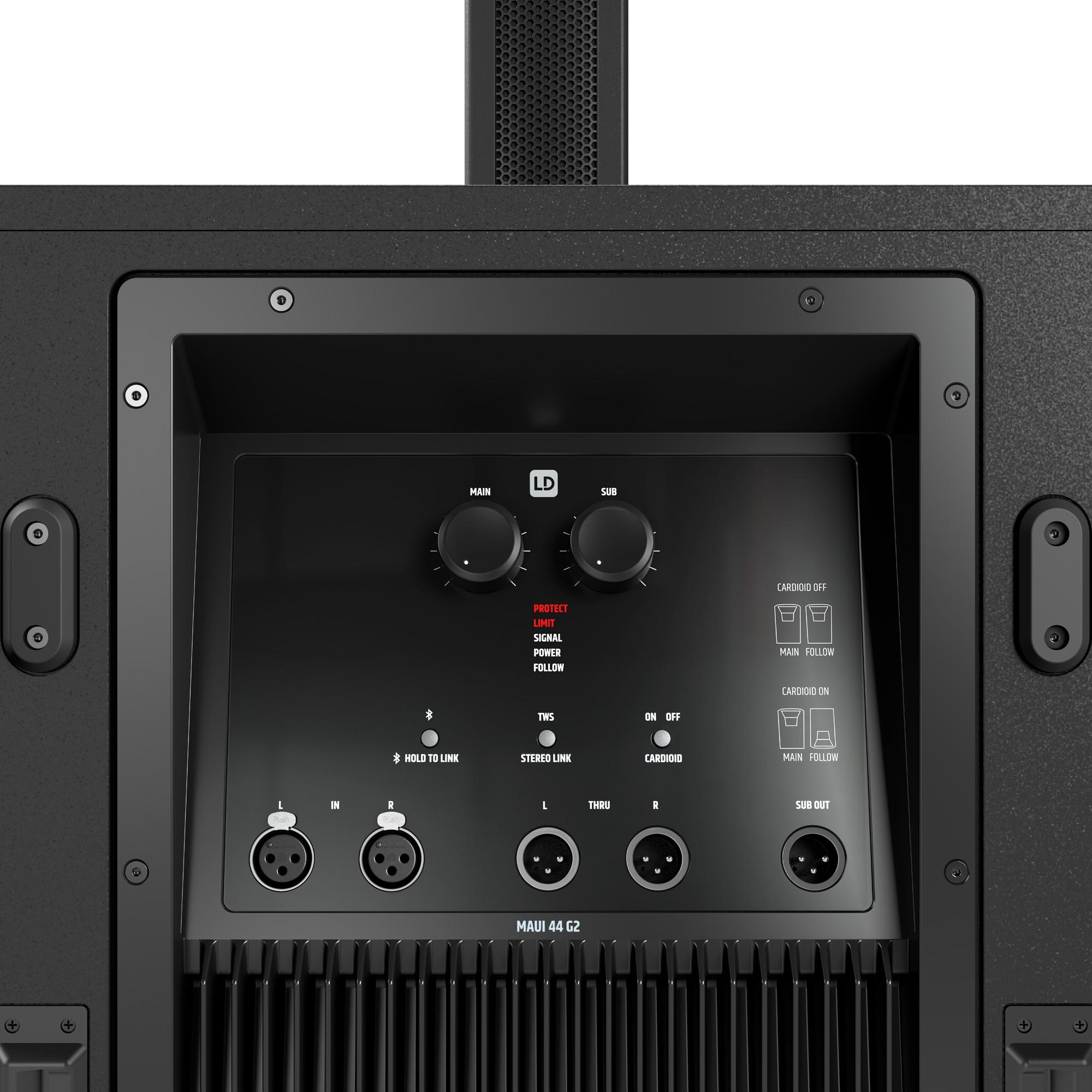

The MAUI 44 G2 offers two XLR inputs, while two XLR outputs enable a wired stereo configuration of two systems. Meanwhile the SUB OUT can be used to hook up an additional subwoofer, and the power supply is via secure and reliable powerCon connection.

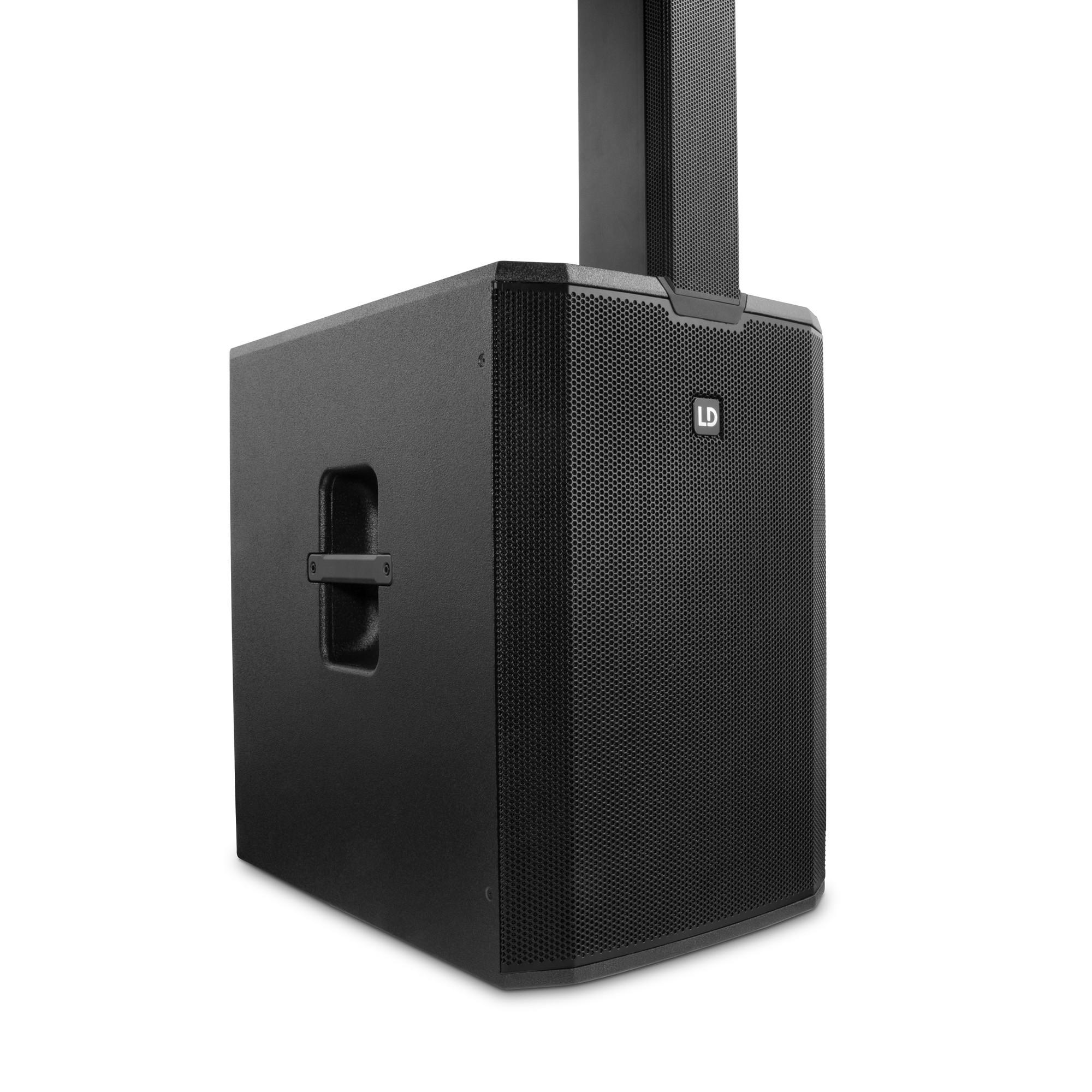

The rugged subwoofer housing is made of multiplex birch plywood with tough polyurea coating and the lightweight aluminium columns are powder-coated.

Transport accessories are available separately and include a transport roller board, carry bag and sub cover for day-to-day use.

  • Professional column PA system with 1500 W RMS and 132 dB max. SPL
  • Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
  • TrueWireless™ stereo technology for wireless stereo pairing of two column systems
  • aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
  • BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
  • DynX® DSP technology for distortion-free sound at maximum volume
  • Automatic setup detection
  • Fast and simple assembly without stands or cables
  • Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column
bluetooth
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Max. SPL (Peak)

132 dB

Frequency response (-10dB)

37 Hz - 20000 Hz

Dispersion (H x V)

120° x 25 °

Total Height

2256 mm

Weight

47.6 kg

Features

Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

Subwoofer Woofer dimensions

1 x 15 " (381mm)

Subwoofer Woofer voice coil

4 " (101 mm)

Subwoofer Cabinet construction

Bass Reflex, 15 / 18 mm Birch Plywood, Polyurea finish

Subwoofer Dimensions (W x H x D)

434 x 634 x 637 mm

Subwoofer weight

36.4 kg

Midrange dimensions

12 x 3.5 " (89mm)

Midrange voice coil

1 " (25.4mm)

Tweeter dimensions

4 x 0.5 " (12.7 mm)

Tweeter voice coil

1 " (25.4mm)

Wave Guide

CD Waveguide

Loudspeaker Inputs

1 x Custom made multipin

Cabinet construction (mid/high)

Aluminium, HD coated finish, multi layer mesh (cloth)

Mid/Hi system Dimensions (W x H x D)

103 mm x 1621 mm x 135 mm

Mid/Hi system weight

11.2 kg

Amplifier

Class D

System output (RMS)

1500 W

Protection circuits

DC protection, Multiband limiter, short circuit, thermal protection

Cooling

Convection

Controls

Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK buttonCardioid On/Off, Main level, Power On/Off, Sub level

Indicators

Bluetooth, Bluetooth STEREO LINK, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode

Operating voltage

100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Neutrik Powercon mains connector.

Line Inputs

2 x Female XLR

Line Outputs

2 x Male XLR

Loudspeaker Output Connectors

1 x Custom-made multipin

Bluetooth Standard / Audio Decoder

A20P / AAC, aptX, SBC
