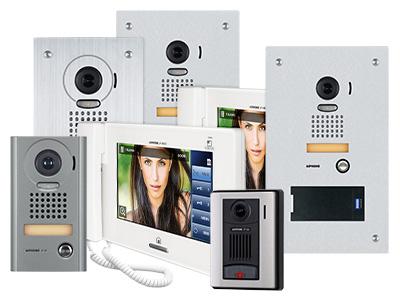

Aphone JP Series

Aphone JP Series

  • Hands-free (VOX) or handset (full-duplex) communication
  • Camera position and zoom can be set for call-in
  • Camera can be adjusted to compensate for brightness
  • Wide angle camera with 170° door view
  • Picture memory records up to 20 calls to internal memory and max 1,000 call to removable SD/SDHC card (not included)
  • Entry can be monitored via the master station and submaster stations
  • One output to control a secondary device like a light, gate, or additional door
  • Analog video output via supplied connector
  • Convenient box sets are complete with a master station, each with a different door station, and a power supply (up to three more door stations and seven submaster stations can be added for a full 4 X 8 system)
  • Home run or daisy chain wiring options (see installation manual for details)
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Source:

24V DC - use PS-2420UL

Communication:

Hands-free (VOX) or handset (full duplex)

Door Release:

Two N/O or N/C dry contacts, 24v AC/DC, 500 mA (Use RY-182-L or RY-3DL for larger contact rating)

Wire Type:

Door Station to Master Station: 2-cond., mid cap, solid, non-shielded - use Aiphone Wire #871802
Power Supply to Master Station: 2-cond., mid cap, solid, non-shielded - -use Aiphone #87802
Master Station to Distribution Adaptor: Cat-5e or Cat-6
Adaptor to Sub Master Station : Cat-5e or Cat-6

Distance:

Door Station to Master Station: 330’
Master Station to Distribution Adaptor: 650'
Distribution Adaptor to Sub Master Station: 165'
Door Station to Long Distance/CCTV Adaptor 650’
Long Distance/CCTV Adaptor to Master Station 330’
Power Supply to Distribution Adaptor: 16’(22 AWG) 33’(18AWG)
Total Cumulative Between Inside Station: 980’
