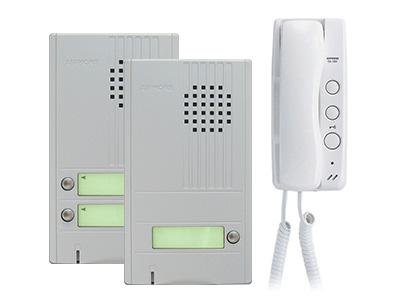

Aiphone DA Series

Aiphone DA Series

  • 2-wire system is quick and easy to install
  • Door release powered by door station without the need of an additional transformer
  • Backlit directory on door station
  • Option button to control an external device
  • Call tone volume control with mute indicator
  • Convenient box set available complete with tenant station, a 1-call entrance station, and a power supply (up to 3 more tenant stations can be added for a full 1 x 4 system)
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Source:

15V AC - use PT-1211C

Communication:

Handset (full-duplex)

Door Release:

9.5~20V AC, 70Ω or higher resistance - use EL-12S

Wire Type:

Entrance Station to Tenant Station: 2-cond., overall shield - use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802
Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802

Distance:

Power Supply to Entrance Station or Door Strike (cumulative): 360'(22AWG) 1,020'(18AWG)
Power Supply to Tenant Station: 180'(22AWG) 510'(18AWG
