LD Systems DEEP2 600
Click to expand

LD Systems DEEP2 600

The LD Systems DEEP2 600 (LDDP600) is a two channel low impedance power amplifier, Class H with toroidal core. This model offers an output of 2 x 400W at 4 Ohms, bridgeable to 800W at 8 Ohms. Also suitable for Bi-Amp set-ups.

High-end, specially selected components have been used throughout the construction of the DEEP2 range of amplifiers to ensure long term reliability and durability. Clear dynamic sound is perfectly adapted for Subbass applications as well as for full range speakers.

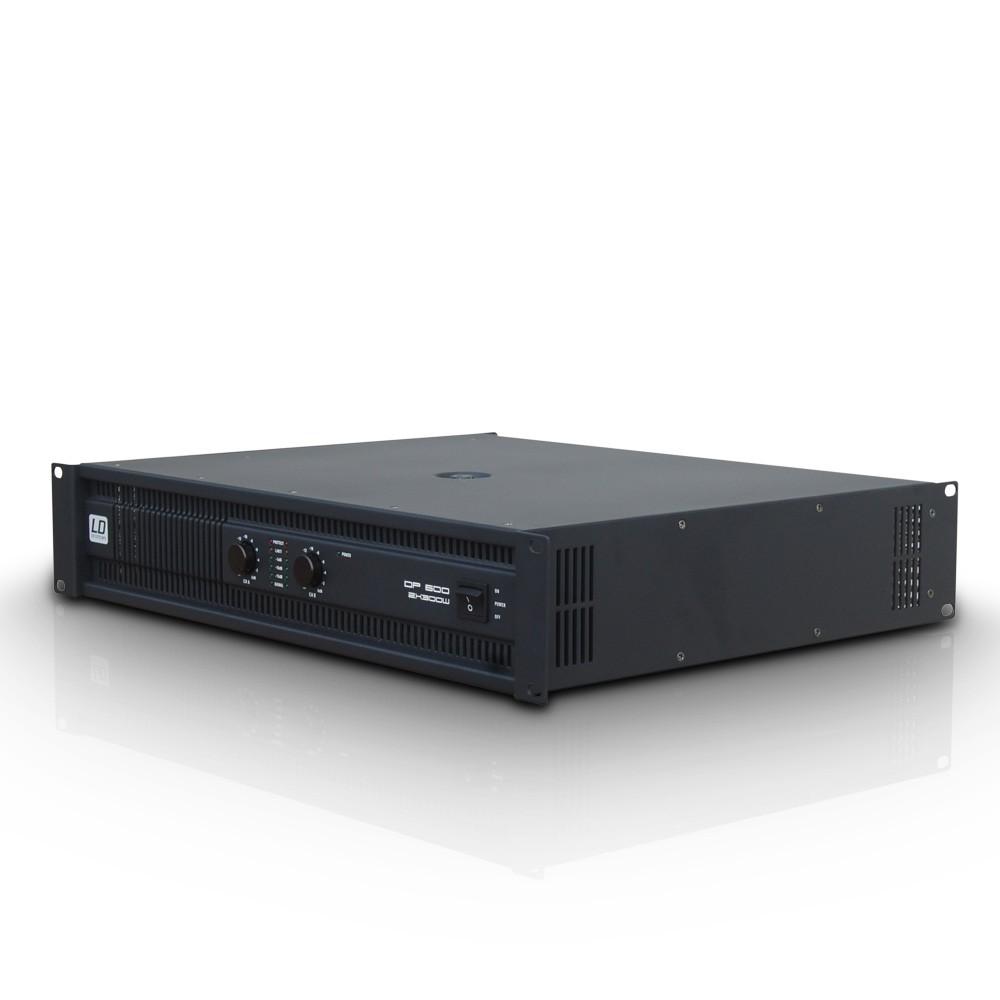

Despite its robust steel plate housing, all models are lightweight and designed to be rack mounted taking only a 2U rack space.

A Clip Limiter is included as well as DC protection, short circuit & thermal overload protection circuits.

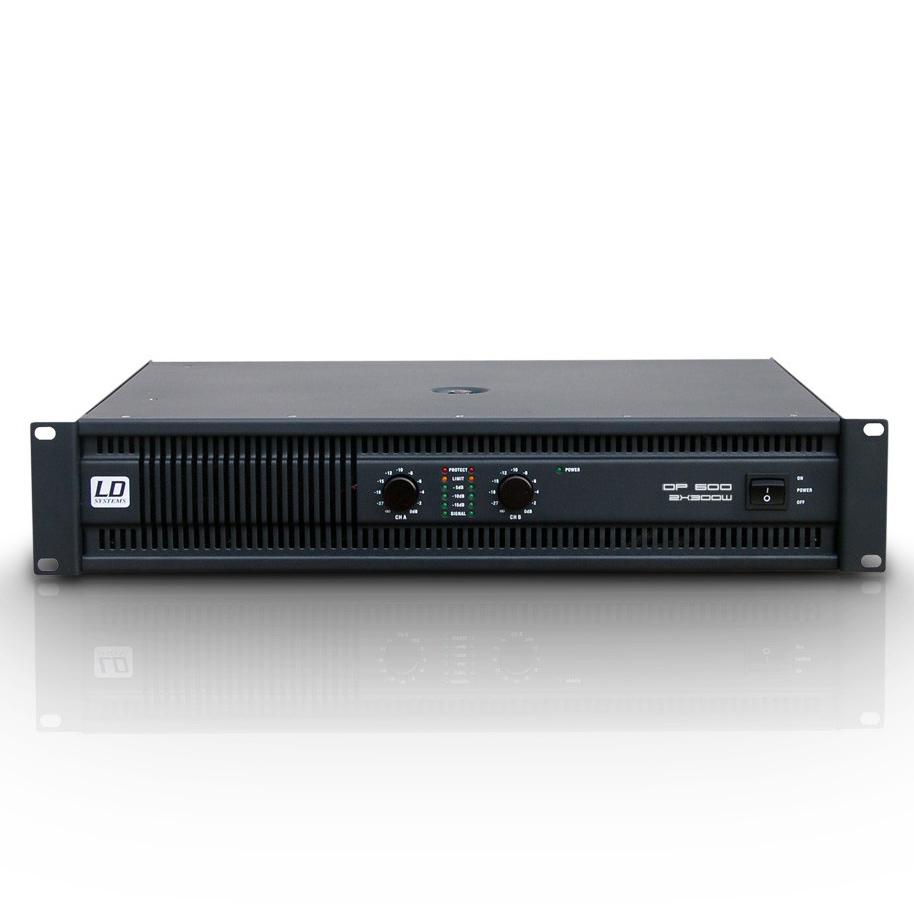

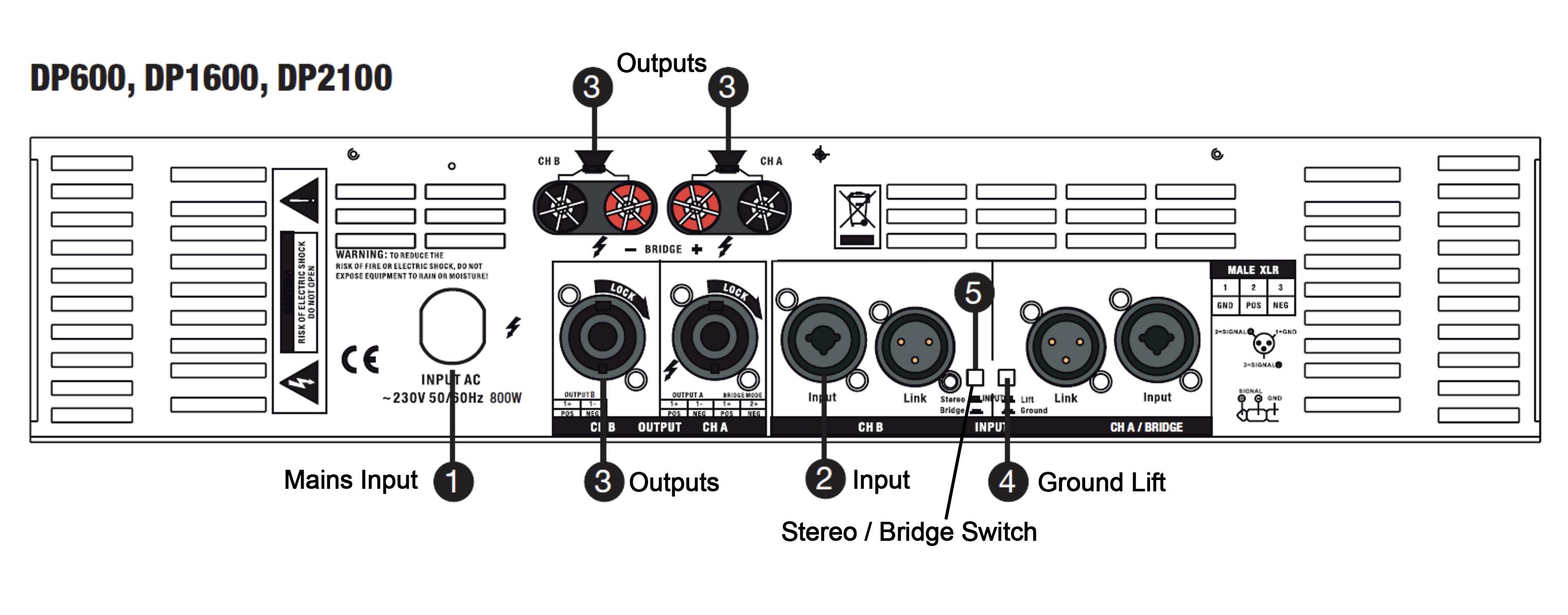

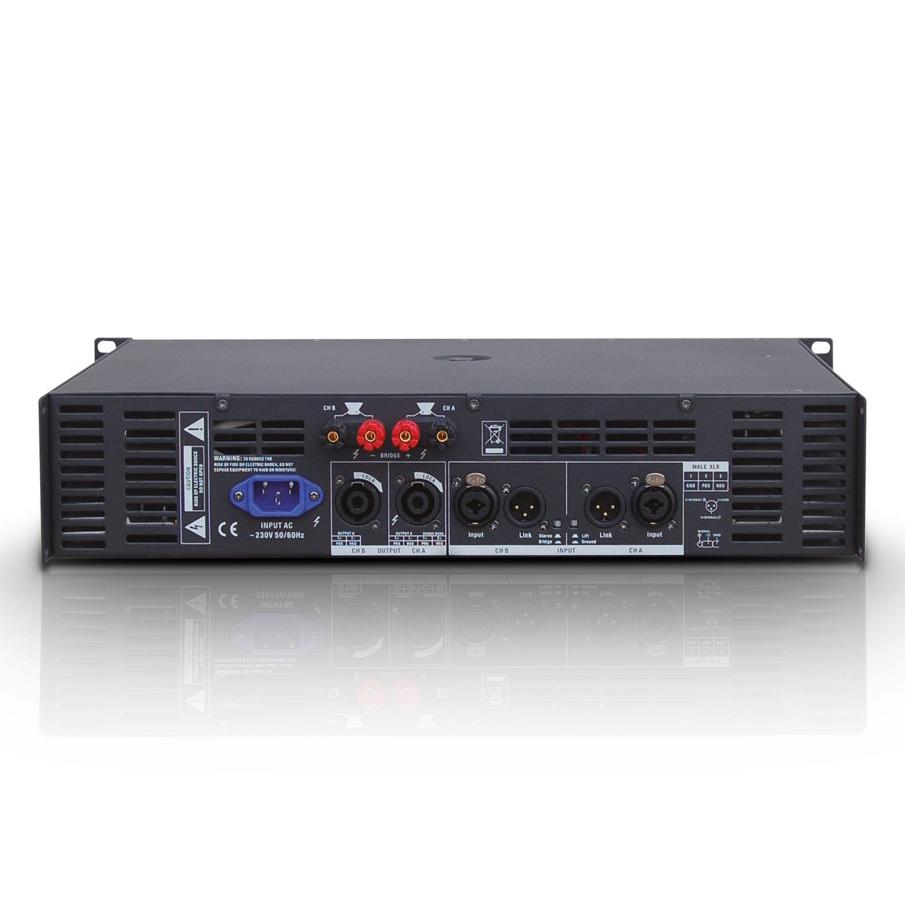

Clear simple controls are on the front with all inputs, outputs and other switches on the rear.

Available in a range of power options – see related products.

multi-ch 2U 4ohms 8ohms 2ohm
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated output power

(1kHz @ 2 Ohms): 2 x 300 W

(1kHz @ 4 Ohms): 2 x 400 W

(1kHz @ 8 Ohms): 2 x 300 W

(1 kHz @ 4 Ohms, bridged): 600 W

(1kHz @ 8 Ohms, bridged): 800 W

Output circuitry

Class H

Frequency response

20 - 20000

Protection circuits

clip limiter, DC protection, short circuit, thermal overload

Controls

2 x volume, bridge/stereo mode selector, ground lift, mains switch (on/off)

Indicators

Level, Limit, Power, Protect (protection circuit engaged), Signal

Loudspeaker outputs

2

Speaker output connections

Speakon compatible, Terminal posts

Cooling

highly efficient, automatic

Operating voltage

230 V AC / 50-60 Hz

Dimensions (W x H x D)

483 x 88 x 350

Weight

12.8 kg
