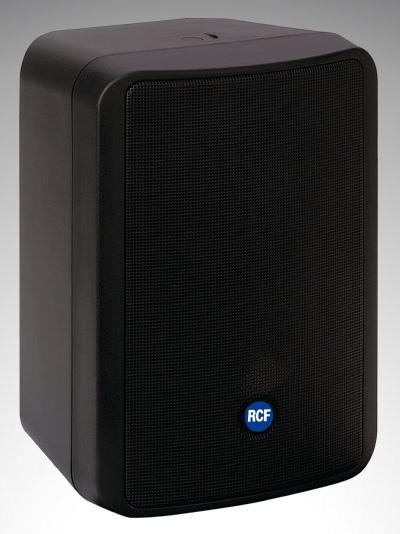

RCF MR 33TB
Click to expand

RCF MR 33TB

The RCF MR 33TB is a reflex cabinet loudspeaker is suitable for 100 volt line distributed sound as well as low impedance BGM systems.  The rated power is 20 watts, 100 volt line / 40 watts, 4 ohm. The compact design and versatile mounting options make these 2-way loudspeakers ideal for use in music and paging systems.

Clearance - this is the last single speaker available.

Black. Priced and sold individually.

The woofer is a high-excursion, carbon fibre design. The mylar dome tweeter is mounted on a constant directivity horn to provide natural, smooth sound reproduction and high resistance to weather.

Installation of the Monitor 33T is fast and efficient using the accompanying adjustable mounting bracket.
Four M6 threaded inserts add to the speaker's flexibility.

Connections are made to recessed color-coded, spring-loaded terminals.

Wattage taps, voltage adjustments, and 4-ohm operation are selectable by means of two detented rotary switches. The enclosure is constructed of high density, scratch resistant polystyrene and includes a protective perforated steel grille and connection cover.

  • 4.75" high-efficiency carbon fibre woofer.
  • 0.5" mylar dome tweeter loaded by a 110° x 100° constant directivity horn.
  • Built-in, multi-tap constant voltage transformer.
  • Built-in, low-inductance passive crossover, bass reflex @150Hz
  • Body constructed from self-extinguishing composite material, UV resistant
  • Warranty: 3 Years
100V
List Ex VAT: £20.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

100Hz – 20kHz

Max SPL @ 1m

105dB

Horizontal Coverage Angle

100°

Vertical Coverage Angle

110°

System Sensitivity

88dB

Nominal Impedance

4 ohm

Power Handling

40W RMS

Peak Power Handling

160W Peak

Crossover Frequencies

3000 Hz

Transducers

0.5” Dome Tweeter, 4.75” Woofer

Input Connectors

Push Type Terminals

Output Connectors

Push Type Terminals

Constant Voltage Transformers

100V / 70V

Power Tappings

10W, 5W, 2.5W, 1W (100V)

Construction

Plastic Cabinet, Steel Grille

Colour

White - RAL 9003

Height

216mm / 8.5”

Width

154mm / 6.06”

Depth

135mm / 5.31”

Weight

2.14kg / 4.72lbs
