LD Systems SAT 262 G2

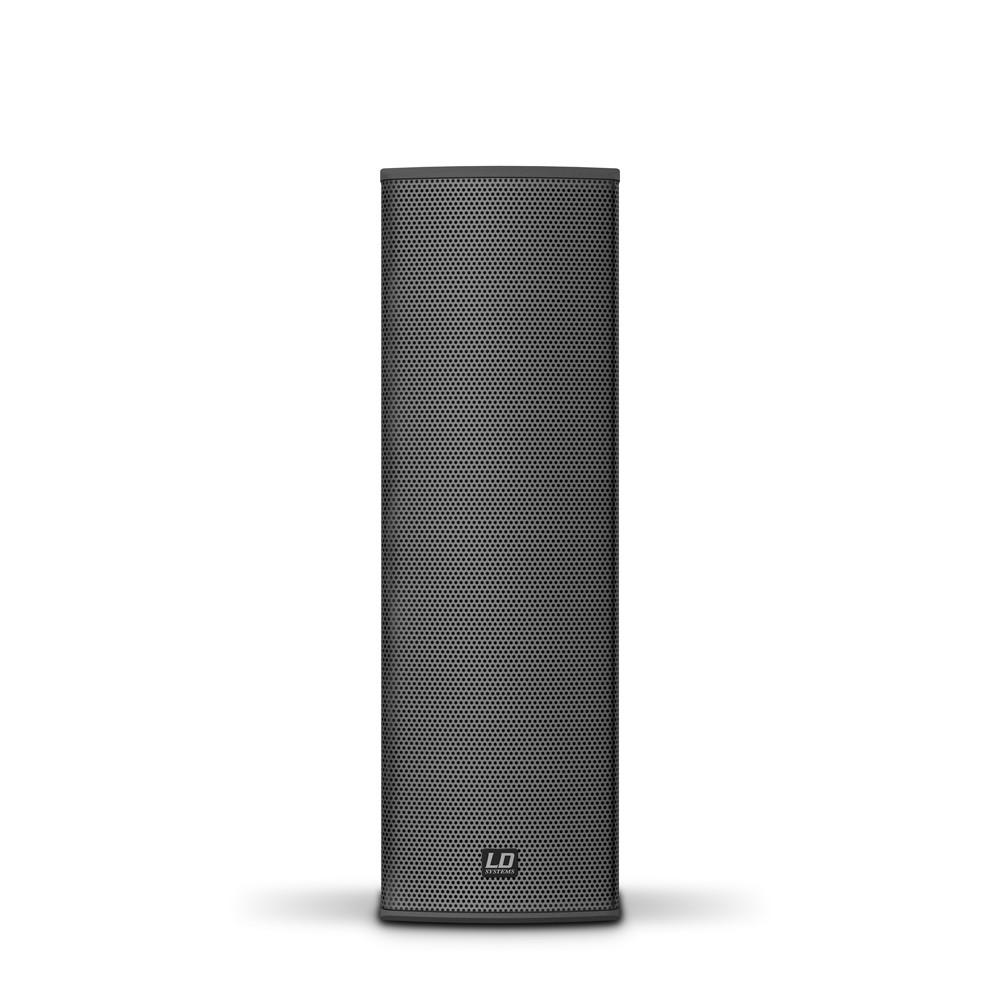

The LD Systems SAT 262 G2 is a black, slim, 2 way cabinet speaker fitted with 2 x 6.5” custom designed woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. Ideal for either vertical or horizontal use.

Rated at 180W RMS, the LDSAT262G2 attains a maximum sound pressure level of 116 dB over a frequency response curve of 65–19 kHz.

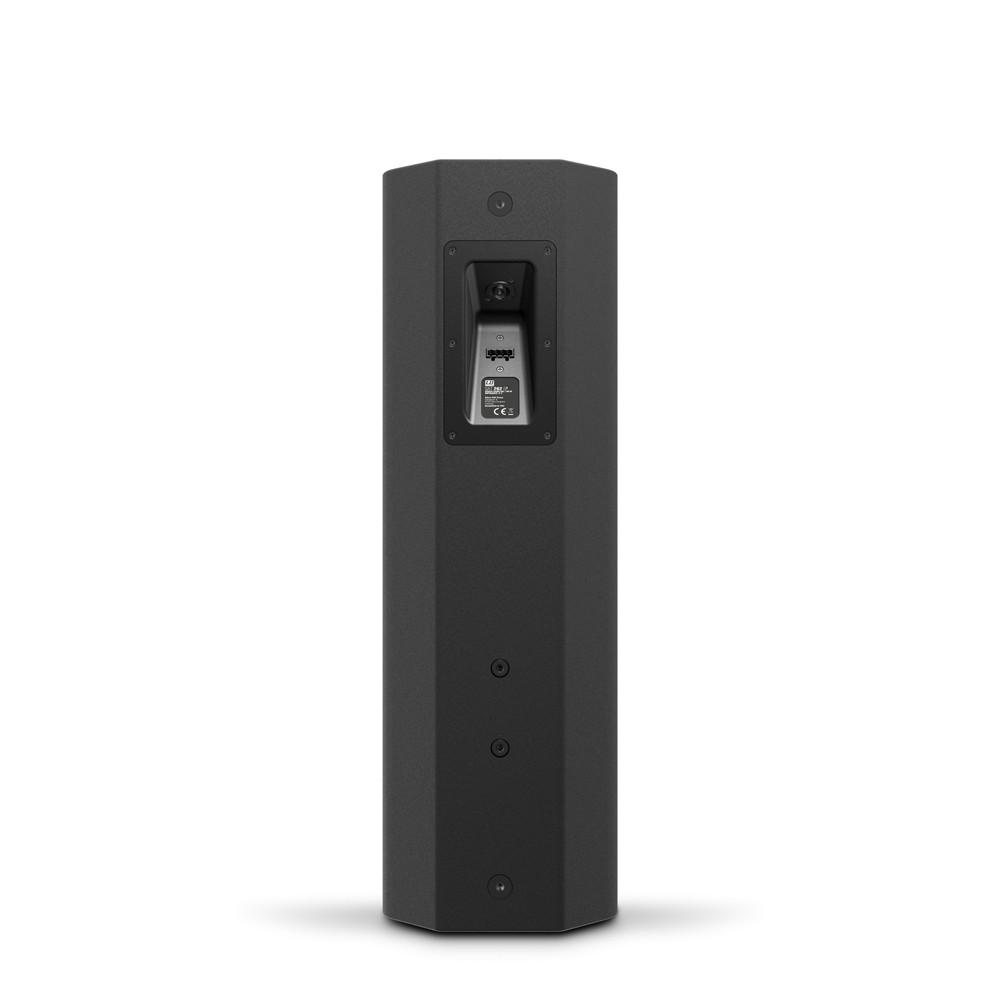

The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection.

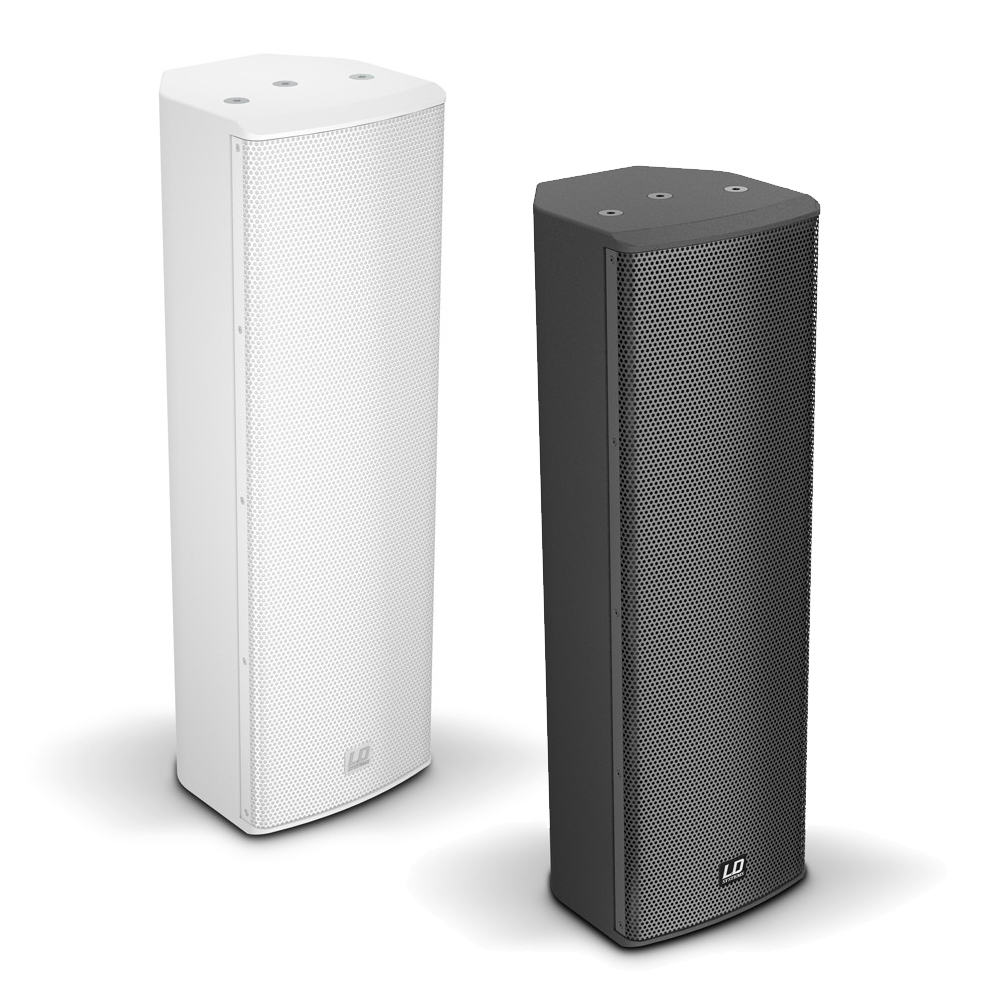

The bass-reflex SAT262G2 cabinet is constructed from 12 mm MDF with a rugged textured coating in black. Also available in white.

A simple swivel wall mount bracket is available separately (LDSAT262G2WMB). Four M8 mounting holes are provided to facilitate mounting via a range of optional mounting accessories.

  • Warranty: 2 Years
1e: 8ohms
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Low/mid Woofer

2 x 6.5" / 165 mm

Horn

CD Horn

HF Driver / Voice Coil

1" (25.4 mm) / 1" (25.4 mm)

Dispersion

80⁰ x 60⁰

Load Rating

180W RMS

Impedance

8 Ohms

Frequency response

65 - 19000 Hz

SPL (1W/1m) / Max

93 dB / 116dB

Cabinet material

12mm MDF

Colour

Black or White

Height x Width x Depth

630mm x 200mm x 205mm

Weight (each)

9.8 kg
