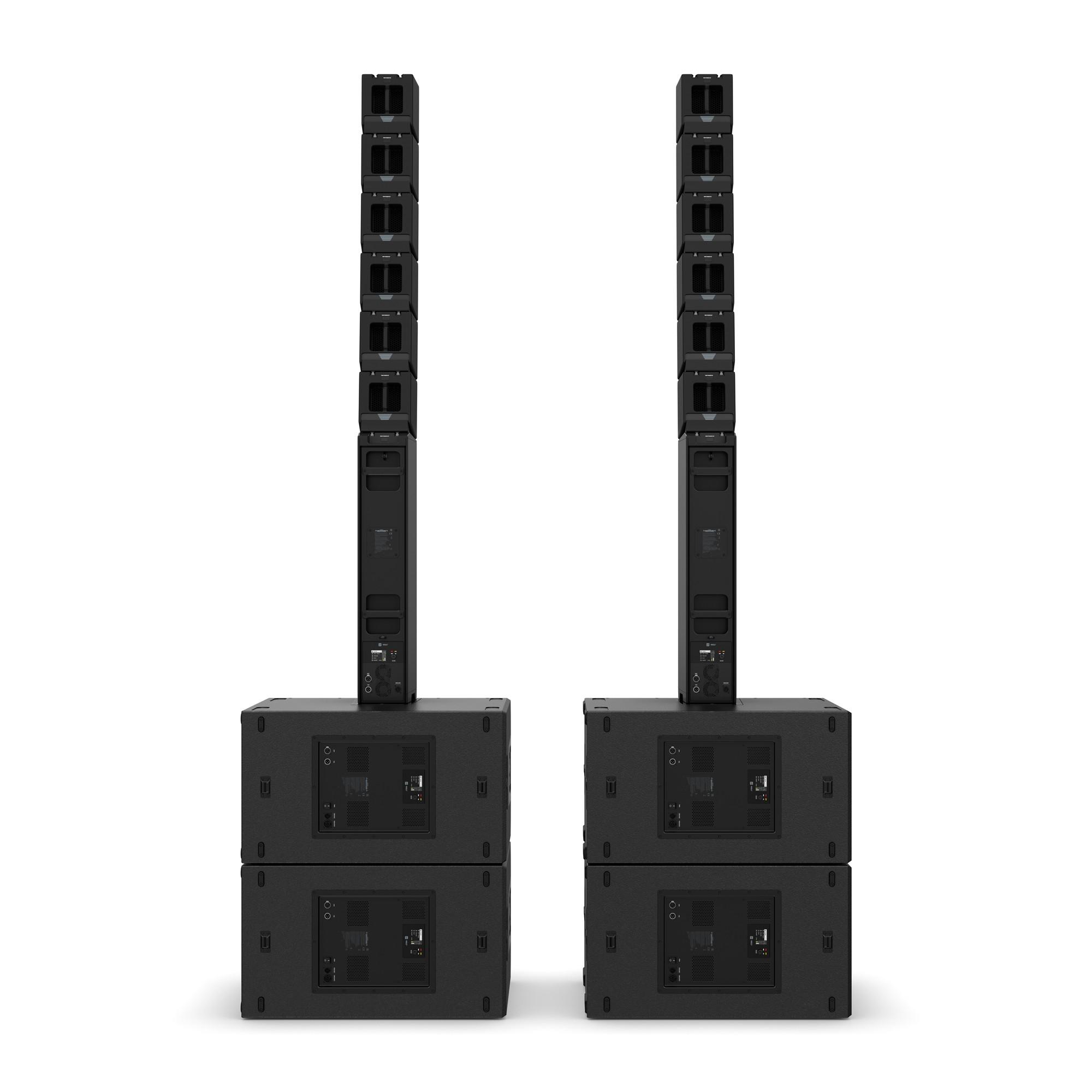

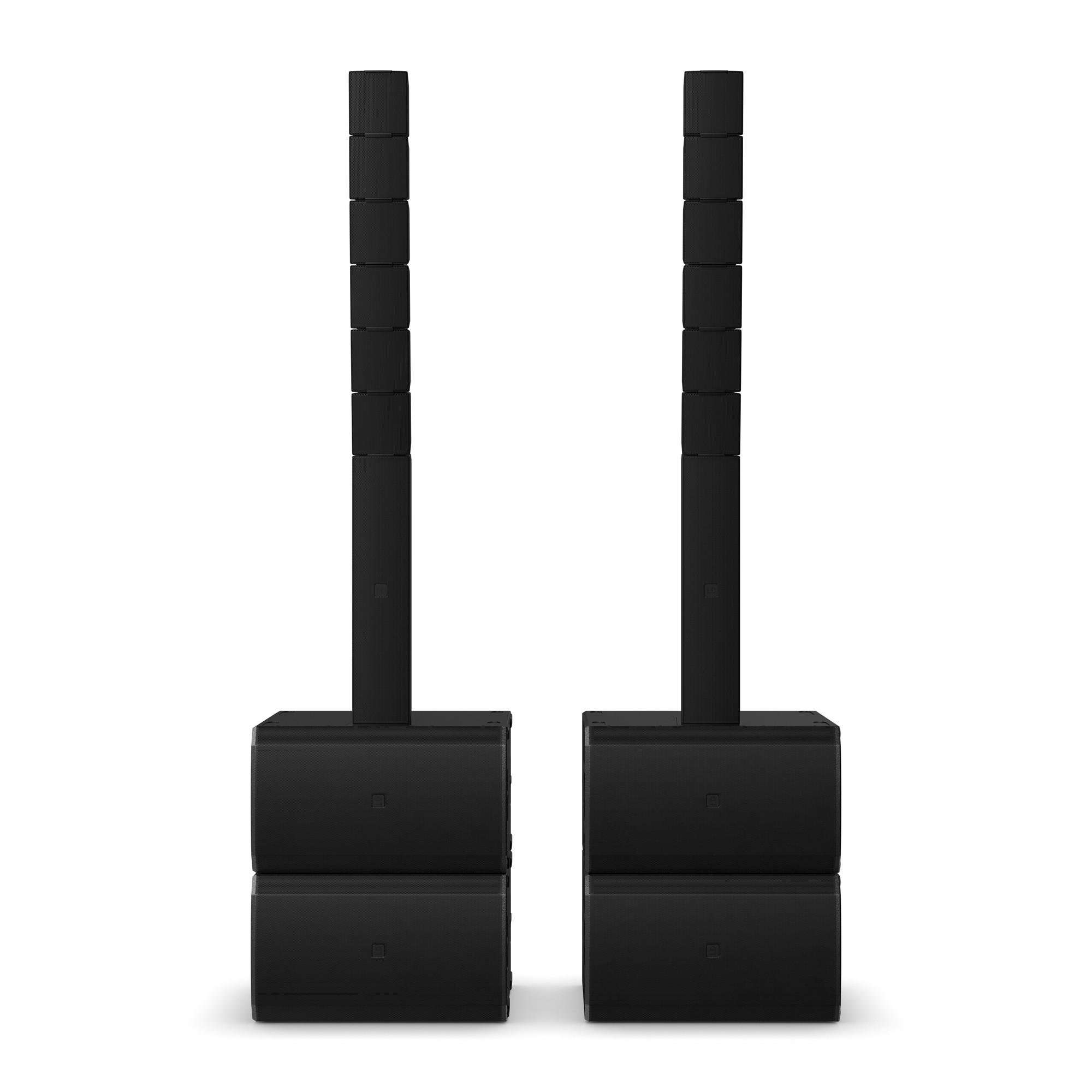

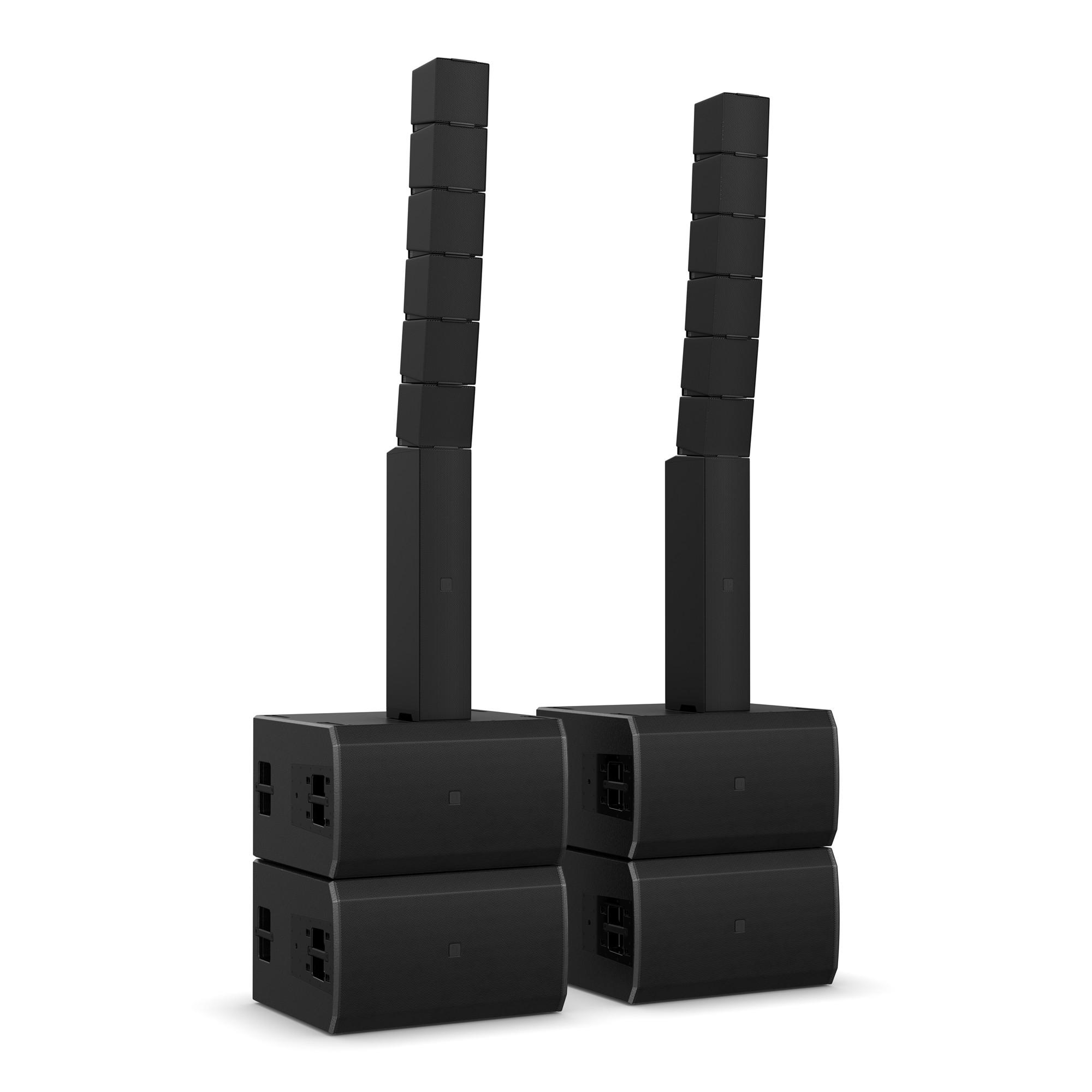

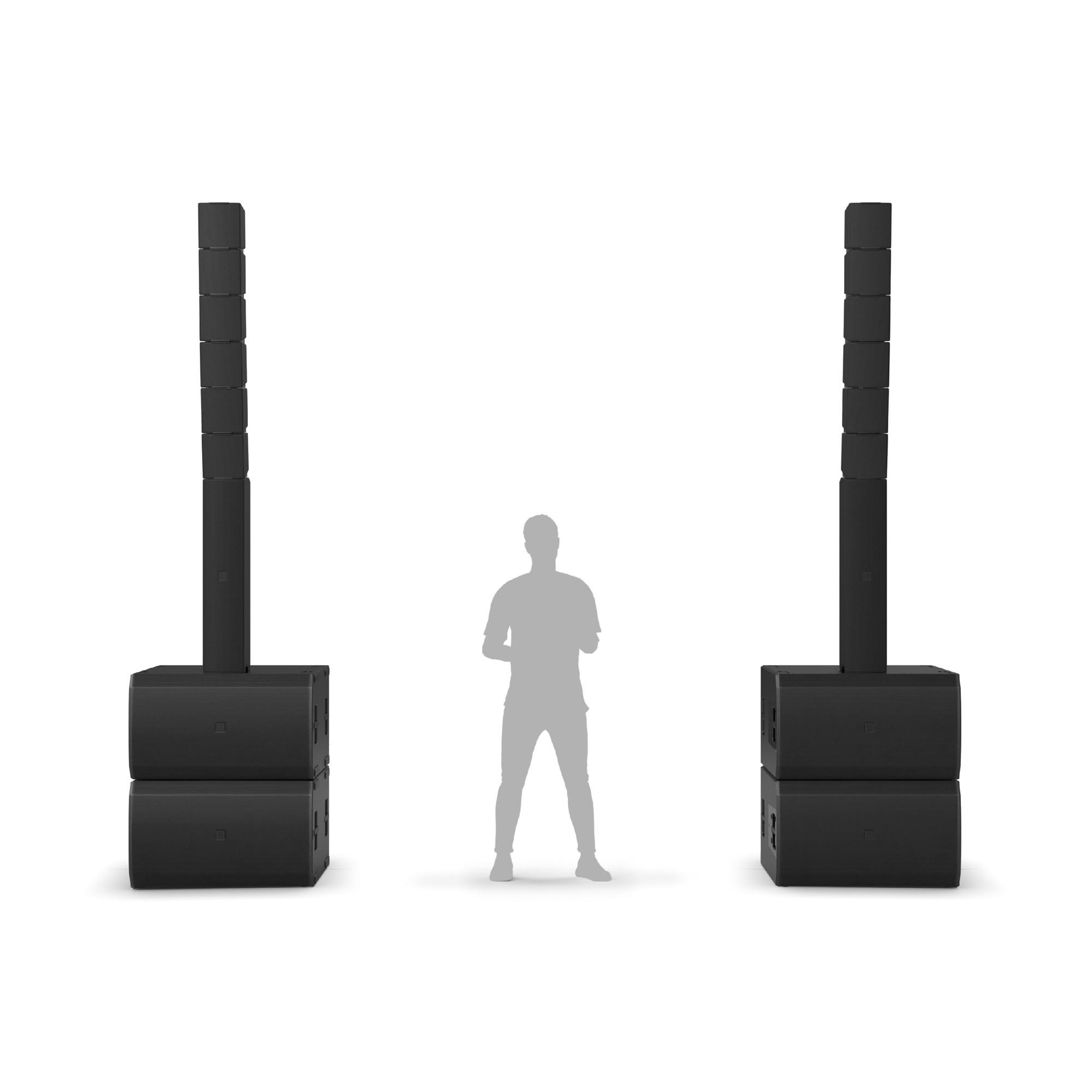

MAILA L, with its output power of 1500 Watts RMS, combines various acoustic concepts to maximise power and sound into a unique sound reinforcement solution.

The basis of each side of the MAILA L system is a pair of MAILA SUBs. Each 2.5 kW, 2x15'' high-performance subwoofer uses a bandpass design and delivers a massive and powerful bass foundation with its newly developed SysCore® DSP.

Building on the SUBs, the next component is the MAILA COL full-range column sporting 4 x 6.5'' woofers for an extended low-mid range as well as a 4-channel DSP amplifier (2.5 kW) with SysCore® DSP powering the MAILA SAT satellites. The connection between SPA and SAT as well as between each of the satellites is completely cable-free via the newly developed SmartLink+® rails.

Six elegant aluminium unibody MAILA SAT satellites sit on top of each stack and feature Advanced WaveAhead® technology where five 1'' tweeters are placed in front of a 6.5'' midrange driver and coupled without interference via the SonicGuide® (two combined waveguides). The integrated passive membrane provides extended punch down to 100 Hz producing a classic line array dispersion with impressive throw.

The angle of each MAILA SAT is easily adjusted via the EasySplay® mechanism - a rotating handle on the rear enables simple continuous adjustment of each individual satellite from 0° to 8°. The angle can be adjusted with just one hand, even under load.

MAILA L may be all you need, but it can be extended in the future if required, as each MAILA COL can control up to 8 MAILA SAT’s and, in addition to the ground stack variant, also enables flown configurations with a separately placed subwoofers. In this way, MAILA L covers medium festival stages and clubs just as effortlessly and precisely as conferences or lectures in the context of corporate events.

Every MAILA system can be adjusted directly on the device or via the free MAILA app (iPadOS) with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection where wireless antennas are invisibly integrated into the LD logos, operating ranges of up to 30 metres are no problem for MAILA under practical conditions. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles even before you get on site.

The MAILA L package includes:

• 4 x MAILA SUB subwoofer
• 2 x MAILA COL column
• 12 x MAILA SAT satellite
• 1 x MAILA FC1 (Flight case for SATs)
• 2 x MAILA FC2 (Flight case for SATs & COLs)
• 4 x MAILA SUB CB (SUB castor board)
• 4 x MAILA SUB PC (SUB padded cover)
• 6 x power cable
