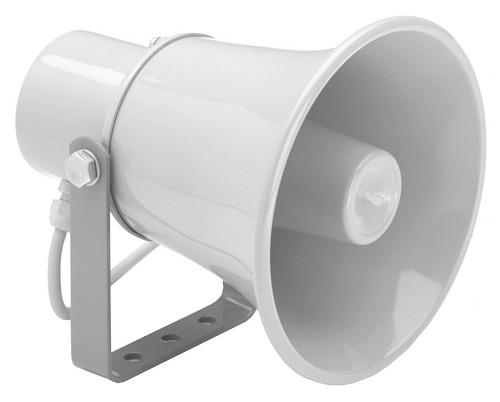

Bosch LBC 3481/12

The Bosch LBC 3481/12 is an ABS, high-efficiency, round re-entrant horn loudspeaker providing excellent speech reproduction and sound distribution for a variety of outdoor applications.

10 watts, 100 volt line.

The LBC3481/12 horn speaker is ideal for sports grounds, parks, exhibitions, factories and swimming pools.



  • Water resistant - protected to IP65
  • High efficiency driver
  • Up to 45 W (max. power)
  • Wide opening angle
  • Excellent speech reproduction
  • Simple power setting
  • Stainless steel U bracket
IPxx
List Ex VAT: £75.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

15 W

Rated power (PHC)

10 W

Power tapping

10 / 5 / 2.5 W

Sound pressure level at 10 W / 1 W (1kHz, 1 m)

113 dB / 103 dB (SPL)

Opening angle at 1 kHz / 4 kHz (-6 dB)



Effective frequency range (-10 dB)

500 Hz to 7 kHz

Rated voltage

100 V

Rated impedance

1000 ohm

Dimensions

Aperture Dia: 156mm (6.14 inch)

Overall Length: 184mm (7.24inch)

Weight

1.25 kg (2.75 lb)

Colour

Light grey (RAL 7035)
