NEXO P+ Series

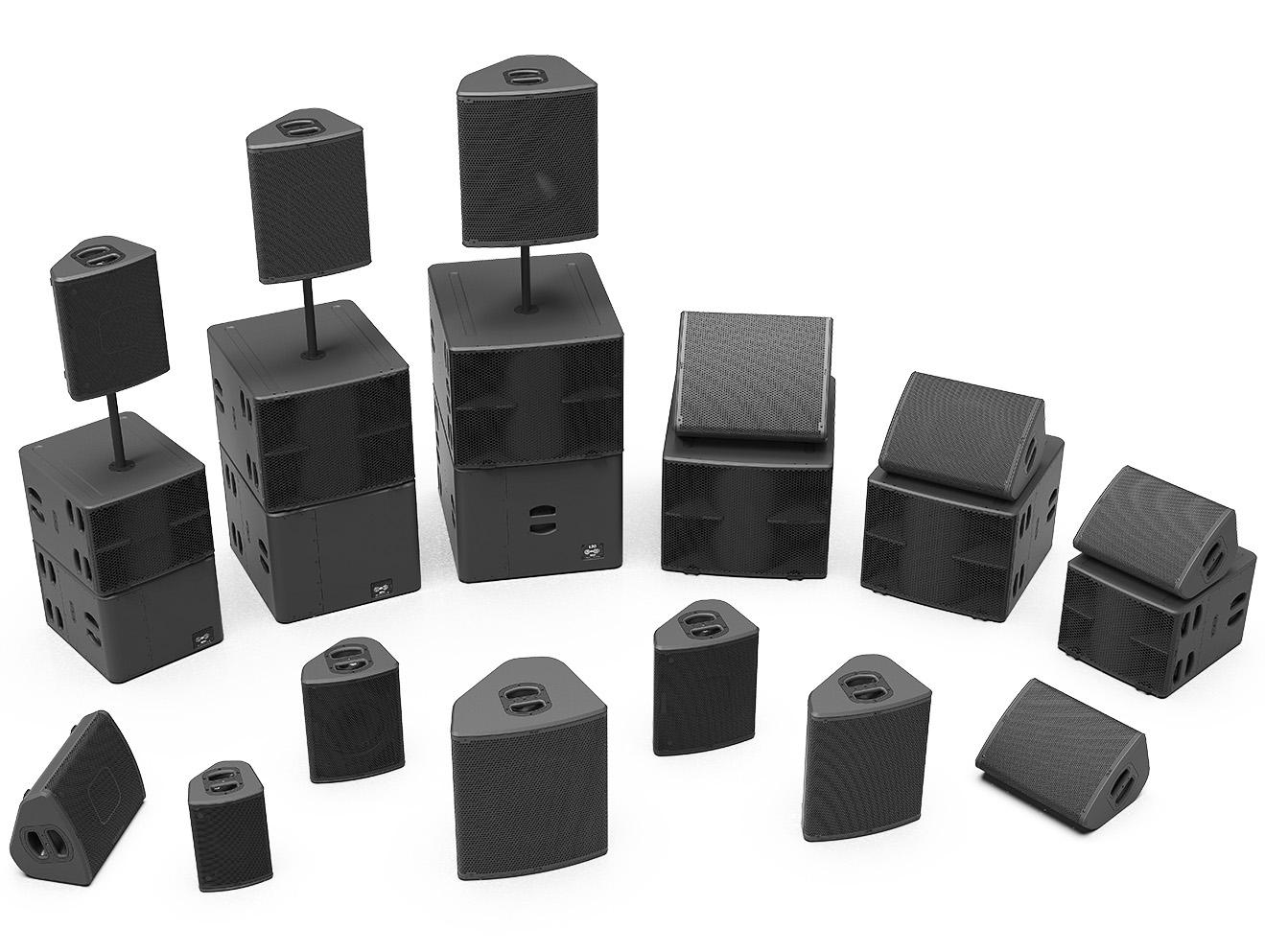

The NEXO P+ Series point source compact loudspeakers combine sleek good looks and stunning performance with full range sound and impressive Sound Pressure Levels. The P8, P10, P12, P15 and P18 cabinets employ custom HF/LF drivers in a coaxial configuration to deliver perfect phase alignment, exceptional clarity and a smooth response across the full frequency range. They can be deployed both vertically or horizontally (as a wedge monitor).

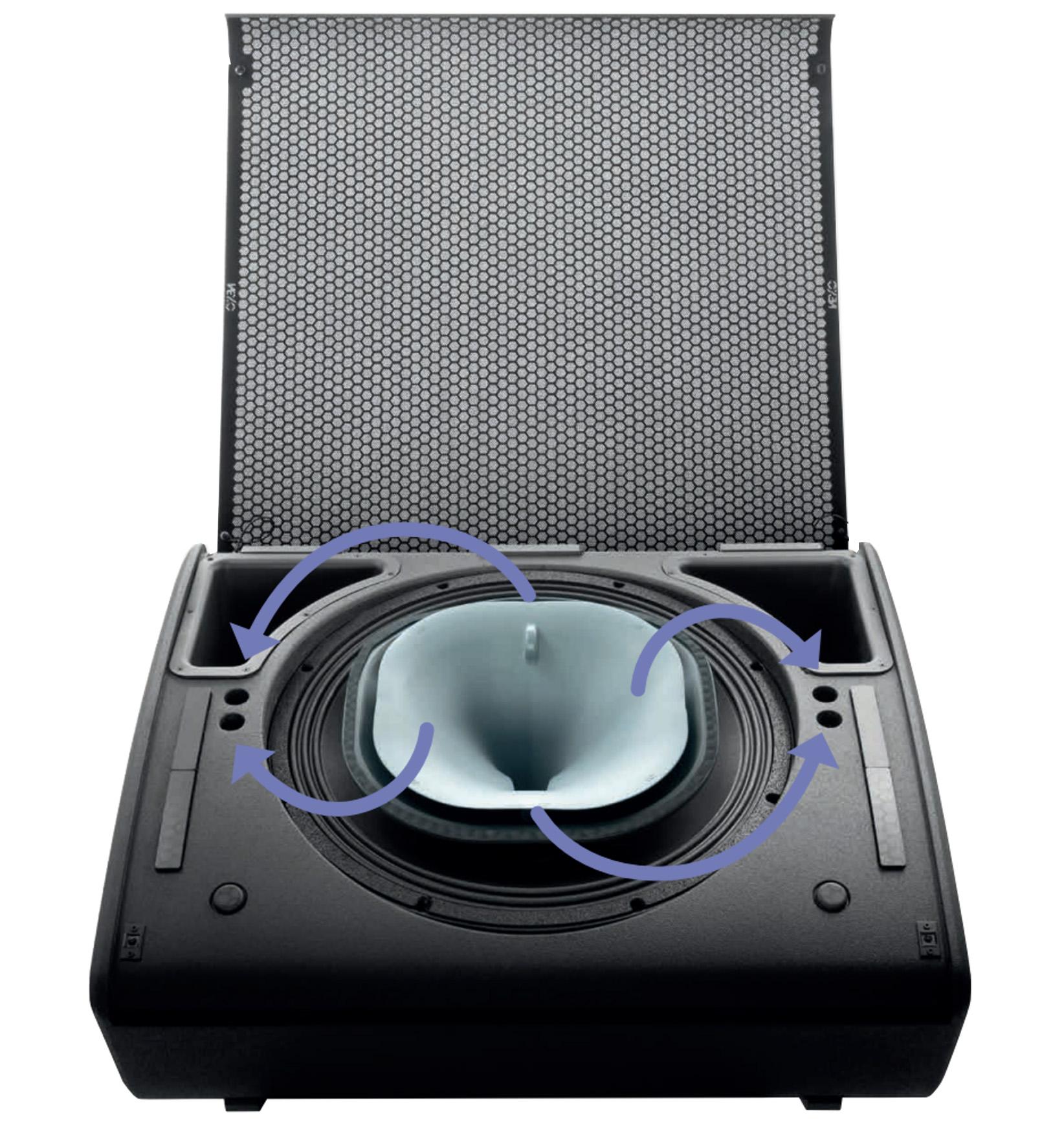

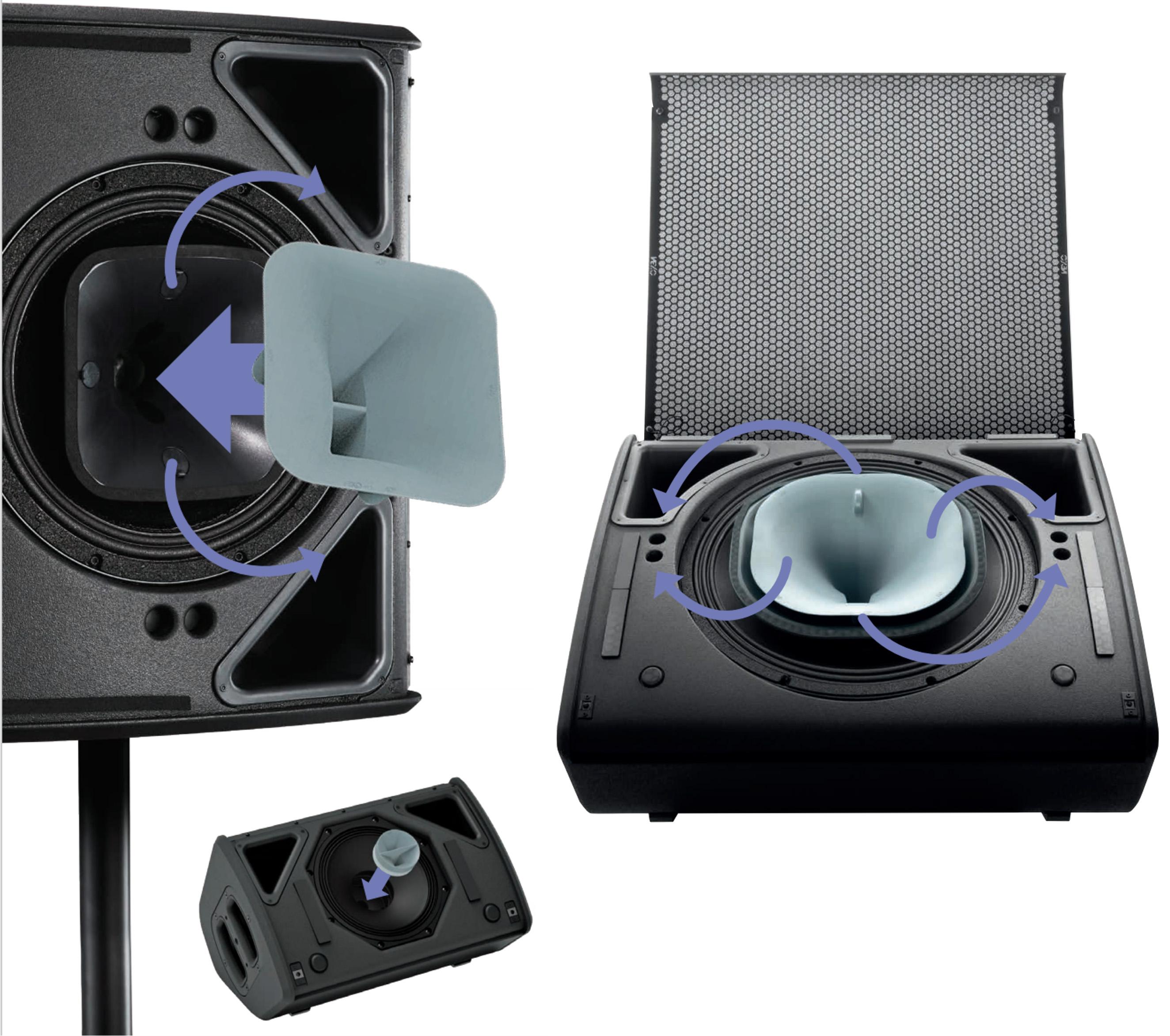

The P+ Series is an ultra-versatile range of multi-purpose loudspeakers, bringing ingenious technical innovation to a wide range of short-throw sound reinforcement applications. Dispersion characteristics can be changed in seconds through the addition of optional magnetic horns (P8 and P10) or horn flanges (P12, P15 and P18), optimising the speakers for a wide range of applications.

Available in touring, install and hybrid ‘TIS’ versions, P8, P10, P12, P15 and P18 cabinets employ purpose-designed 8-inch, 10-inch, 12-inch, 15-inch and 18-inch LF Neodymium drivers respectively, with the HF driver in a coaxial configuration. The L15, L18 and L20 are perfect partner subs in flown and pole-mount applications, extending LF performance down to 40Hz, 32Hz and 28Hz in a range of FOH and stage monitoring applications as well as for use as a drum fill or DJ monitor.

The touring models feature steel grilles and integrated pole mounts on both sides / ends of the cabinet, with Speakon on the sides and rear to ensure tidy wiring in any application. Carry handles are provided for easy handling on tour. Installation versions feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet, 2-core glanded cable for audio input to ensure IP54 protection and can be specified in any RAL colour. The handles have been removed for a tidier appearance. However, the hybrid TIS versions feature touring handles and connectivity, whilst sporting a softer, more corporate look with cloth-covered grilles.

The P+ Series is incredibly versatile with many options and different combinations to suit a variety of projects. Here are just a few suggestions:

P+ series cabinets are perfectly at home in 100 to 500 seats theatres and performing arts centres, for speech, classical, jazz and pop music styles, in left and right Front of House applications.

In larger venues, the P+ Series is ideal for use as stage monitors, in-fills and front-fills with the ability to configure directivity from narrow, to wide H/ narrow V and asymmetrical for a short to mid throw even coverage.

When going immersive, P+ Series can be Front of House speakers, for example L / LC / C / RC / R in a 5.1 system, or surround speakers for much larger Front of House systems such as STM.

Larger P+ Series cabinets play well in small to mid-sized gymnasiums, sports arenas and stadiums, typically with 10 to 15 meters (30 to 45 feet) – rigging height and up to 5000 capacity, capable of an even full range frequency response and up to 105 dBA output.

Perfectly suited to entertainment venues such as night clubs and bars as a distributed system, P+ Series cabinets and subs also make great DJ monitors.

The versatility of the P+ Series makes it ideal for production and audio rental companies. Quick and easy to deploy, P+ delivers powerful, full-bandwidth sound in live FOH, corporate events and fashion shows and video mapping for immersive experience events.
