Signet AKW1

The SigNET AKW1 church induction loop kit is designed to provide hearing assistance for hearing aid users in a church or other place of worship. A hand held radio microphone is included.

It is a self contained kit* which includes everything to help you comply with the regulations which govern ‘help with hearing’, including the Disability Discrimination Act (DDA) which has now been absorbed into the Equality Act 2010 as well as British Standard BS8300 (2009), the Human Rights Act 1998 and the Care Standards Act 2000.

The kit is based around the SigNET PDA200E wall mounted induction loop amplifier which benefits from the following:

  • Straightforward internal screw connectors
  • Wall-mounting metal enclosure for permanent installation
  • Internal drive, level and tone controls
  • Four inputs - microphone; line/outreach; alert (for doorbells, fire alarms, etc) and 100V line (for PA system connection)
  • Ideal for electrical contractors - no audio connectors or experience required.
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed.

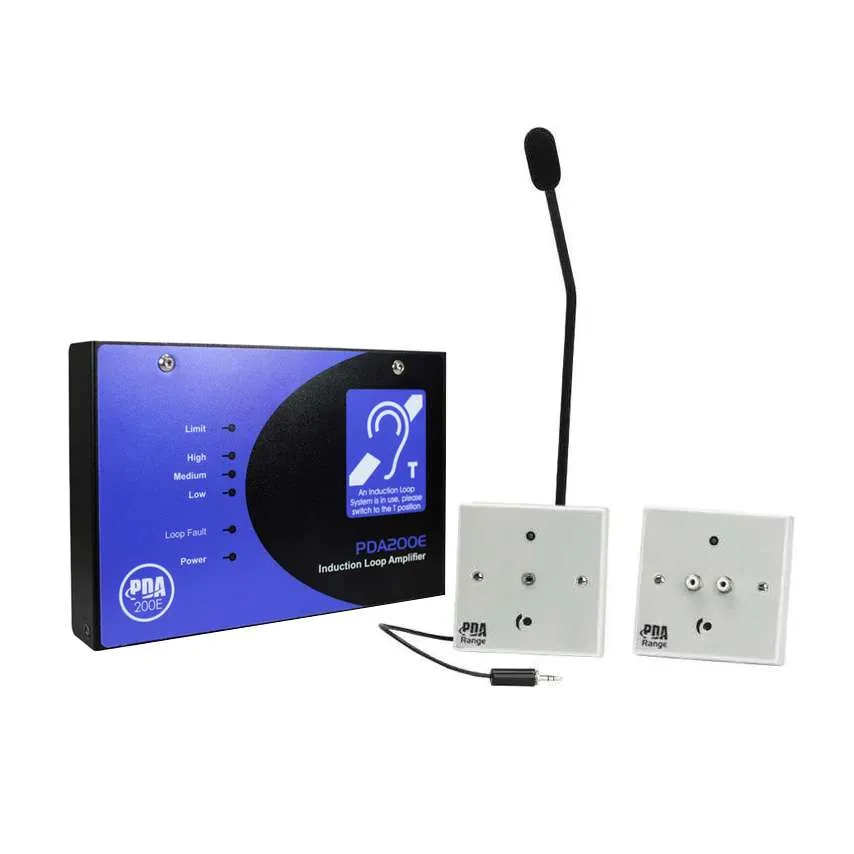

The SigNET AKW1 AFILS kit contains: PDA200E induction loop amplifier; AML lectern mic, APJ outreach plate, APL outreach plate (audio input for CD/tape deck), outreach plate connection cable, ‘AFILS fitted’ sticker.

*You will need induction loop cable, available separately - see related products.

Loop
List Ex VAT: £330.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Coverage

120m² approx.

Inputs

1 x Microphone, 1 x Line/Outreach, 1 x Alert, 1 x 100V

(all screw type connectors)

Indicators

Input level; loop drive meter; power on

Controls

Input level, loop drive, tone

Dimensions

W 271 x H 200 x D 77mm (amplifier only); 2.82kg
