Tascam MA-BT240
Click to expand

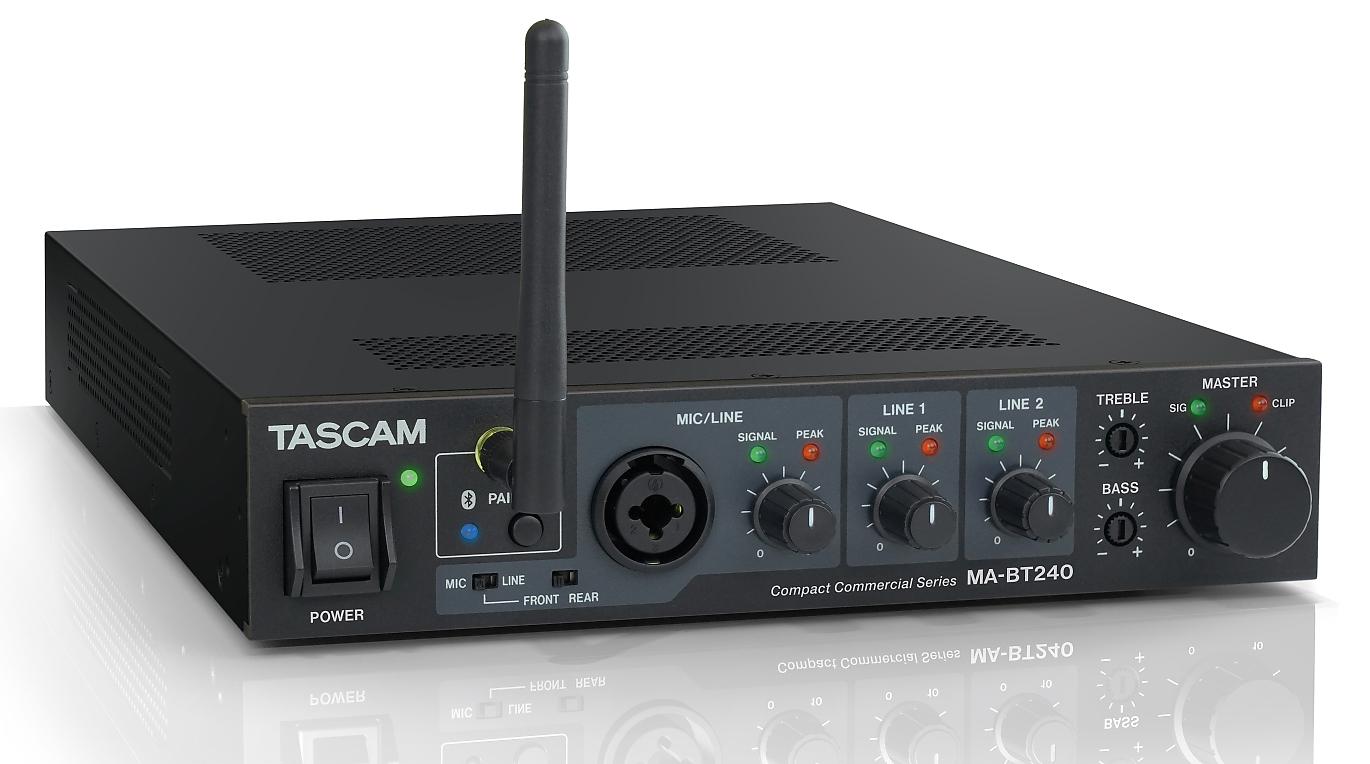

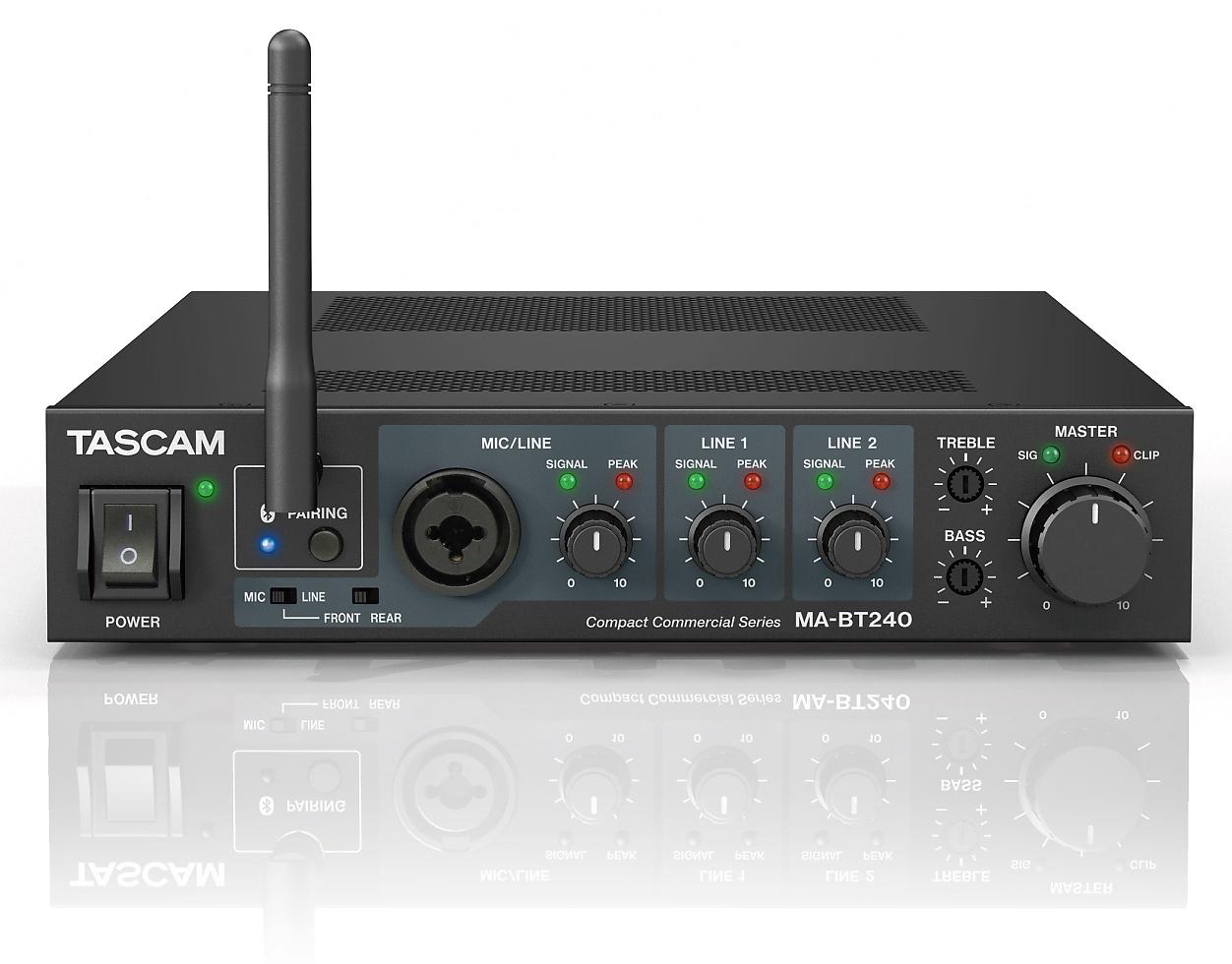

Tascam MA-BT240

The Tascam MA-BT240 is a Class D mixer amplifier with Bluetooth receiver and an output 240 watts. This can be used as 1 x 240 watt for distributed loudspeakers systems running on 70 / 100 Volt Line or 2 x 120 watts at 4/8Ω low impedance (with the option of mono L+R/Stereo switching)

In addition to the Bluetooth capability, the amp has two line inputs on the rear and a front mounted mic/line combi input (with switchable ducking/paging function), each with a rotary level adjustment knob equipped with Signal and Peak LED indicators.

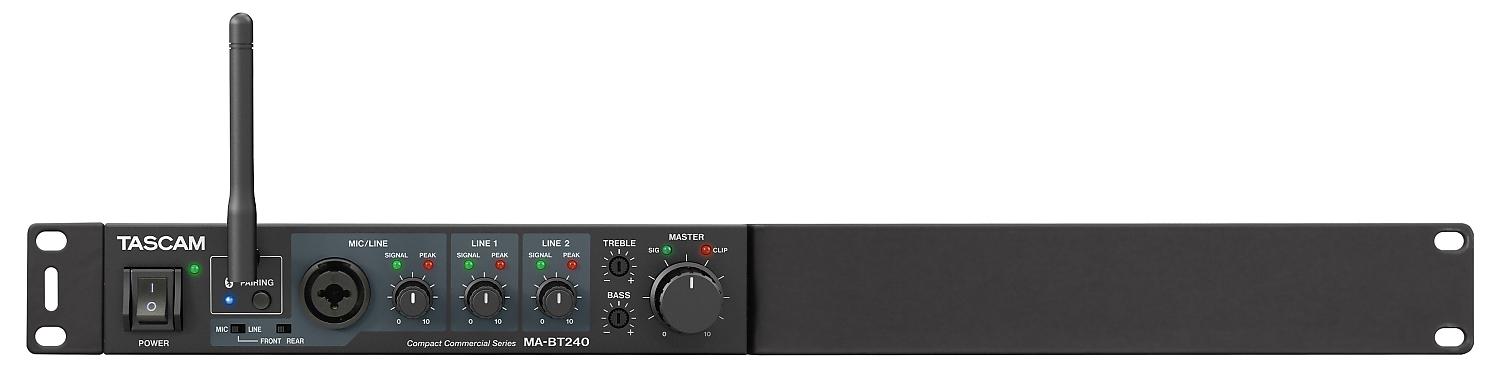

The compact ½ rack width, 1U high chassis enables it to be placed on a table or shelf whilst an optional rack mount kit (AK-RM05) is available for mounting in a 19” rack.

For greater flexibility, the MA-BT240’s Bluetooth antenna can be wired for extension (max 20m) and the pairing point can be changed to a preferred position, thus ensuring optimum signal reception.

Bass & Treble adjusters and a High Pass filter provide optimum control of sound quality and avoid overload of a high impedance system.

There is also a Line Output to facilitate the addition of more zones by cascading the output signal to another power amplifier(s).

  • Installation amplifier with comprehensive inputs and outputs for small to mid-sized facilities
  • Efficient Class-D amplifier for standard stereo loudspeakers or high-impedance distributed speaker systems
  • Bluetooth receiver for wireless music streaming from portable devices
  • Two Line inputs (RCA connectors)
  • Mic/Line input with switchable Ducking/Paging function to automatically mute background music during announcements
  • Built-in mixing with front-panel knobs for all inputs (except Bluetooth stream)
  • Compact half-rack design for convenient placement on desktop or shelf
  • Bluetooth antenna can be extended allowing you to place the unit in the most suitable position for your project
  • Two-band EQ and high-pass filter on output allow you to fine-tune the system response
  • Output can be adapted to any speaker configuration with mono/stereo switching
  • Master volume can be adjusted remotely from an external controller (sold separately)
  • Line output for monitoring, recording or cascading to other power amplifiers
  • Can be rack-mounted with optional kit (AK-RM05, sold separately)
100V 4ohms 8ohms 1U bluetooth
List Ex VAT: £399.99
Log in for Trade Prices

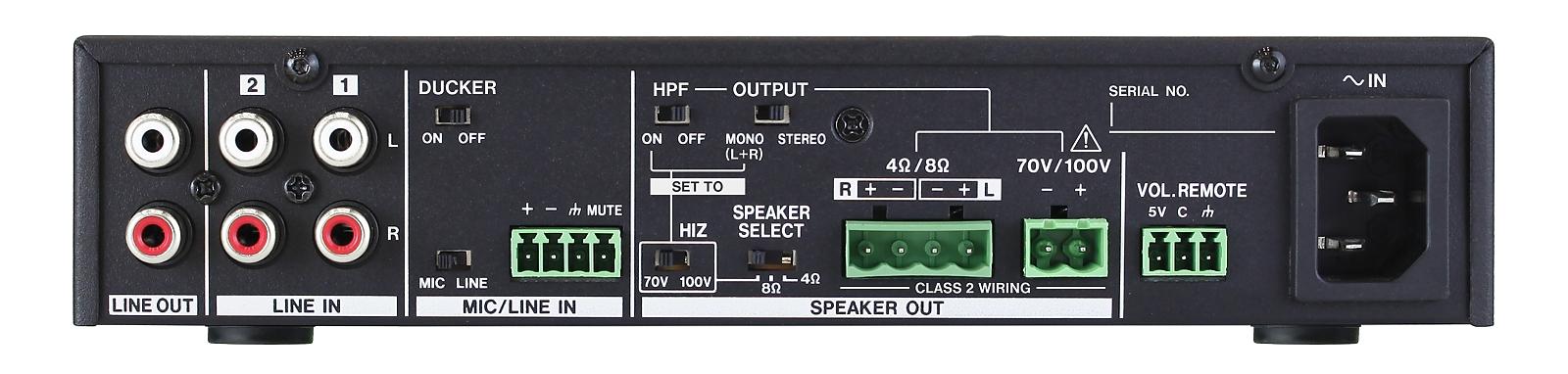

Mic/line inputs (MIC/LINE IN):

Front: XLR/TRS combo jack (balanced),

Rear: 4-pin Euroblock connector balanced, 3.81 mm pitch)

Line inputs (LINE IN 1 / LINE IN 2):

RCA pin jacks (unbalanced)

Line outputs (LINE OUT):

RCA pin jacks (unbalanced)

High-impedance output:

2-pin Euroblock connector (5.08 mm pitch)

Rated output

1 × 240 W (70 V / 100 V)

Low-impedance output:

4-pin Euroblock connector (5.08 mm pitch)

Rated output

2 × 120 W (4 Ω or 8 Ω, 1 kHz, 1 % THD)

Load impedance

4 Ω / 8 Ω (selectable)

Remote output volume adjustment:

3-pin Euroblock connector (3.81 mm pitch),

(1: Vcc 5 V, 2: Control, 3: GND)

Bluetooth Version:


Power supply:

AC 220–240 V, 50/60 Hz

Cooling method:

Natural air cooling

Power consumption:

Rated 58 W (1/8 W output, 1 kHz sine wave, 4 Ω), Idle 18 W

Dimensions (W × H × D):

214 mm × 44 mm × 298 mm, (excluding protrusions and Bluetooth antenna)


2.5 kg
