Cloud Electronics CXA21K
Click to expand

Cloud Electronics CXA21K

The Cloud CXA21K is a DSP-enabled Class-D amplifier which can drive both low impedance (2Ω to 8Ω) as well as high impedance (70V/100V) loudspeaker circuits.

The CXA21K provides an output of 4 x 500W at 2/4ohms, 2 x 1000W at 4/8ohms (BTL) or 2 x 1000W at 70V/100V line (BTL).

The outputs can be flexibly configured as follows:
2 x stereo Lo-Z zones
4 x mono Lo-Z zones
2 x mono Hi-Z zone
1 x mono Hi-Z zone + 1 x stereo Lo-Z zone
1 x mono Hi-Z zone + 2 x mono Lo-Z zone

The built in web browser / wireless access point enables the amp to be set up, adjusted and controlled remotely via an App or over a network. This access facilitates effortless customisation of even the most detailed audio/voice systems and management of multiple DSP configurations and tuning features, such as multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker management and presets, delay, Wall mounted controller configuration, Sine generator, and much more.

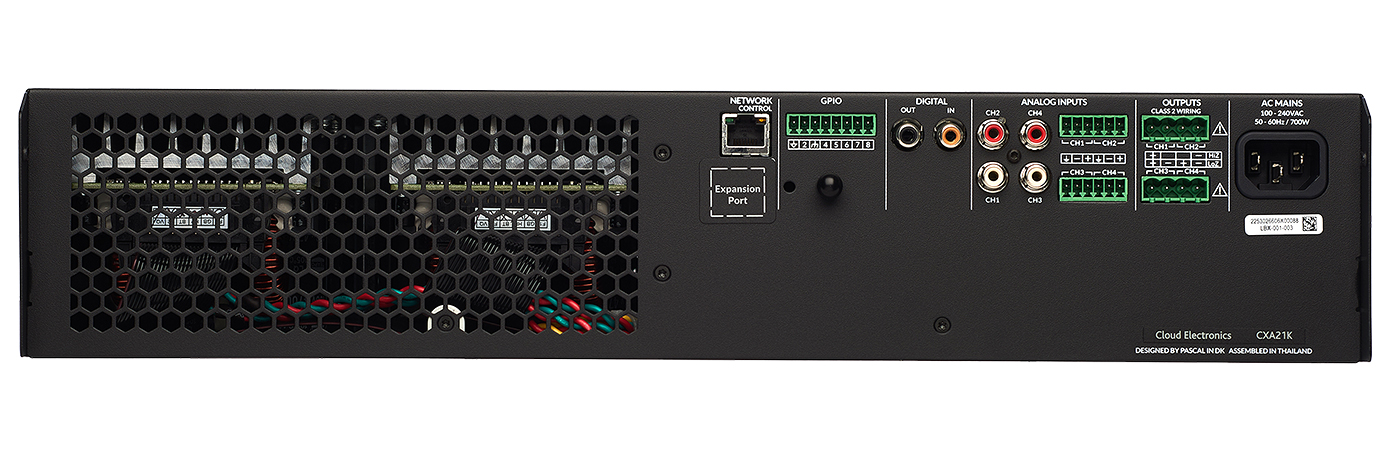

Four analogue inputs are available via RCA Phono and Euroblock style connectors.

The energy efficient Class D design also benefits from auto standby after 15 minutes of no input signal (time adjustable in the App).

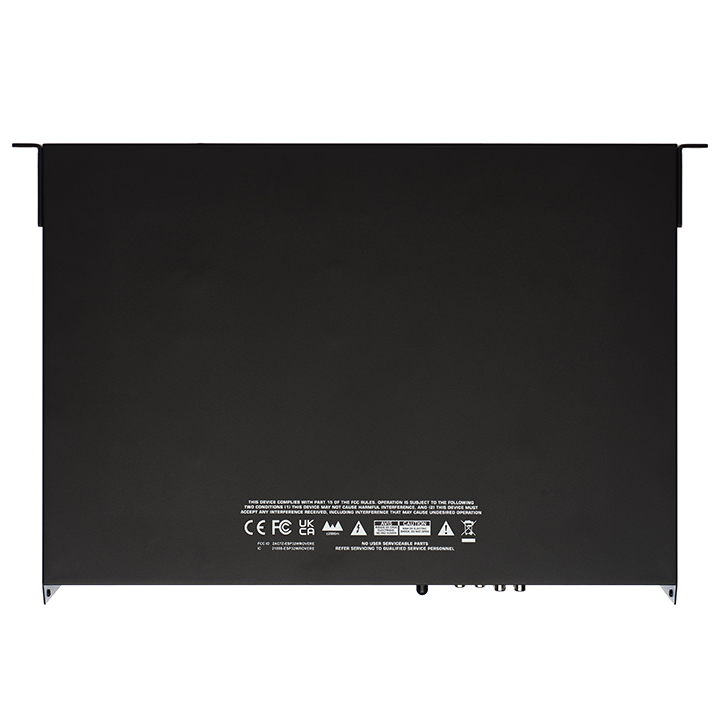

The amp can be placed on a table top or mounted into a 19” equipment rack with the included rack ears.

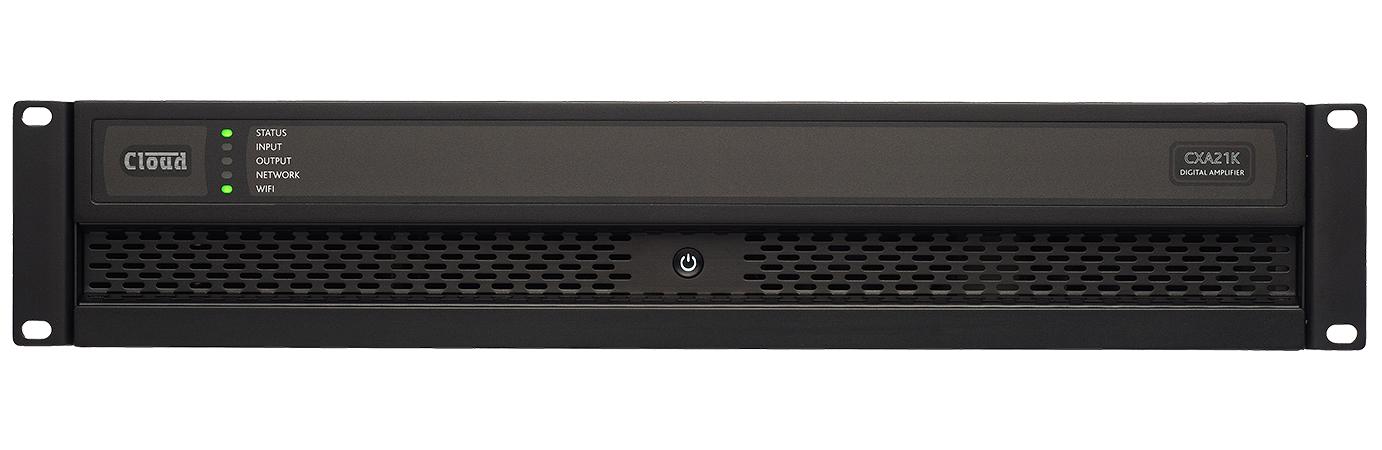

  • 2U, 19” rack mounted chassis
  • Full-matrix DSP configuration via web app (built-in)
  • Hybrid power distribution in both Lo-Z and Hi-Z Powered
  • Power Efficient, Class-D technology
  • Flexible power sharing across output channels (Hi-Z only)
  • S/PDIF digital input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • Warranty: 5 Years

The Cloud Electronics CXA series of amplifiers offers a variety of output levels to suit your project – please see related products.

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
100V multi-ch 2U 4ohms 8ohms 2ohm
List Ex VAT: £1,990.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model

CXA21K

Total System Power

2000 W

Output Power @ 2Ω

4 x 500W (SE)

Output Power @ 4Ω

4 x 500W (SE)
2 x 1000W (BTL)

Output Power @ 8Ω

4 x 250W (SE)
2 x 1000W (BTL)

Output Power @ 70/100V*

2 x 1000 W

Power Consumption

700W (standby < 0.5W)

Dimensions

88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in)

Weight

7.4kg (16.6 lbs)

Output Circuitry

UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion

Frequency Response

20Hz-20kHz (+0/-0.5dB (8Ω load, 3dB below rated power)

Protection Circuits

Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection

Power Supply

UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter

Operating Voltage/Frequency

Universal Mains, 100V-240V, 50Hz-60Hz

Supplied Accessories

2 x Rack ears
4 x Adhesive feet

Power Ratings

1% THD @ 120Vac and 230Vac
