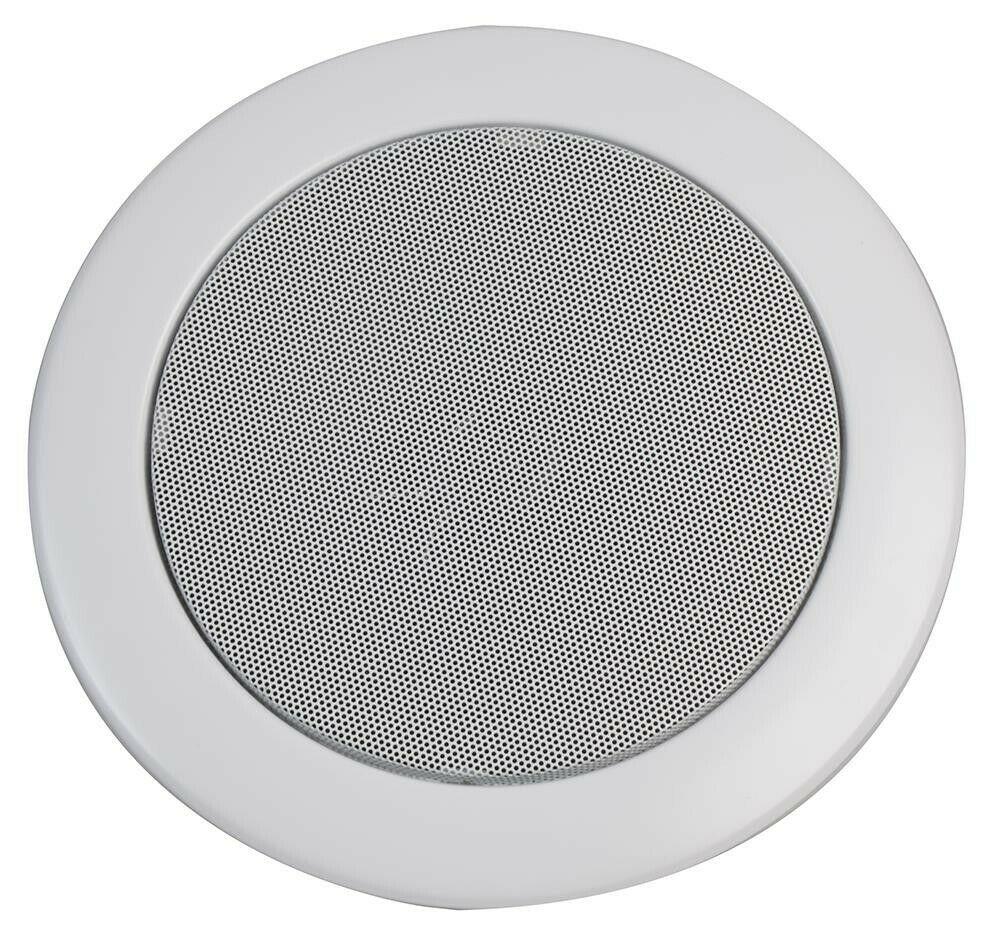

Penton RCS5/T

The Penton RCS5/T ceiling loudspeaker is fitted with a 5” driver and is rated at 6 Watts for use on 100 Volt line loudspeaker circuits. Ideal for background music and speech.

Stylish yet unobtrusive, the RCS5T features a pressed steel epoxy coated chassis incorporating a twin cone driver, offering a wider frequency response than a standard single cone for superior performance.

The spring mount design ensures a quick and easy installation and transformer tappings are provided at 6, 3, 1.5, 0.75 and 0.25W for plenty of adjustment.

Finished in white, RAL9016.

Other loudspeaker sizes are available in a matching design for a smart and coherent finish across your project.

Also available in EN54-24 compliant versions.

100V
List Ex VAT: £37.03
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

6 Watts

Tappings, 100 volt line

6/3/1.5/0.75/0.25 Watts

Transformer Impedance

1.67k/3.33k/6.66k/13.3k/39.9k Ohms (100V)

Tappings, 70.7 volt line

3/1.5/0.75/0.375/0.125 Watts

Driver impedance

8 Ohms

Effective Frequency Range

70Hz – 17.5KHz

S.P.L. 1watt/1m

95dB

Max S.P.L. rated/1m

102dB

Dispersion at 1k/2kHz

180/180 Degrees

IP Rating

21

Dimensions

Ø189 mm

Net Weight

1.0 Kg

Colour

White RAL9016

Material

Steel

Mounting

Torsion Springs

Cut-out diameter

160mm
