Penton SENTRY6ST/ENC
Click to expand

Penton SENTRY6ST/ENC

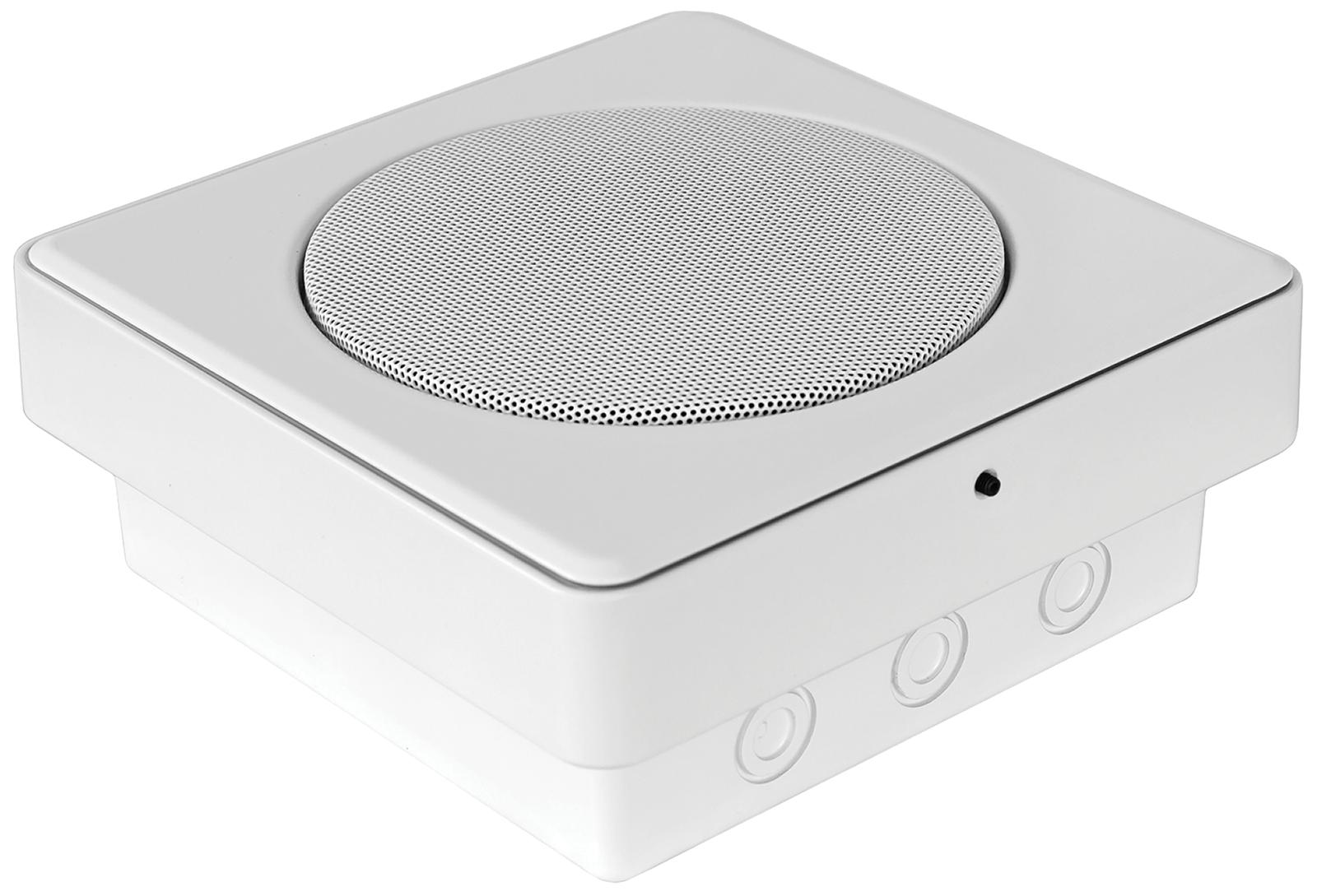

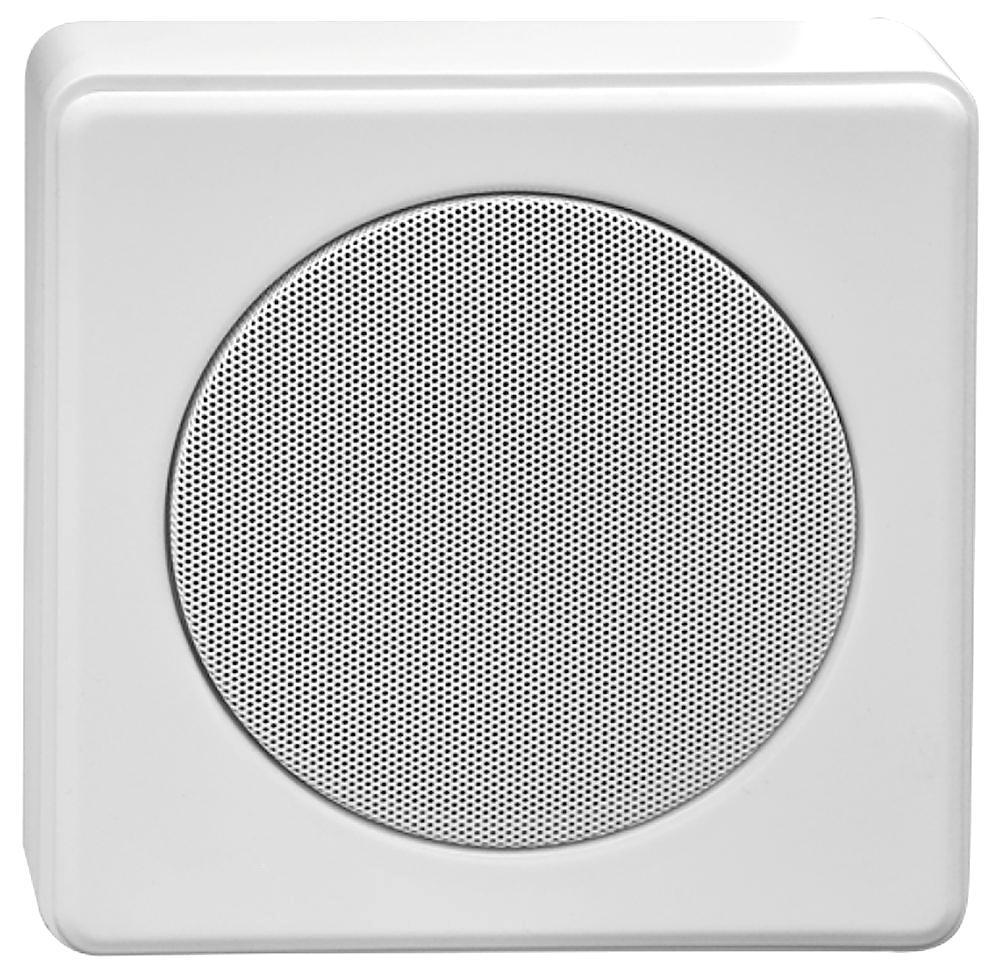

The Penton SENTRY6ST/ENC vandal proof metal cabinet loudspeaker is EN54-24 compliant, fitted with a 6” twin cone driver and rated at 6 Watts for use on 100 Volt line loudspeaker circuits.

Ideal for background music and speech as part of a PA/VA system, supplied with a metal firedome and fitted with a capacitor for DC line monitoring.

The rugged, surface mounted cabinet is constructed from epoxy coated high grade steel with a cast aluminium back box.

Dual gland entries give the option of loop in loop out termination avoiding the need for a separate junction box.

100 Volt Line transformer tappings are provided at 6, 3, 1.5, 0.75 and 0.25W for plenty of adjustment.

Finished in white, RAL9016.

Warranty: 3 Years.

100V Evac
List Ex VAT: £87.69
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

6 Watts

Tappings, 100 volt line

6/3/1.5/0.75/0.25 Watts

Transformer Impedance

1.67k/3.33k/6.66k/13.3k/40k Ohms (100V)

Tappings, 70.7 volt line

3/1.5/0.75/0.375/0.125 Watts

Driver impedance

8 Ohms

Effective Frequency Range

180Hz - 18KHz

S.P.L. 1watt/1m

93dB

Max S.P.L. rated/1m

99dB

Dispersion at 1k/2k Hz

170/120 Degrees

IP Rating

52

Dimensions H x W x D

190mm x 190mm x 75mm

Net Weight

1.8 Kg

Colour

White RAL9016

Material

Steel front, cast aluminium back box

Mounting

Screw

Cut-out diameter

200mm
