Signet AKM1

Signet AKM1

The SigNET AKM1 meeting room induction loop kit is supplied in a self contained kit* to help you comply with the regulations which govern ‘help with hearing’.

This includes the Disability Discrimination Act (DDA) which has now been absorbed into the Equality Act 2010 as well as British Standard BS8300 (2009), the Human Rights Act 1998 and the Care Standards Act 2000.

The kit is based around the SigNET PDA200E wall mounted induction loop amplifier which benefits from the following:

  • PDA200E wall mounted induction loop amplifier includes straightforward internal screw connectors
  • Wall-mounting metal enclosure for permanent installation
  • Internal drive, level and tone controls
  • Four inputs - microphone; line/outreach; alert (for doorbells, fire alarms, etc) and 100V line (for PA system connection)
  • Ideal for electrical contractors - no audio connectors or previous experience required.
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed.

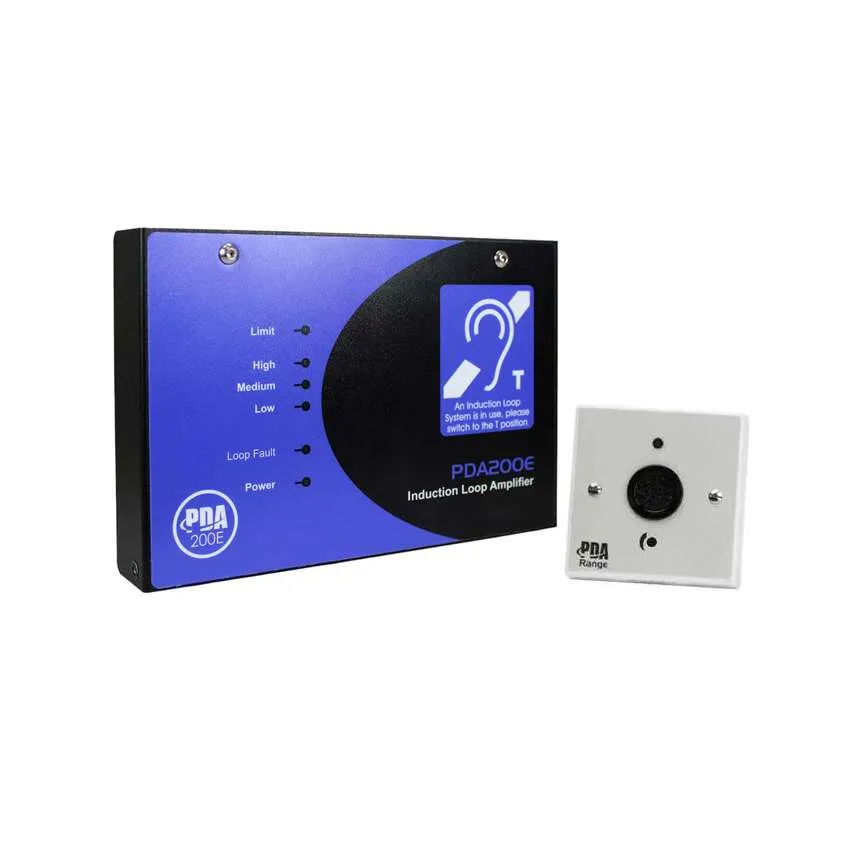

The SigNET AKM1 AFILS kit contains: PDA200E induction loop amplifier; APM plate mic, 'AFILS fitted' sticker.

*You will need induction loop cable, available separately - see related products.

Loop
List Ex VAT: £238.15
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Coverage

120m² approx.

Output Drive Current

 Maximum Peak: > 6.2 A; continuous 4.2 A

Inputs

1 x Microphone, 1 x Line/Outreach, 1 x Alert, 1 x 100V

(all screw type connectors)

Indicators

Input level; loop drive meter; power on

Controls

Input level, loop drive, tone

Dimensions

W 271 x H 200 x D 77mm (amplifier only); 2.82kg

DOWNLOADS

SigNET PDA200E & AK Kit datasheet
Signet AKM1 Meeting Room Loop Kit Datasheet
Signet Assistive Listening Systems Brochure
Planning An Induction Loop System
PDA200E Installation Manual
SigNET FPROK Loop Listener & Tester Datasheet
EC Declaration of Conformity: All Signet Loop Products
