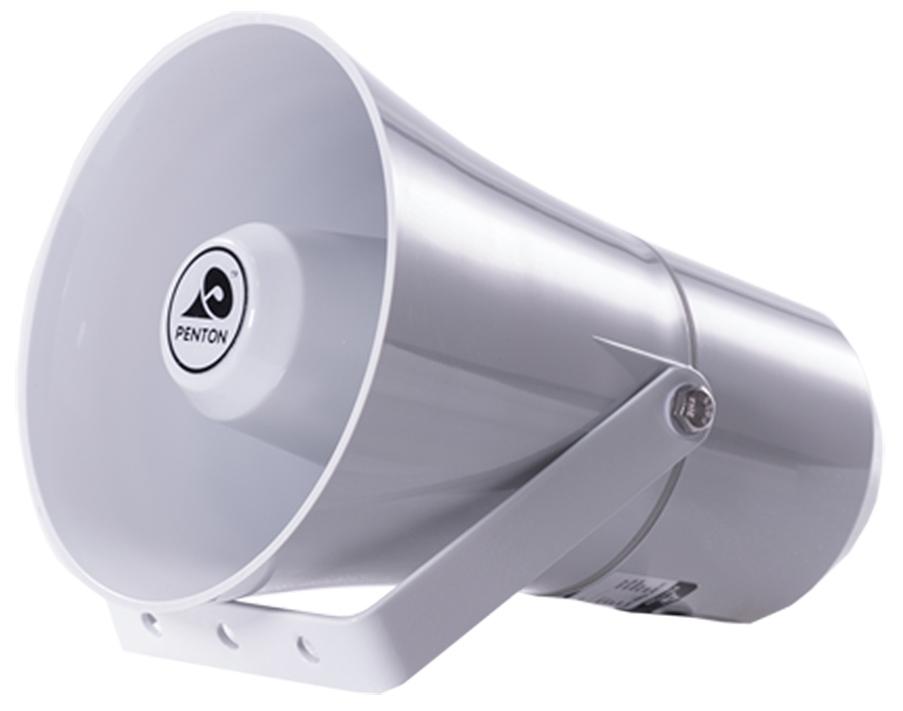

Penton PH10/T

The Penton PH10/T weatherproof, lightweight plastic re-entrant horn is rated at 10 Watts, 100 Volt line.

IP56 rated, suitable for use outdoors.

Good speech clarity makes this horn suitable for communication or warning signals.

The PH10T horn is manufactured from a strengthened ABS moulded plastic with UV inhibitors and is supplied with an epoxy coated, stainless steel U bracket. These horns are ideal for marine and industrial use as they are non-corrosive and resistant to salt laden air.

Supplied with 300mm, 5 core, non-fire rated cable tail.

Grey finish, RAL7035.

Warranty: 3 Years.

An EN54-24 compliant version is also available – please see APH10T/ENC.

100V IPxx
List Ex VAT: £61.13
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10/5/2.5/1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.625 Watts

Driver impedance

8 Ohms

Effective Frequency Range

400Hz – 8KHz

S.P.L. 1watt/1m

97dB

Max S.P.L. rated/1m

107dB

Dispersion at 1k/2kHz

180/110 Degrees

IP Rating

56

Dimensions

Ø138 x 200 mm

Net Weight

1.3 Kg

Colour

Grey, RAL7035

Material

ABS plastic with UV inhibitors

Mounting

epoxy coated stainless steel U bracket
