Penton APH10T/ENC

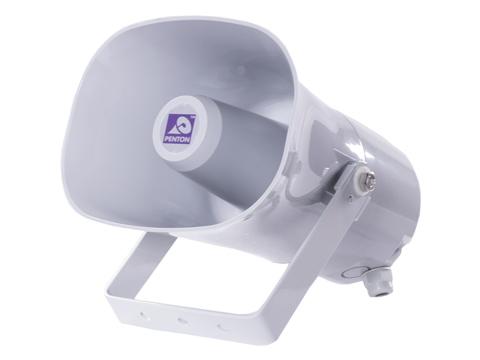

The Penton APH10T/ENC EN54-24 compliant, weatherproof, lightweight re-entrant horn is rated at 10 Watts, 100 Volt line.

Good speech clarity makes this horn suitable for communication or warning signals.

Water resistant & IP66 rated, the APH10T/ENC horn speaker is constructed from grey low smoke, zero Halogen UL-94V0 plastic with UV inhibitors & stainless steel hardware. It's mounted using the stainless steel U bracket supplied and is fitted with a capacitor for DC line monitoring.

These horns are ideal for marine and industrial use as they are non-corrosive and resistant to salt laden air.

Fitted, as standard, with 1 x PG9 gland but will open to 20mm + 1 x 20mm knockout allowing the installer to loop in & loop out the cabling without the need for an additional junction box.

Grey finish, RAL7035.

A non-EN54-24 compliant version is also available – please see PH10/T.

100V Evac IP66
List Ex VAT: £84.10
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10/5/2.5/1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.625 Watts

Driver impedance

8 Ohms

Effective Frequency Range

340Hz – 16KHz

S.P.L. 1watt/1m

105dB

Max S.P.L. rated/1m

115dB

Dispersion at 1k/2kHz

139/74 Degrees Horizontal
173/96 Degrees Vertical

IP Rating

66

Dimensions W x H x D

172 x 131 x 227 mm

Net Weight

1.6 Kg

Colour

Grey, RAL7035

Material

Low smoke, zero Halogen UL-94V0 plastic with UV inhibitors

Mounting

epoxy coated stainless steel U bracket & hardware
