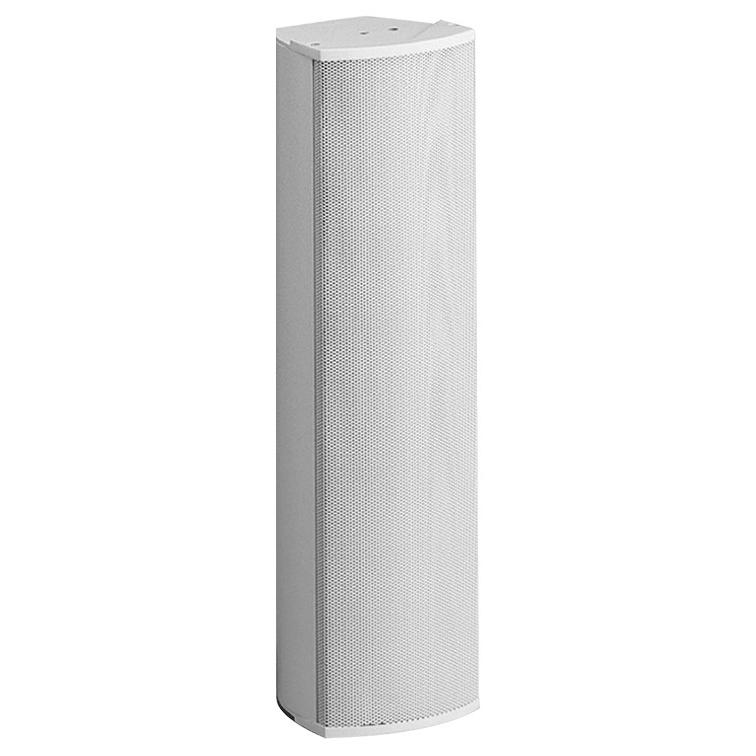

Penton MCS20T/ENC

The Penton MCS20T/ENC is an EN54-24 compliant column speaker fitted with three drivers for clear speech and background music reproduction with a very controlled horizontal & vertical coverage pattern.

Rated at 20 Watts for use on 100 Volt line loudspeaker circuits.

Water resistant & IP55 rated, the MCS20T/ENC is constructed from epoxy coated high grade extruded aluminium with a steel  L bracket supplied for wall mounting. White finish (RAL9016).

Fitted with a capacitor for DC line monitoring.

This rugged column loudspeaker is quick & easy to install and ideal for  places like airports, churches, factories, sports & conference centres.

100 Volt Line transformer tappings are provided at 20, 10, 5 & 2.5 W.

100V Evac IP55
List Ex VAT: £216.96
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

20 Watts

Tappings, 100 volt line

20/10/5/2.5 Watts

Transformer Impedance

500/1k/2k/4k Ohms (100V)

Tappings, 70.7 volt line

10/5/2.5/1.25 Watts

Driver impedance

2 Ohms

Effective Frequency Range

170Hz – 17KHz

S.P.L. 1watt/1m

92dB

Max S.P.L. rated/1m

105dB

Dispersion at 1k/2kHz

180/150 Degrees (Horizontal)
110/60 Degrees (Vertical)

IP Rating

55

Dimensions
H x W x D

368 x 98 x 90

Net Weight

2.5 Kg

Colour

White

Material

Aluminium

Mounting

Steel L bracket
