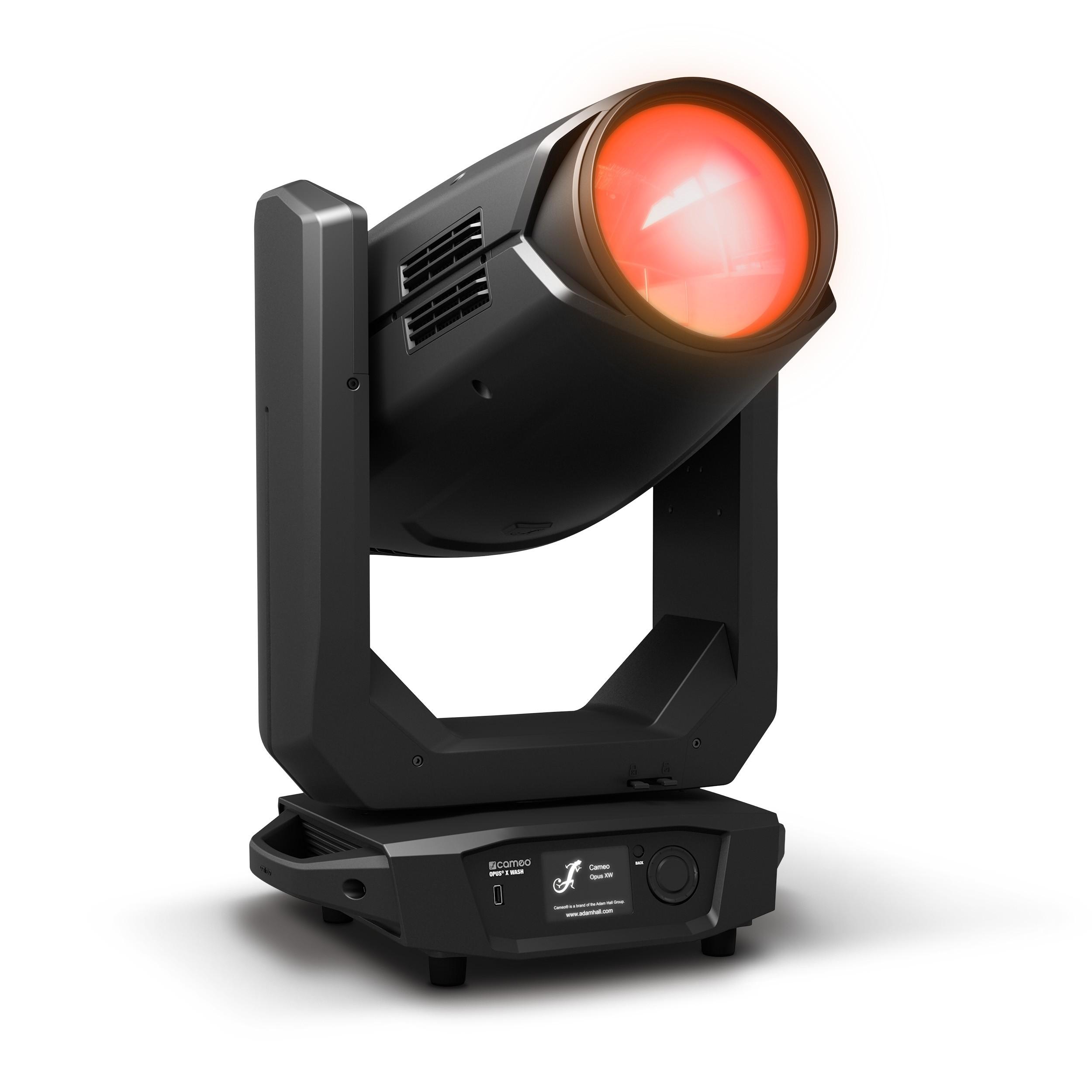

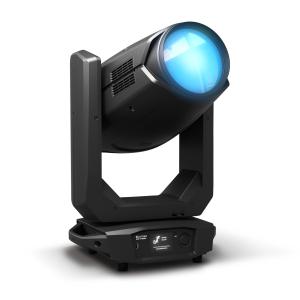

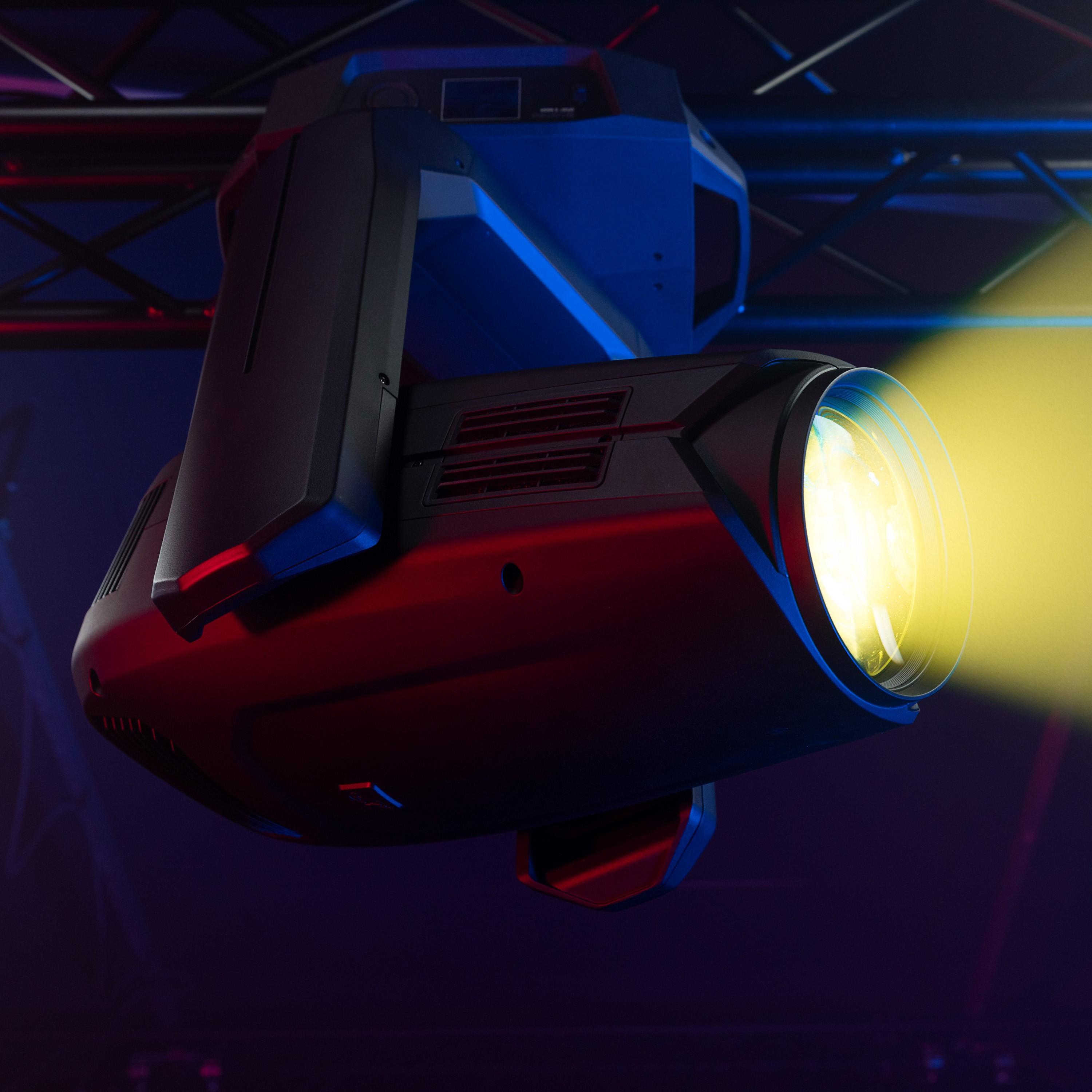

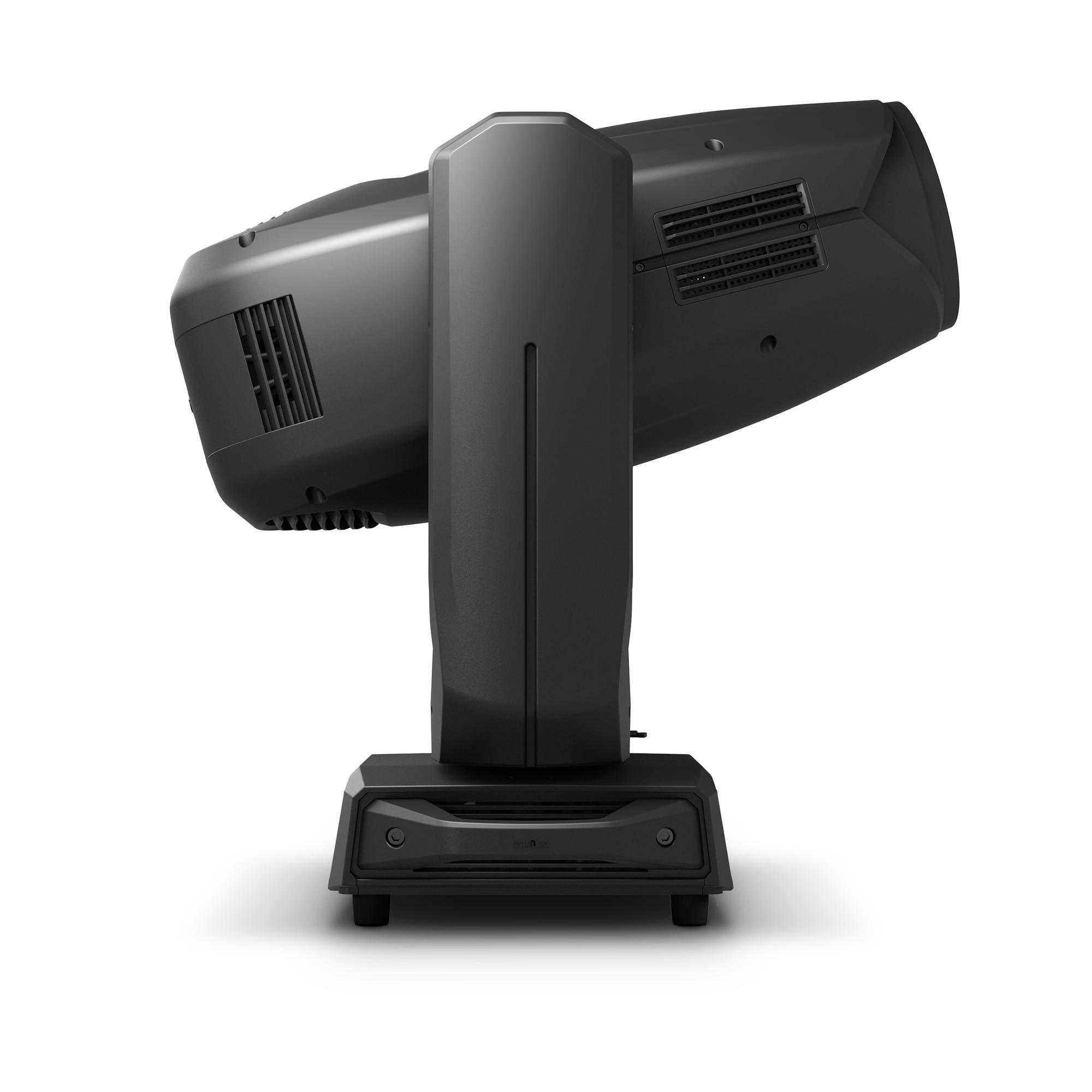

The cameo OPUS X Wash moving head boasts the same high-performance LED as the OPUS® X Profile moving head, generating a light output of 32,000 lm through a 170 mm frost lens. The PC lens allows uniform projection with soft shading and is perfect for illuminating large areas. The high efficiency LED light engine together with CMY colour mixing with CTO correction to 2,600 K is supplemented by two dichromatic colour wheels for an impressively broad variety of colour options.

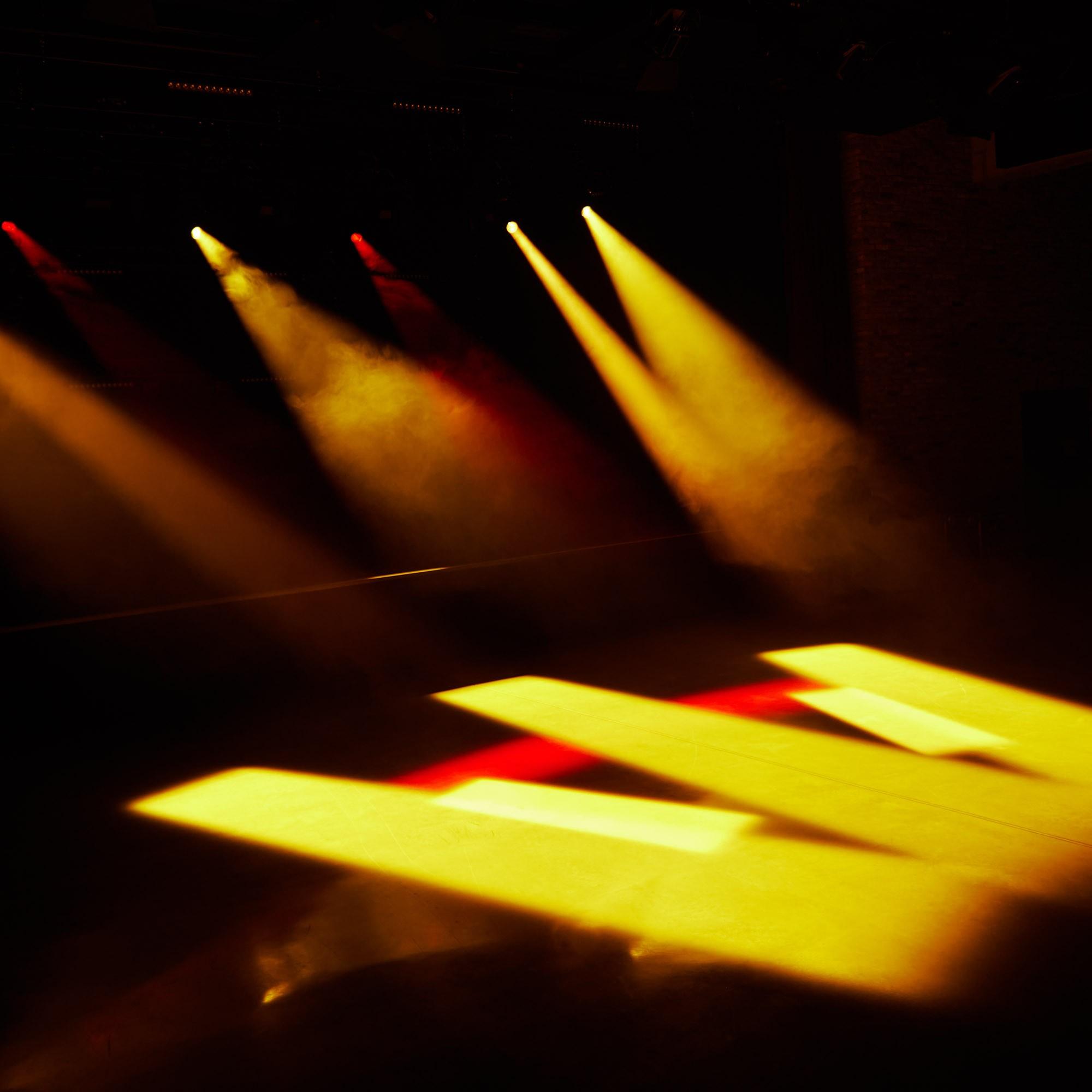

The modern framing module and wide zoom range of 5°-46° makes the OPUS X Wash moving head enables precision light cone shaping to create optimal lighting designs, even from a distance. The 4-way framing shutter system can be rotated by +/-45° and adjusted with each blade until it is completely closed. Combined with the variable frost filter and continuously adjustable iris, the design potential of the Cameo OPUS® X Wash is multiplied even further.

In stand-alone operation, control is either in static mode or configured as a master/slave, which is mains-independent via the battery-operated touchscreen display with encoder wheel and back button.

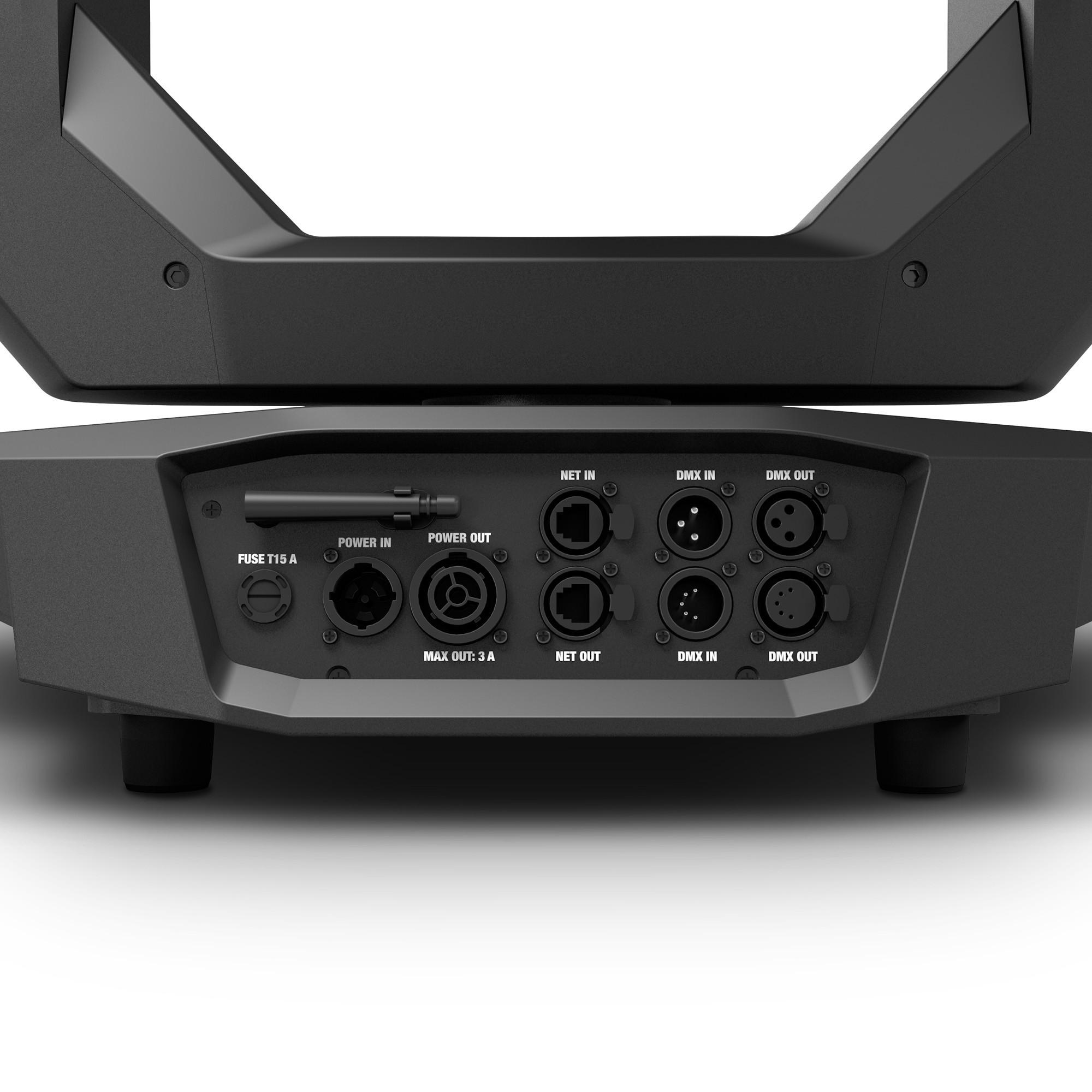

Flexible control options are available via the integrated W DMX™ transceiver, DMX, RDM, Art-Net or sACN, and can thus control functions such as even dimming with 16-bit resolution and four selectable curves.

The practical design of the OPUS X Wash is enhanced with unobtrusive secondary handles for easy carrying and positioning.

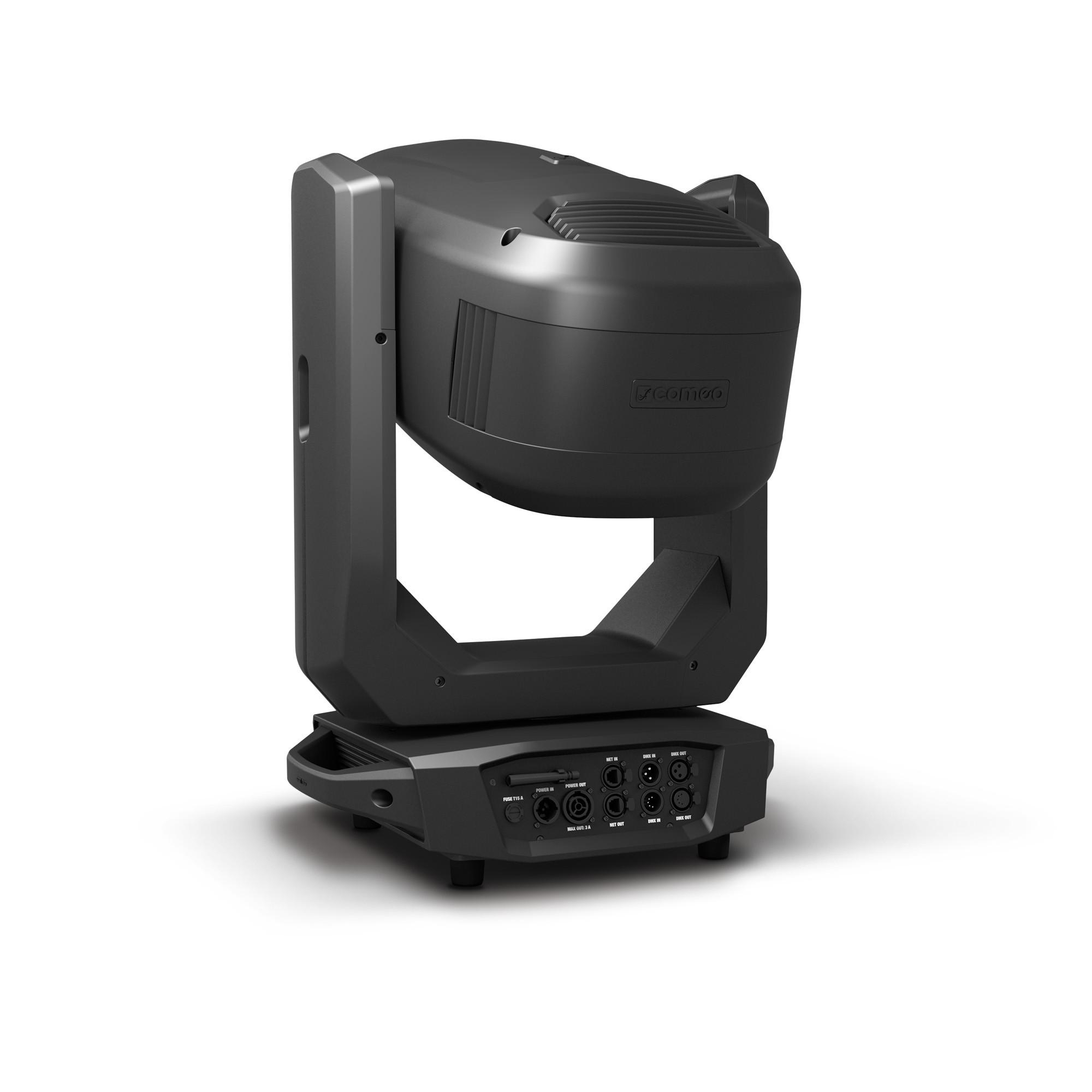

The robust metal and ABS housing is equipped with low-noise temperature-controlled fans for applications in noise-sensitive environments.

• High-power wash moving head with 32,000 lm

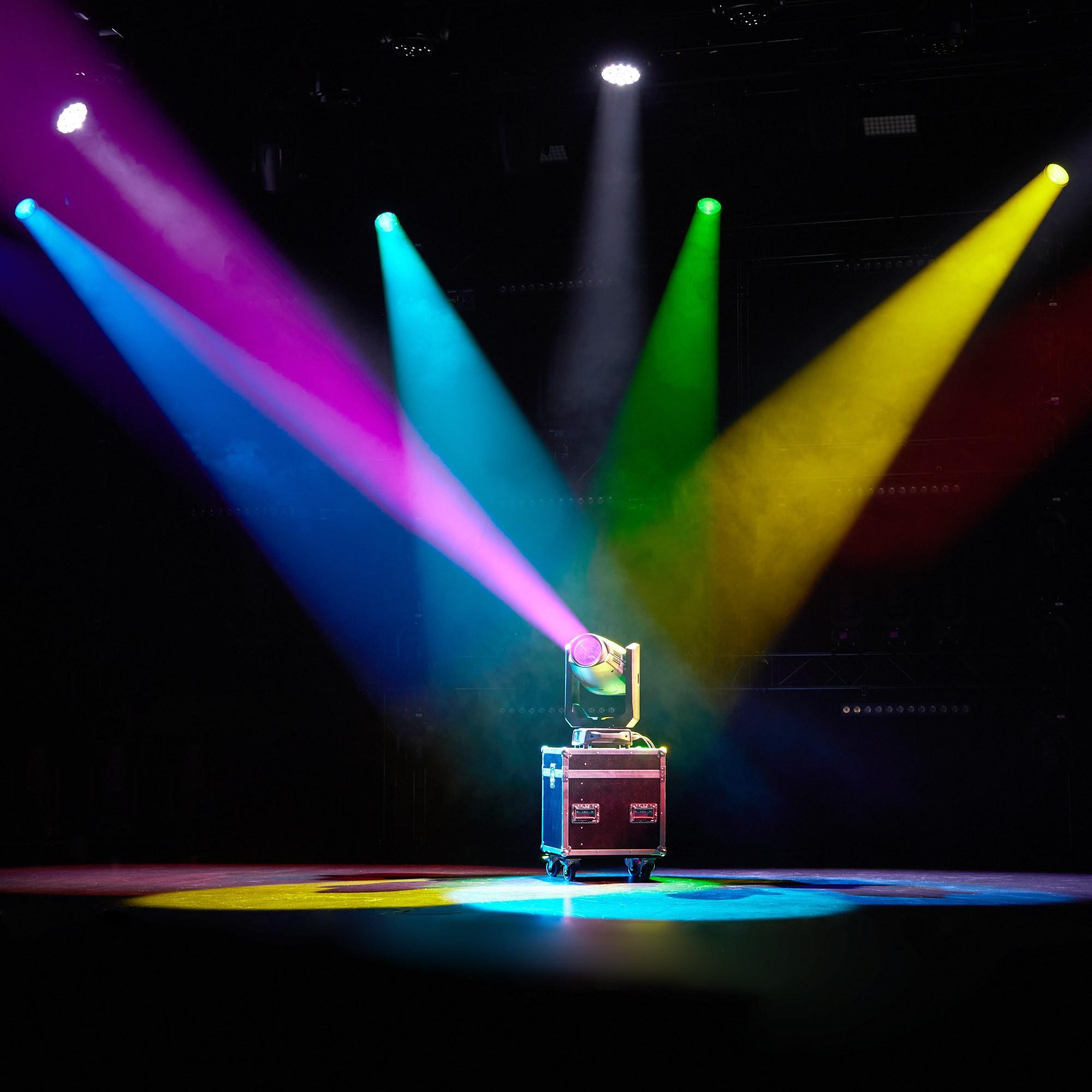

• CMY color blending and 2 additional color wheels, each with 6 dichroic filters
• Linear CTO correction to 2,600 K
• High-quality optics with 170 mm PC lens and extremely wide zoom range from 5°-46°

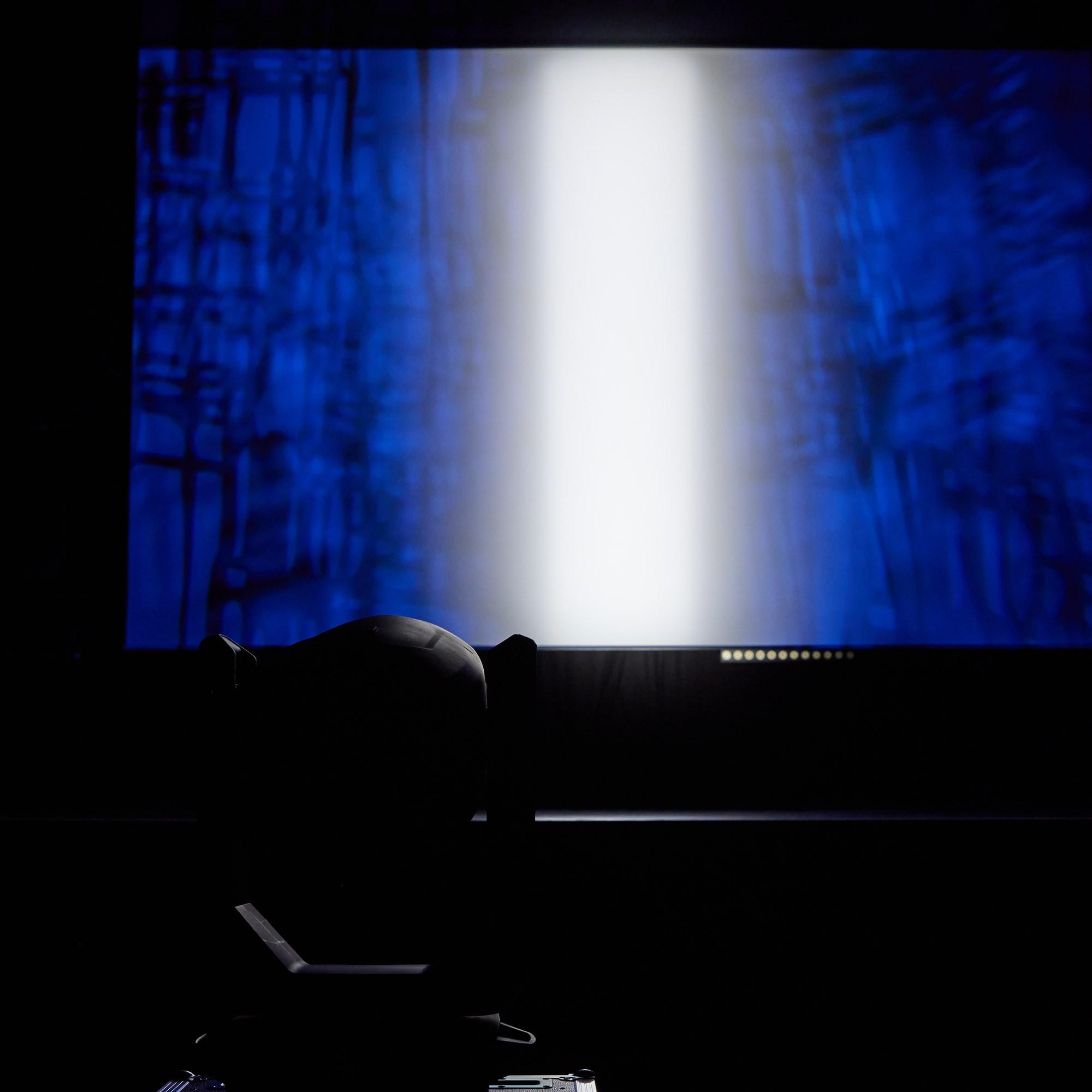

• Even and flat projection field without hot spots at any zoom angle
• 4-blade framing system with +/- 45° rotation, individually controllable up to full blackout
• Variable frost plus stepless iris
• Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz
• Battery-powered touchscreen display with encoder wheel for offline configuration
• Flexible control via built-in W-DMX™ Transceiver, Kling-Net, DMX, RDM, Art-Net or sACN
