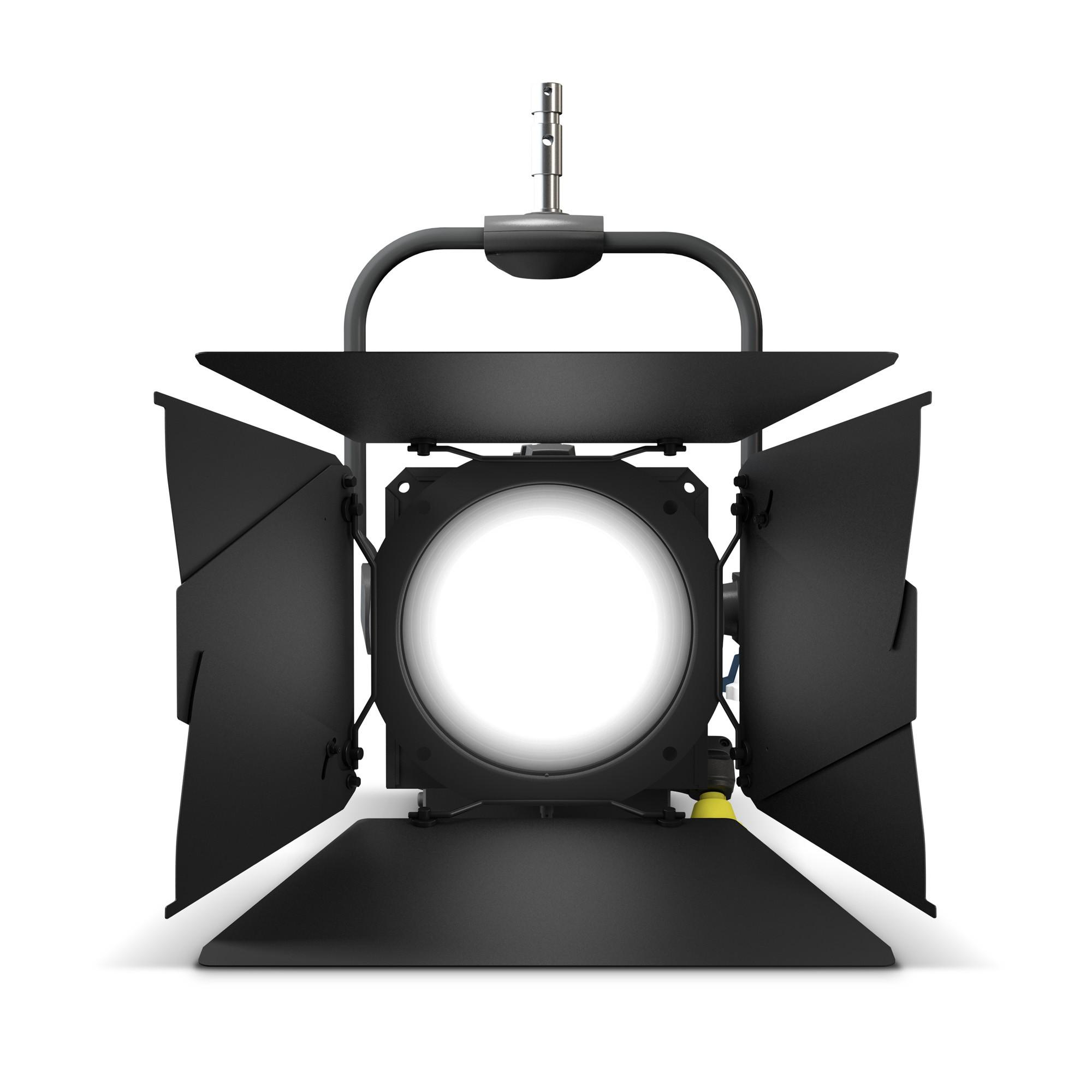

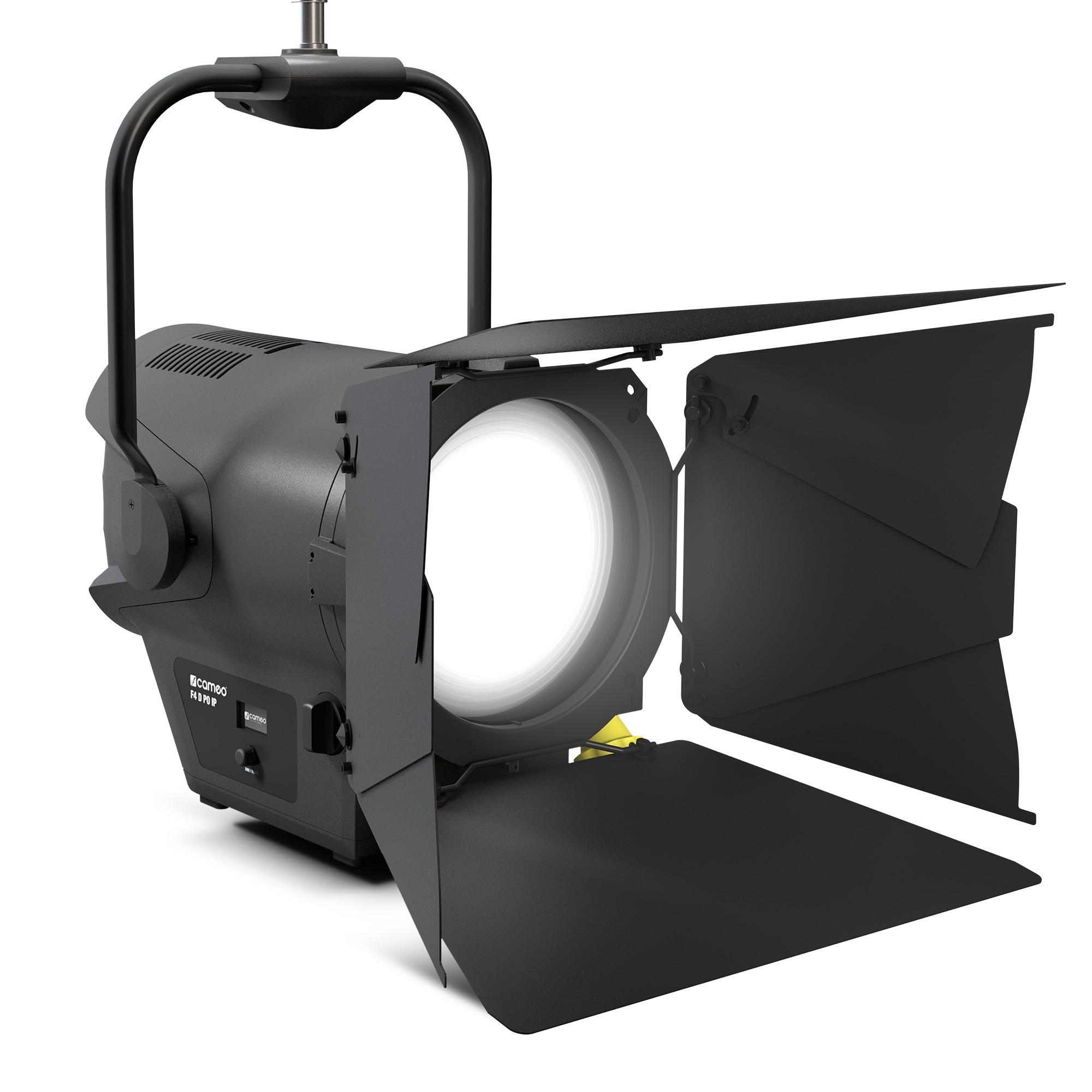

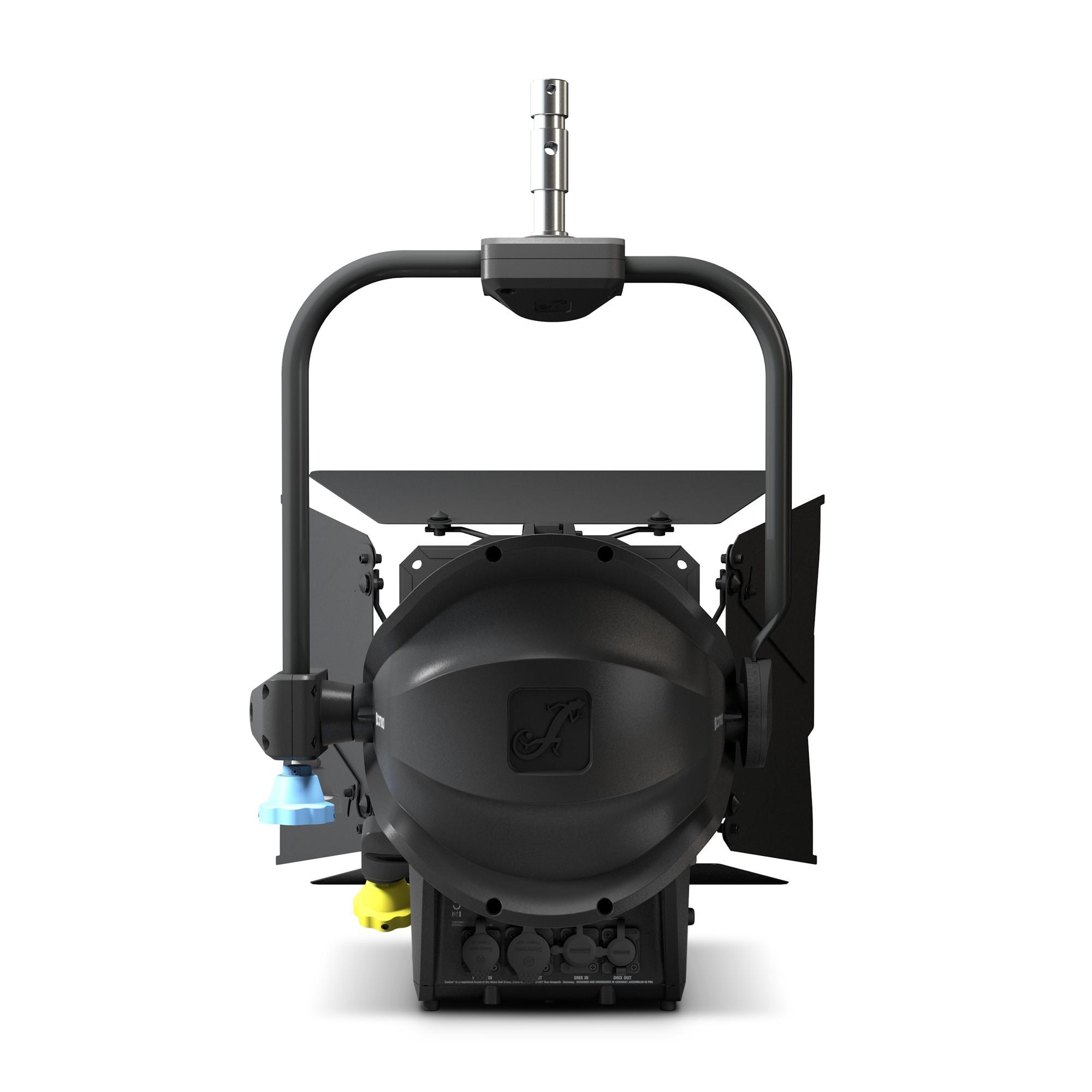

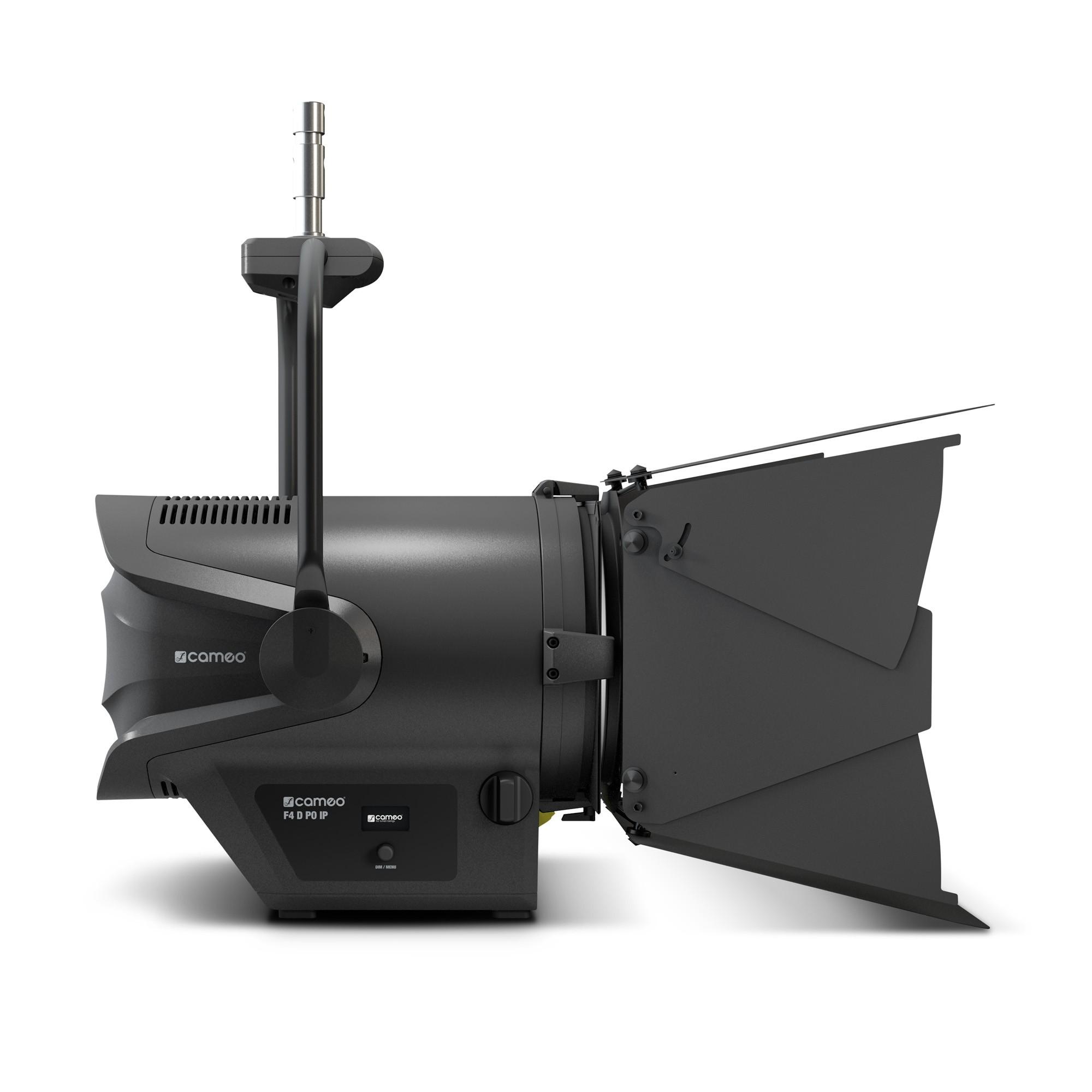

The CAMEO F4 D PO IP is a water resistant and pole operable version of the F4 D professional Fresnel spotlight with Daylight LED.

An outstanding, energy saving replacement for conventional 2kW halogen Fresnel spotlights.

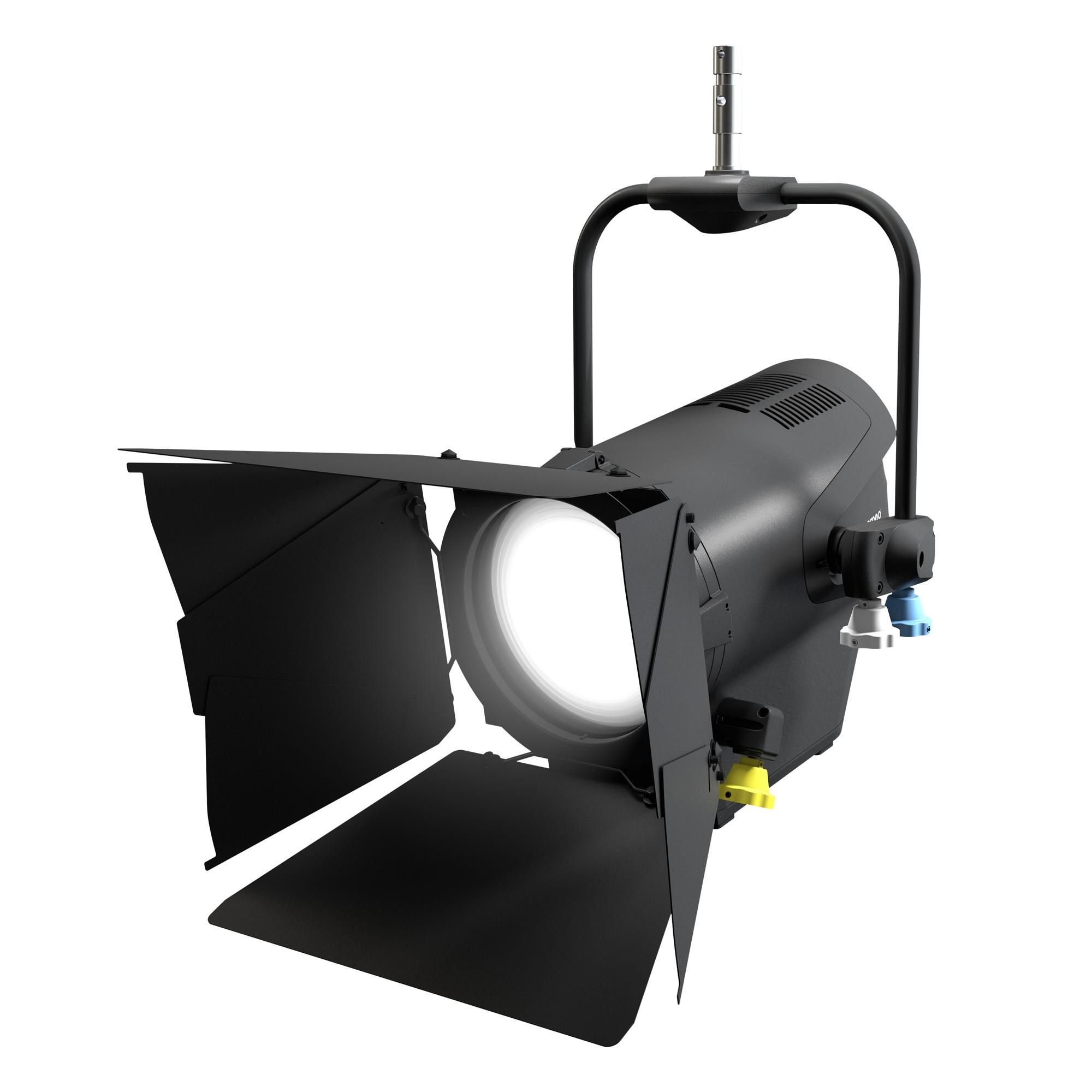

The IP65 upgrade makes this weatherproof Fresnel spot ideal for outdoor events & concerts as well as open-air theatres and film & television production and the pole operable controls enable pan, tilt and zoom settings to be altered from the ground, where ladder access may not be possible or desirable. An integral 28mm TV spigot is provided for truss mounting with a suitable bracket.

The 250 mm high-quality lens is flooded with a powerful luminous flux of 30,000 lm via the 520-watt daylight LED with a colour temperature of 5,600 K and service life of 50,000 hours.

The F4D PO IP is RDM-capable, has six DMX control modes, a fast strobe function and 16-bit dimmer curves with adjustable response.

A continuously adjustable beam angle of 14° to 43° (beam angle) or 24° to 57° (field angle) creates a soft-edged beam of light with extremely high colour rendering index of 95 reproducing pure and natural colours.

Set up is quick and easy with the unique Quicklight function. Momentarily remove the DMX signal, increase the lighting brightness via the push encoder and adjust the spotlight.

Six selectable pulse width modulation frequencies of up to 25 kHz ensure flicker-free operation. The highly efficient heatpipe cooling combines with a temperature-controlled fan to ensure optimal operation.

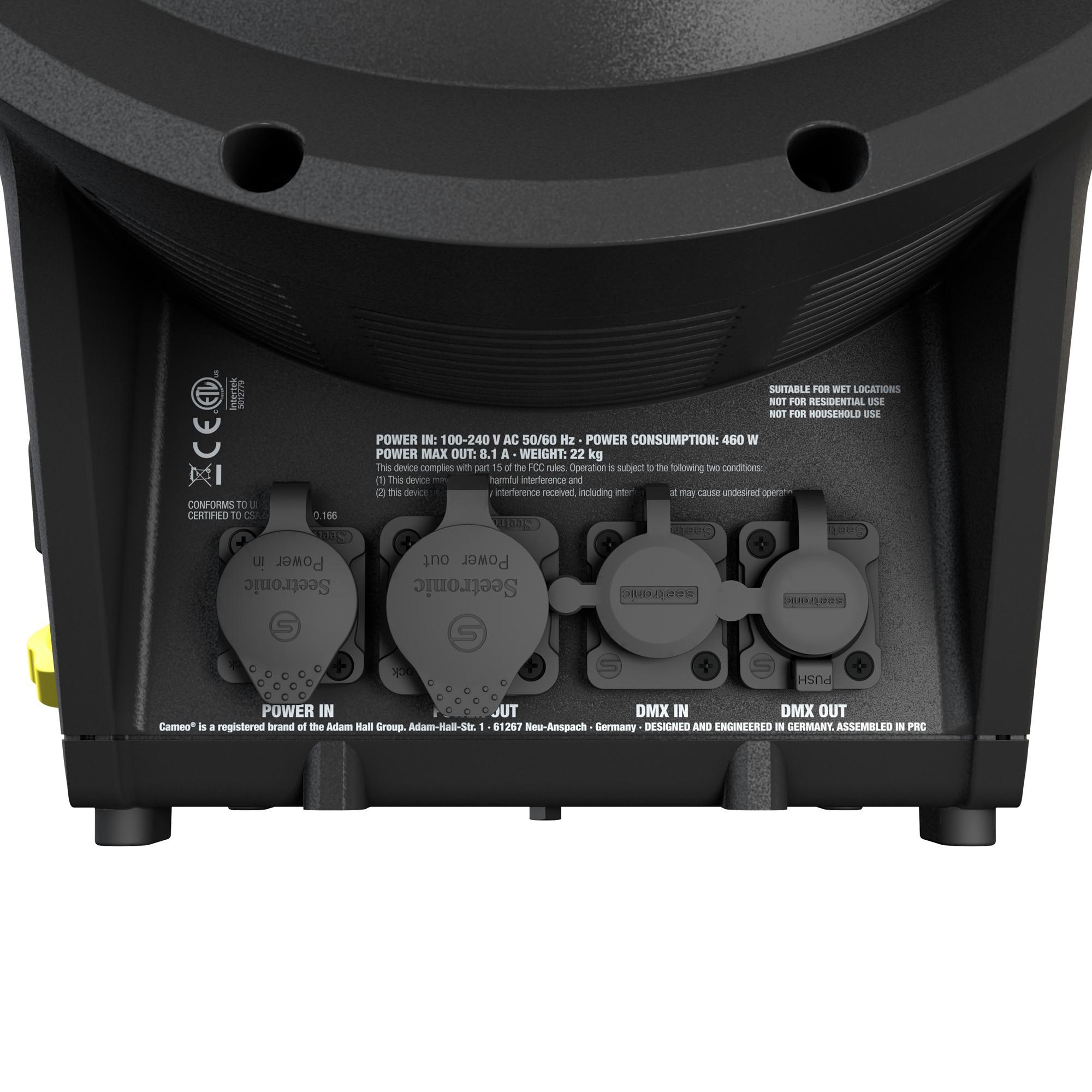

The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connections allow simple daisy-chaining.

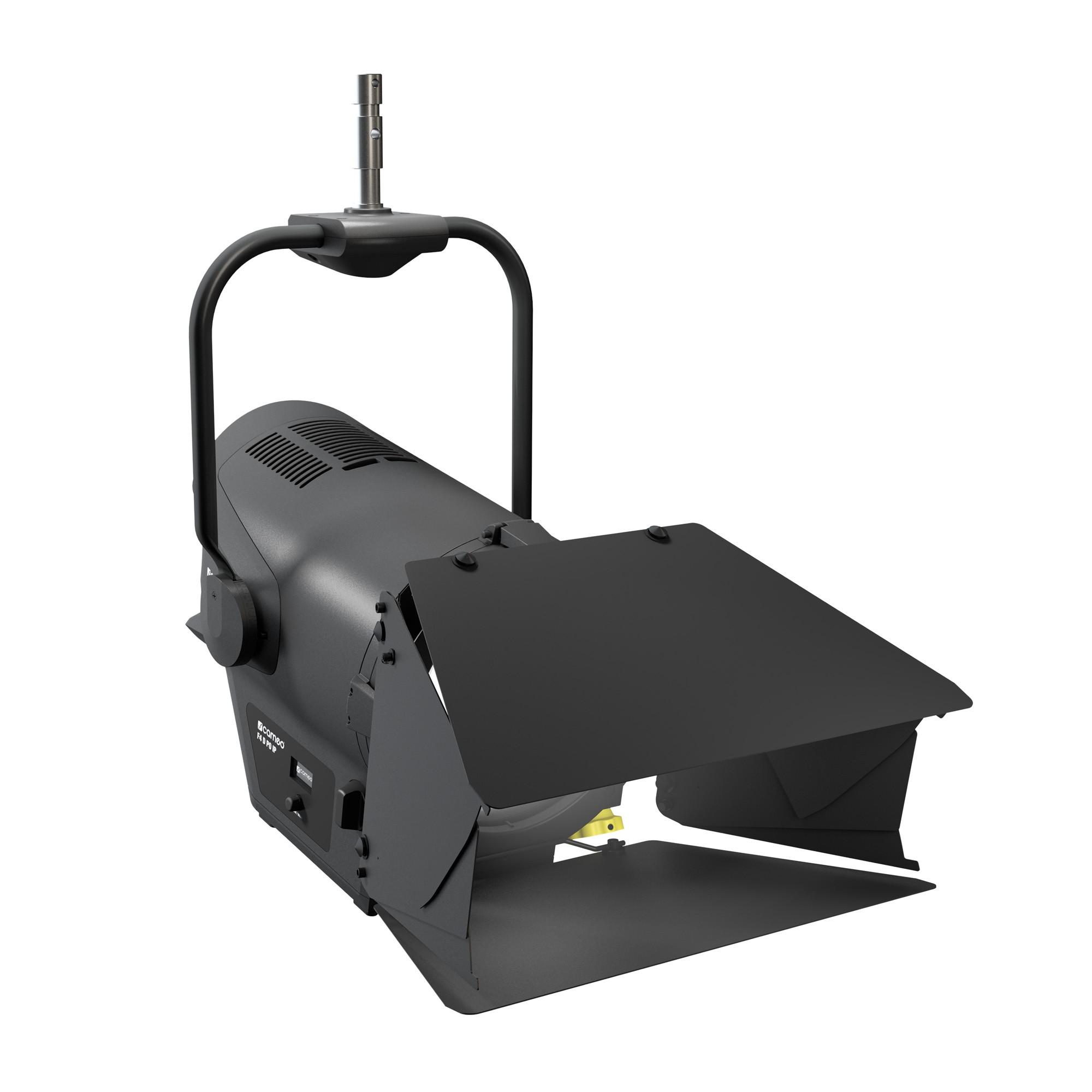

8-way barndoor, a gel frame and mains cable are included.

• LED Fresnel spotlight with daylight LED and 30,000 lm total light output, 5600K
• IP65 rated, suitable for use outdoors
• Pole adjustable pan, tilt & zoom
• Natural colour reproduction, CRI: 94, TLCI: 96
• Continuous zoom for beam angles from 14° to 43°
• 16-bit technology for high-resolution dimming
• Selectable 16-bit dimmer curves for smooth dimming
• Highly efficient heatpipe cooling with temperature-controlled fan
• RDM-capable, selectable pulse width modulation frequencies up to 25 kHz
• Flicker-free and silent operation, ideal for TV, film and theatre
• Quicklight function to save time when setting lights
• 8-way barndoor and colour filter frames included
• Pole operable, IP65 outdoor version available - see F4 D PO IP

For more details, please download the Cameo F4 D PO IP datasheet and User Manual via the links below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:
