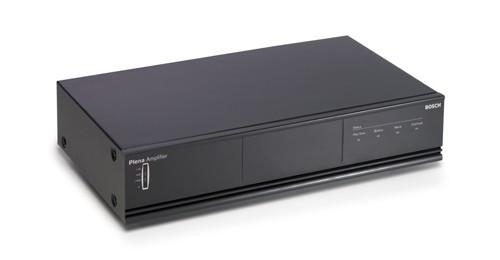

Bosch LBB1930/20

The Bosch LBB1930/20 is a compact yet powerful 120 Watt, power amplifier with 100 volt line constant voltage and 8 ohm low impedance outputs.

2U high 19” chassis for rack mounting or tabletop use.

The LBB 1930/20 is an ideal PAVA amp for emergency and evacuation use, with the following monitored functions: mains presence, battery present, pilot tone presence, amplifier operation.

Operates both on mains power and on a 24 V battery power supply for emergency back up, with automatic switchover.

There are two separate priority controlled 100 V outputs for zones that only need announcements made via the priority input, and for zones that will not receive announcements made via the priority input.

LEDs on the front panel of the LBB1930/20 show the status of the amplifier: power, audio output level, and supervised functions.

This high performance, versatile power amplifier fulfills a wide range of public address requirements at a surprisingly low cost.

Rack mounting brackets supplied.

  • 120 watts
  • Very high audio performance power amp
  • Can be used to boost Plena Voice alarm systems with system monitoring
  • XLR and jack input with XLR and Jack loop through outputs
  • 100 volt line input. Ideal for remote location booster amps
  • 100v, 70v and 8 ohm outputs
  • Dual inputs with priority switching
  • Temperature controlled forced front to back ventilation
  • AC and 24VDC operation
  • Mains, battery back-up and pilot tone supervision
  • LED VU Meter
  • TÜV certified according to IEC 60849
  • Warranty: 3 Years
100V 2U 8ohms
List Ex VAT: £520.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Voltage

230 VAC ±10%, 50/60 Hz

Inrush current

8 A

Max power consumption

400 VA

Voltage

24 VDC +15% / -15%

Current max

6 A

Output power (rms/maximum)

120 / 180 W

Power reduction on backup power

-1 dB

Frequency response

50 Hz to 20 kHz (+1 / -3 dB at -10 dB ref. rated output)

Distortion

<1% at rated output power, 1 kHz

S/N (flat at max volume)

>90 dB

Line inputs

2 x

Connector

3-pin XLR, balanced

Sensitivity

1 V

Impedance

20 kohm

CMRR

>25 dB (50 Hz to 20 kHz)

Gain

40 dB

Connector

Screw, unbalanced

Sensitivity

100 V

Impedance

330 kohm

Line loop-through output

2 x
