The JTS CS-4 is a 4 Channel automatic microphone mixer with 12V Phantom power, offering a flexible package of features and great value for money.

The inputs are switchable (via internal switches) between microphone and line level. Each channel has individual gain control and phantom power option.

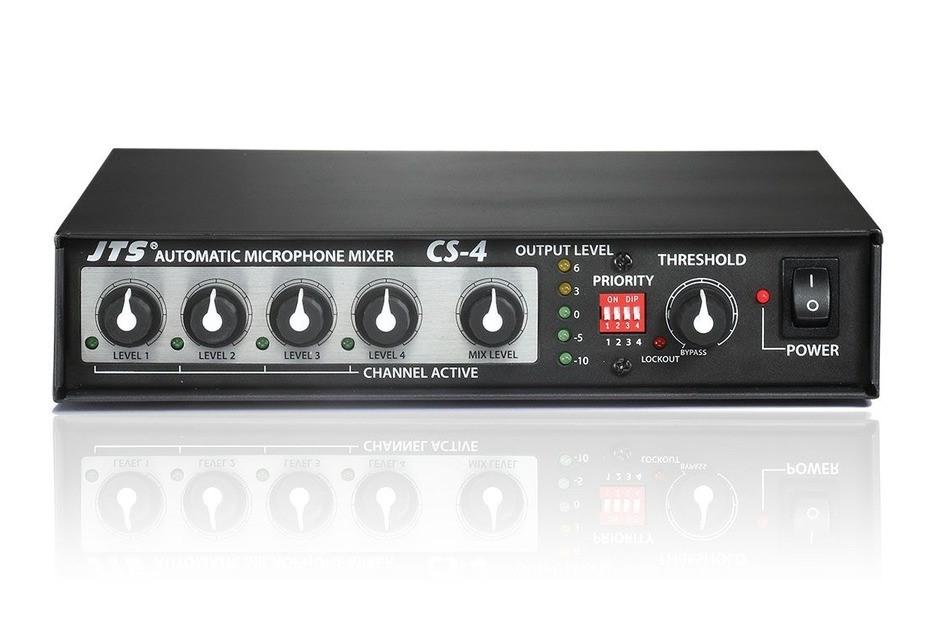

Level attenuators for each input and the Mix output can be found on the front of the mixer along with Priority dipswitches which enable any Mic input to be assigned Priority over the others.

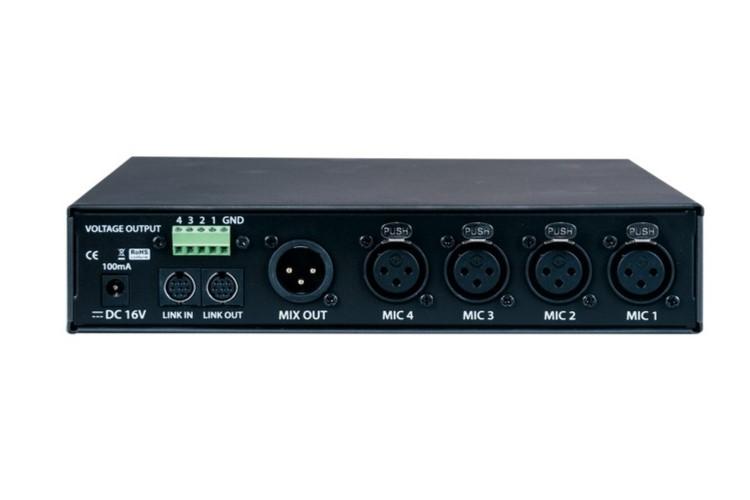

A link in & link out enables the mixer to be daisy-chained with unlimited numbers of mixers for larger installations.

There are three operation modes: one-channel-at-a time, all active or override.

Last In stays on for continuous ambient sound.

A handy control voltage is provided to trigger external devices such as speaker switching or camera switching.

The JTS CS4 mixer is ideal for effective managing of multi-microphone installations in applications such as corporate boardrooms, conference rooms, council offices, houses of worship & classrooms.
