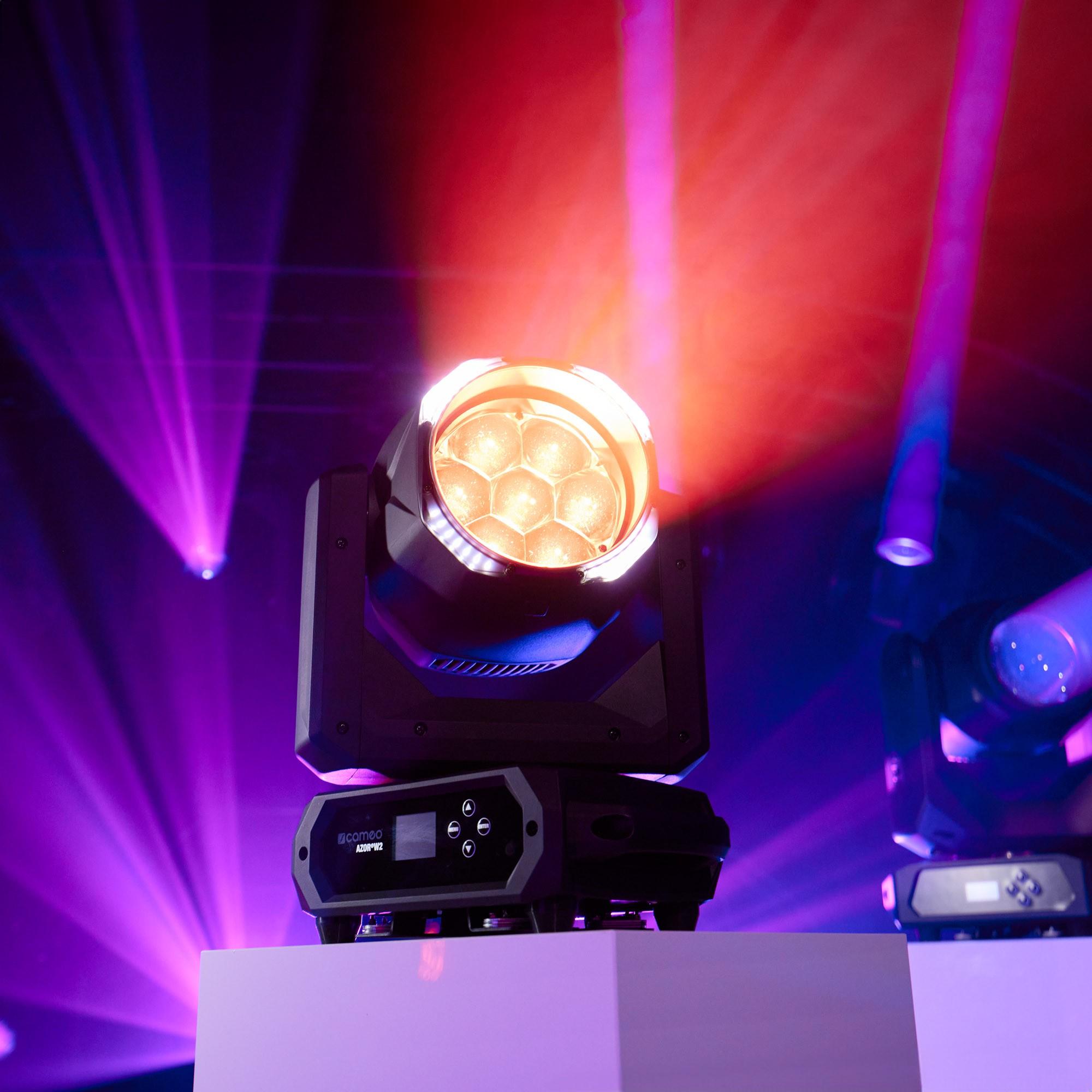

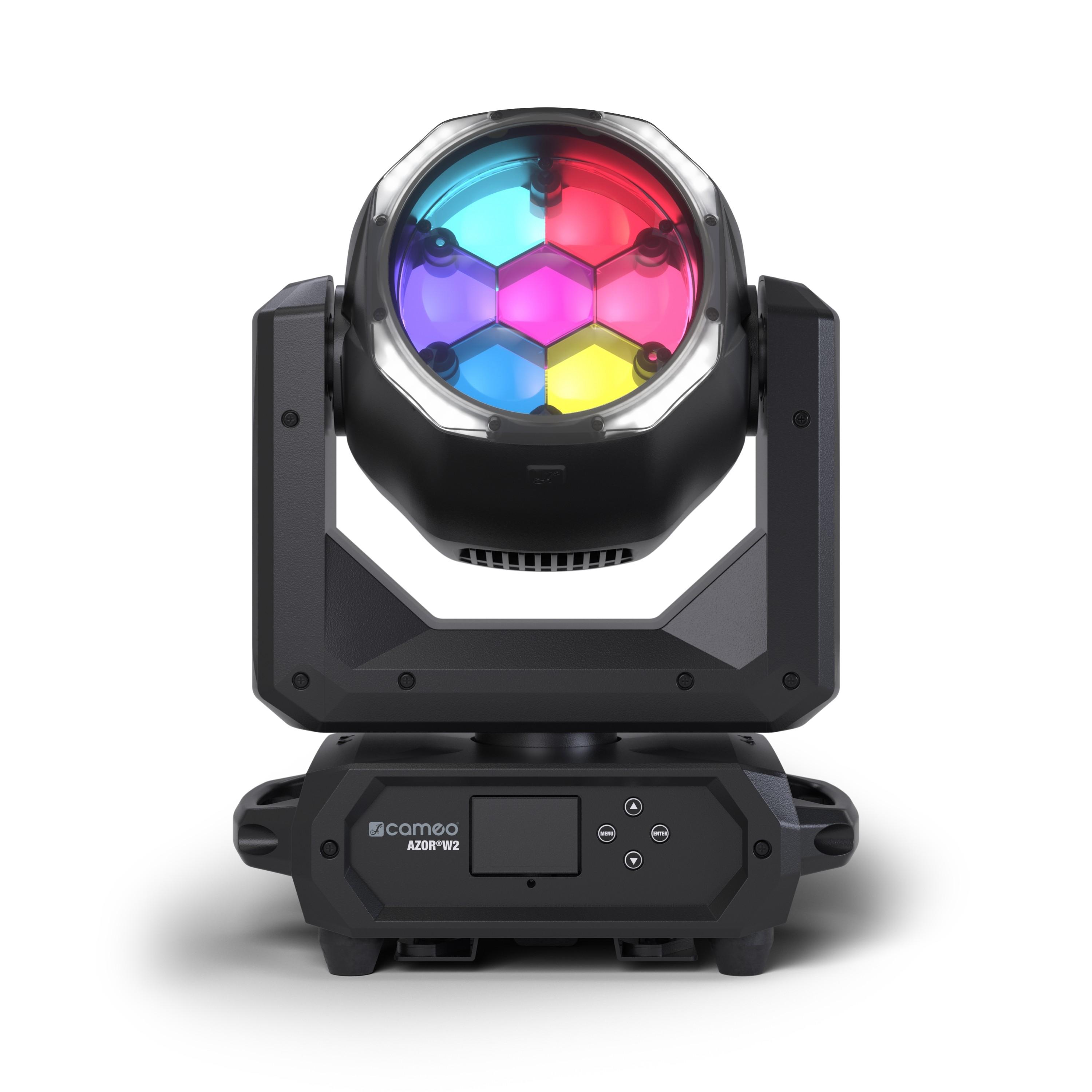

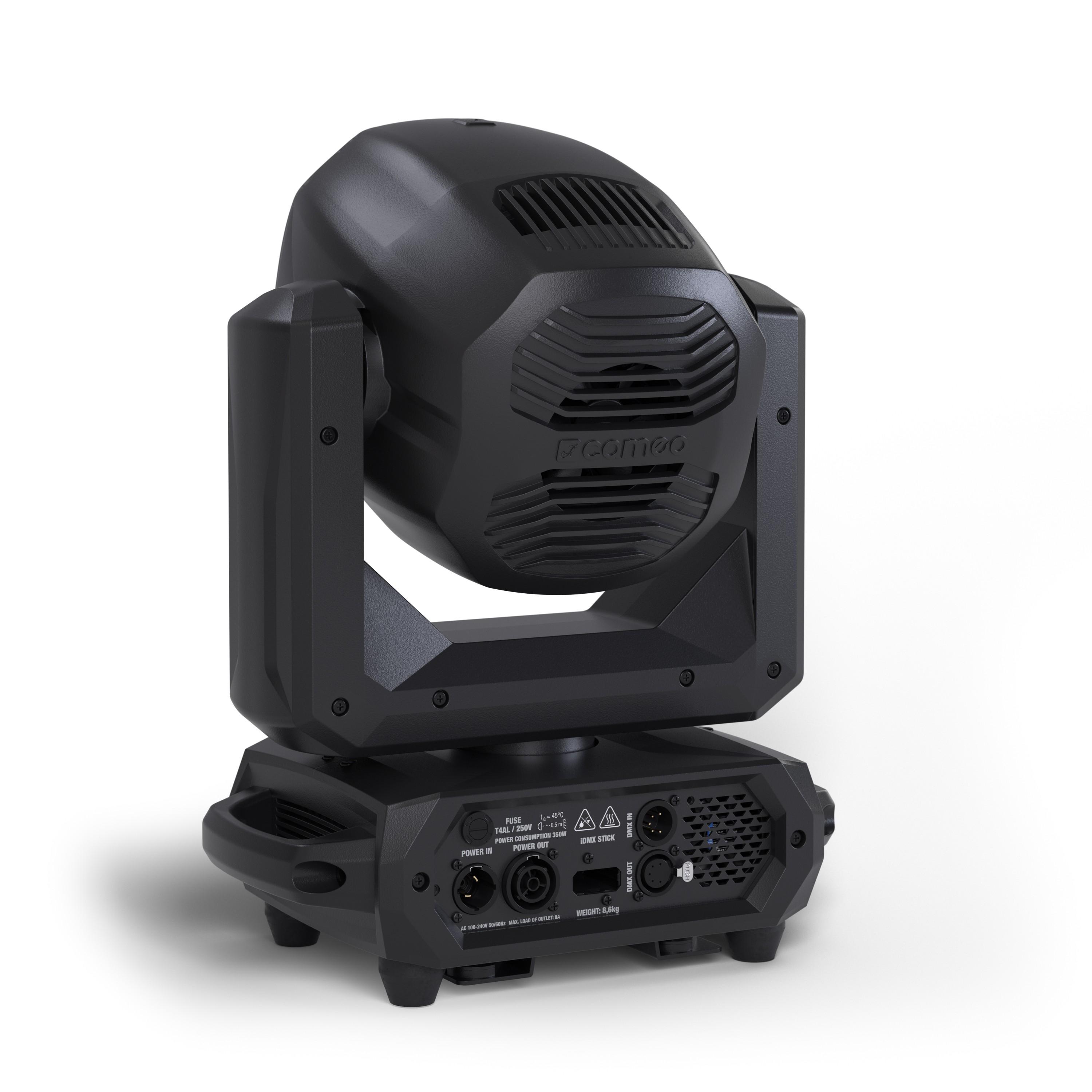

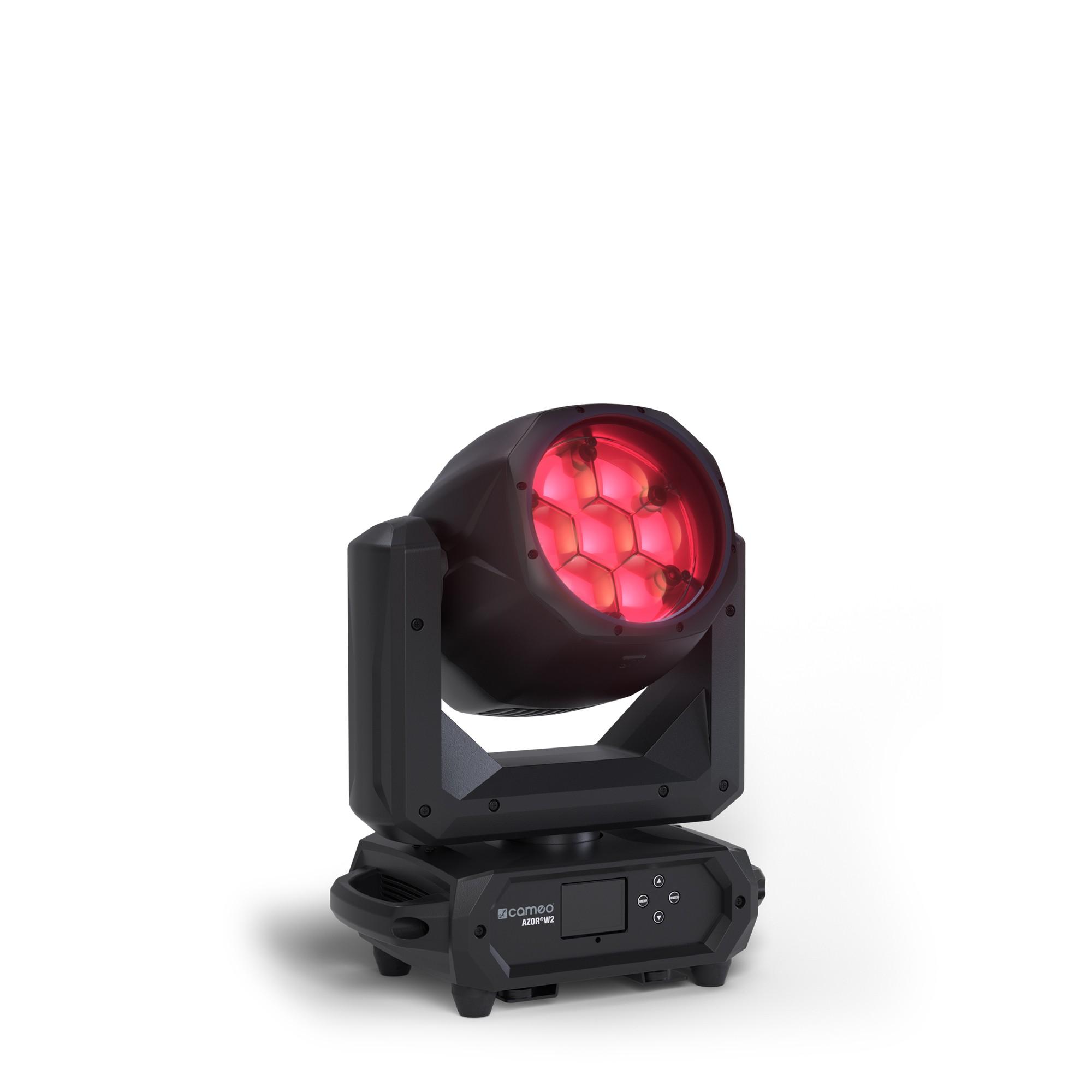

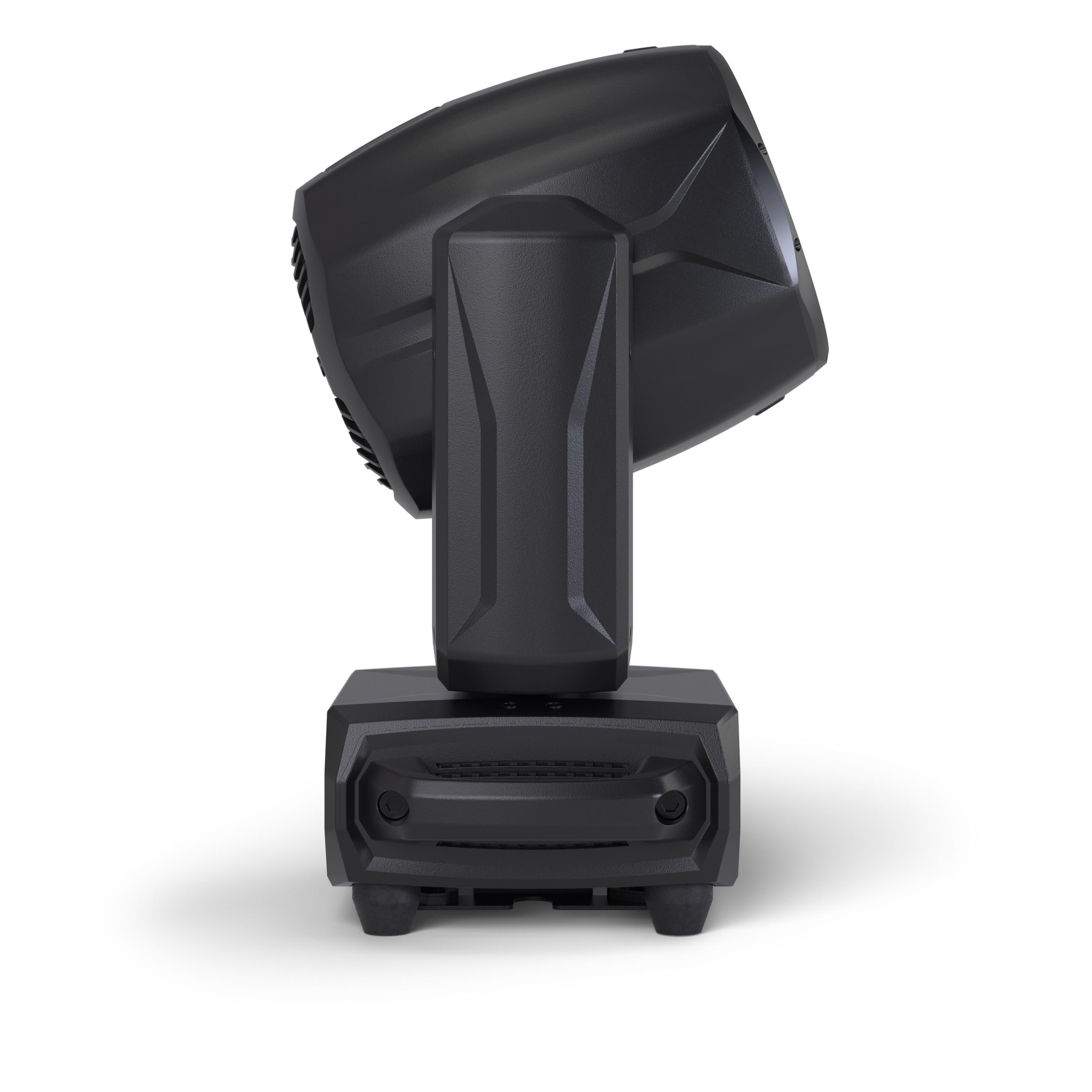

The AZOR W2 Compact Wash Moving Head light with 7 x 40W RGBL LEDs with a total output of 3,600 lm, a zoom range of 4° - 50° along with 540°/630° pan and 250° tilt movement.

Setting the AZOR W2 apart from the other AZOR spotlights is the ‘Eclipse Burst Effect’. Behind a dark filter, this innovative addition introduces 4 segment SMD-LEDs, creating captivating strobe and pixel effects. Each segment contains 12 x 2W Cold White LEDs. Paired with single-pixel control, the AZOR W2 promises an audience experience that goes beyond the ordinary.

The adjustable PWM frequency (650 Hz - 25 kHz) makes the AZOR S2 suitable for use in any camera based applications such as TV, Film and broadcast due to its flicker-free capability,

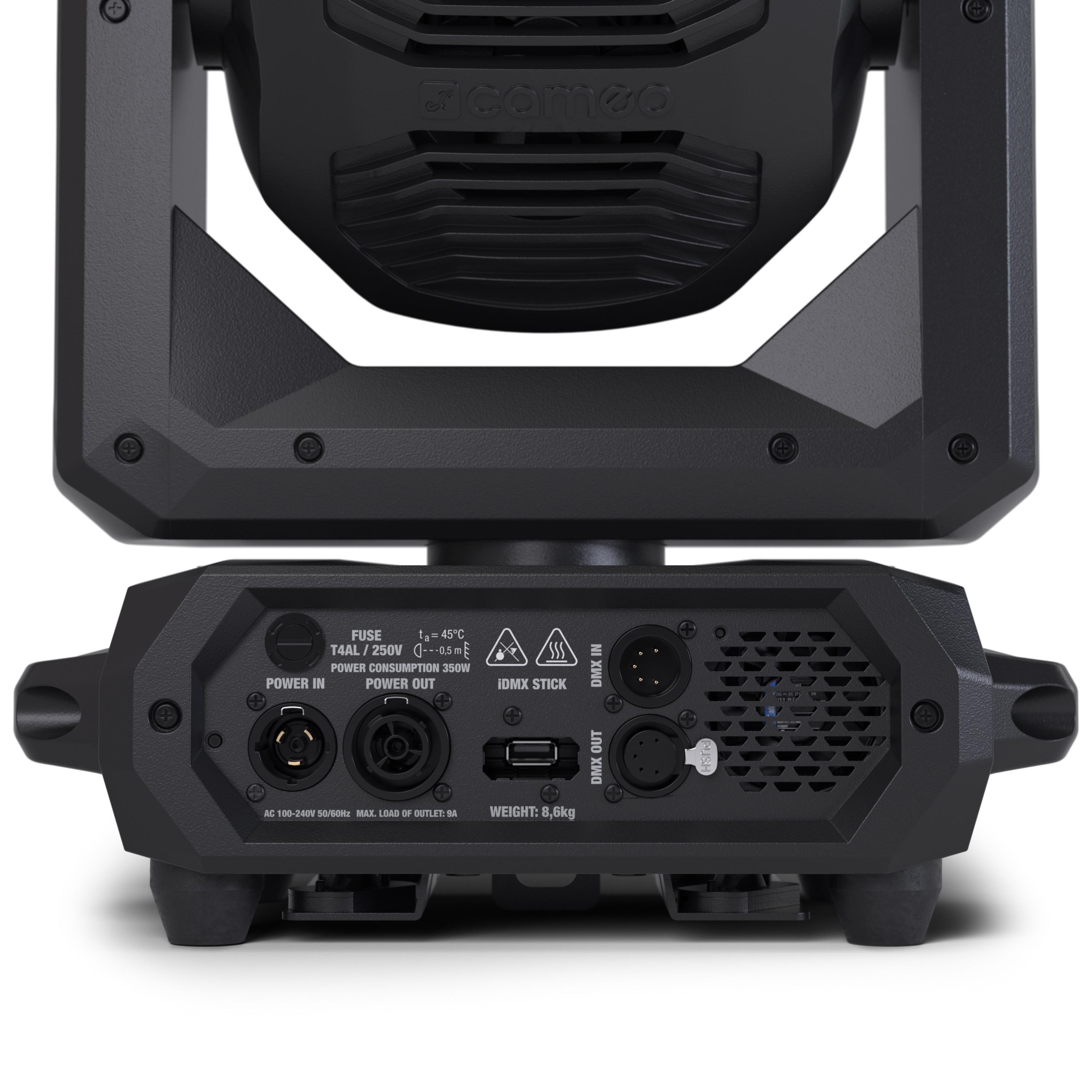

This compact wash moving head can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX adapter. Otherwise, basic setup can be conveniently completed via the onboard OLED display and controls.

• Compact spot moving head
• 7 x 40 W RGBL LED with 3,600 lm luminous flux
• Zoom range: 4° - 50°
• Single pixel control of all 7 LEDs
• Eclipse Burst Effect* for strobe and pixel effects
• Selectable PWM frequencies up to 25 kHz for flicker-free operation
• iDMX stick input for wireless DMX connection
• OLED display with 4 buttons

For more details, please download the Cameo AZOR W2 datasheet and User Manual via the links below.

You may like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:
