RCF PL 40

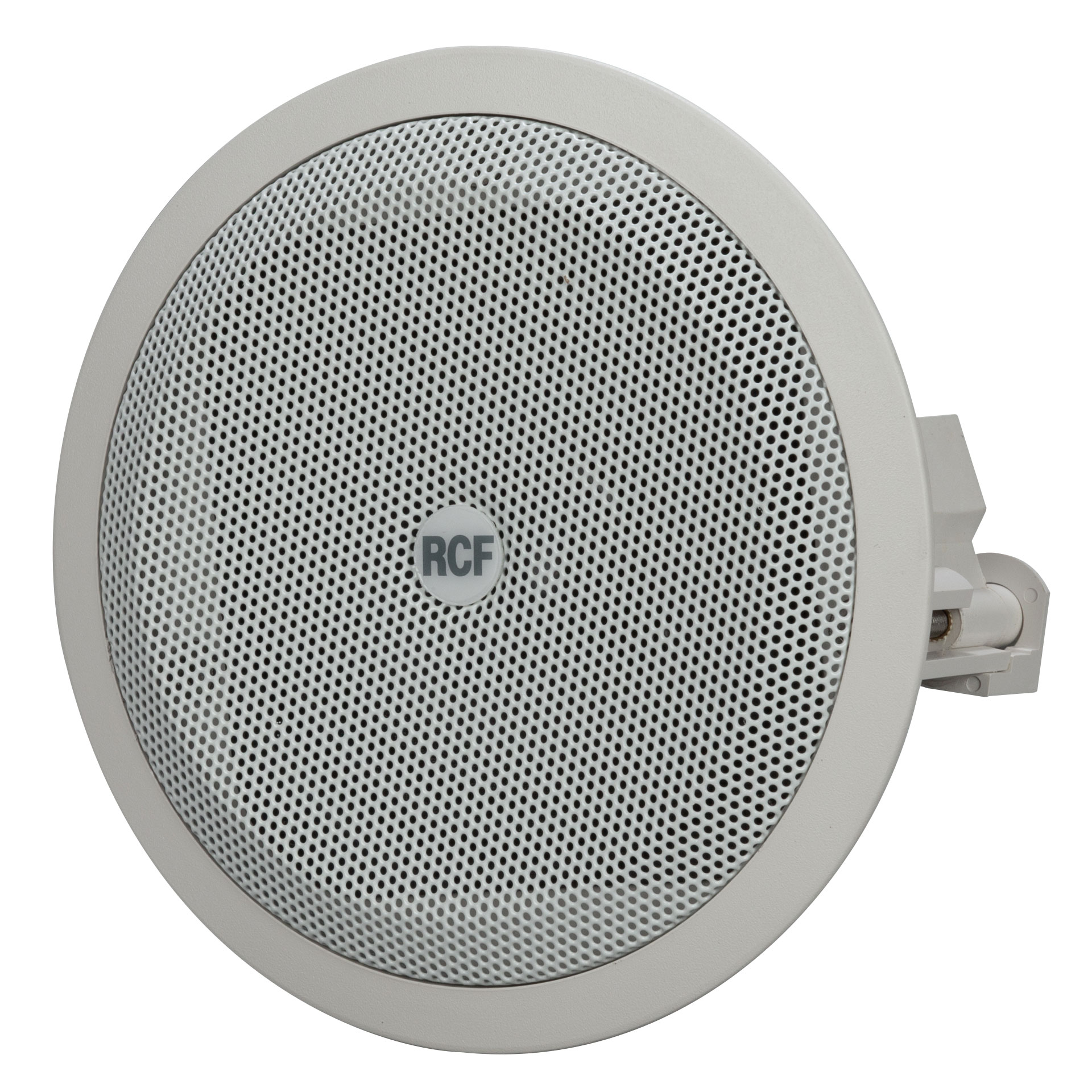

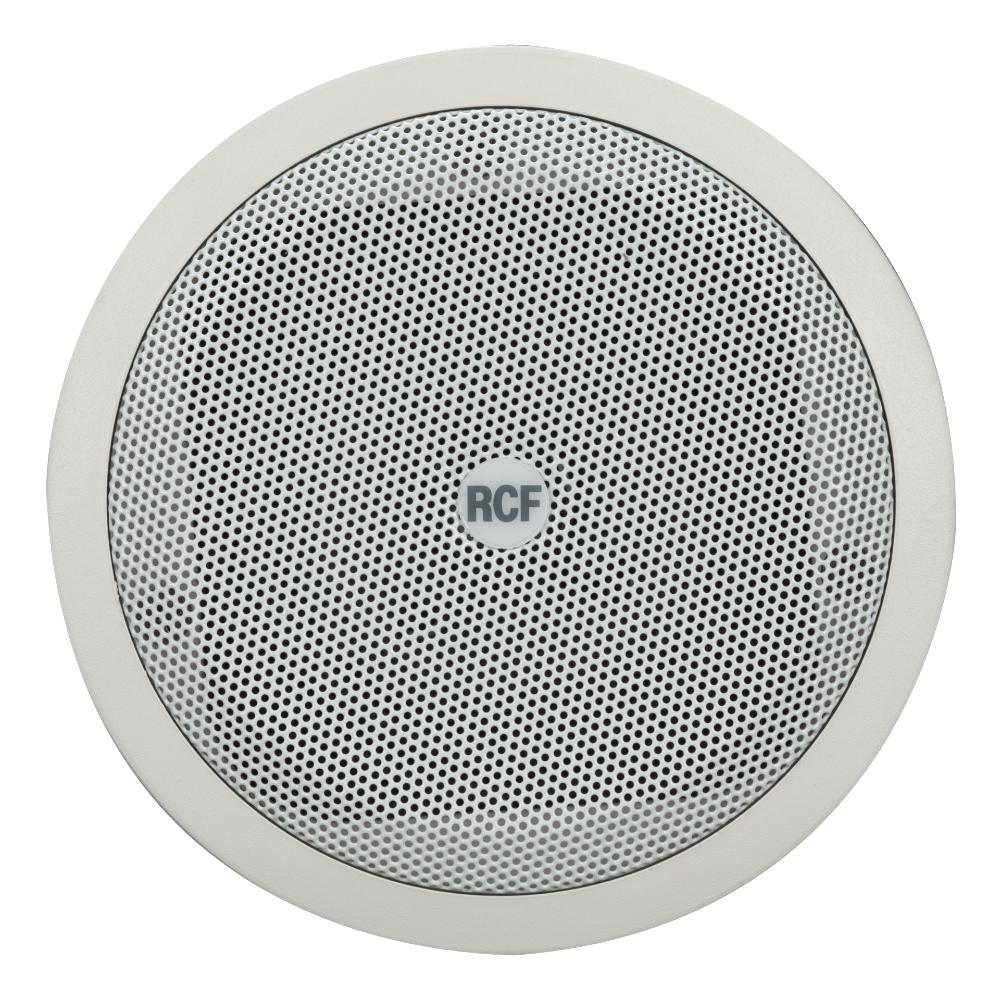

The RCF PL 40 ceiling speaker is fitted with a 3.5" dual cone driver and is rated at 8 watts, 100 volt line.

Clearance line - limited stock available. Please ontact us for up to date stock availability.

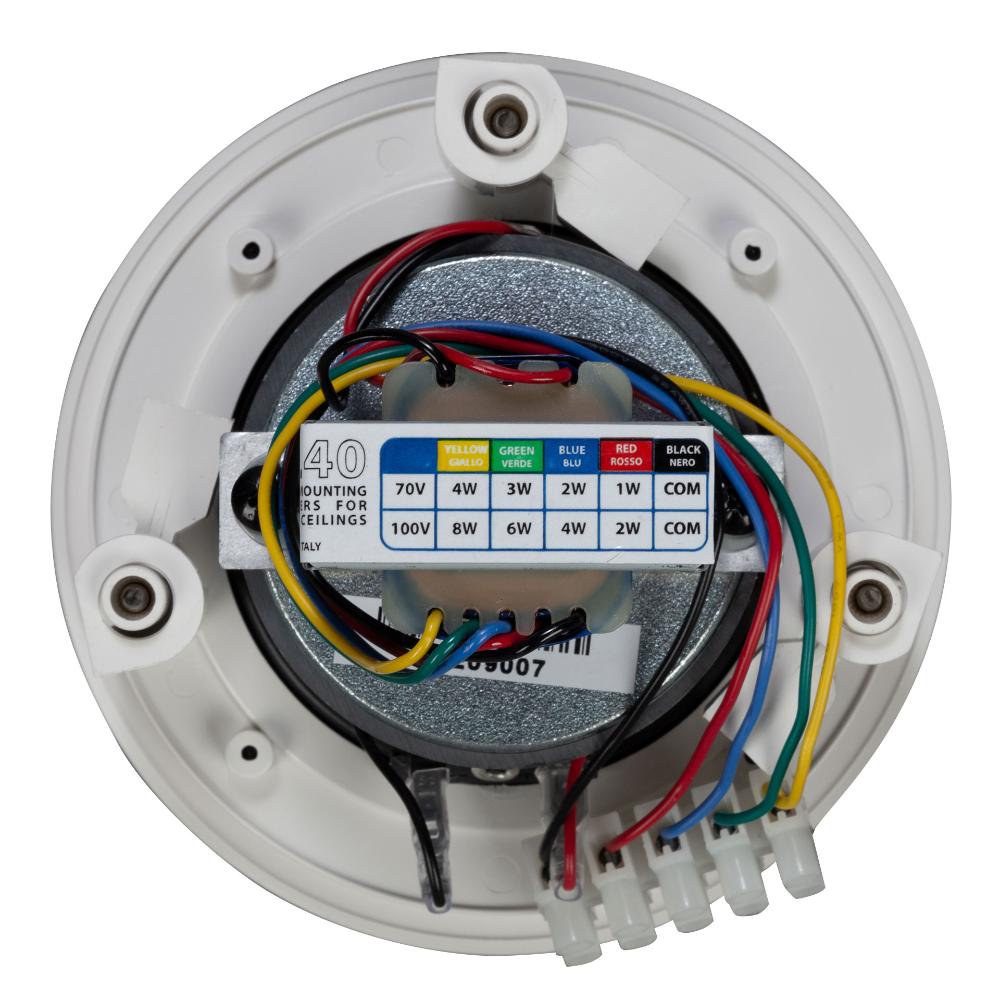

Transformer tappings are available at 8, 6, 4 and 2 Watts.

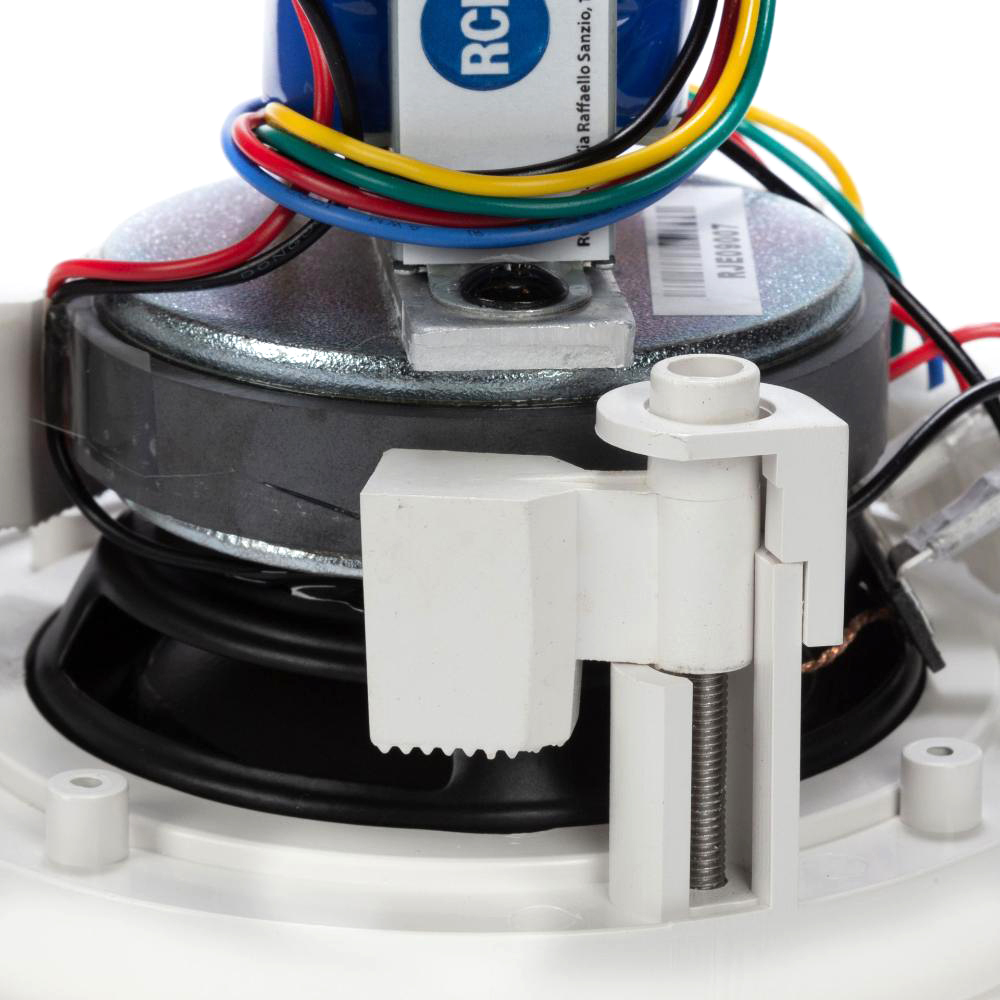

Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws or other hardware.

The compact size of this ceiling speaker makes it ideal for use in small spaces.

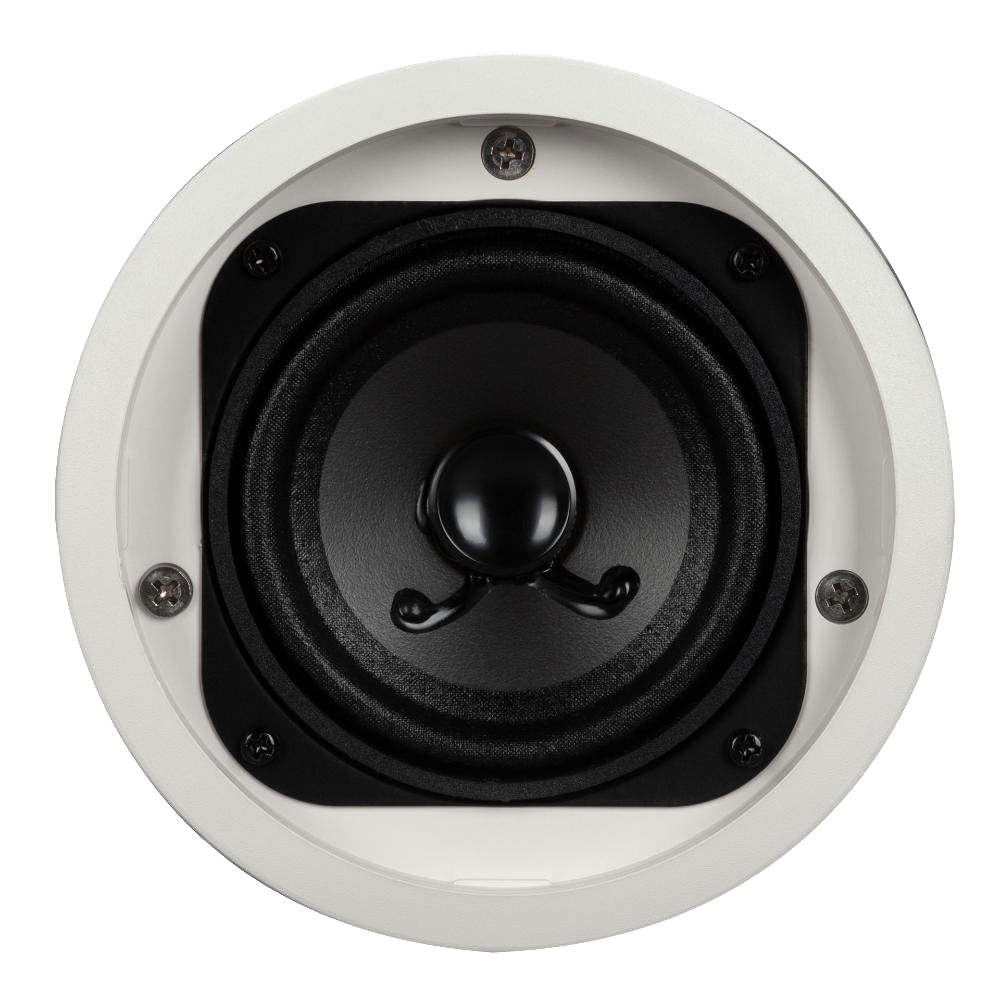

  • 3.5" full range transducer
  • selectable (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame UL 94 V0, aluminium grille
100V
List Ex VAT: £25.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

90Hz – 20kHz

Max SPL @ 1m

100dB

Coverage Angle

120°

System Sensitivity

88dB

Power Handling

8W RMS

Peak Power Handling

32W Peak

Transducers

3.5”

Input Connectors

Screw Terminals

Output Connectors

Screw Terminals

Constant Voltage Transformers

100V

Power Tappings

8, 6, 4, 2W (100V)

Construction

Plastic frame, Aluminium Grille

Colour

White – RAL 9003

Depth

110mm / 4.33”

Diameter

130mm / 5.12”

Weight

0.38kg / 0.84lbs

DOWNLOADS

RCF PL 40 Ceiling Speaker Datasheet
RCF PL 40 Ceiling Speaker User Manual
