Ecler VEO-SPH48

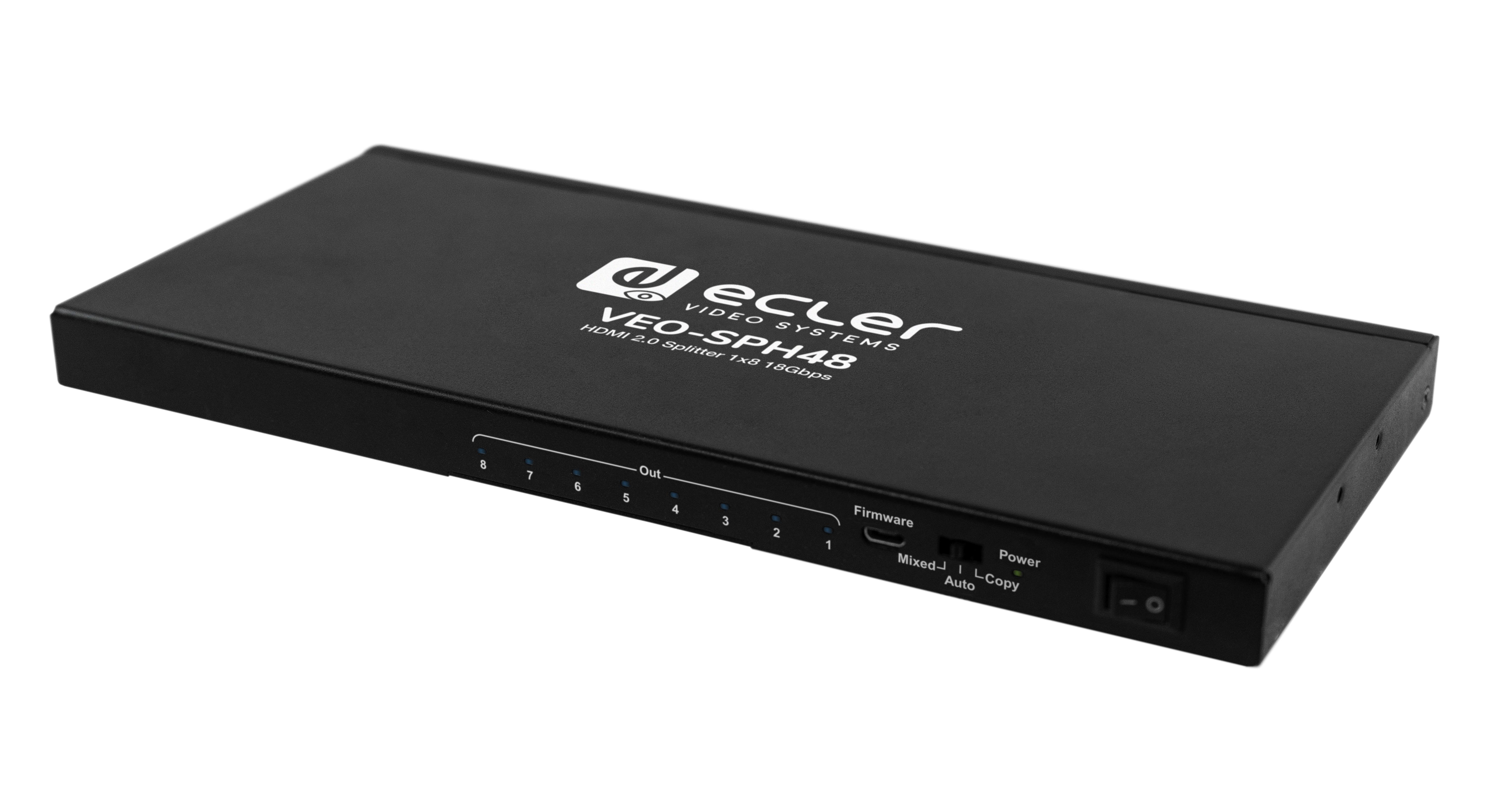

The Ecler VEO-SPH48 is a professional 1x8 HDMI 2.0 distribution amplifier/splitter. It supports HDR formats and HDMI data rate up to 18Gbps, with 4K/UHD@60Hz video resolution and 4:4:4 chroma sampling.

It features EDID management with three different modes and it’s HDCP 2.2 compliant.

VEOSPH48 guarantees seamless integration for all applications that require latest 4K/UHD and HDR sources and displays.

For further information, please download the Datasheet and/or User Manual.

  • Supports resolutions up to 4Kx2K (4096x2160@60Hz YUV 4:4:4 )
  • Three EDID setting modes
  • HDCP2.2/1.4 Compliant
  • Supports 36 bit Deep Color
  • Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio
  • Supports HDR and 3D contents
  • Supports up to 18Gbps video data rate
  • Front panel LED indicators for power and signal status
  • Warranty: 5 Years.

To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.

Click here to download the full
Ecler Product Catalogue.

 Ecler Product Brochure
List Ex VAT: £322.15
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Video Input Connectors

1 HDMI Type A Female, 2.0, 18 Gbps

Video Output Connectors

4 HDMI Type A Female, 2.0, 18 Gbps

Supported Resolutions

Up to 4096x2160@60Hz, 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i

Chroma Subsampling

4:4:4, 4:2:2, 4:2:0

Colour Depth

8-bit, 10-bit, 12-bit

Colour Space

RGB, YCbCr

HDCP

2.2/1.4 Compliant

HDR

HDR10

Audio Formats

PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio

Sample Rate

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Bit Depth

up to 24-bit

EDID Management

Switch

Status Indicators

8 HDMI output link indicators, Power LED indicator

Power supply (included)

AC100V-240V @ 50-60Hz, Output: DC 5V-1A

Dimensions (WxHxD)

248 x 17 x 110 mm / 9.76 x 0.67 x 4.33 in.

Weight

0.610 kg / 1.34 lb

DOWNLOADS

Ecler VEO-SPH48 datasheet
Ecler VEO-SPH48 User Manual
Ecler VEO Specifications Cross Reference Chart
