Ecler VEO-XPT44A

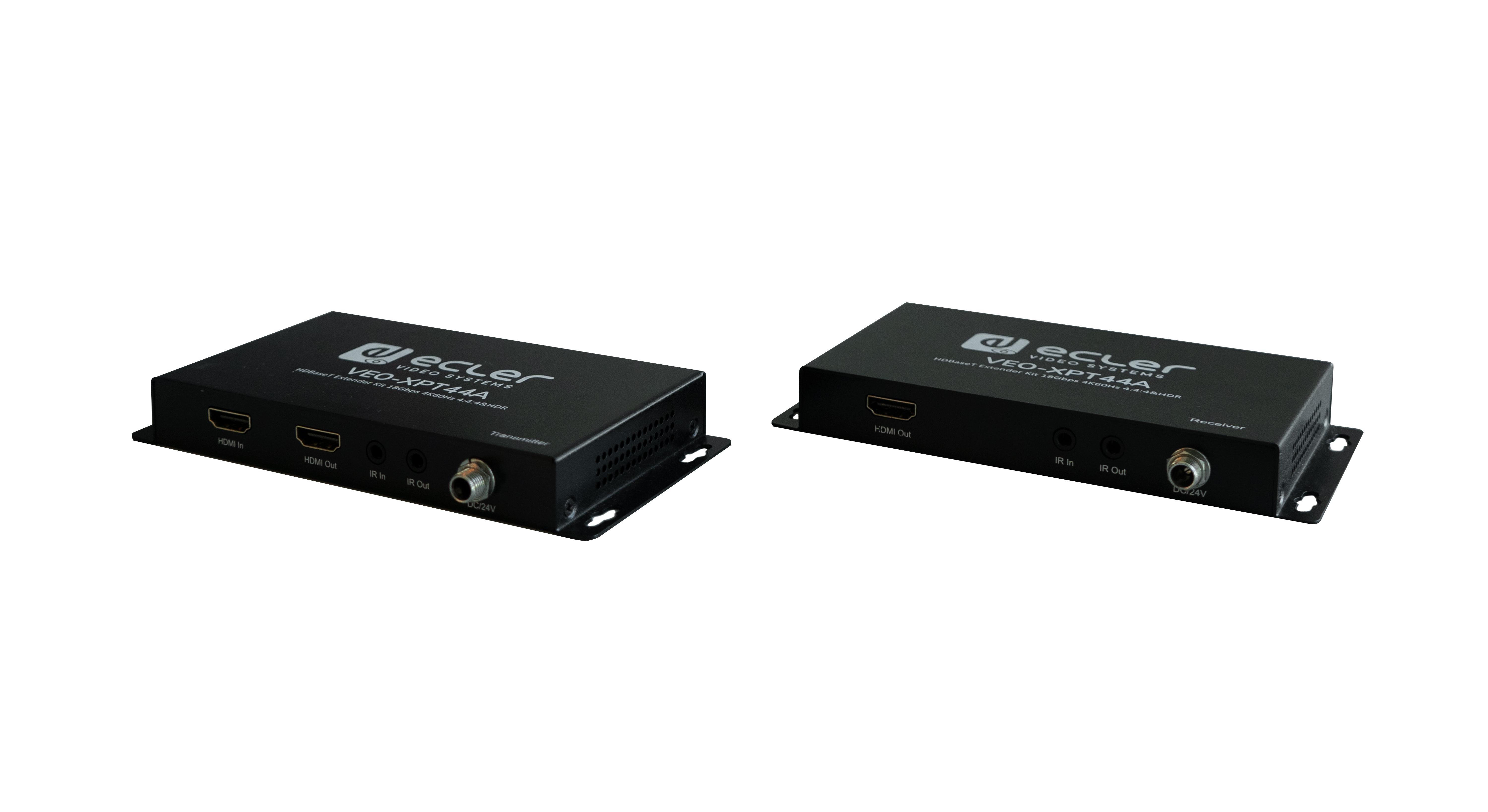

The Ecler VEO-XPT44A professional HDBaseT extension kit consisting of a transmitter and a receiver enabling the transmission of a 4K video signal up to 40m or a Full HD signal up to 70m over a single Cat 5e/6 cable.
It supports 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR10.

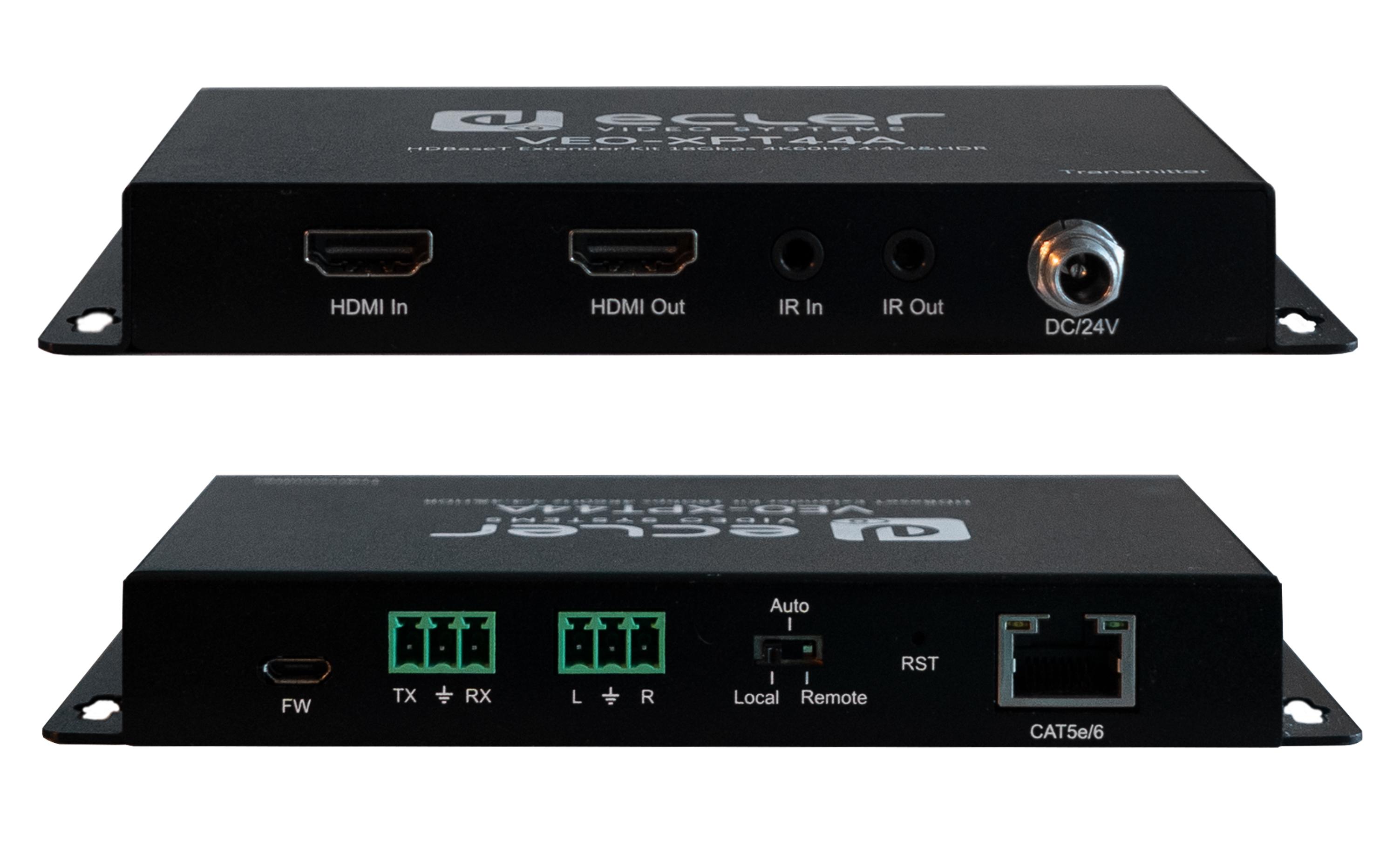

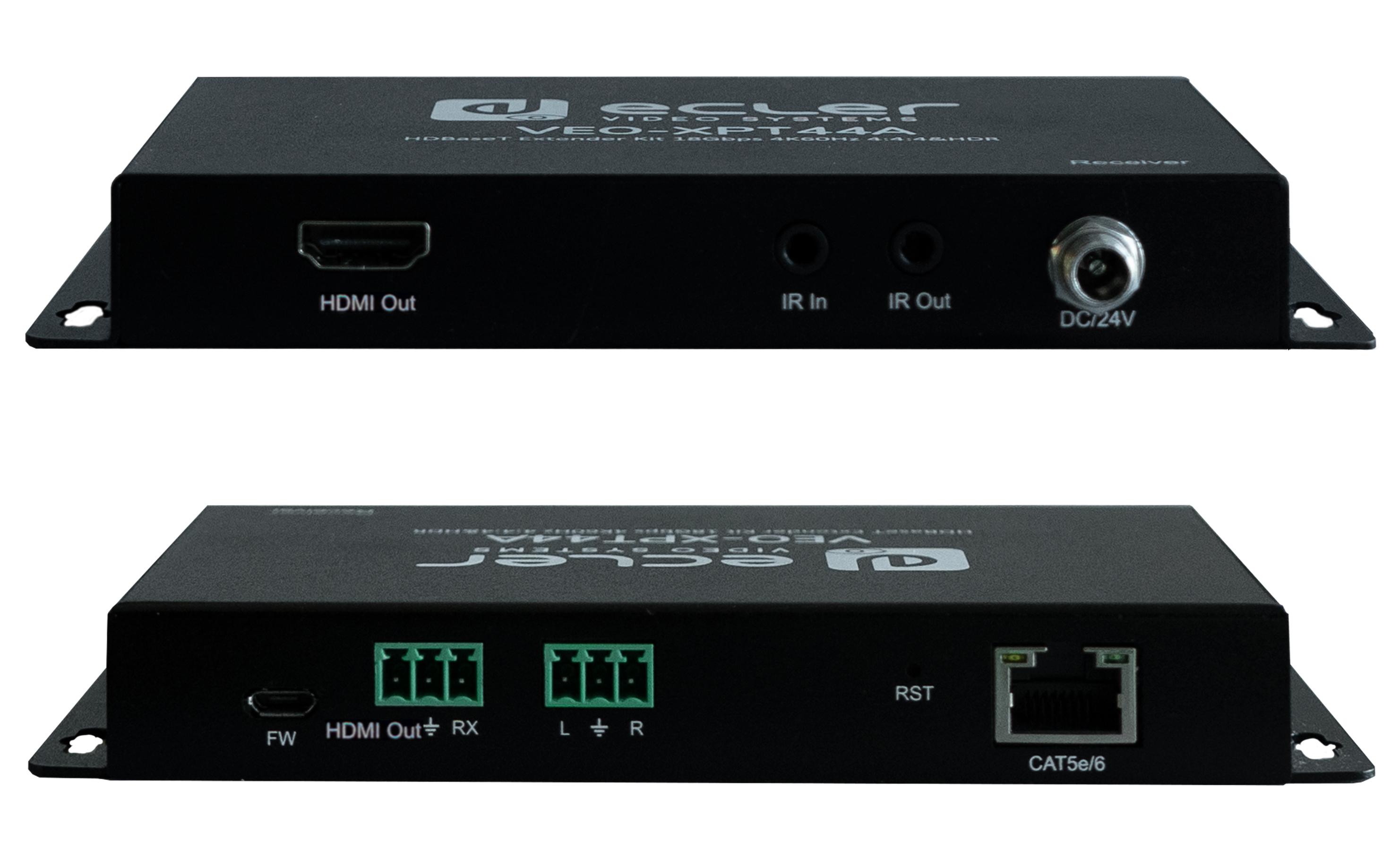

The transmitter includes a HDMI loop output for monitoring or daisy-chain connection and a stereo unbalanced audio output is provided on both the transmitter and receiver for easy integration.
The Bidirectional PoH feature enables the transmitter to power the receiver and vice versa, so only one of them needs a power supply.
The compact size and added features of RS-232 and bidirectional IR makes the of the VEO-XPT44A a perfect solution for applications where AV and control extensions are required.
- Complete HDBaseT extender kit, no settings needed
- Supports up to 4K@60hz, YUV, 4:4:4 resolution
- Transmission distance of up to 70 metres for Full HD or 40 metres for a 4K signal
- HDMI loop out on Transmitter
- Bi-directional IR and RS-232 pass-through
- Bi-directional POH (Receiver powered by Transmitter or vice versa)
- PCM 2.0 Audio de-embedding on Transmitter and Receiver
- HDCP2.2/1.4 compliant
- Support for HDR10 and 3D
- ESD protection
The kit contains:
- 1 x Transmitter Unit
- 1 x Receiver Unit
- 1 x 24VDC International Power Supply
- 2 x IR Blaster unit
- 2 x IR Receiver unit
- 4 x Euroblock plugs for RS-232 and audio cable termination
For further information, please download the Datasheet and/or User Manual. To see more of the range, please download the Ecler Video Brochure here.
