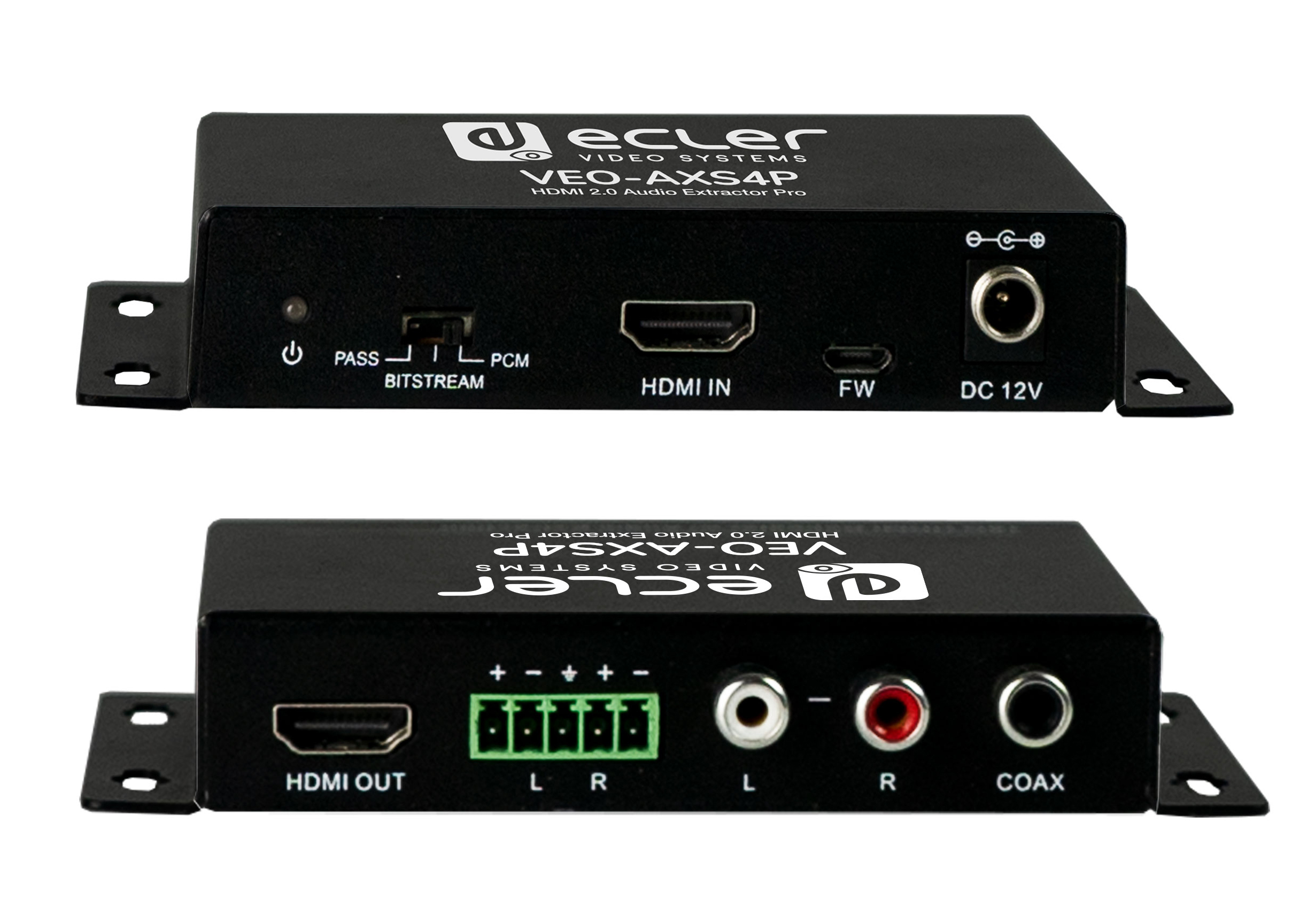

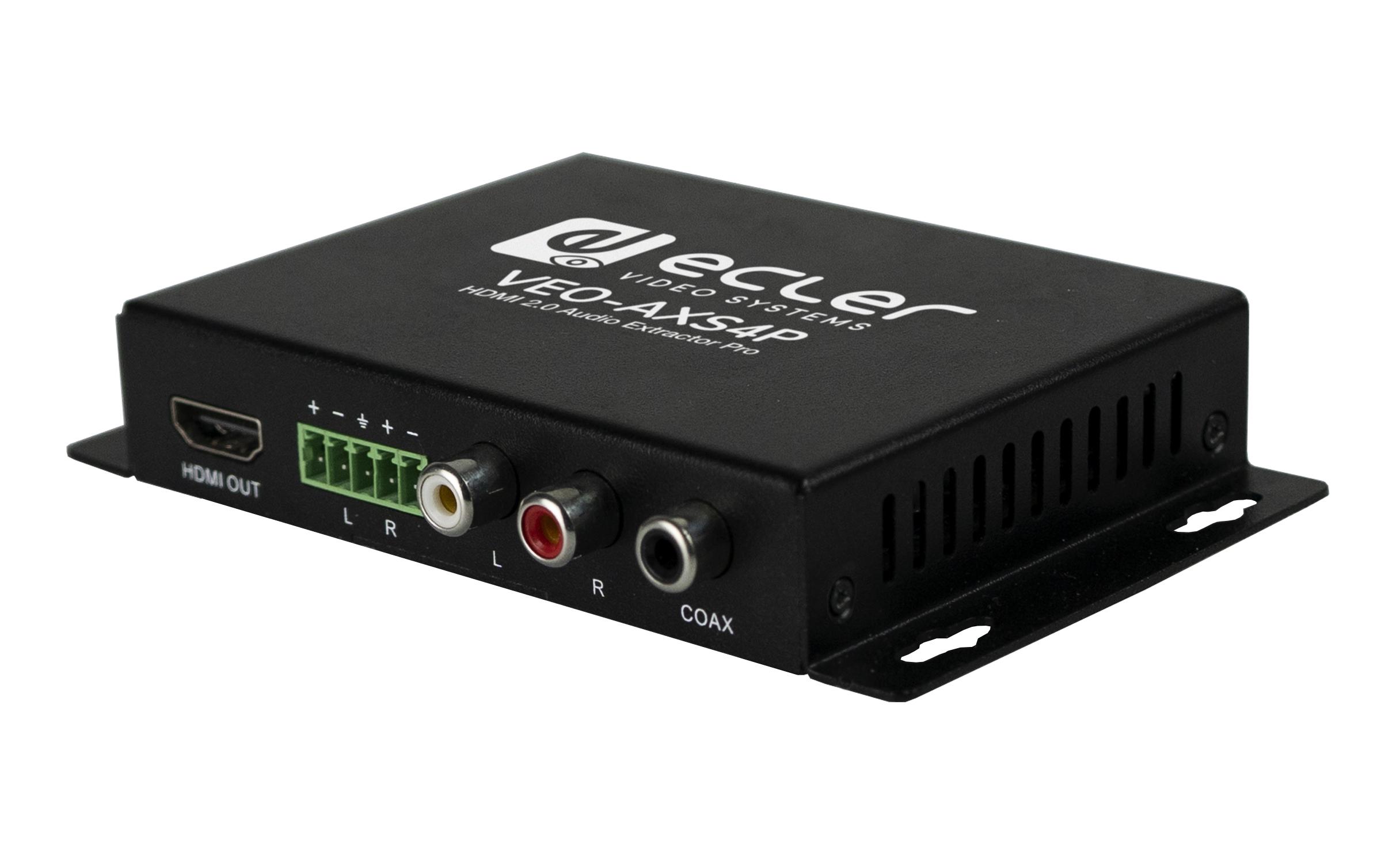

Ecler VEO-AXS4P
The Ecler VEO-AXS4P professional HDMI audio extractor facilitates de-embedding of audio from a HDMI signal, including audio from 4K sources.
VEO-AXS4P provides uncompressed LPCM analogue stereo signal through RCA and Phoenix balanced output as well as Dolby Digital and DTS multichannel signals through the coaxial S/PDIF digital output.
HDCP 2.2 and HDMI 2.0 compliant, supporting data rates up to 18 Gbps and video resolutions up to 4K/60Hz with 4:4:4 chroma sample and HDR contents.
- Audio EDID Settings: Auto/2.0 CH/5.1CH
- Extracts the digital HDMI audio signal from the HDMI input to 2channel analog
stereo output or to 5.1 S/PDIF output - Signal amplification and equalization to extend HDMI inputand output ports up to 10
meters (33 feet) - Supports LPCM, Dolby Digital and DTS
- Supports resolution up to 4K @ 60Hz YUV 4:4:4
- Supports deep color up to 36bit
- Supports sample rate up to 192 KHz and resolutions up to 24 bit
- HDCP2.2/1.4 Compliant
- Supports CEC
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
