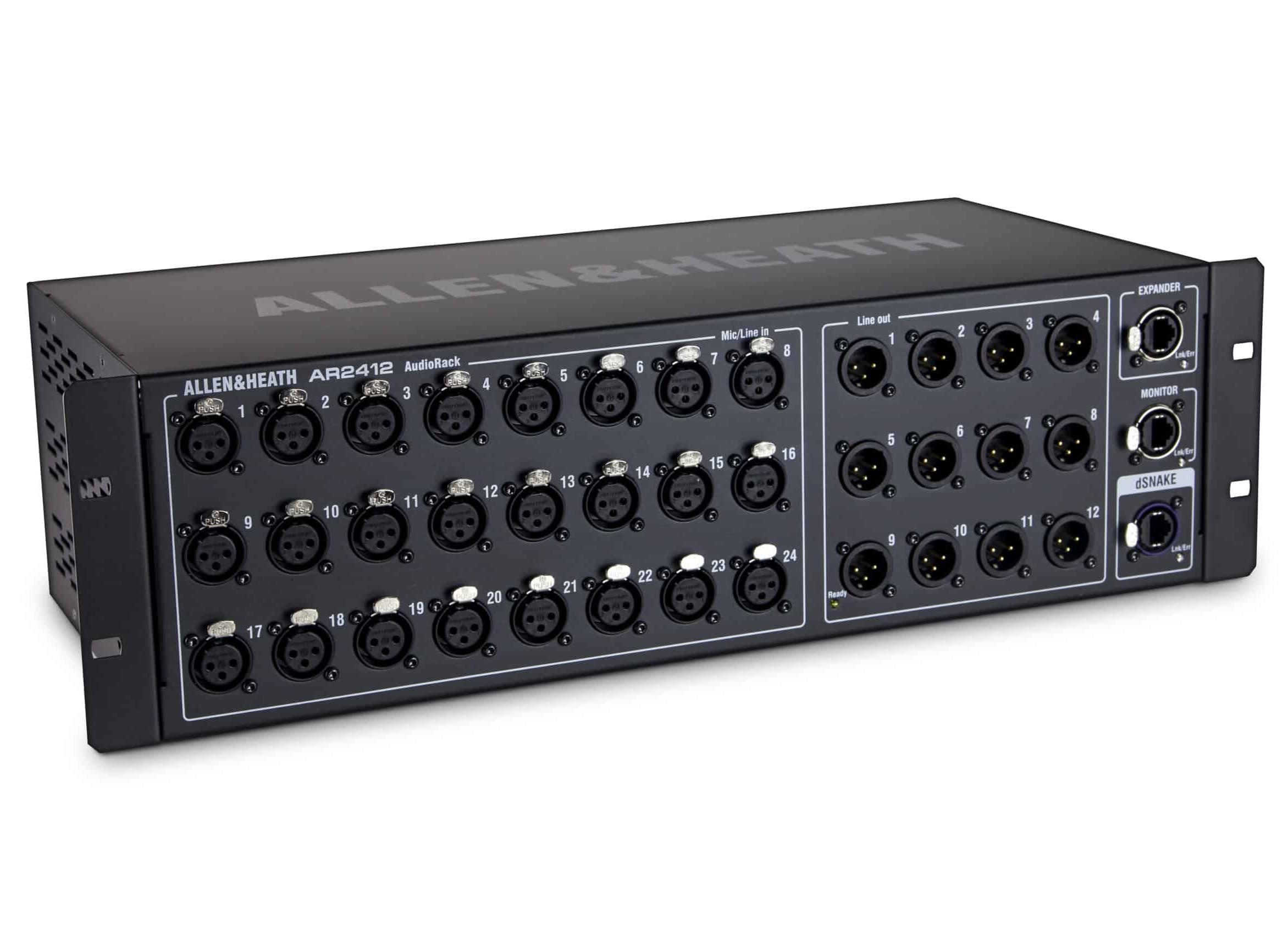

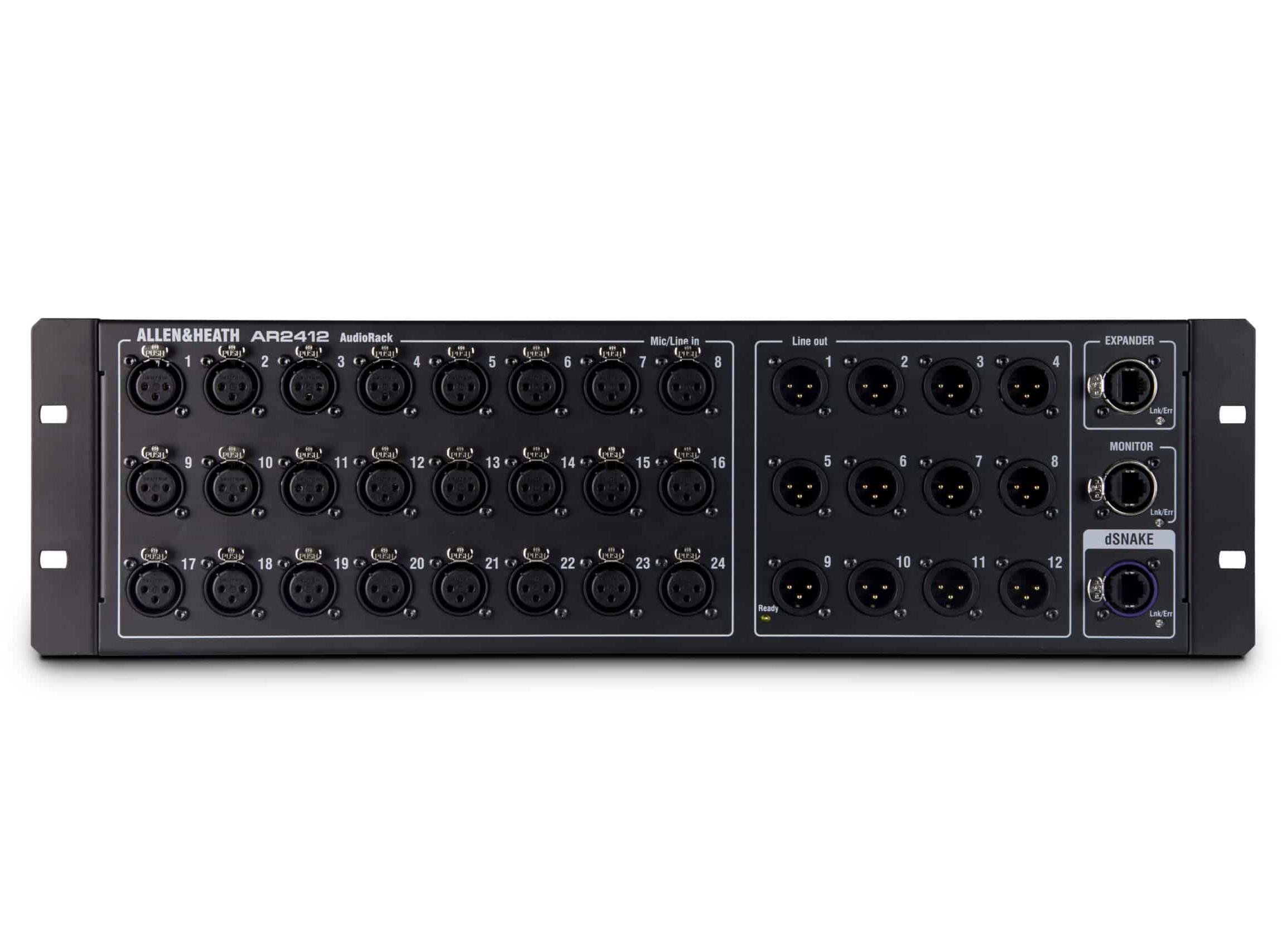

The Allen & Heath AR2412, 24 XLR input, 12 XLR output AudioRack, provides 24 remote controlled mic/line preamps and 12 XLR line outputs and is compatible with Qu & SQ compact digital mixers and AHM audio matrix processors.

Using Allen & Heaths dSnake protocol, the AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning. Using a single network cable, the AR2412 can be connected directly to the mixer or cascaded from an AR84 or AB168.

The AR2412 is used to increase the number of I/O sockets in a system and position both sockets and AD/DA conversion close to the source/stage. It will not increase the number of processing channels available in the system and must be connected to a mixer where the audio can be processed and routed.

• 24 mic preamps with+60dB of gain and -20dB pad for line level sources.
• 12 Balanced, relay protected line outputs on XLR.
• Expander & Monitor Ports for connection to an AR84 or AB168 and to the ME personal mixers.
• Plug-and-Play - no configuration required.
• Optional 4U rack mounting kit for installation in 19-inch racks.
• 19” rack mountable (3U) & fitted with rack ears
• Warranty: 1 Year

For further information on the AR2412 Audio Rack, please download the Datasheet below. Alternatively, please download the Allen & Heath Qu Mixer Brochure which covers the full range.
