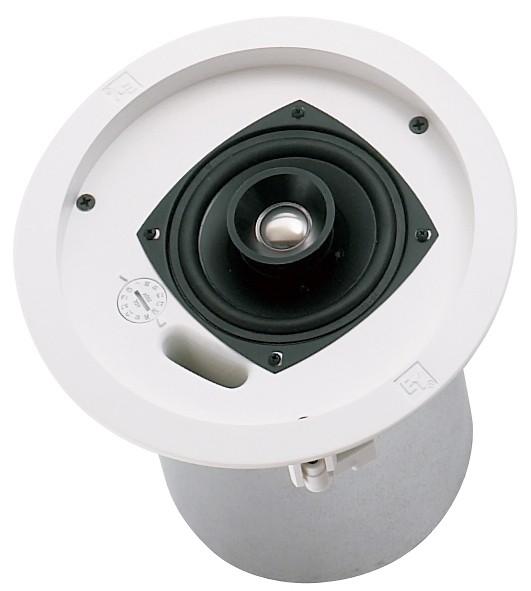

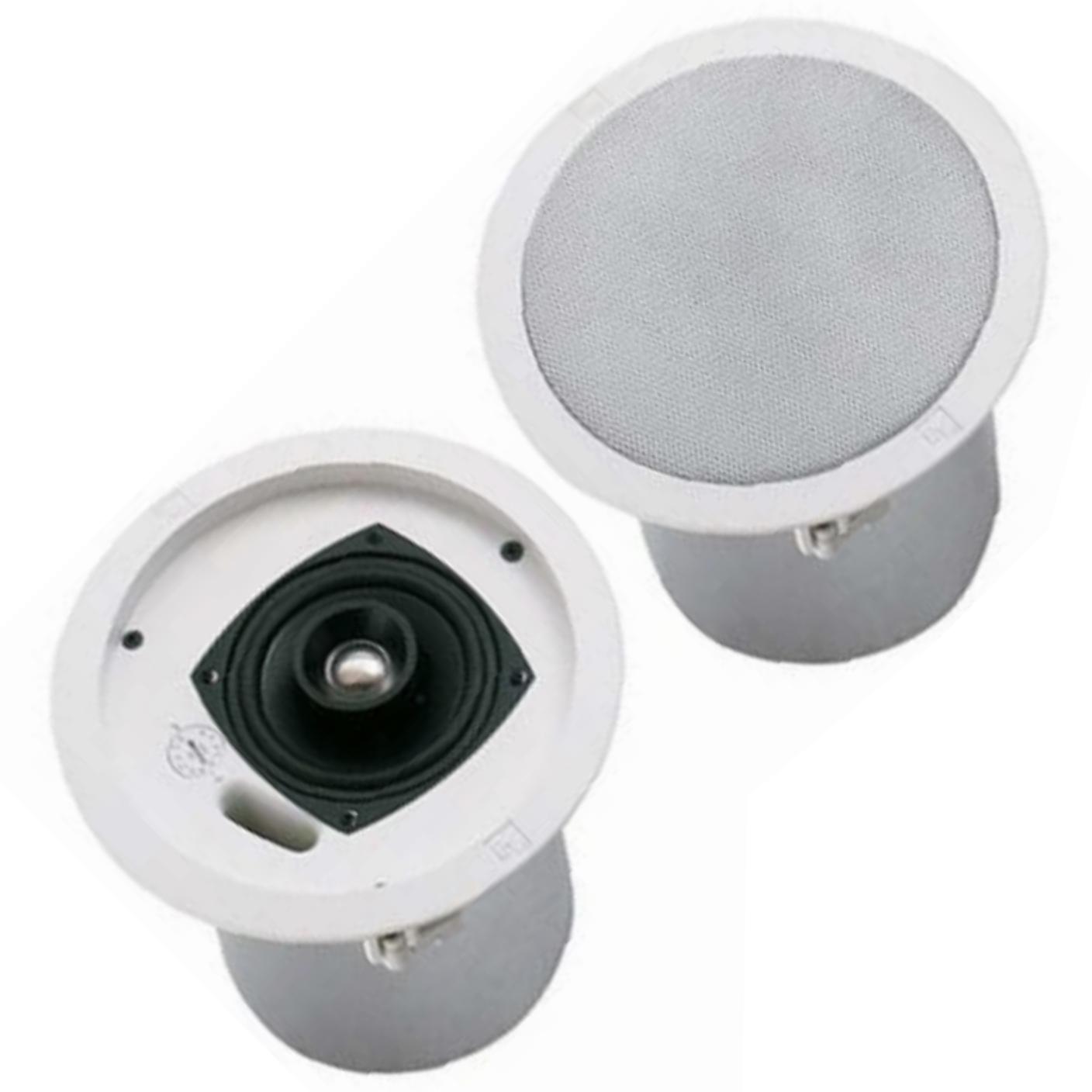

The Electrovoice EVID C4.2D is a dual impedance 4" two way ceiling speaker with fire rated terminals.

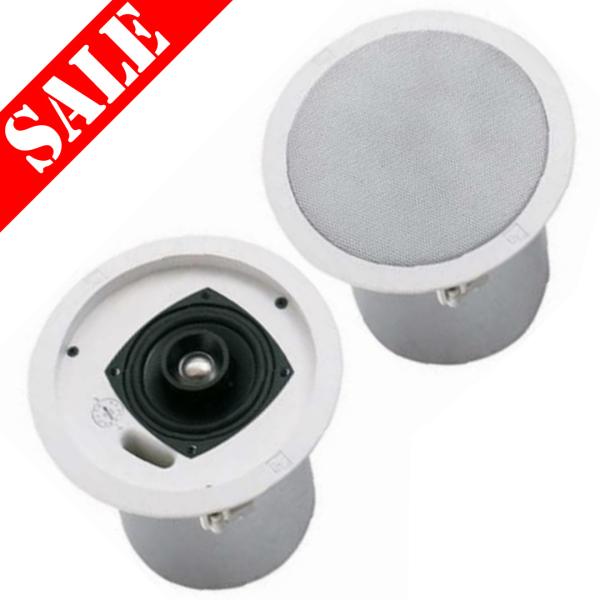

SOLD BY AND PRICED PER PAIR.

Only one pair only at this very special price.

The compact design fits in tight spaces and is ported and tuned to provide a surprising bass response and excellent bandwidth.

Its 4" weatherized woofer and waveguide coupled titanium coated dome tweeter give smooth, wide frequency response.

Designed for use in air handling spaces.

An easy 3-point mounting system facilitates quick installation. Supplied with mounting support ring and tile rails. No additional accessories needed for most installations.

100V IPxx 8ohms
List Ex VAT: £100.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size

101.6 mm (4")

Colour

White (paintable surface)

Coverage (Nominal -6 dB)

130° conical

Diameter (Max)

181 mm (7.13")

Input Formats

8 Ω, 70 V, 100 V

Mounting Systems

Integrated 3-point toggle anchors

Speaker Type

Ported cabinet, internally damped, two-way passive crossover included

Transformer

Yes

Transformer Taps

(1.88 - 70 V only), 3.75, 7.5, 15, 30

Frequency Response (-10 dB)

65 - 20000 Hz

Sensitivity 1 W/1 m

86 dB

System Power Handling (Continuous/Program/Peak)

80 Watts Overload Protected

LF Transducer

4-inch polypropylene cone

HF Transducer

0.75-inch (19 mm) Ti Mylar Laminate Dome

Enclosure Material

Steel enclosure and UL94V-0 rated baffle and bezel

Outdoor

No

Grill

Powder-coated steel

Height

176 mm (6.93")

Weight Net

2.7 kg (5.95 lbs)

DOWNLOADS

Electrovoice Evid C4.2D & C8.2D Manual
