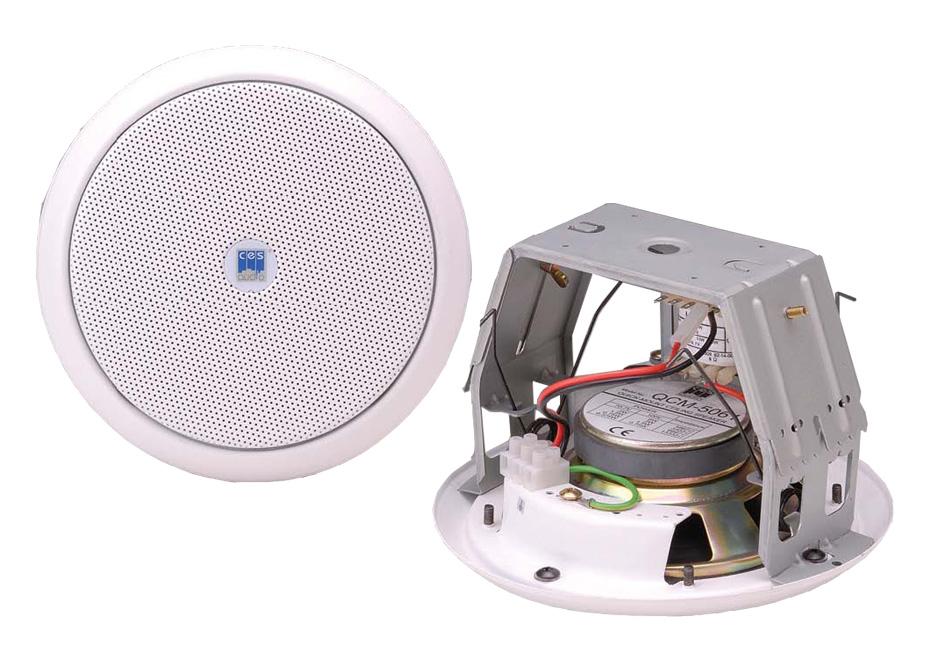

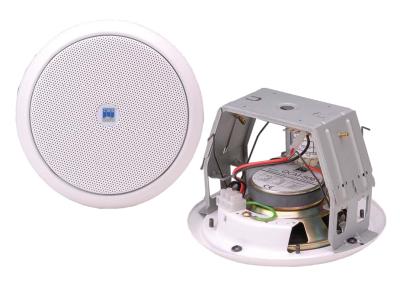

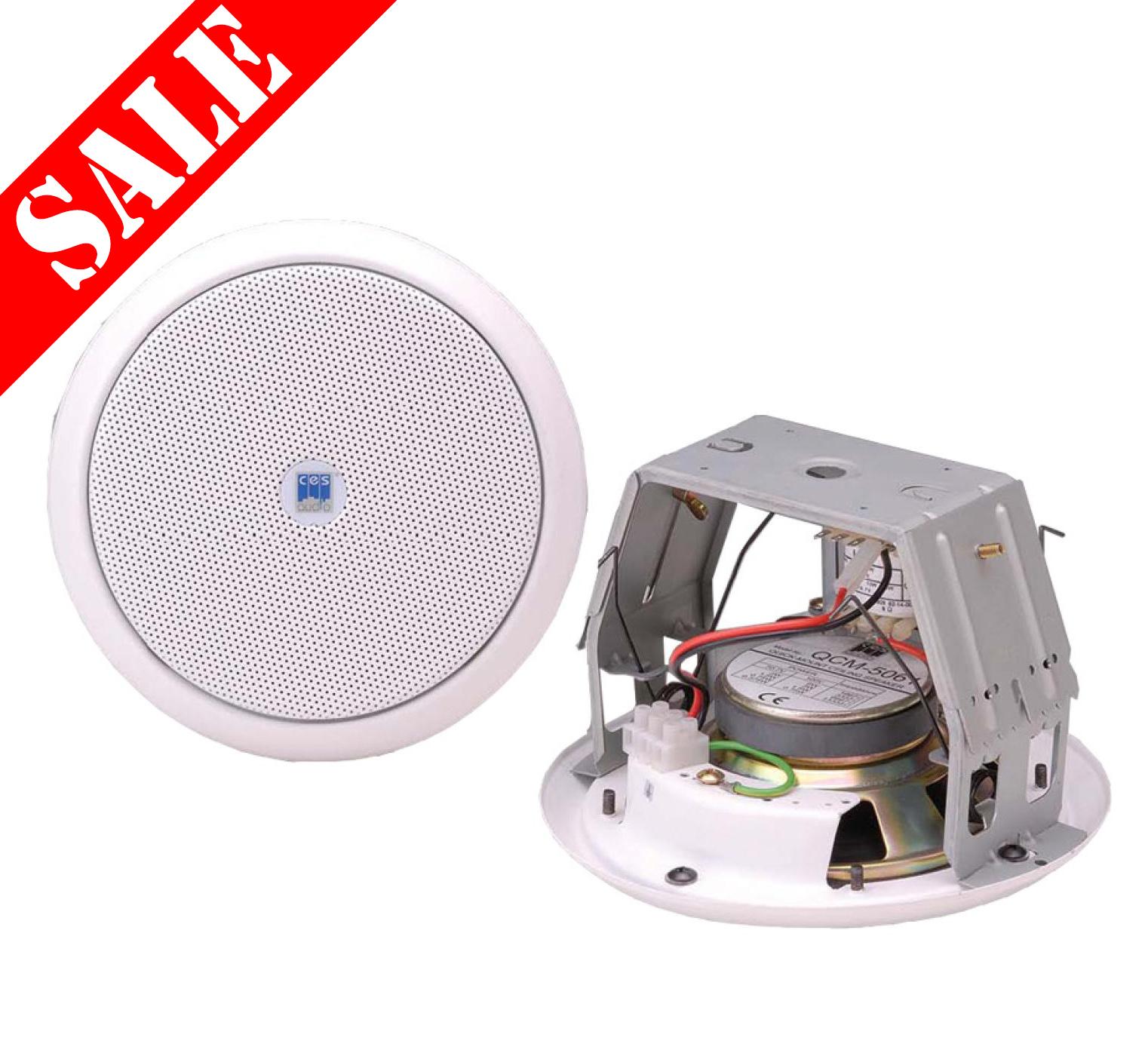

The CES Audio QCM-5061 low profile, quick fit ceiling loudspeaker is suitable for background music and public address systems on a 100 volt line system (or 70V) only.

Clearance Line - Limited Stock. Please contact us for up to date availability.

The QCM5061 ceiling speaker shares the generic low profile grille design & simple fit system seen throughout QCM series.

  • Fitted with a 5.25″ twin cone driver unit. Designed to offer wide response for music & speech
  • 6 watt transformer with multi tappings down to 0.75W (100V) & 0.375W (70V)
  • Built-in ceiling tile cutout marker
  • Dished grille design for acoustic integrity
  • Galvanized steel construction, finished in brilliant white (RAL 9003)
100V
List Ex VAT: £10.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Impedance 1.67kΩ, 3.33kΩ, 6.67kΩ & 13.33kΩ
Power Taps @ 100V 6W, 3W, 1.5W & 0.75W
Power Taps @ 70.7V 3W, 1.5W, 0.75W & 0.375W
SPL (1W/1m) 92dB
Max SPL (rated/1m) 99dB
Frequency Range (-10dB) 100HZ - 20KHZ
Dispersion 1K Hz / 4K Hz 140° / 70°
Power Selection Method Plug
Material Baffle:Steel, Grille: Steel
Colour White (RAL9003)
Dimensions mm 180 (7.09) Dia. X 114 (4.5) Height mm. (in.)
Weight (kg) 1.3
Mounting Spring loaded Quick-Mount Bracket Assembly

DOWNLOADS

EC Declaration of EMC Conformity: CES QCM series
CES Audio QCM-5061 Datasheet
