RCF ART 710-A MK5
Click to expand

RCF ART 710-A MK5

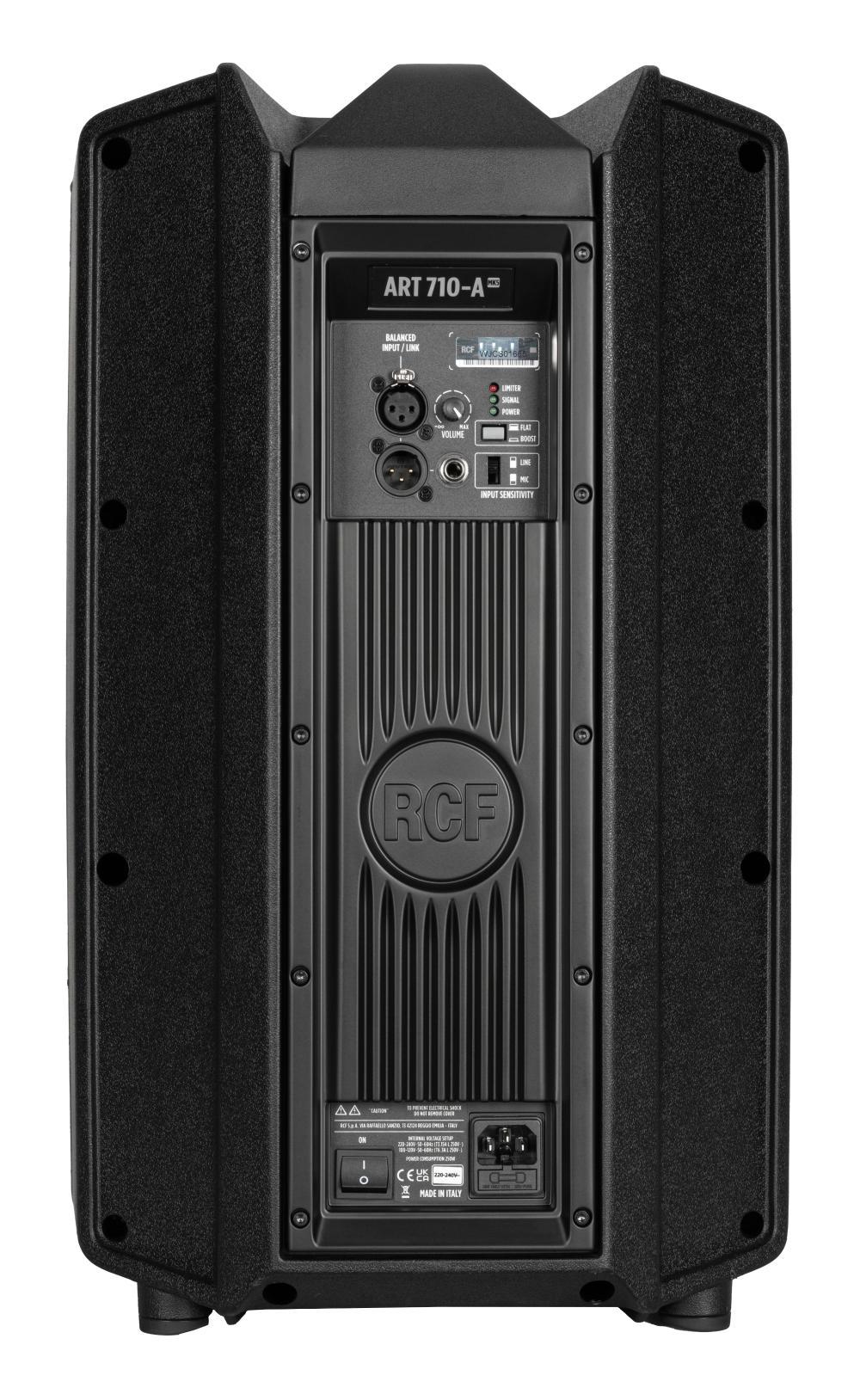

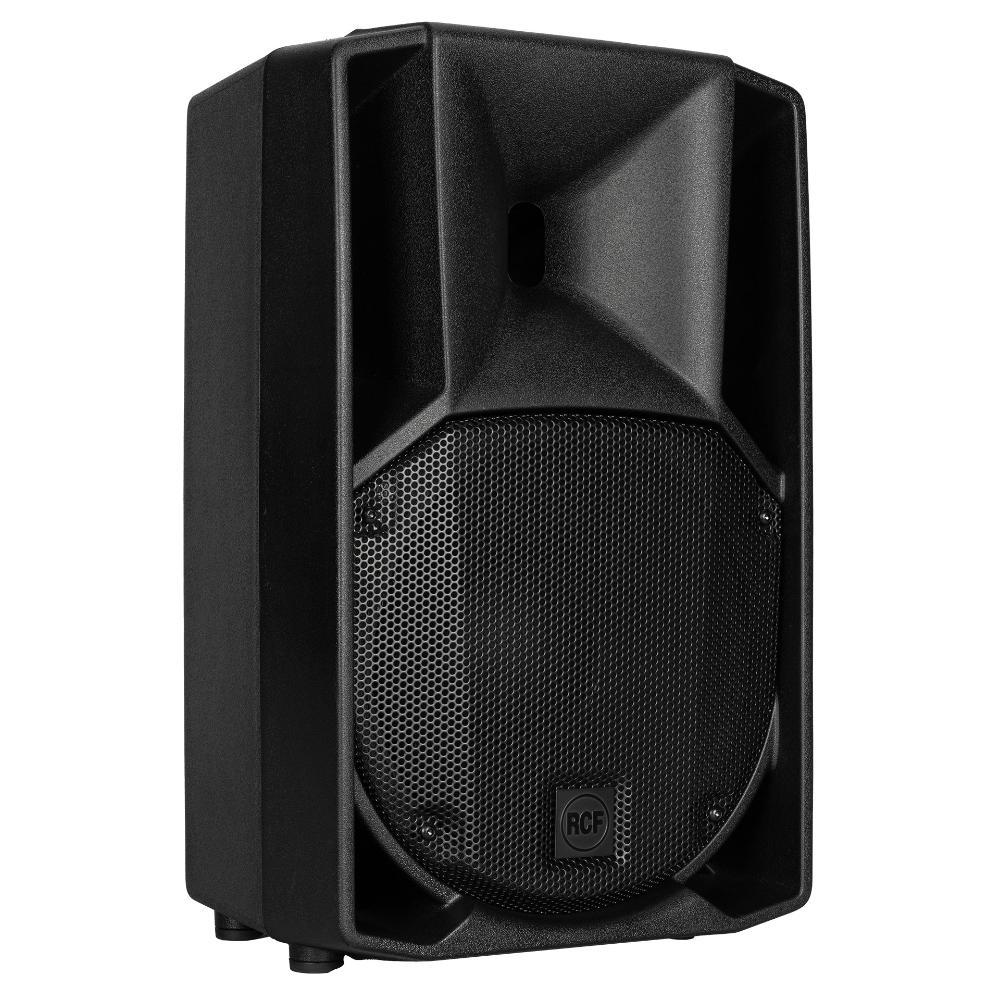

The RCF ART 710-A MK5 active loudspeaker is fitted with a 10” woofer & 1.75” compression driver and is rated at 700 watts RMS from its powerful Class D amplifier.

The 1.75" compression driver offers unique vocal clarity and sound projection.
The 10” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies.

The amplifier delivers 1400 watts (Peak) and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

XBoost unlocks the profound low frequencies concealed within ART speakers. Activate on the speaker's rear panel to immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass.

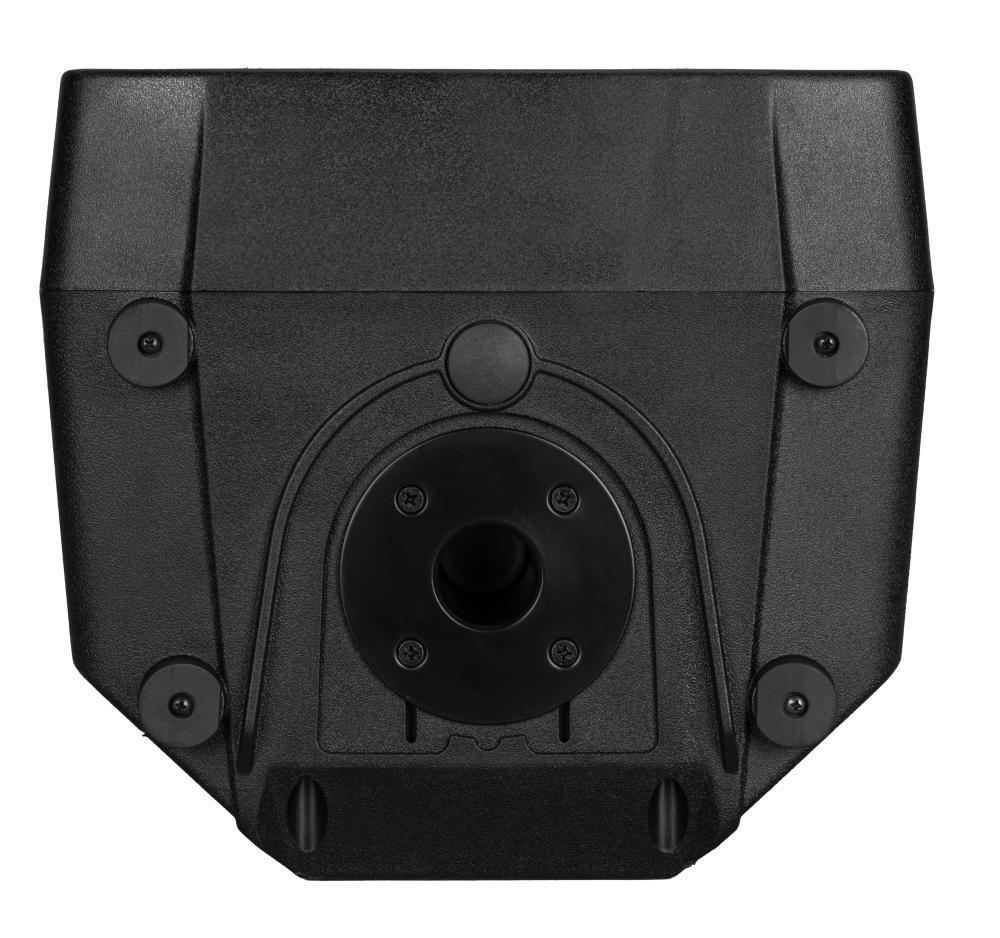

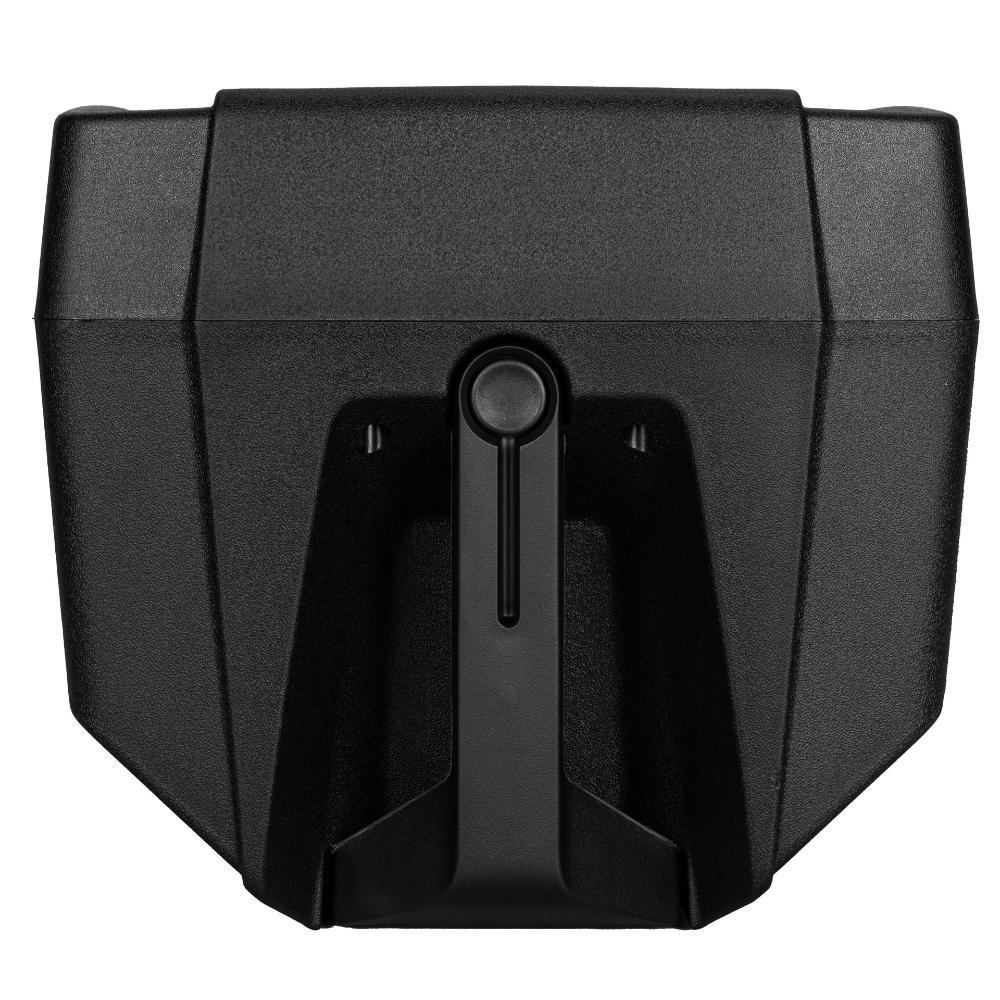

The sturdy, ergonomic cabinet is easy to carry with the handle on the top. A steel pole socket is provided for mounting on a stand or on a subwoofer pole. The rear of the cabinet is shaped for use as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

An optional bracket (ART7 H-BR) is available for wall mounting the ART710A mk5.

  • 129 dB Max SPL
  • 1400 WATT 2-way peak power
  • 90° x 70°, Wide dispersion constant directivity horn
  • Innovative DSP Processing
  • 1,75" Compression Driver
  • 10" Woofer
  • FiRPHASE Technology
  • XBOOST Low Frequencies Enhancer
  • Built in carry handle for easy transportation.
8ohms
List Ex VAT: £409.00
Log in for Trade Prices
CONTACT US

Video explaining FiRPHASE technology.

SPECIFICATIONS

For full specifications, please download the datasheet.

Frequency Response

 50 Hz ÷ 20000 Hz

Max SPL @ 1m

 129 dB

Horizontal coverage angle

 90°

Vertical coverage angle

 70°

Total Power

 1400 W Peak, 700 W RMS

High frequencies

 400 W Peak, 200 W RMS

Low frequencies

 1000 W Peak, 500 W RMS

Cooling

 Convection

Height

 548 mm / 21.57 inches

Width

 340 mm / 13.39 inches

Depth

 305 mm / 12.01 inches

Weight

 14.2 kg / 31.31 lbs
