CES Audio CLM-6061VAF

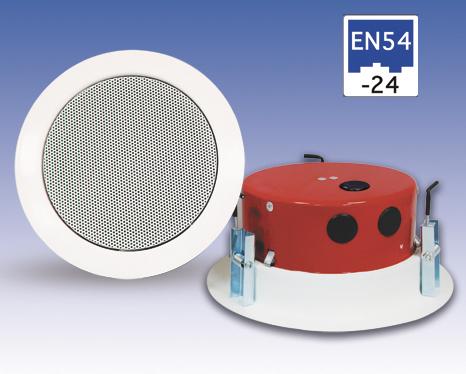

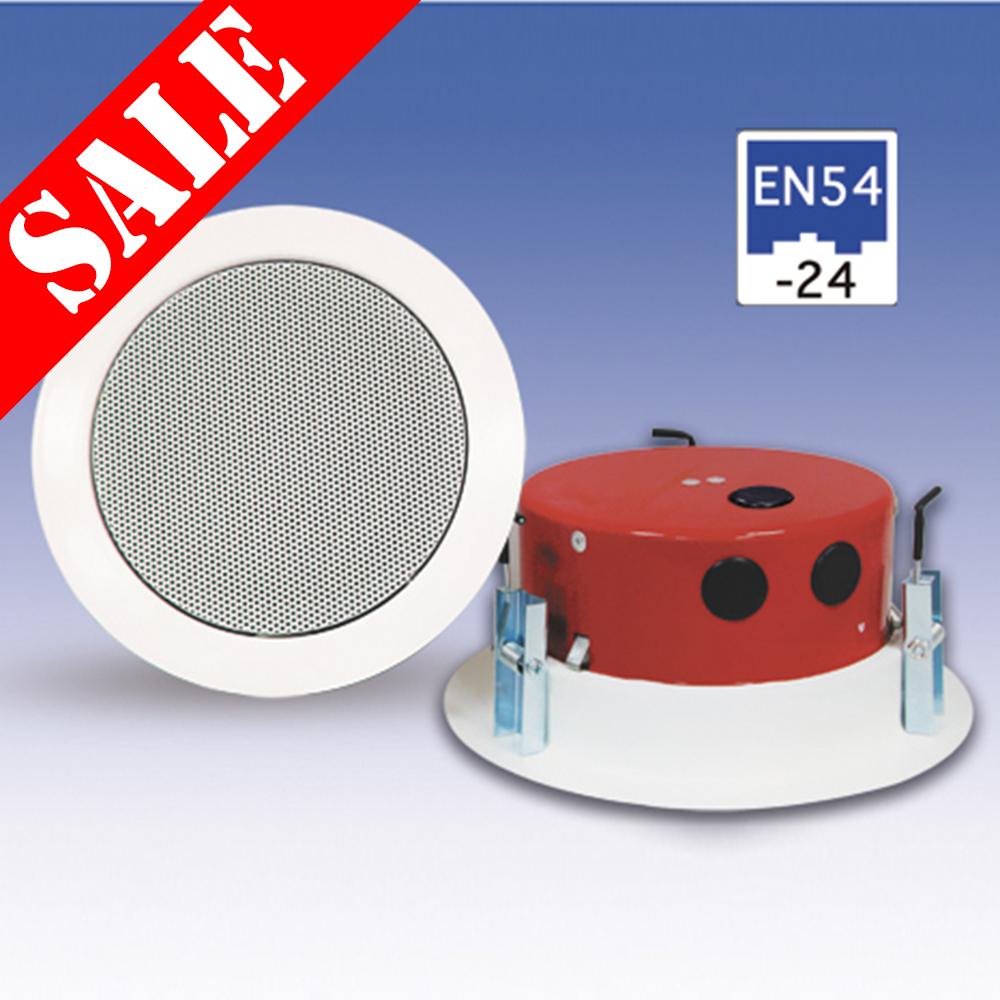

The CES Audio CLM-6061-VAF is an EN54-24 compliant, low profile, quick fit ceiling loudspeaker suitable for background music and public address systems on a 100 volt line commercial audio system (or 70V). 6.5" driver, 6 Watts RMS.

Clearance line - limited stock.

The low profile deisgn of the CLM6061VAF makes it the ideal ceiling speaker where the ceiling void is restricted.

EN54-24 & BS5839 Part 8 certified, for use in Voice Alarm / Evacuation PAVA systems.

  • Fitted with a 6.5″ twin cone driver unit
  • Designed to offer wide response for music & speech
  • Ideal for shallow ceiling voids
  • 6 watt transformer with multi tappings down to 1.5W (100V) & 0.75W (70V)
  • Low profile grille design
  • Steel construction, finished in white
100V Evac
List Ex VAT: £5.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Impedance 1.67kΩ, 3.33kΩ, 6.67kΩ
Power Taps @ 100V 6W, 3W, 1.5W
Power Taps @ 70.7V 3W, 1.5W, 0.75W
SPL (1W/1m) 94dB
Max SPL (rated/1m) 102dB
Frequency Range (-10dB) 130HZ - 20KHZ
Dispersion 1K Hz / 4K Hz 126° / 112°
Power Selection Method Plug
Material Baffle, Grille & Fire Dome: Steel
Colour White (Fire Dome; Red)
Dimensions mm 220 (8.66) Dia. X 98.4 (3.87) Height mm. (in.)
Weight (kg) 1.34 (2.95lb)
Mounting Quick spring clips & snap on fire dome

DOWNLOADS

CES Audio CLM-6061VAF Datasheet
