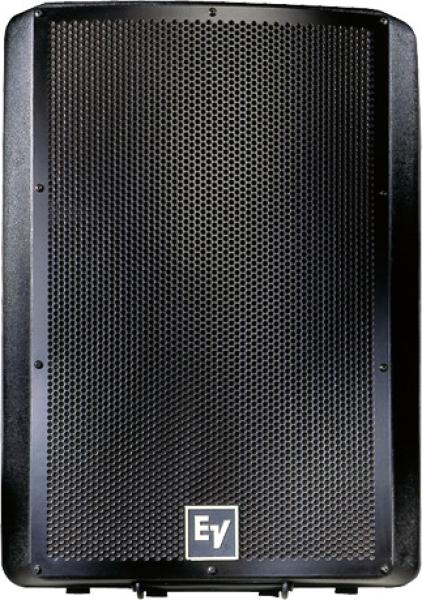

Electro-Voice SX300PI

The Electro-Voice (EV) SX300PI is a low impedance, 12-inch, two-way full-range loudspeaker with 300 watts continuous, 1,200 watt peak power handling.

This new version of the SX300 has all the same features as the SX300E with the added benefit of enhanced weather resistance for use outdoors and is certified IP55.

Available in black only.

The 65° x 65° constant-directivity horn has excellent projection capability and allows the system to be used horizontally or vertically with identical coverage and delivers better pattern control and projection than typical 90° horns.

Proven, reliable EV components including DL12BFH cast-frame 12-inch woofer and DH2010a pure titanium compression driver.

Ring-Mode Decoupling (RMD) delivers unequalled vocals and pure, accurate instruments and mids and the rugged, durable polypropylene enclosure is light and strong.

Built-in stand mount and inserts in enclosure allow the system to be safely suspended and arrayed using a wide range of optional cost-effective hardware.

The SX300PI loudspeaker can also be used as a floor monitor with F200 attachment Parallel Neutrik Speakon input connectors for safe, loss-free connections.

  • Compact, portable sound reinforcement
  • Designed for use alone or in arrays
  • Cast-frame DL12BFH woofer
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath™ horn
  • Ring-Mode Decoupling (RMD™) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Dual Neutrik Speakon(R) high-current connectors
  • Trapezoidal black or white polypropylene enclosure
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole mount
  • Weather resistant, IP55
IPxx 8ohms IP55
List Ex VAT: £1,275.10
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size 304.8 mm (12")
Colour Black, White
Input Connections 2 four-pin Speakon
Speaker Type Fullrange, Mid-High, Two-Way
Directivity Index 11.1 dB +2.4/-4.1 dB
Frequency Response (-10 dB) 50 - 20000 Hz
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc) 131/123 dB Low Z/100V
Coverage (Nominal -6 dB) H 65 ° Const.-dir. horn
Coverage (Nominal -6 dB) V 65 ° Const.-dir. horn
System Power Handling (Continuous/Program/Peak) 300//1200 Watts
LF Transducer 12-inch DL12BFH
HF Transducer 1.25-inch DH3/2010A
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 5 Ω
Outdoor No
Dimensions H x W x D (mm) 586 (23.07") x 429 (16.89") x 312 (12.28")
Weight (kg) 14.5
