LD Systems ANNY 8 HHD B8
Click to expand

LD Systems ANNY 8 HHD B8

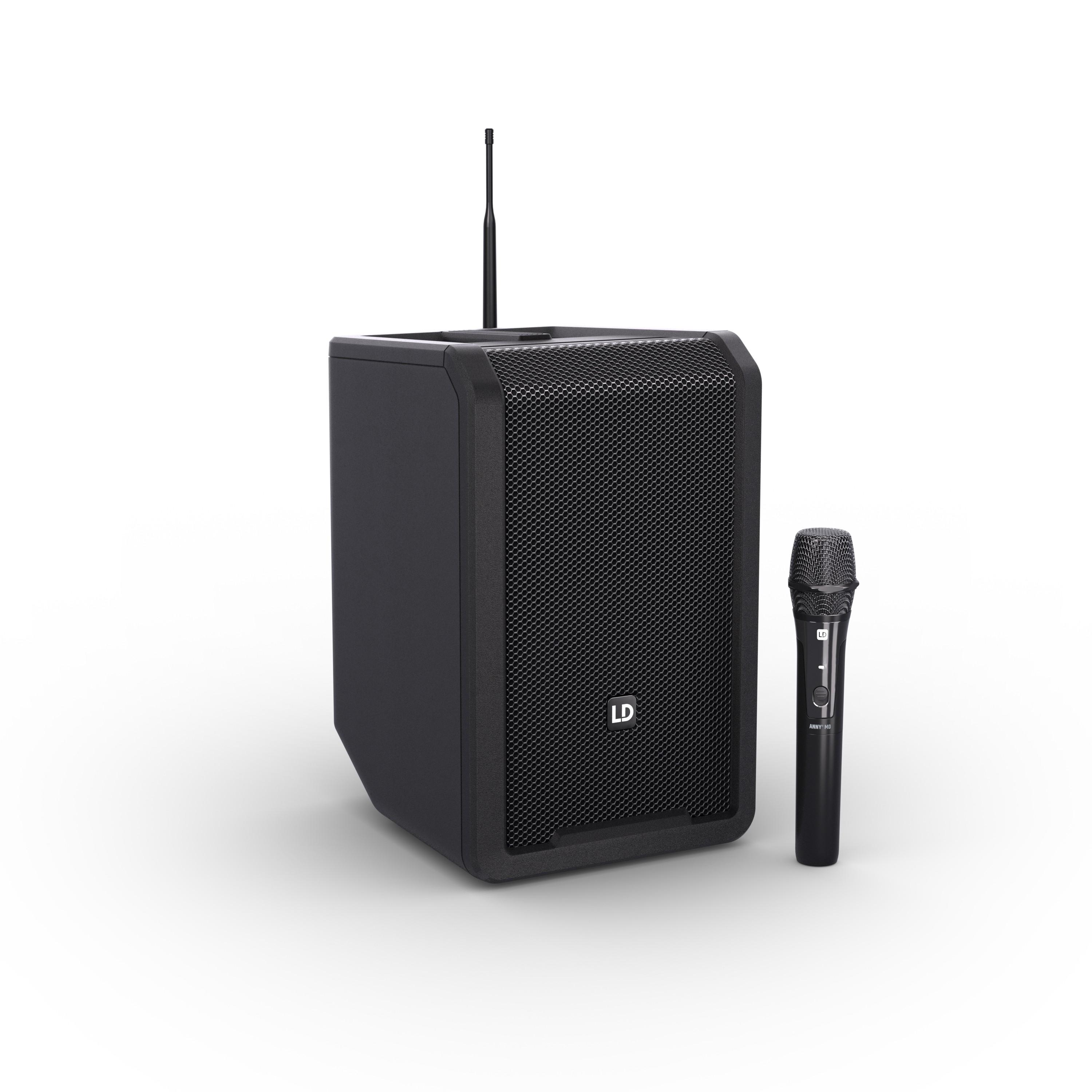

The LD Systems ANNY 8 HHD B8 is a complete ANNY 8 set up with wireless hand held microphone transmitter and slot in receiver module.

Operating in the B8 frequency range of 823 - 832 MHz and 863 - 865 MHz. This includes frequencies in Channel 38 which are licence free but also includes frequencies in the Duplex Gap which require a Channel 38 licence.

Please use the links below to see the individual product pages for more detailed information on each item included.

Further accessories are available – please see related products at the bottom of the page.

Items in this set include:

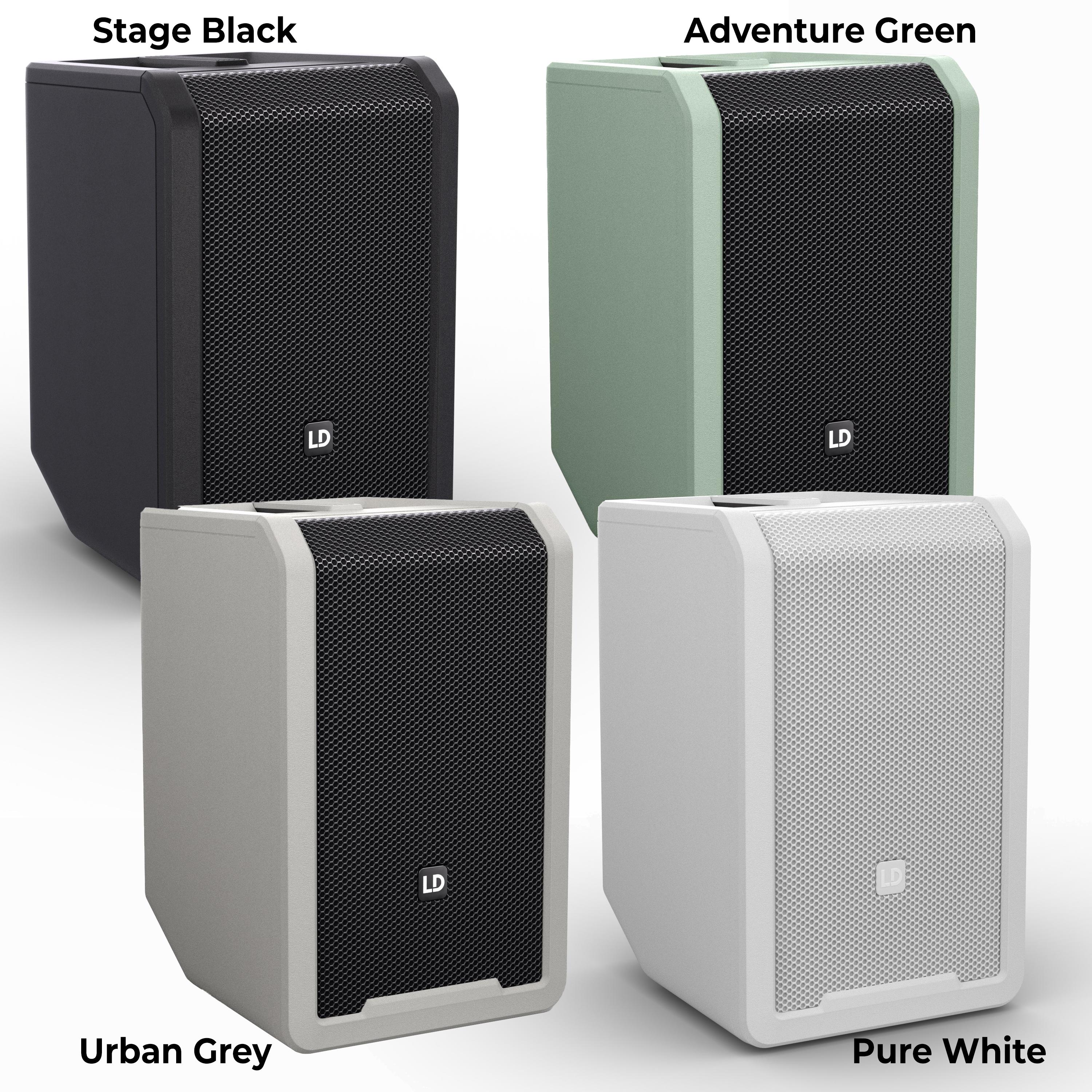

LD Systems ANNY 8 Portable battery-powered Bluetooth® PA loudspeaker with mixer in a choice of four colours
LD Systems ANNY MD B8 Wireless Handheld Microphone for ANNY
LD Systems ANNY R B8 Receiver Module for ANNY

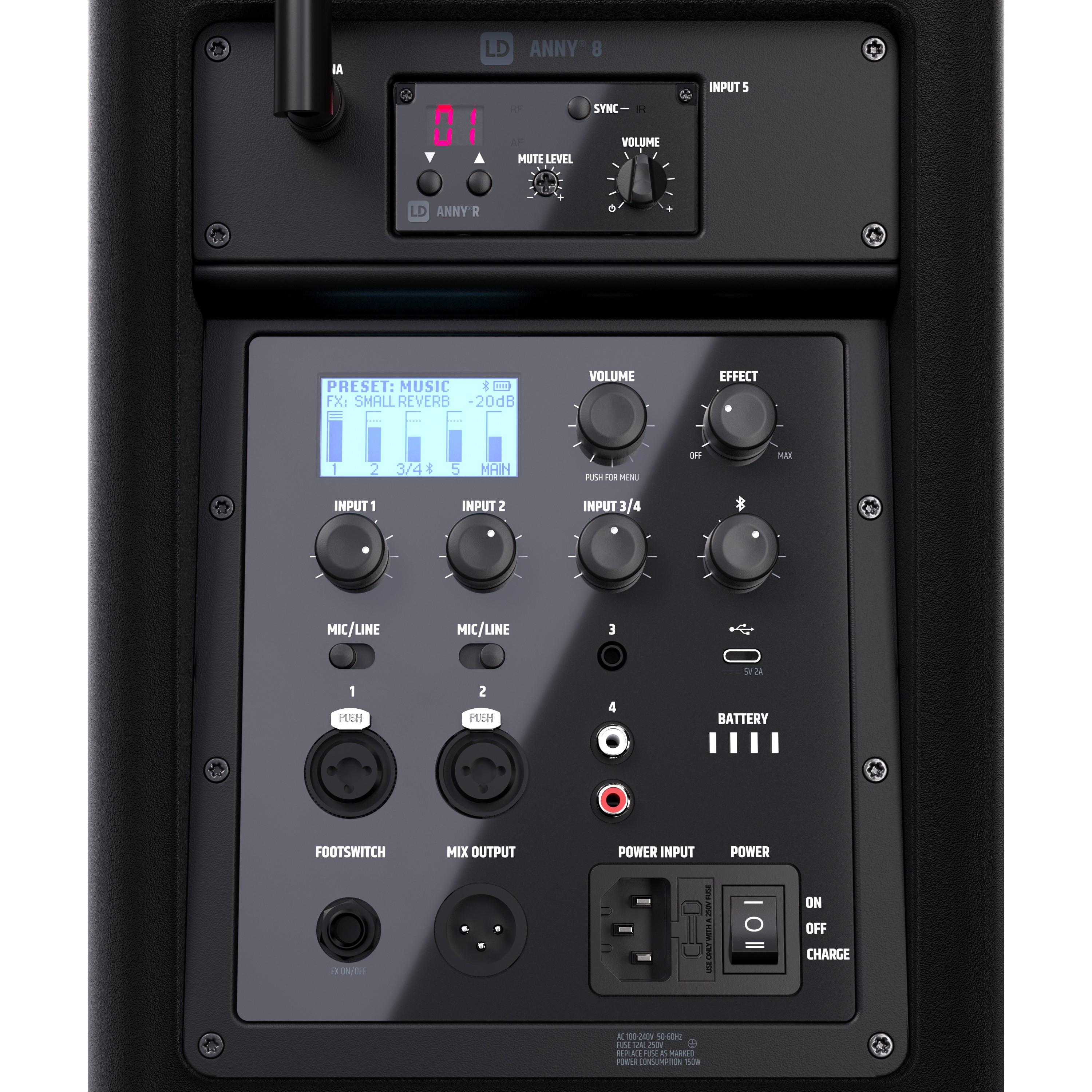

LD Systems ANNY 8 Portable battery-powered Bluetooth® PA loudspeaker

  • 8" Portable active 2-way full-range loudspeaker
  • Built-in 5-channel mixer with 3-band EQ, reverb and delay
  • Long battery life: up to 11h (ECO mode) / 3.5h (max. volume)
  • Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs
  • Clear and distortion-free sound at maximum volume through DynX® DSP (Gen. 2)
  • 2x microphone/line inputs for versatile connection options
  • 1x stereo channel with 3.5mm jack (AUX) or Cinch
  • Priority/ducking mode to emphasise the microphone signal
  • Tilt-Back cabinet for optimum sound dispersion
  • 35-mm flange for use with a speaker stand
  • USB-C port for charging a tablet or smartphone
  • Footswitch input for hands-free effect control
  • Integrated holder for tablet or smartphone
  • Warranty: 2 Years

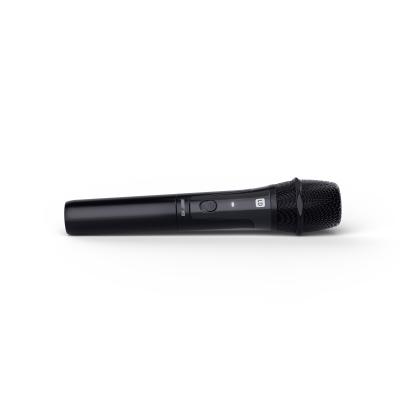

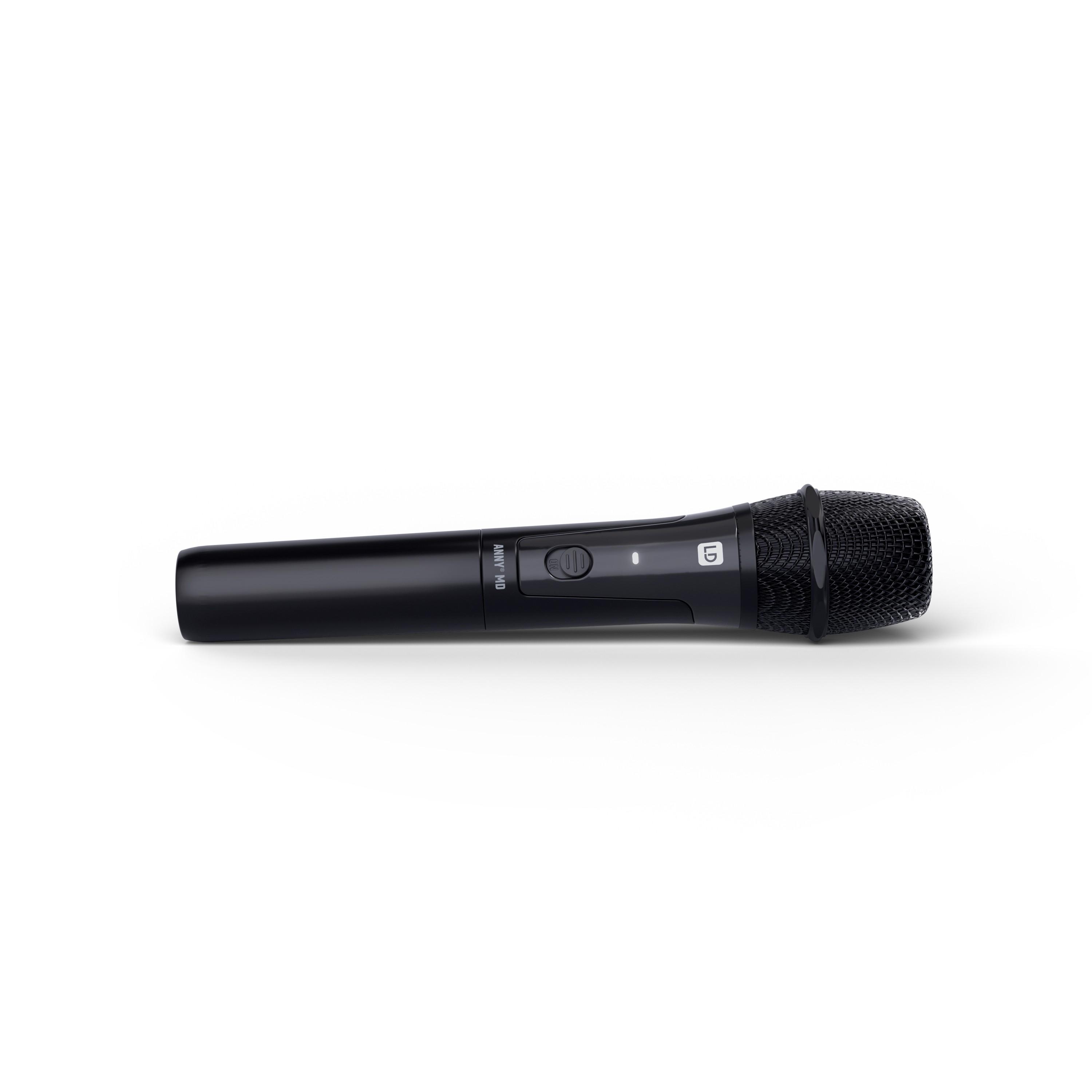

LD Systems ANNY MD B8 Wireless Handheld Microphone

  • Wireless receiver system with FM technology incl. separate antenna
  • Can be retrofitted to all ANNY® loudspeakers
  • Reception range up to 80 m
  • Separate volume control
  • 12 selectable radio channels
  • Mute level control (squelch)
  • Warranty: 2 Years.

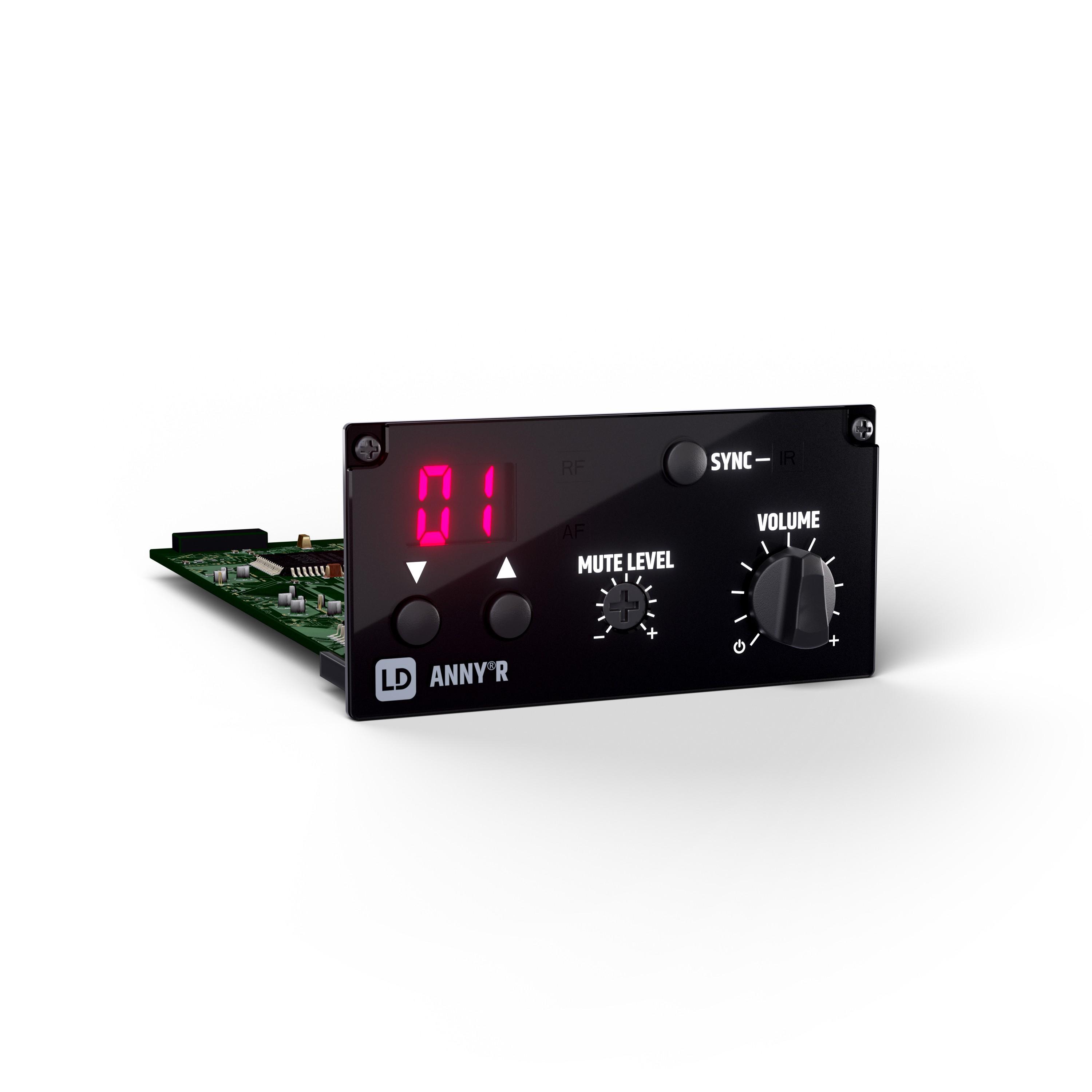

LD Systems ANNY R B8 Receiver Module

  • Wireless receiver system with FM technology incl. separate antenna
  • Can be retrofitted to all ANNY® loudspeakers
  • Reception range up to 80 m
  • Separate volume control
  • 12 selectable radio channels
  • Mute level control (squelch)
  • Warranty: 2 Years.
UHF
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Portable Bluetooth PA:

ANNY 8

Low/mid woofer + HF driver

8" + 1"

Max. SPL (peak)

117 dB

Bluetooth

Bluetooth 5.0 with AAC codec

Link to Second ANNY

True wireless stereo

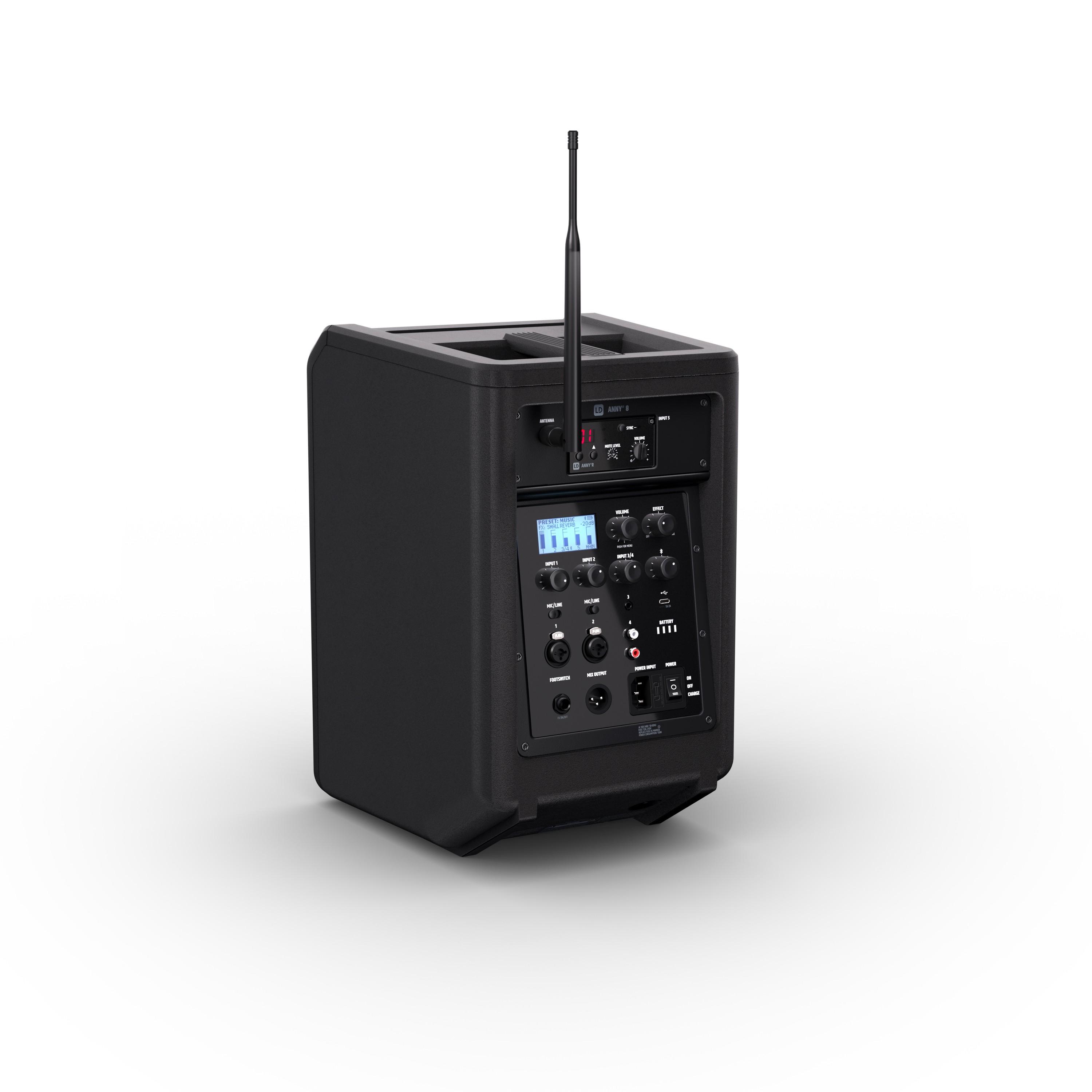

Inputs

2 × 6.3 mm/ XLR combo, 2 × cinch / 3.5 mm jack (AUX)

Wireless Mic Capability

Up to 1 wireless mic

Built In Mixer

5-channel mixer

EQ

3-band EQ

Cabinet Features

·Tilt back cabinet to adjust listening angles

·Integrated holder for tablet or smartphone

Battery life at mid volume

(ECO preset)

5 h

Battery life at full volume

(music preset)

3.5 h

Weight

8.8 kg

DSP

DynX DSP (Gen. 2).

Clear and distortion-free sound at maximum volume

Pole Mount

35 mm flange

System output (RMS / peak)

80 W / 160 W

Frequency response (-10 dB)

53 Hz - 20 kHz

Dispersion (H × V)

120° × 60°

Dimensions (W × H × D)

249 × 390 × 282 mm

Output

USB-C: 5 V, max. 2 A

Mix Output

1 × XLR male

Wireless range

80 m

Priority/ducking mode

Yes

Footswitch input

Yes

Battery

14.4 V / 5.000 mAh

Charging time
(80%, no signal)

3 h
