Mayflex WB6.390SG-BK

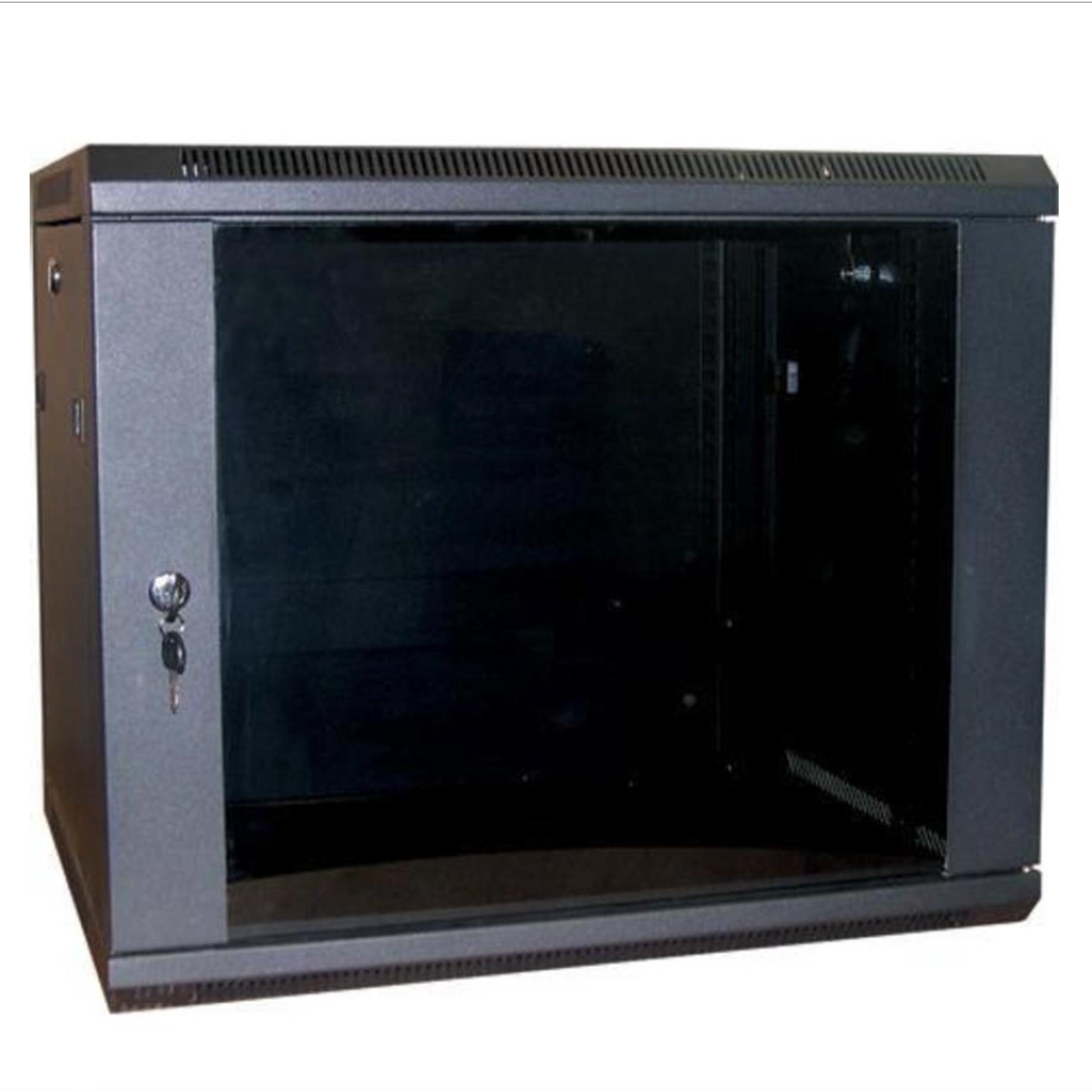

The Mayflex WB6.390SG-BK is a 6U wall mounted data / audio rack from the Mayflex WR390 Excel Environ series of 19” racks. It comes complete with a safety glass door.

Clearance item – one only. Please note that this has a couple of small marks / scratches.

The Excel Environ WB6.390SG-BK is wall-mounted, 600mm wide / 390mm deep and designed for the installation of both cabling and equipment.

This wall mounted equipment rack is ideal for local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment.

  • Finished in Black
  • Aesthetically pleasing framed safety glass front door
  • Quick release doors and side panel
  • Adjustable front and rear 19'' mounting profiles
  • Removable cable entry panel in top and base
List Ex VAT: £90.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Number of rack units (RU)

 6

Max. load capacity

 60 kg

With roof plate

 Yes

With front door

 Yes

Side panels included

 Yes

Material

 Steel

Type of surface

 Powder coated

Colour

 Black

RAL-number

 9004

IP-rating

 IP20

Frame

 1.20mm

Top cover and fan entry plate

 1.20mm

19” mounting angles

 1.50mm

Side panels

 1.20mm

Front door frame

 1.20mm

Front door glass

 5.00mm

Cable Entry Knock Out (Roof & Base)

 230 mm x 45 mm
