Waves System My Music Player 50024 Discontinued

This product is no longer available - please contact us for advice about a suitable alternative.

The Waves System (iD-AL) My Music Player (50024) has been designed to automatically broadcast a large volume of music and messages from MP3 and Wav files stored in a hard disk, USB flash Memory or SD Card and plays tracks in random or sequential mode. You can also create M3U playlist to control your music.

My Music Player is the ideal solution for broadcasting background music and commercial / promotional pre-recorded messages. The free ID-AL Scheduler software enables full scheduling of messages, music, volume settings and web radio selection for each day.

This can all be stored on a USB flash memory stick securely located inside the unit.

Update the media with the USB link and a computer, replace the internal flash memory media or via ethernet link (FTP upload and download).

Easy to use, low power consumption and usable 24/24 - 7/7.

Place up to 3 units in a 19 rack / 1U to create a multi zone system.
With the RS232 link, you can control all the the players from a programmable controller.

My Music Player is a cost effective solution for broadcasting customised in-store radio in shops or restaurants.

Infra red remote control supplied.

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Interfacing & Connectivity:

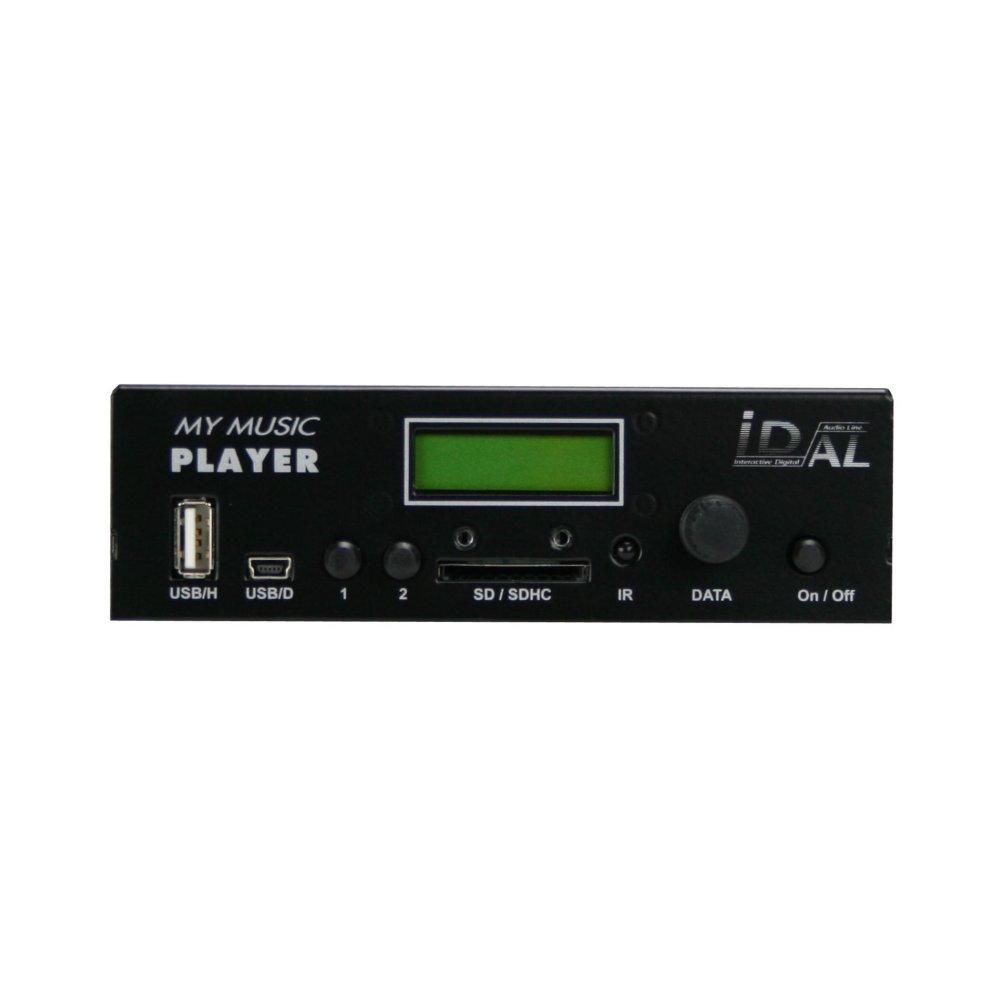

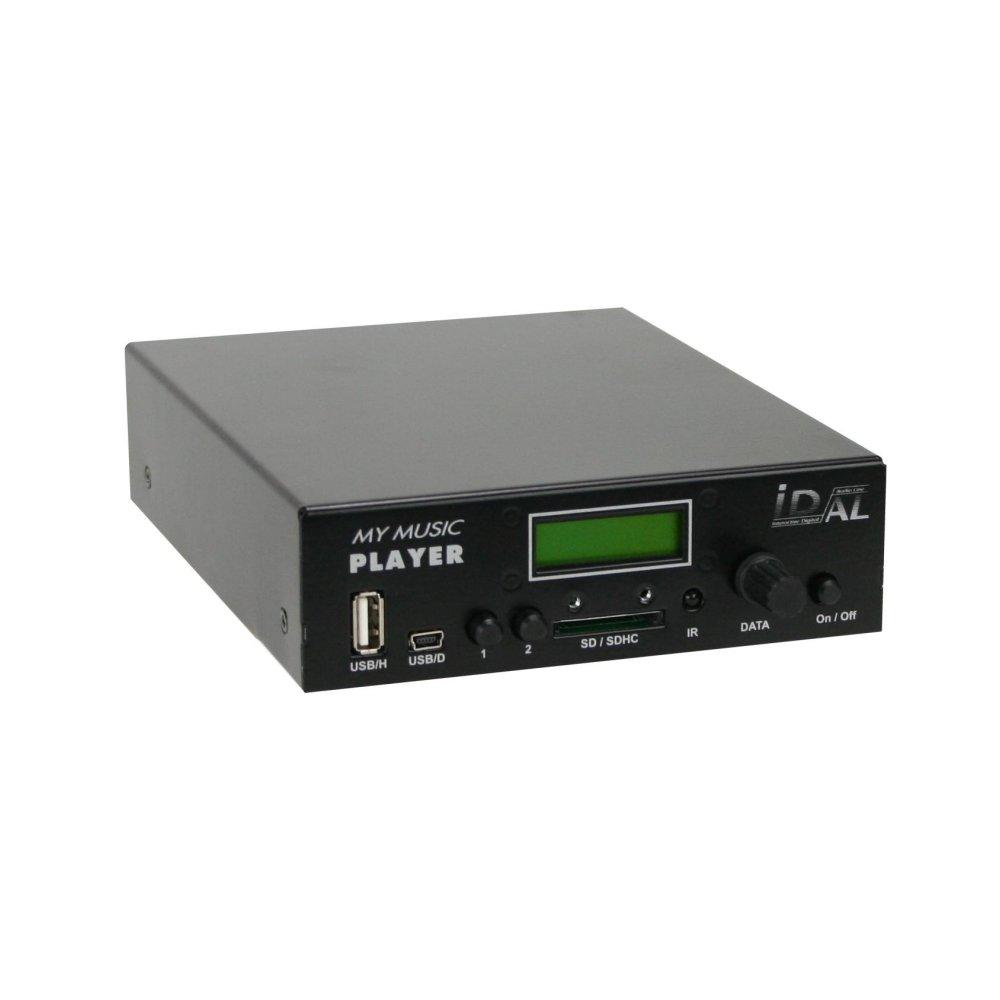

Clickable knob

volume, playback control and setting menu

USB Inputs

External USB Host 2.0 High Speed (480 Mb/s), standard “mass storage” driver, type-A receptacle.
Internal USB Host 2.0 High Speed (480 Mb/s), standard “mass storage” driver, type-A receptacle.

SD Card Slot

Accepts SDSC cards, SDHC cards

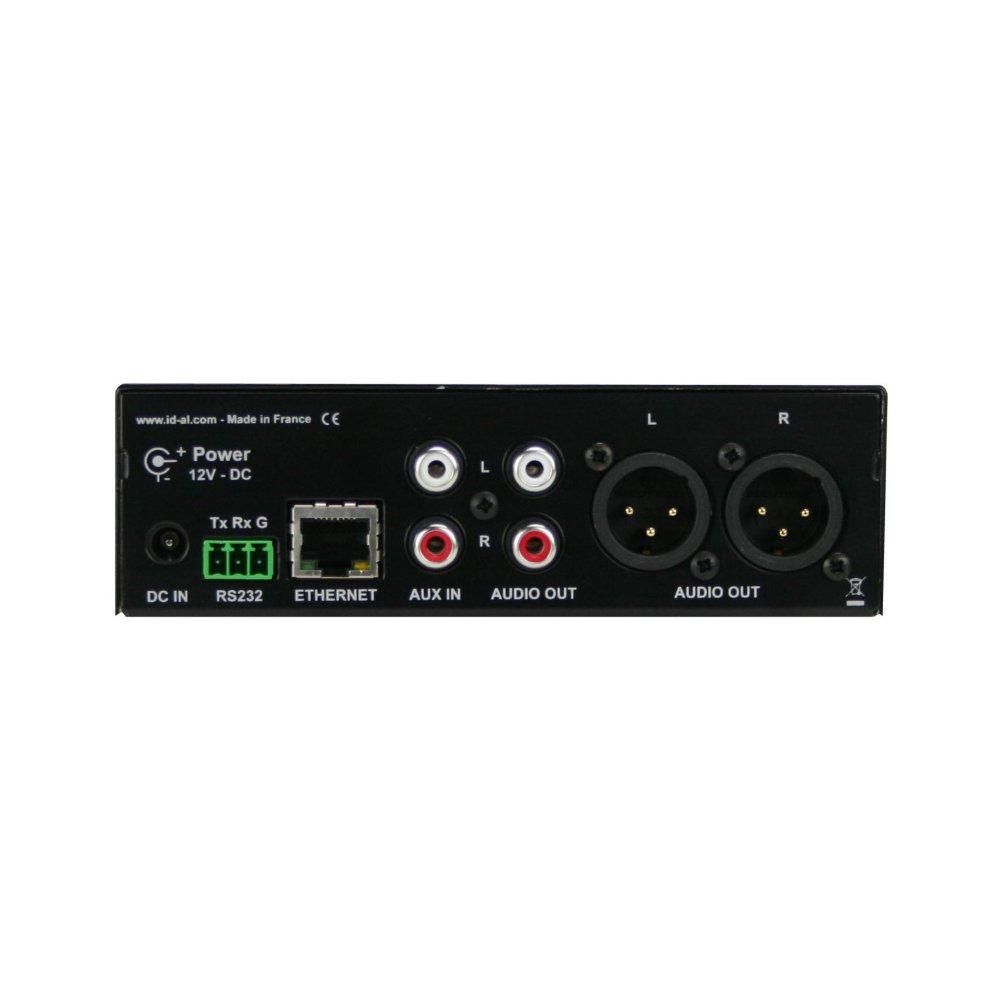

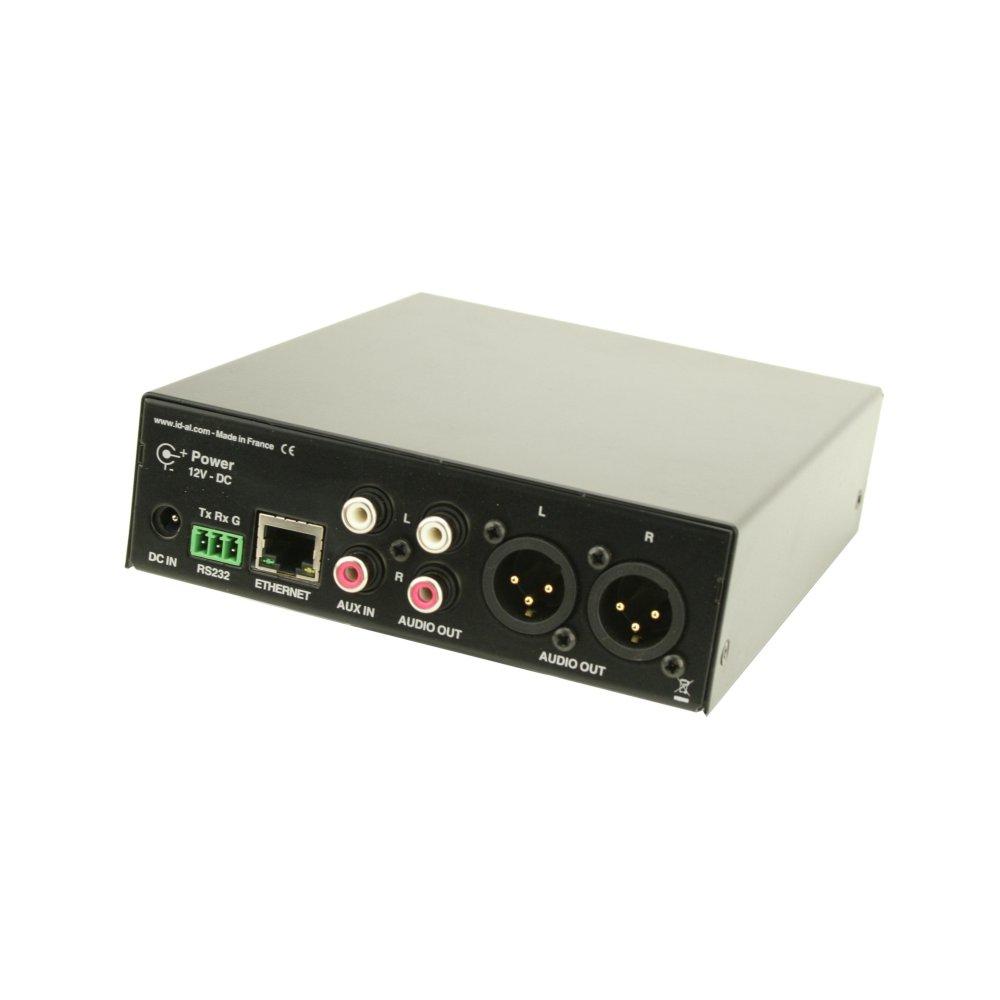

Outputs

Unbalanced line-level stereo audio output on standard RCA connectors (configurable level from -10 dB to +4 dB)
Balanced line-level stereo audio output on standard XLR connectors (configurable level from -10 dB to +4 dB)

Inputs

Unbalanced line-level stereo auxiliary audio input on standard RCA connectors

Ethernet Connector

10/100 Mbps Ethernet, RJ45 connector

RS232 Control

RS-232 serial link on a 3.81 mm pluggable terminal block (9600, 19200, or 38400 bauds)

Audio Files Supported

MP3 (.mp3): MPEG-1/2 Audio Layer III, mono/stereo, 16 bits, 44.1/48 kHz, from 32 kbit/s to 320 kbit/s, CBR (Constant Bit Rate) or VBR (Variable Bit Rate), with or without ID3v1/2 tags

Proprietary obfuscated MP3 (.mp3): to protect MP3 audio content¹

WAV (.wav): mono/stereo, 16/24-bit LPCM, 44.1/48 kHz, WAVE_FORMAT_PCM or WAVE_FORMAT_EXTENSIBLE

Playlist File Formats Supported

M3U (.m3u): playlist files that only support with either relative paths, or absolute paths prefixed with Windows-like drive letters

Web Radio Stream Formats Supported

MP3 (.mp3): MPEG-1/2 Audio Layer III, mono/stereo, 16 bits, 44.1/48 kHz, from 32 kbit/s to 320 kbit/s, CBR (Constant Bit Rate) or VBR (Variable Bit Rate)

M3U (.m3u): URL of a MP3 audio stream

Other File Formats Supported

TM3 (.tm3): timestamped programming file (scheduler.tm3) – Scheduler V3 file format

INI (.ini): text file for the system configuration (system.ini) – raw text format (only printable 7-bit ASCII characters) with CR/LF, LF or CR end of line characters

TXT (.txt): text file for the content update with the use of script (script.txt) – raw text format (only printable 7-bit ASCII characters) with CR/LF, LF or CR end of line characters

ZIP (.zip): “script” file and update content compressed in “ZIP” format (script.zip) – without or with password

Storage Devices

File system supported: FAT32

Accepted storage device types:

SDSC cards, SDHC cards, USB Flash Drives

Built-in Clock

Timekeeping when the player is not powered: up to 2 months

Player power supply input

Nominal voltage: 12 V DC

Supplied PSU Voltage

From 100 V to 240 V, 50 Hz to 60 Hz

General



Dimensions  (WHD)

140 mm (1/3 rack width) x 43 mm (1U) x 208 mm

Weight

446g (with the pluggable terminal blocks)
