JTS RU-8011DB RU-G3TB-CM501
Click to expand

JTS RU-8011DB RU-G3TB-CM501

The JTS RU-8011DB RU-G3TH single channel UHF wireless lavalier microphone system offers a feature rich solution at a fantastic price.

Although a current model, we have a limited number of these wireless mics included in our stock clearance.

The large LED display shows all the important information required to guarantee rock solid RF. The REMOSET technology allows the scanned channel to be sent to the receiver with the touch of a button.

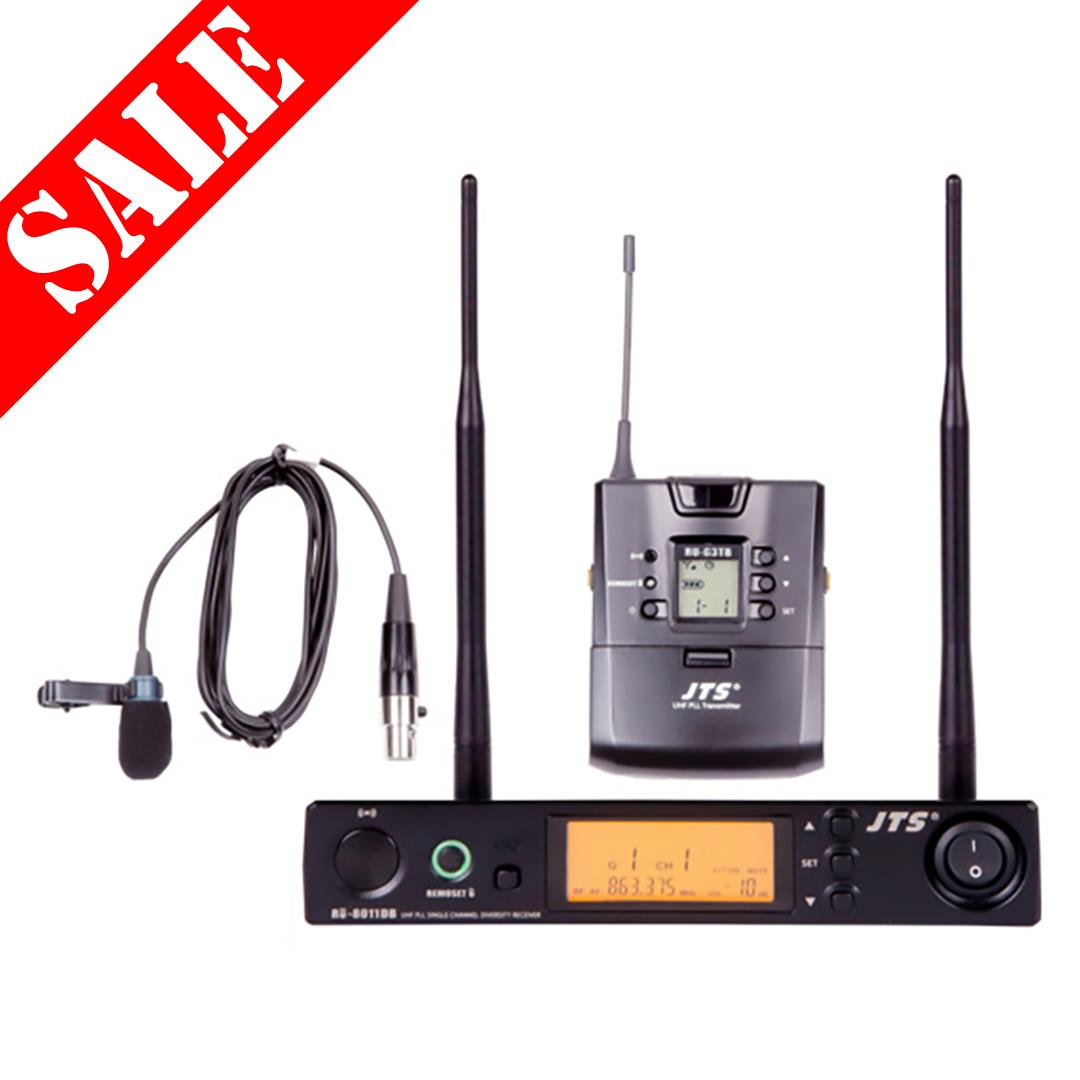

The RU-8011DB Antenna Diversity UHF PLL wide-band receiver is supplied with an RU-G3TB metal bodied beltpack wireless microphone transmitter and CM-501 tie-clip microphone, creating a complete ready to go solution for the presenter.

The RU-G3TB wireless beltpack transmitter is powered by 2 AA batteries with up to 12 hours battery life.

The CM-501 uni-directional Electret lavalier / lapel / tie clip microphone is  perfect for presentations and discussions. The supplied tie clip ensures a secure fit and makes it easy to attach and detatch. Cardioid polar pattern. 100-15,000KHz.

Operating on frequency range 823-865 MHz, you are free to choose whether to use CH70 licence free frequencies or to use CH65 frequencies which are covered by a Channel 38 licence. For advice on this, please contact us.

JTS SKU code 81151.

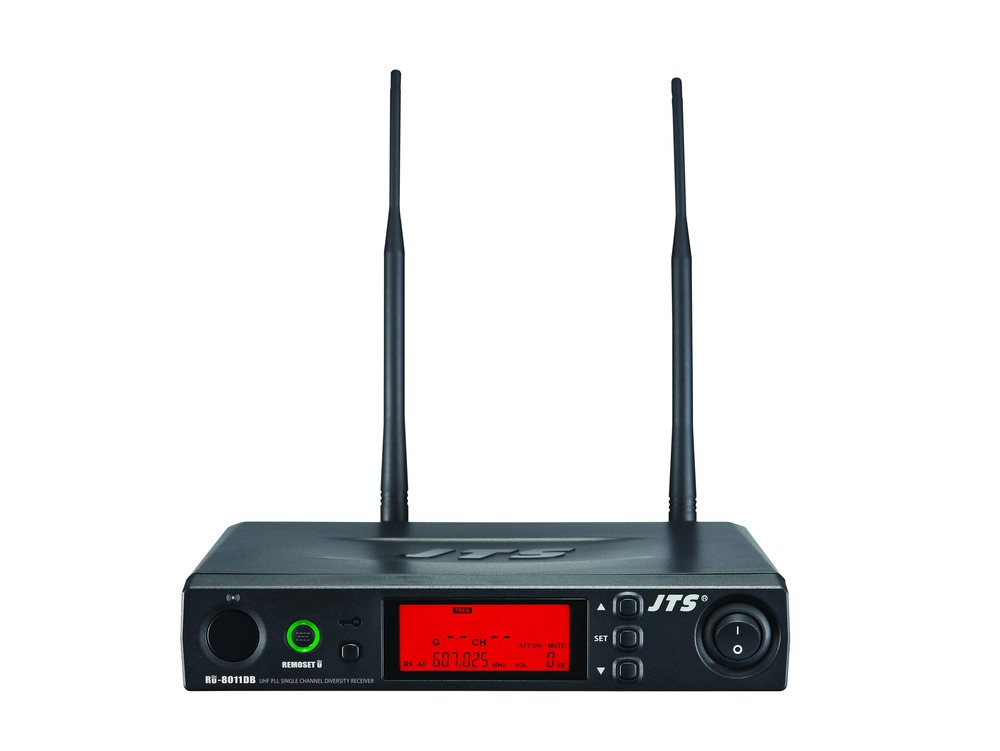

RU-8011DB Receiver Features:

  • JTS “Antenna diversity” - Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.
  • 6 groups, each with up to 22 compatible preset channels
  • 1,441 selectable individual frequencies
  • REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
  • Auto-Scan function
  • Pilot tone squelch and noise mute
  • Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
  • XLR output (balanced.) and 6.3 mm jack output (unbalanced.)
  • Removable BNC Antennas
  • Half Rack size with optional rack kits available.

RU-G3TB Beltpack Transmitter Features:

  • Phase-locked Loop (PLL) synthesized tuner.
  • Powered by 2 x AA batteries with 12 hrs. average battery life.
  • Equipped with 4 Pin Mini XLR connector.
  • Back lit LCD display with channel and battery life indicator, ID number.
  • The “lock-on” function prevents tampering and RF interruption.
  • Extended dynamic range and smooth frequency response.
  • Noise mute and tone-key squelch.

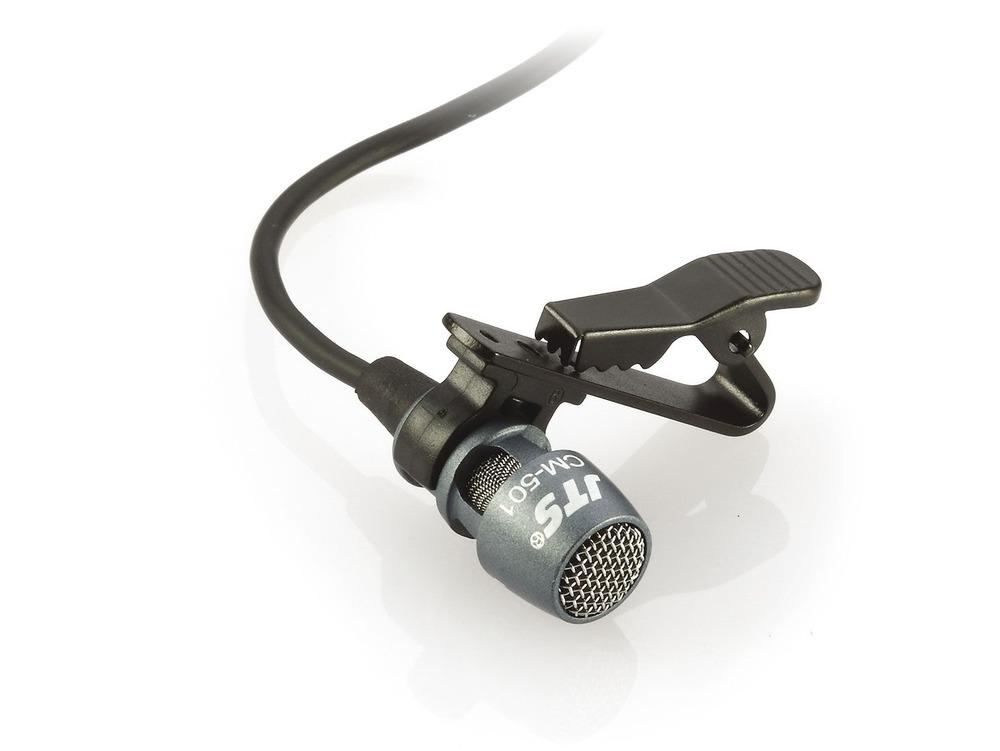

CM-501 Lavalier Microphone

  • Uni-directional pickup for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.



CH38 CH70 UHF
List Ex VAT: £249.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Please download the User Manual.
