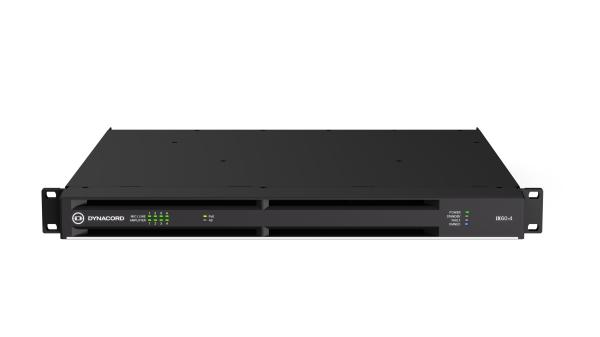

Dynacord IX60:4
Click to expand

Dynacord IX60:4

Dynacord IX60:4 | 4-Channel DSP amp with 8x8 Dante Channels | 6 kW total output power | For 70V / 100V or low impedance loads | 12 x 12 Matrix Mixer

The Dynacord IX60:4 is a 4-channel networked DSP amplifier with Dante. It has 6kW total output power and can drive 70V / 100V or low impedance loads from 2 Ohms to 8 Ohms, ideal for a wide range of applications like sports venues, houses of worship, live performance spaces and hospitality.

The IX Series amplifiers are expected to be available during Summer 2025 - please contact us to register your interest and we'll let you know when they arrive!

IX60:4 features eight Dante inputs and eight Dante outputs with four mic/line inputs which can be used as Dante break-in points.

The natively operating 96 kHz DSP features a full equipped 12 x 12 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 12 inputs feature pilot-tone detection, while the eight Dante and four amplifier outputs allow pilot tones up to 30 kHz.

The Dynacord IX series is available in a range of 5 power output options. There are three 4-Channel models with total output power of 1500W, 3000W or 6000W and two 8-Channel models with total output power of 3000W or 6000W. (See related products.)

Each amplifier in the IX Series is offered in a space saving 1U rack mounted chassis and has fully featured 96kHz DSP. They each benefit from the following innovative Dynacord technologies:

  • powerTANK flexible power management - Enables power to be shared disproportionately across channels.
  • ghostPOWER - All settings of the DSP, Dante network and mic/line inputs are preserved during a short power outage until power is restored, or back-up generators kick in, enabling immediate audio restoration by eliminating ‘re-boot’ delays.
  • ecoRAIL – Boosts energy efficiency by reducing power consumption by over 50% when amplifier output demands are lower.
  • MXEstyle TaskEngine – enables system automation, scheduling, control, and integration to third party devices.
  • SONICUE Sound System Software – Enables use as a SONICUE control server. Plug-Ins for Crestron and Q-SYS available.
  • FIR-Drive - optimises original factory loudspeaker settings for unparalleled performance.
100V multi-ch 4ohms 8ohms 1U 2ohm Dante Sharing
List Ex VAT: £3,432.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

For full specifications of the Dynacord IX60:4,  please download the datasheet.

Total rated output power: 6000 W

Number of amplifier channels: 4

Load

2 Ω

2.7 Ω

4 Ω

8 Ω

Maximum Output Power

All channels equally driven

1000 W

1300 W

1500 W

1200 W

Max. per channel

1000

1300 W

1800 W

1200 W



Direct Drive

70 V

100 V

Maximum Output Power

All channels equally driven

1500 W

1500 W

Max. per channel

1500 W

1800 W
