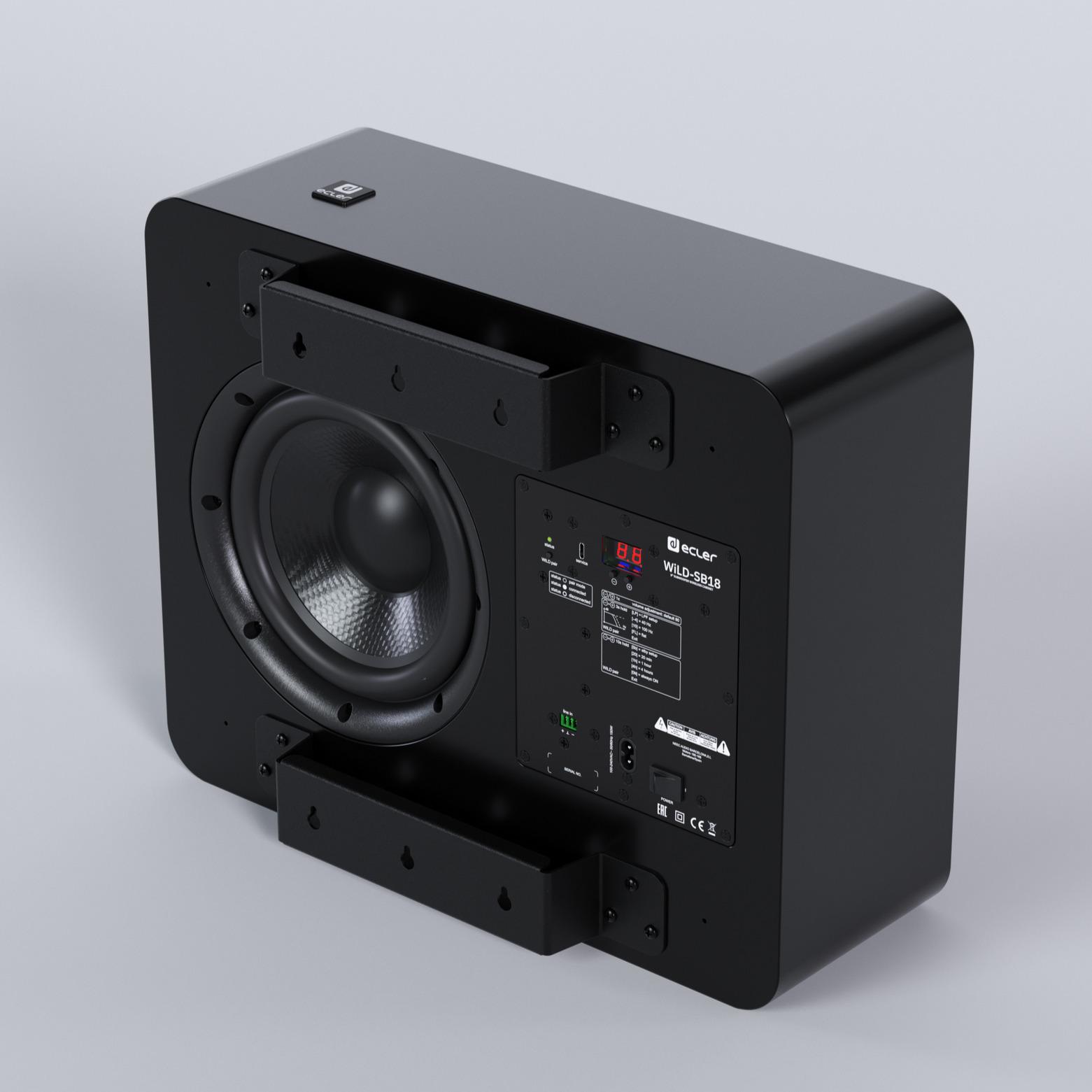

Ecler WiLD-SB18
Click to expand

Ecler WiLD-SB18

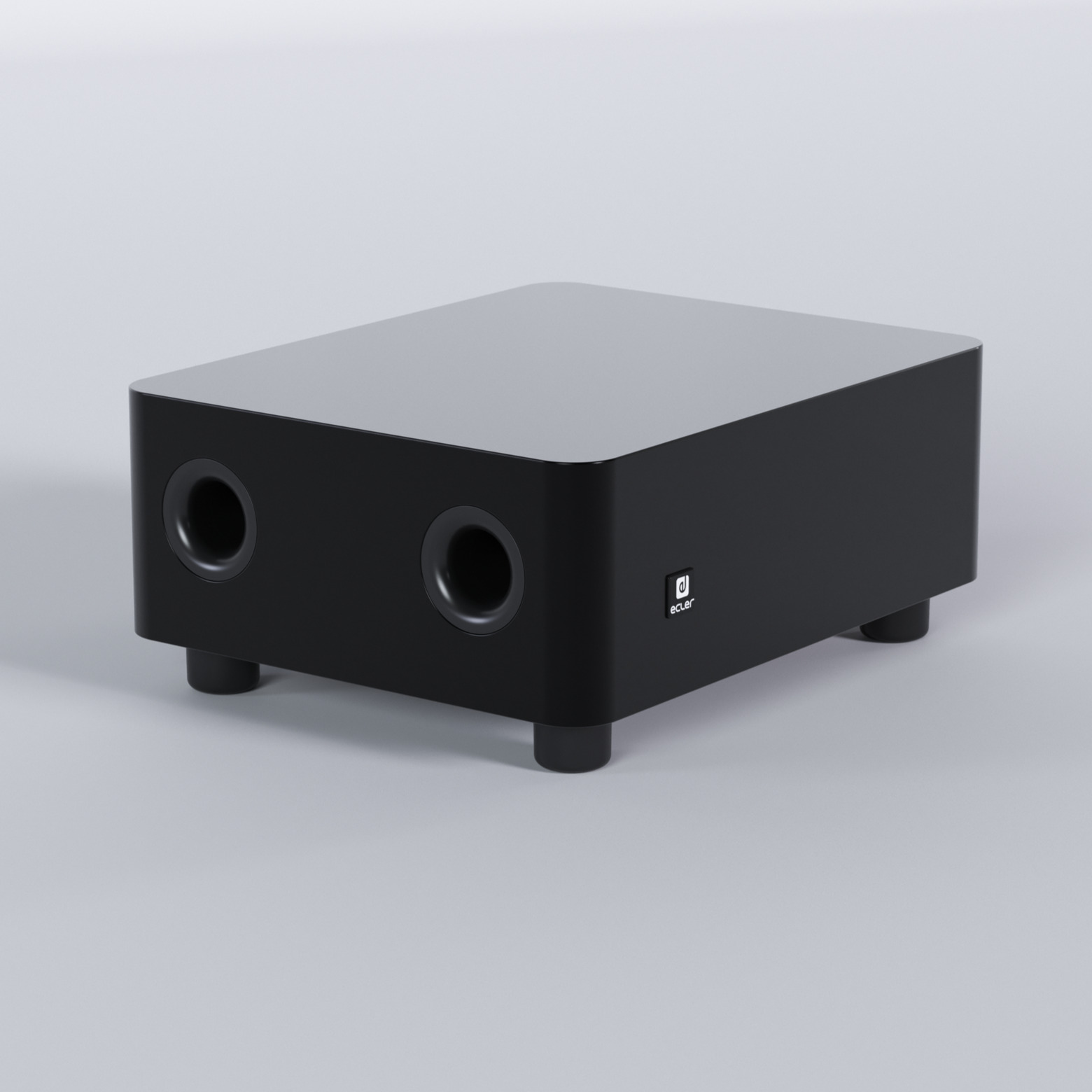

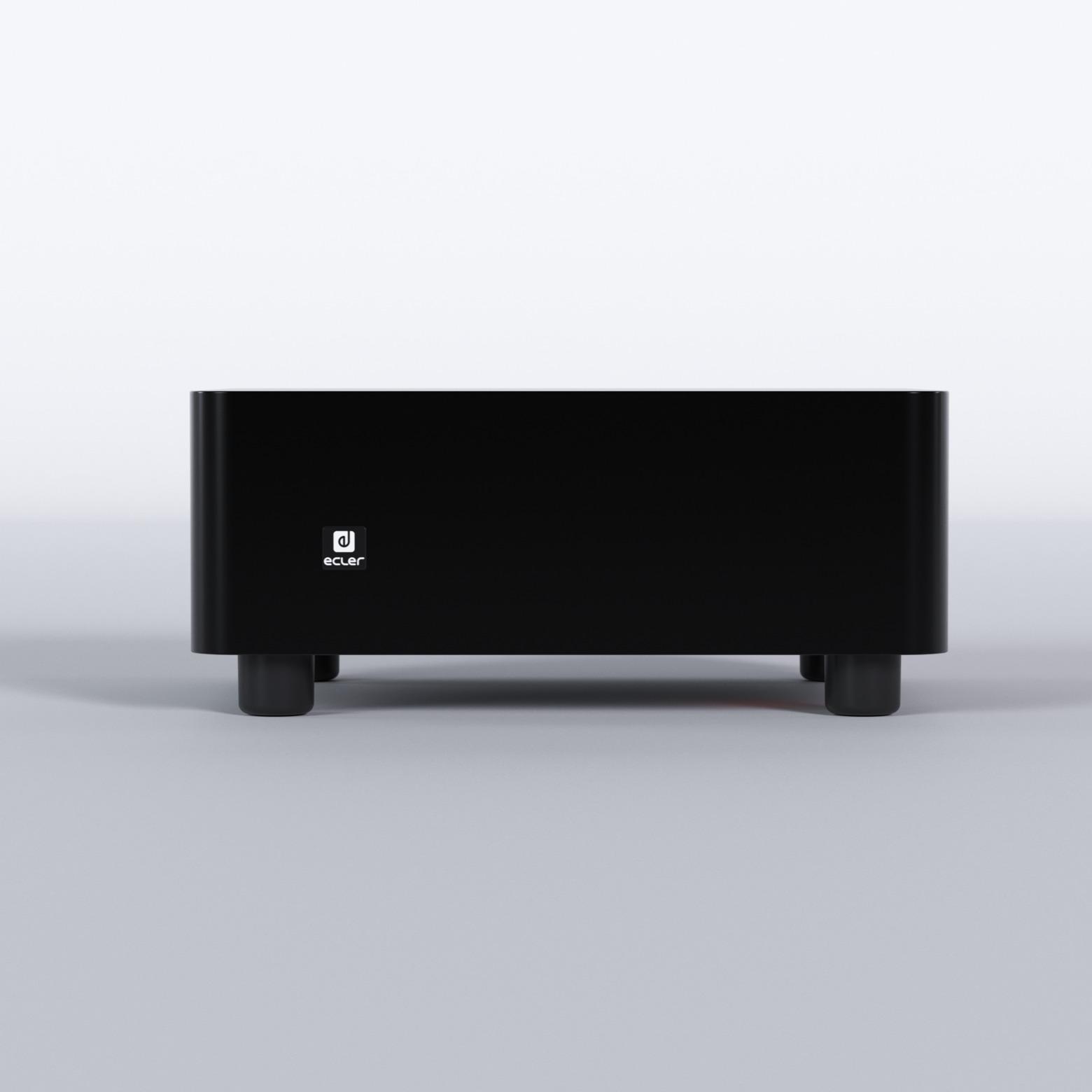

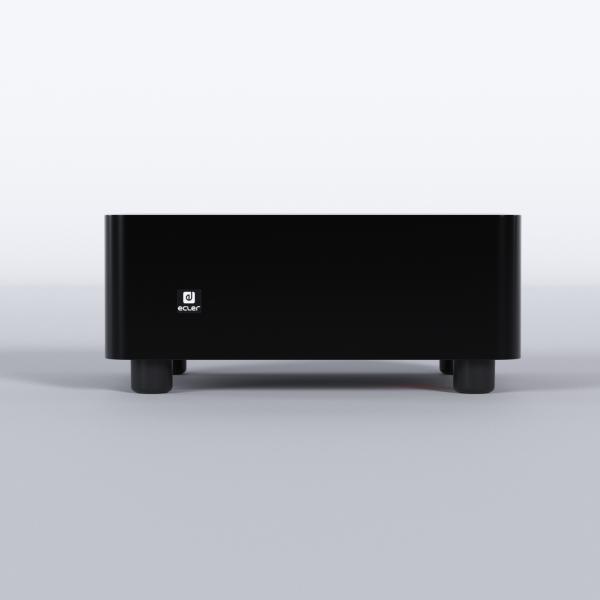

The Ecler WiLD-SB18 compact, self-powered 8" subwoofer with wireless audio reception received from and under the control of the WiLD-TX long distance wireless audio transmitter.

The subwoofer includes an 8” woofer and bass reflex system and has an output power of 100W RMS.

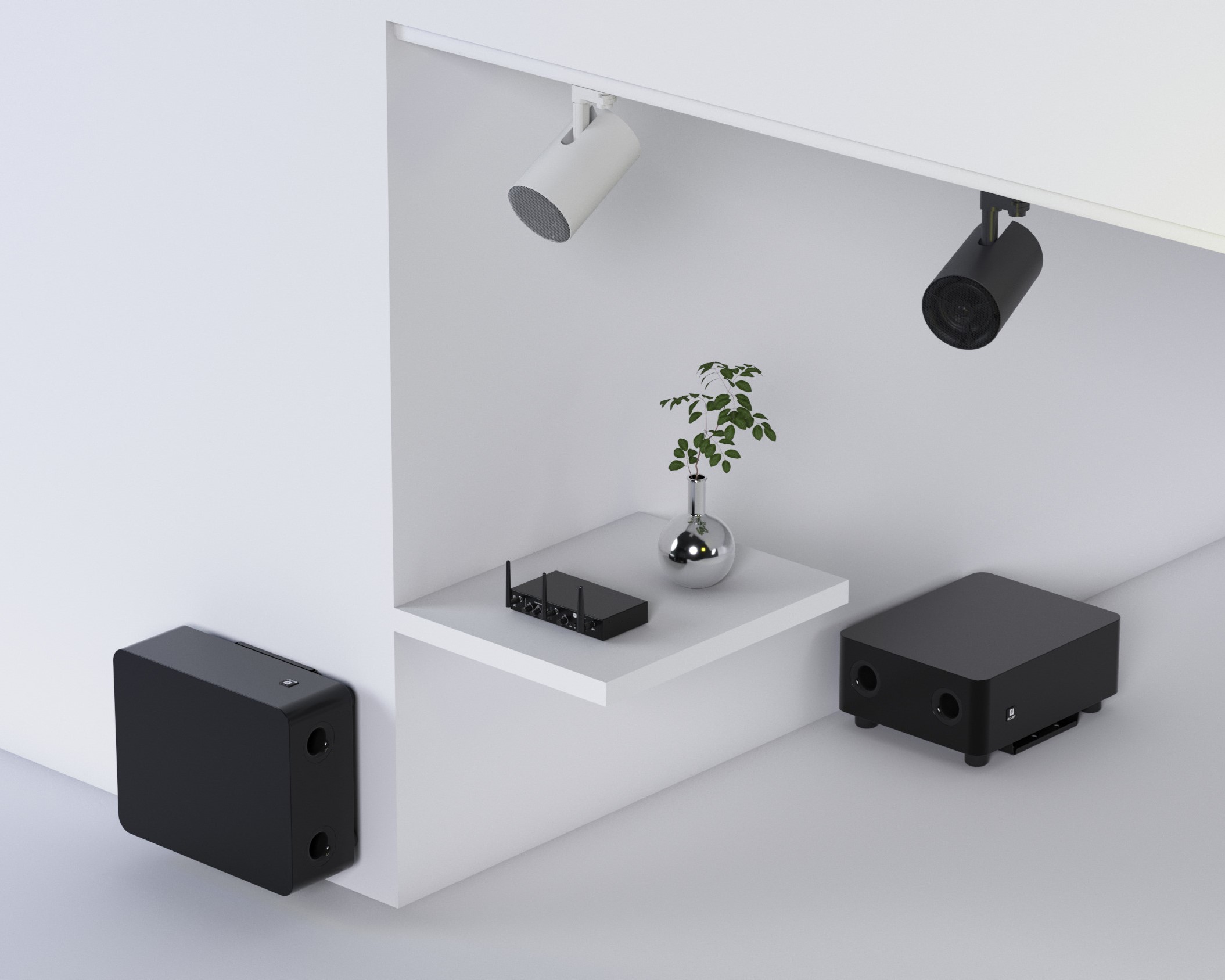

Ideal for retail spaces, restaurants and museums, the speakers can be easily repositioned whenever there is a change of store / table / exhibit layout.

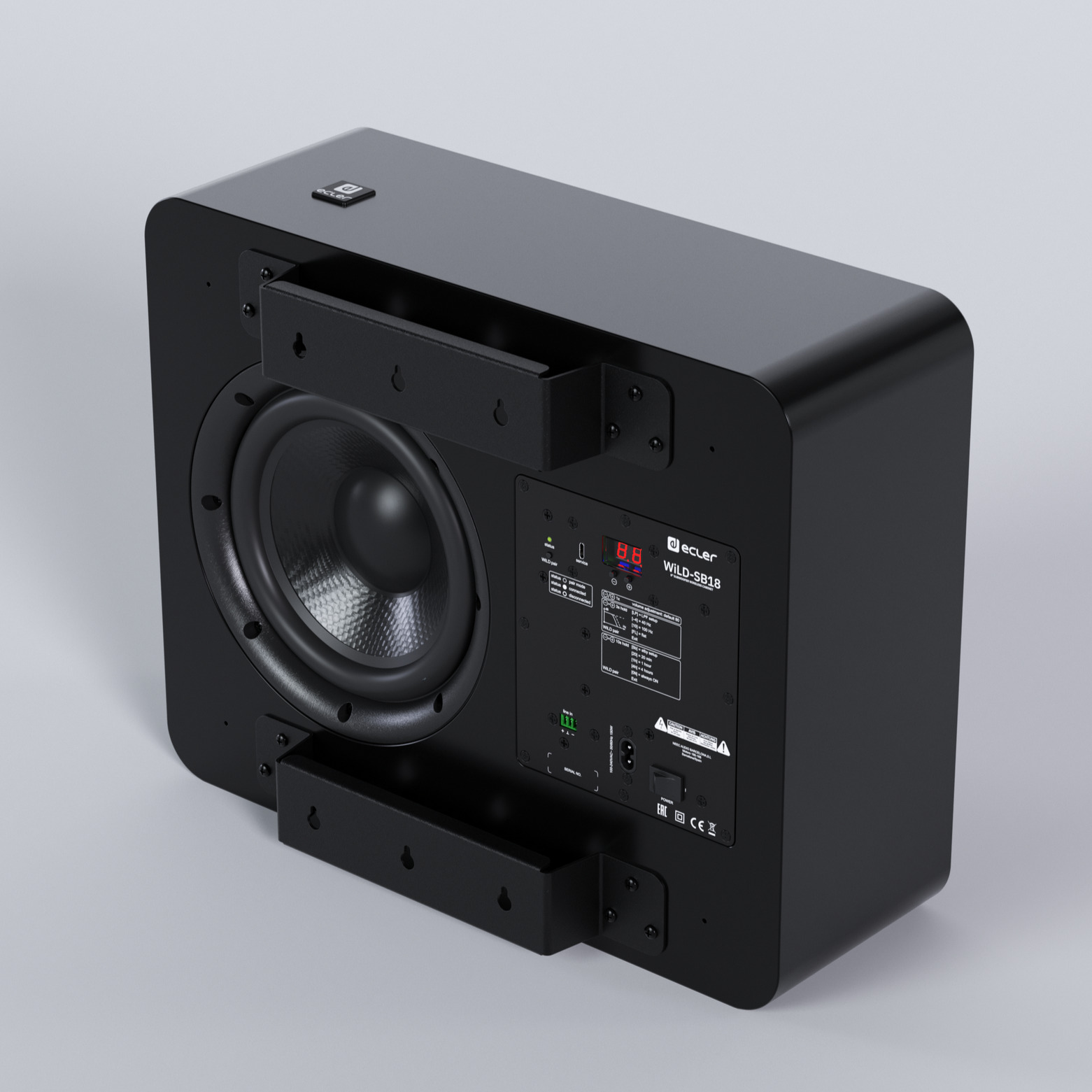

The WiLDSB18 can be placed discreetly at floor level or wall mounted with the included brackets.

Ecler WiLD is the ultimate long-distance wireless audio solution offering superior sound quality with minimal visual impact.

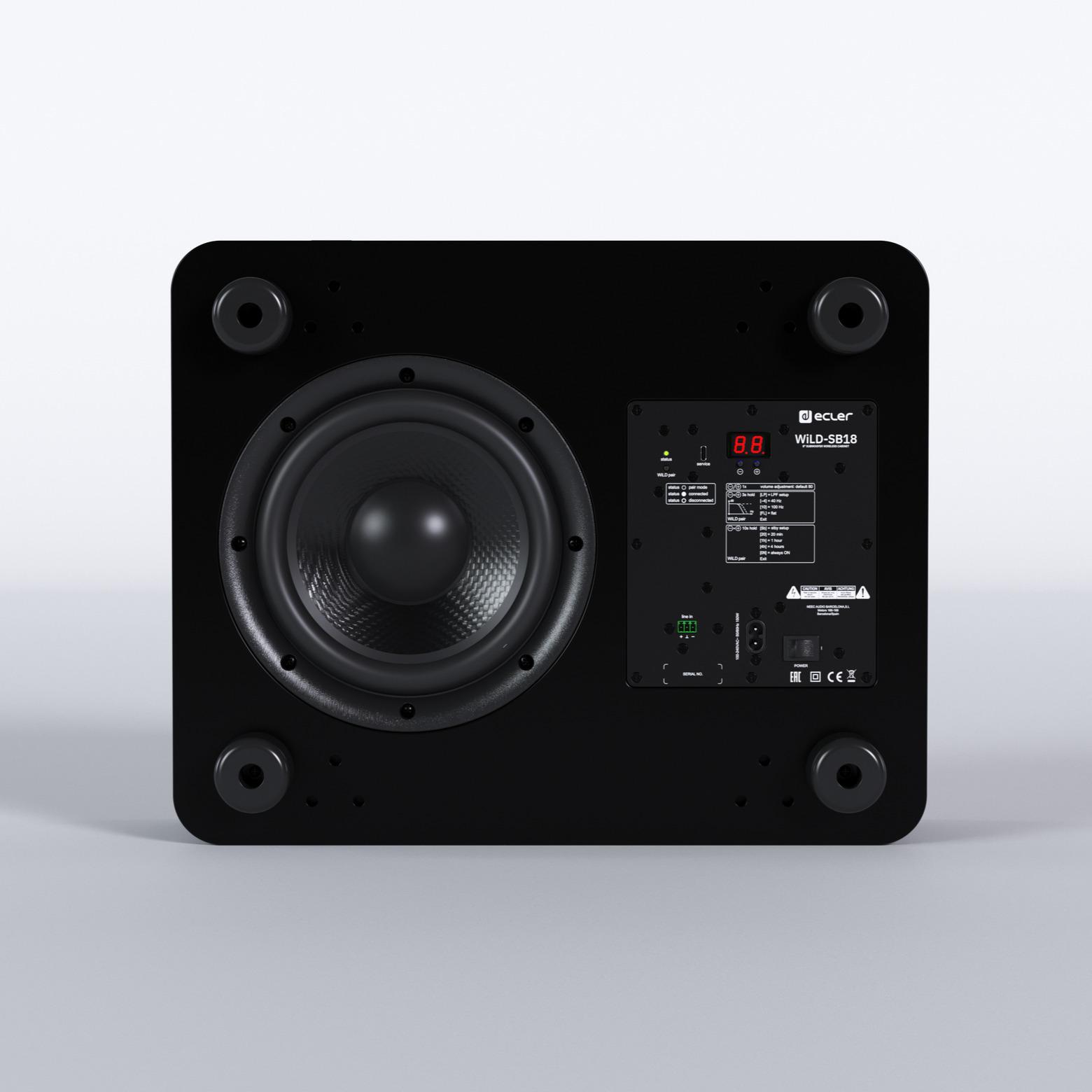

  • Subwoofer self-powered WiLD receiver, including 8” woofer and bass reflex system.
  • Universal, internal power supply (100-240VAC 50-60 Hz).
  • 1x WiLD wireless audio signal received, from the transmitter it is paired to.
  • 1x Line In Analogue stereo unbalanced Signal. 3 pin Euro block.

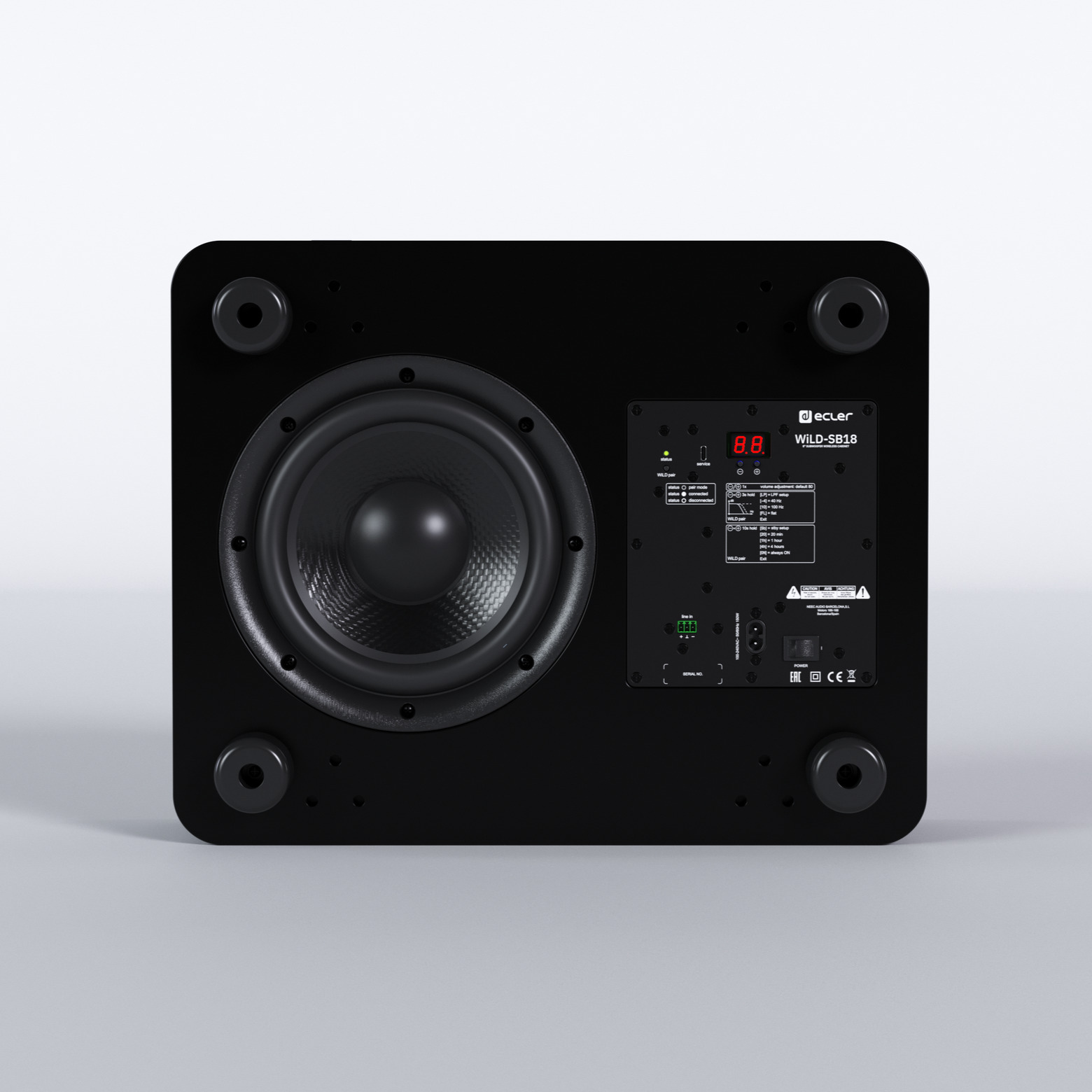

  • Rear panel controls for:
    * WiLD pair button that allows pairing the receivers to the transmitter quickly and easily.
    * LED indicator.
    * Source (input) selection.
    * Low Pass Filter selection (40, 60, 80, 100, 120, 150, 200, 250 Hz, Full Range).
    * StandBy Selection (20min, 1, 2, 4 Hours, ON Hz – )
    * General volume control.
  • Recommended maximum range from a WiLD-TX transmitter to any
  • WiLD paired receiver: 150 metres, with direct line of sight.
  • Warranty: 5 Years.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



Wireless
List Ex VAT: £679.15
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency band

1880 - 1930MHz, EU DECT, US DECT

Coverage range

Up to 150m from a TX to any paired RX, direct line of sight

Audio channels

1 stereo audio ch received from the WiLD-TX network

Latency

From TX Analog Audio IN to RX Speaker <26ms

Pairing Time

Up to 60s

Sensititvity

92dB (1W/1m)

Maximum SPL

112 dB continuous / 118 dB peak

Transducers

1-way full-range, 8” woofer, nominal impedance 4Ω

Power

100 W RMS / 150 W Peak

Audio inputs

Wireless Audio: Digital, Mono

Line in: ST unbalanced 3-pin Euroblock

Audio outputs

Internal Loudspeaker: Analog, Mono, Self powered

Power supply

Universal, internal power supply.
AC mains requirement: 100-240VAC @ 50-60Hz

Included accessories

1x EU AC voltage cord (3x1-1,5m) , 1 UK AC voltage cord (3x1-1,5m), 4x wall screws, 4x wall plugs, 2x Wall-mount brackets, 12x screws.

Dimensions

450 x 193 x 360 mm / 17.72 x 7.60 x 14.17 in. (WxHxD)

Weight

9.1 kg / 20.06 lb

Related Products

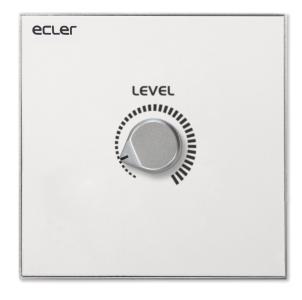

Ecler WPaVOL

Wall mounted volume control for Ecler MIMO 88 & CA series mini amps.

see more
List Ex VAT: £65.45

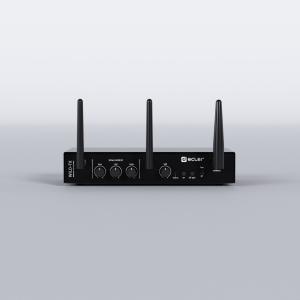

Ecler WiLD-TX

Long distance wireless audio transmitter master unit. Line of sight range up to 150m.

see more
List Ex VAT: £279.65

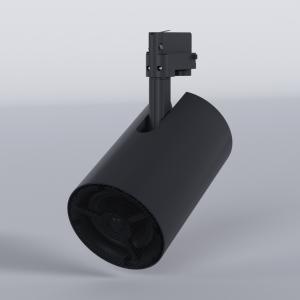

Ecler WiLD-14
