Bosch LB1-UM50E-L

Bosch LB1-UM50E-L

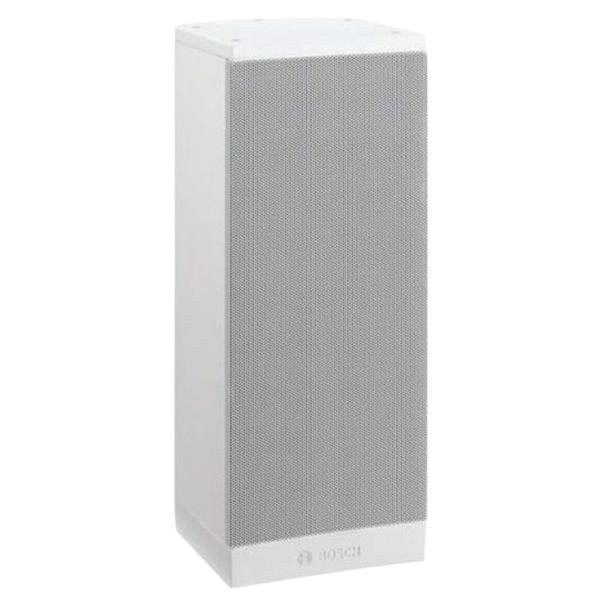

The Bosch LB1-UM50E-L EN54-24 cabinet loudspeaker is rated at 50 watts and is suitable for clear reproduction of speech, foreground and background music.

White finish (LB1-UM50E-L). Also available in Charcoal Black (LB1-UM50E-D).

Integral safety features ensure that the LB1UM50E-L is compliant with EN54-24, for use in emergency voice evacuation systems.

The input is selectable between 70V, 100 volt line and 8 ohm.

A sturdy wall mounting bracket is supplied.

  • High-fidelity music and speech reproduction
  • Supplied with adjustable wall‐mounting bracket
  • Self‐restoring overload protection
  • Provision for internal mounting of the optional line / loudspeaker supervision board
  • EN 54‐24 certified
  • Water resistant. IP65 rated.
  • Warranty: 3 Years
1a: 100V IPxx EN54 1e: 8ohms
List Ex VAT: £199.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Description

LB1‑UM50E cabinet loudspeaker

Maximum power

75 W

Rated power (PHC)

50 W

Power tapping

50/25/12.5/6.2/5 W

Sound pressure levelat rated power / 1 W (70 Hz, 1 m)

108 / 91 dB

Effective frequency range (-10 dB)

90 Hz to 20 kHz

Rated input voltage

20/70/100 V

Rated impedance

8/100/200 Ohm

Connector

3 pole screw block

Dimensions (H x W x D)

405 x 160 x 180 mm(15.94 x 6.29 x 7.08 in)

Weight

5.58kg (12.3 lb)

Color

White (RAL 9010) or Charcoal (RAL7021)

Material



- Loudspeaker cabinet & front grille

Aluminium

- Top & bottom

ABS

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%

DOWNLOADS

Bosch LB1-UM50E Datasheet
