Bosch LB2-UC30-L1
Bosch LB2-UC30-L1
Click to expand

Bosch LB2-UC30-L1

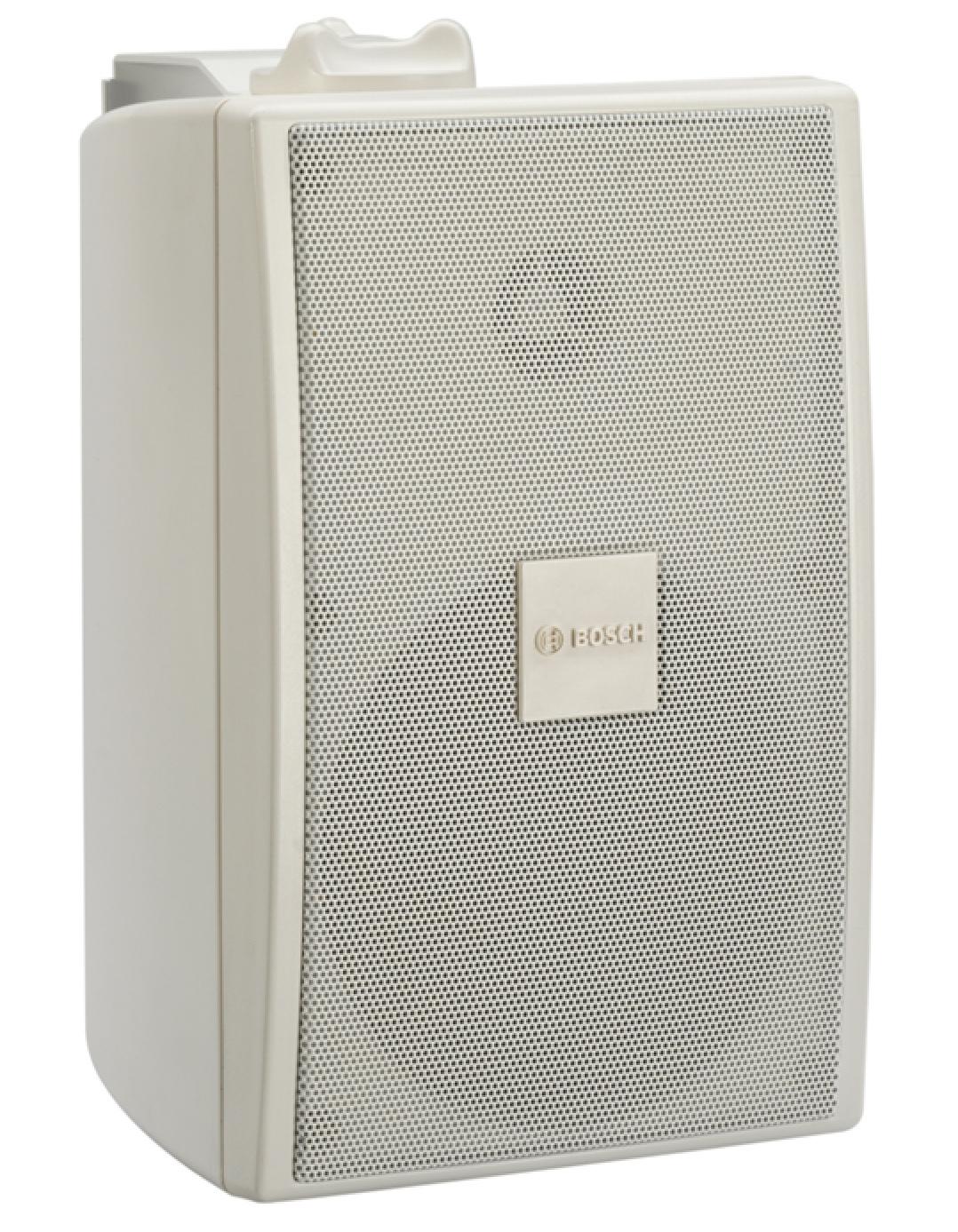

The Bosch LB2‑UC30-L1 premium quality cabinet loudspeakers are ideal for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications.

5" woofer with 0.5" dome tweeter.

Selectable 8 ohm, 70 V and 100 V inputs can be found on the rear of the LB2UC30 for complete flexibility.

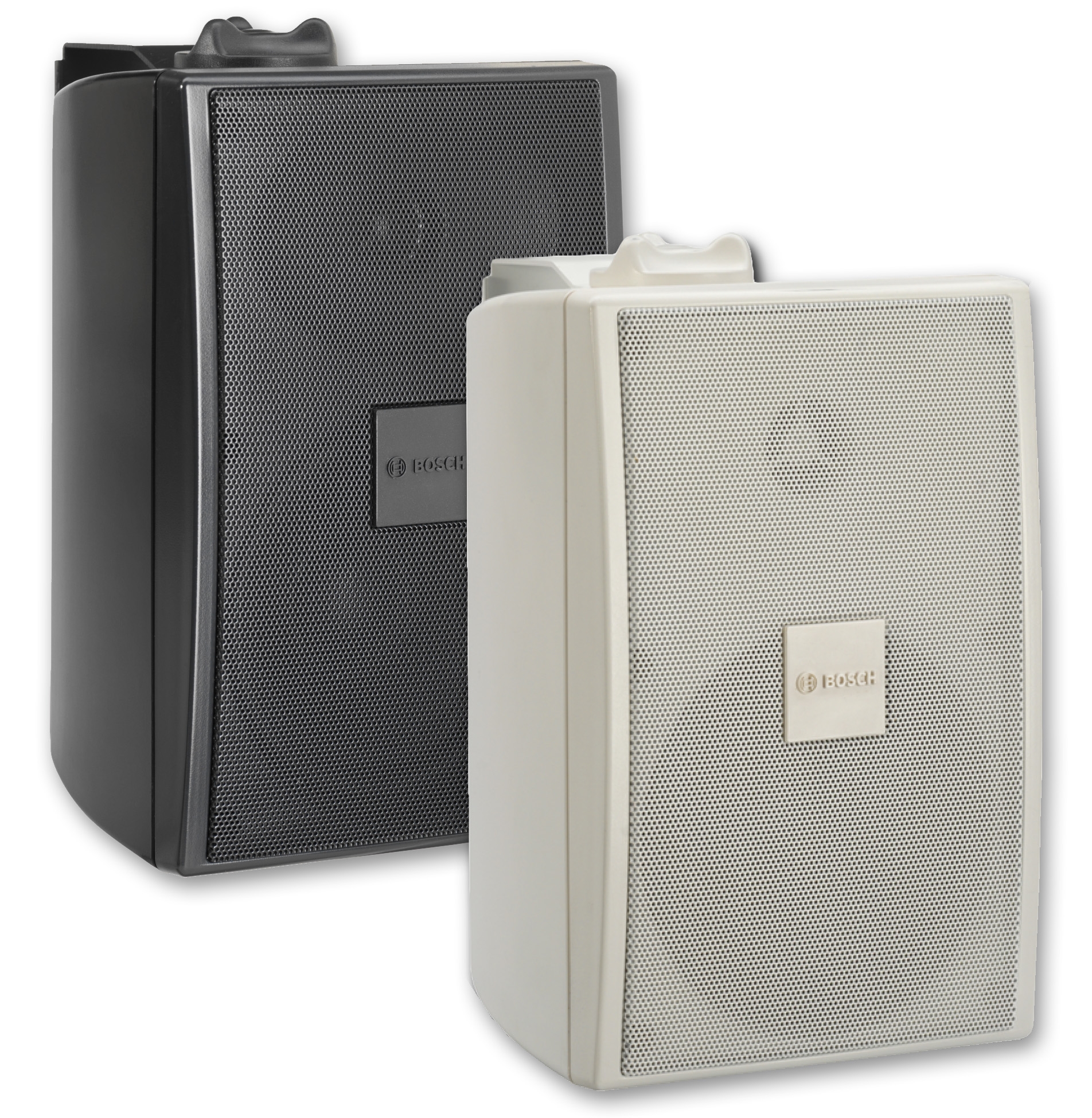

White finish: LB2-UC30-L1. Also available in Black: LB2-UC30-D1.

15 watt version also available - see LB2-UC15-D1.

  • High-fidelity music and speech reproduction
  • Selectable 8 ohm, 70 V and 100 V inputs
  • Compact yet robust ABS enclosure
  • Supplied with adjustable mounting bracket
  • Complies with international installation and safety regulations
  • Water resistant. IP65 rated.
  • Warranty: 3 Years
1a: 100V IPxx 1e: 8ohms
List Ex VAT: £85.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

45 W

Rated power

30 W  (30 / 15 / 7.5 / 3.75 W)

Sound pressure level at rated / 1 W (1 kHz, 1 m)

105 / 90 dB (SPL)

Effective frequency range (-10 dB)

100 Hz to 18.5 kHz

Opening angle 1 kHz / 4 kHz (-6 dB)

160° / 81° (horizontal) / 150° / 90° (vertical)

Rated input voltage

15.5/70/100 V

Rated impedance

8 / 163 / 333 ohm

Transducers

127 mm (5”) woofer, 13 mm (0.51 “) dome tweeter

Dimensions (H x W x D):

250 x 160 x 140 mm, (9.84 x 6.30 x 5.51 in)

Weight

2.4 kg (5.29 lb)

DOWNLOADS

Bosch LB2-UC30 Datasheet
EC Declaration of Conformity: Bosch LB2-UC30
