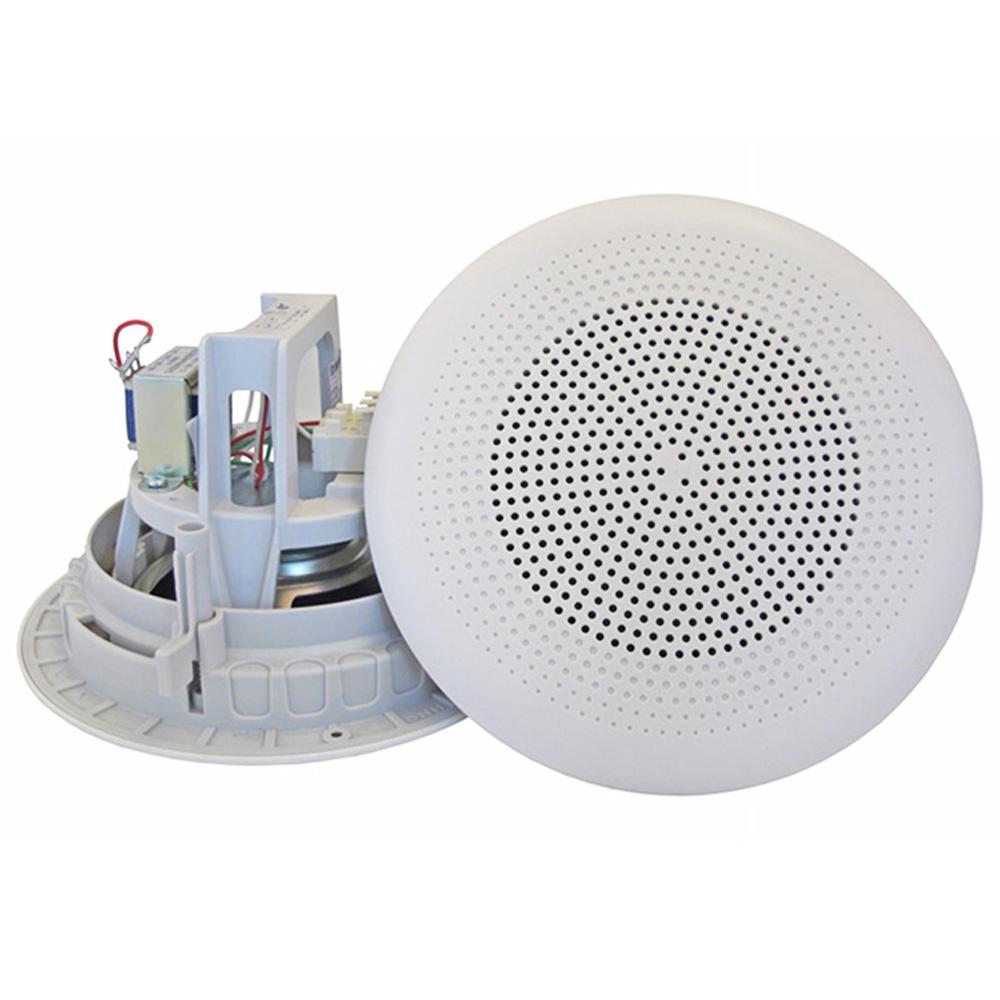

DNH BP660T
The DNH BP-660(T) is a 6", 6 watt ceiling speaker for background music and paging on a 100 volt line public address sound system.
Easy to mount using the improved plastic clips which enable mounting to ceiling substrates up to 55mm thick.
SPECIFICATIONS
| Rated Power (rms) | 6W |
| Power Taps @ 100V | 6W, 3W, 1.5W & 0.5W |
| Power Taps @ 70.7V | ? |
| SPL (1W/1m) | 93dB |
| Max SPL (rated/1m) | 100dB |
| Frequency Range (-10dB) | 100HZ -205KHZ |
| Dispersion 1K Hz / 4K Hz | 150° / 50° |
| Termination | Spring clamp |
| Max. / min. amb. temp | 90°C / -20°C |
| Material | ABS |
| Colour | White (RAL9010) |
| Weight (kg) | 1.1 kg |
| Dimensions (Ø x D) mm | 237 x 120 |
| Mounting | Hooks |
