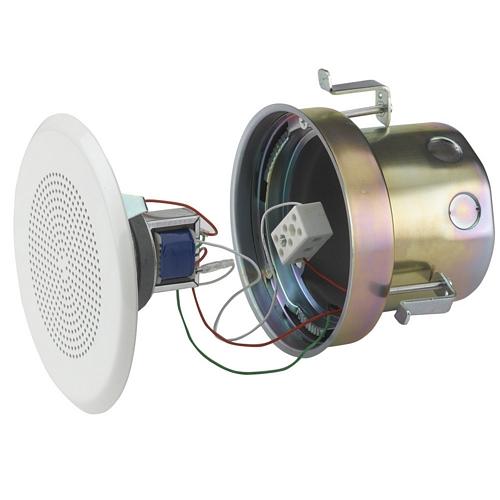

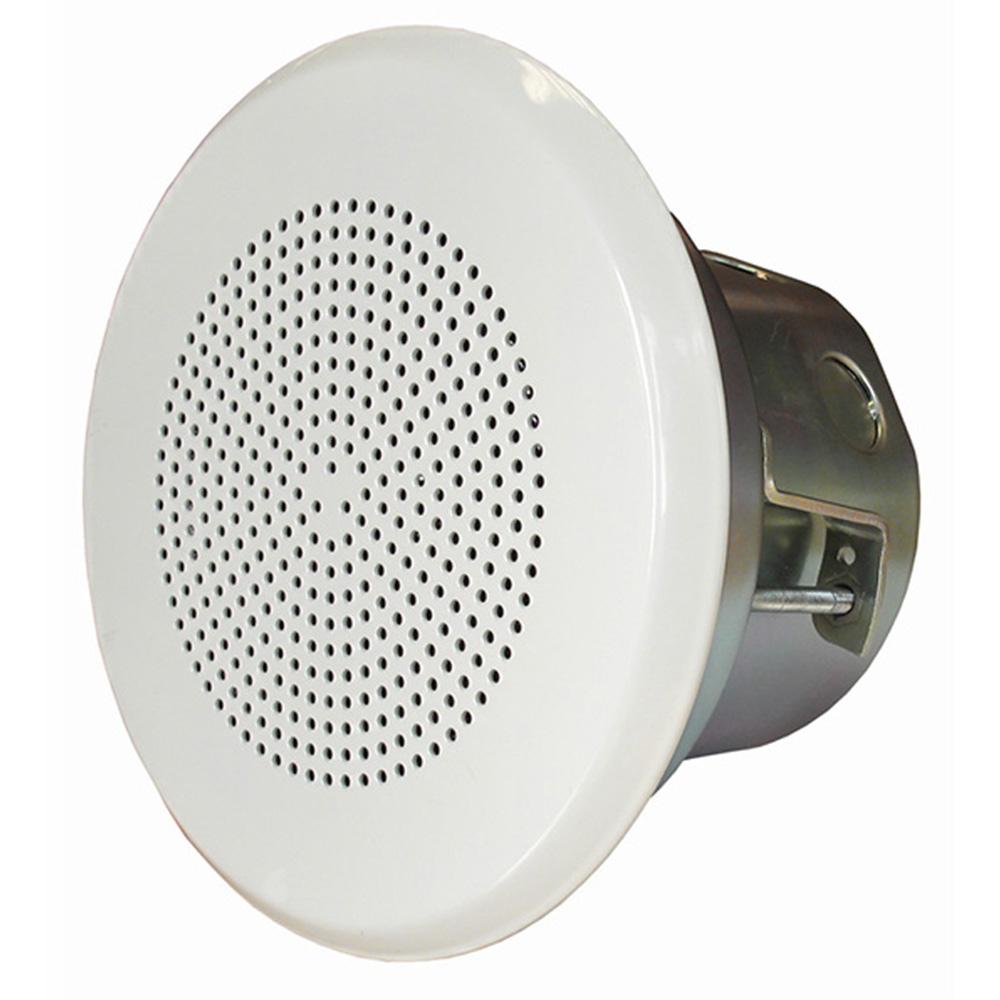

The DNH VES-561-54T+CAP is a 5" 6 watt, 100 volt line EN54-24 certified metal ceiling speaker complete with steel firedome and capacitor. EN54-24 compliant for voice evacuation PA systems.
Safety features include ceramic terminal block and thermal fuse.
Lightly water resistant, rated IP22.
Also available without capacitor - see VES-561-54T.
| Rated Power (rms) | 6W |
| Power Taps @ 100V | 6W, 3W, 1.5W & 0.5W |
| Power Taps @ 70.7V | ? |
| SPL (1W/1m) | 90dB |
| Max SPL (rated/1m) | 97dB |
| Frequency Range (-10dB) | 180HZ - 12KHZ |
| Max. / min. amb. temp | 90°C / -20°C |
| Dispersion 1K Hz / 4K Hz | 185° / 80° |
| Termination | Ceramic terminals |
| Material | Steel, Aluminium |
| Colour | White |
| Dimensions mm | 266 (10.47) Dia. X 90 (3.54) Height mm. (in.) |
| Weight (kg) | 1.1 |
| Mounting | 3 screws |
